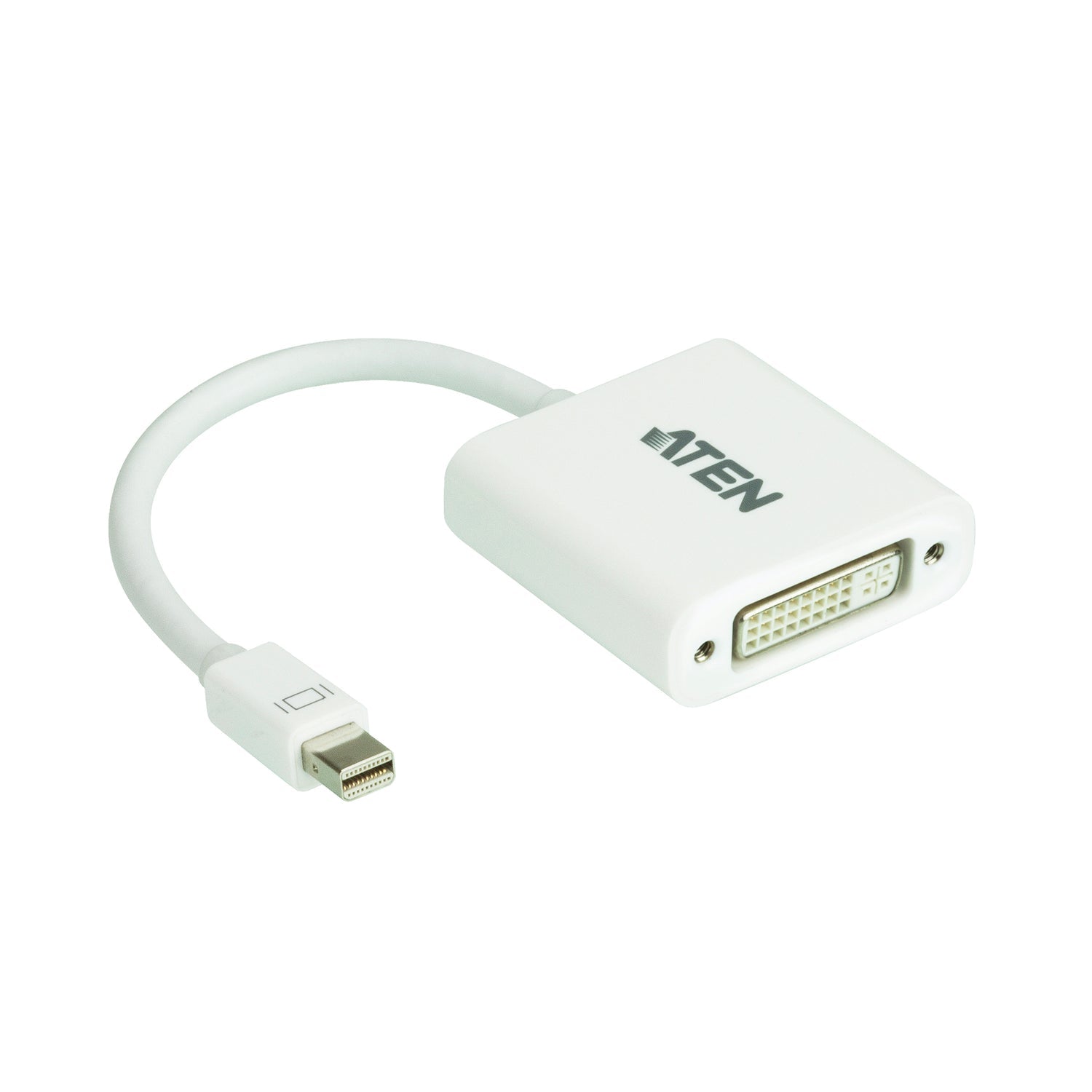

ATEN VC960 Mini DisplayPort to DVI Adapter
PRODUCT DESCRIPTION
ATEN VC960 Mini DisplayPort to DVI Adapter - 2 Years Local Warranty
Mini DisplayPort to DVI Monitors

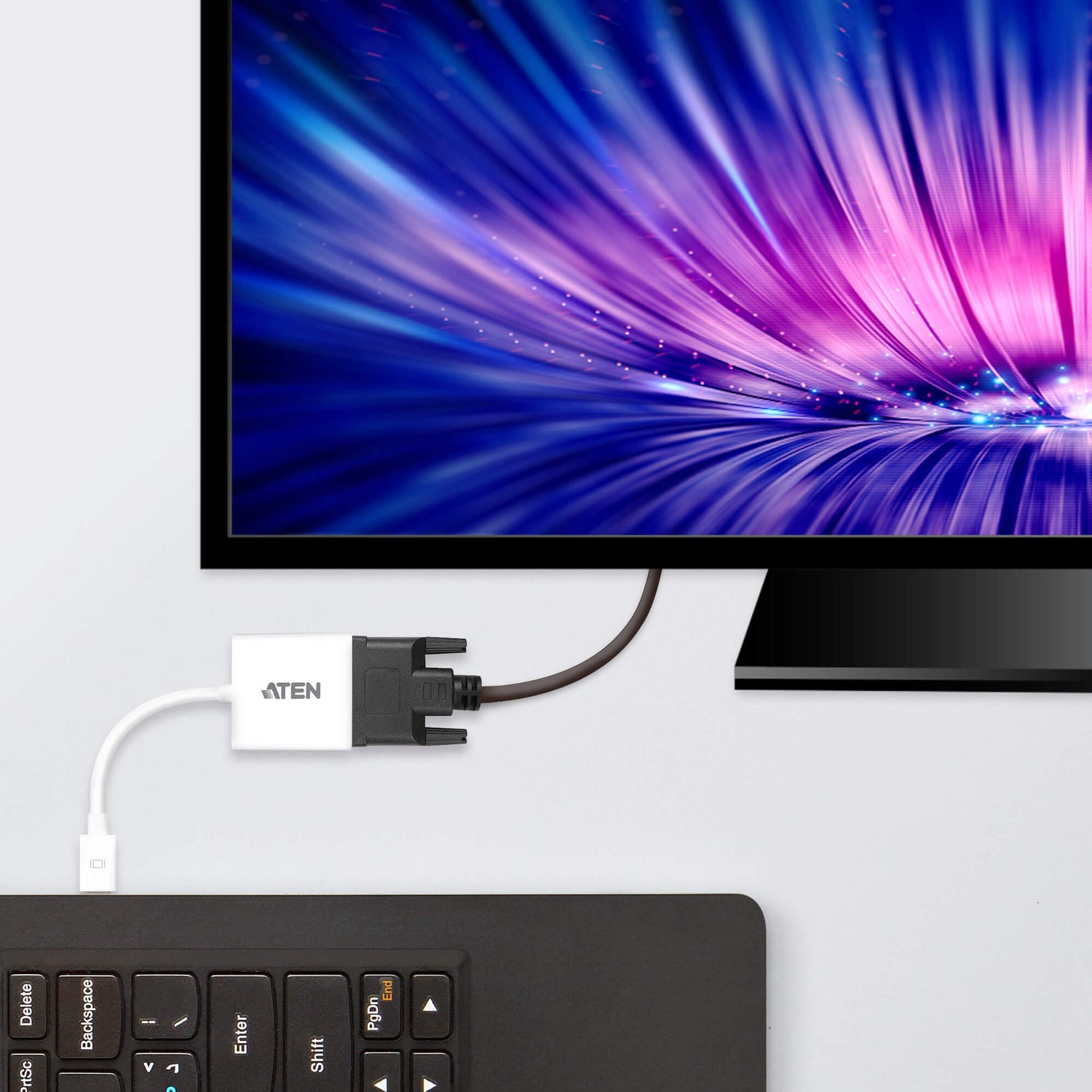

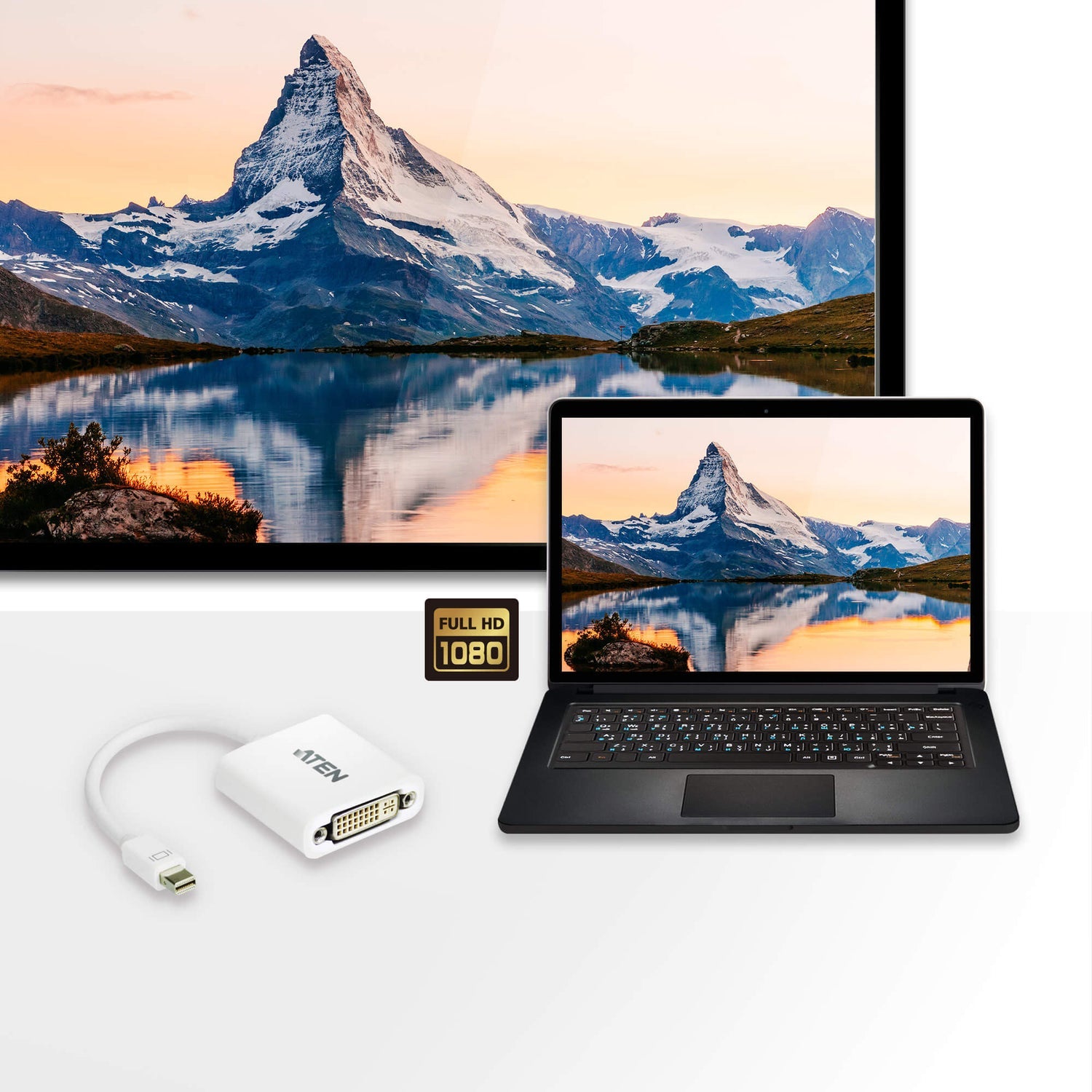

The VC960 connects a computer with a Mini DisplayPort output to a DVI monitor or projector – handy for Mac computers and laptops with Mini DisplayPort, and for workstation graphics cards with mDP outputs.
Up to 1920 x 1200
Supports output resolutions up to 1920 x 1200 (PC) / 1080p (HDTV), including widescreen formats, with a 165 MHz pixel clock. The DVI-I socket carries a digital signal only.
No Software Needed
Compliant with DP 1.2 and DVI 1.1; simply plug in, with no software or drivers to install.
Connecting a lab or office full of Mini DisplayPort machines? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ATEN VC960 Datasheet — Technical Specifications
General
| Product Name | ATEN Mini DisplayPort to DVI Adapter |
| Model | VC960 |
| Order Code | VC960-AT |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Connectors
| Video Input | 1 x Mini DisplayPort Male |
| Video Output | 1 x DVI-I Female (digital signal only) |
| Audio | Not supported |
Video
| Max. Resolution | Input: up to 4096 x 2160 @ 60Hz (4:4:4); Output: up to 1920 x 1200 |
| Max. Pixel Clock | 165 MHz |
| Compliance | DP 1.2, DVI 1.1 |
Environmental
| Operating Temperature | 0–50 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Plastic |
| Weight | 0.05 kg |
| Dimensions (L x W x H) | 20.00 x 4.30 x 2.01 cm |
Compatibility & Applications
Typical Sources
Mac computers and laptops with Mini DisplayPort, and workstation graphics cards with Mini DisplayPort outputs.
Typical Displays
DVI-D monitors and projectors up to 1920 x 1200. Analogue displays are not supported.
Selection Tip
For full-size DisplayPort sources choose the VC965. For HDMI displays from Mini DisplayPort, see the VC980 or the 4K VC981.
Package Contents & ATEN Video Adapter Ordering Information
In the Box
1 x VC960 Mini DisplayPort to DVI Adapter.
ATEN Video Adapter Models
| Model | Key feature |
| VC985 | DisplayPort to HDMI adapter, up to 1080p |
| VC986 | DisplayPort to 4K HDMI active adapter, 4K@30Hz |
| VC986B | DisplayPort to True 4K HDMI active adapter, 4K@60Hz |
| VC965 | DisplayPort to DVI adapter |
| VC925 | DisplayPort to VGA adapter |
| VC981 | Mini DisplayPort to 4K HDMI active adapter |
| VC980 | Mini DisplayPort to HDMI adapter |
| VC960 (this listing) | Mini DisplayPort to DVI adapter |
| VC920 | Mini DisplayPort to VGA adapter |
| VC810 | HDMI to VGA adapter |
Datasheet & Downloads
| Datasheet | VC920 / VC960 / VC980 Datasheet (PDF) |
| ATEN product page | VC960 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting VC960-AT.
Frequently Asked Questions — ATEN VC960
Does it work with a Mac?
Yes. ATEN states the VC960 works with Mac products that have a Mini DisplayPort output.
What resolution does it output?
Up to 1920 x 1200 (PC) / 1080p (HDTV).
Does it carry audio?
No. DVI output is video only.
Do I need drivers?
No. No software or drivers are required.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
