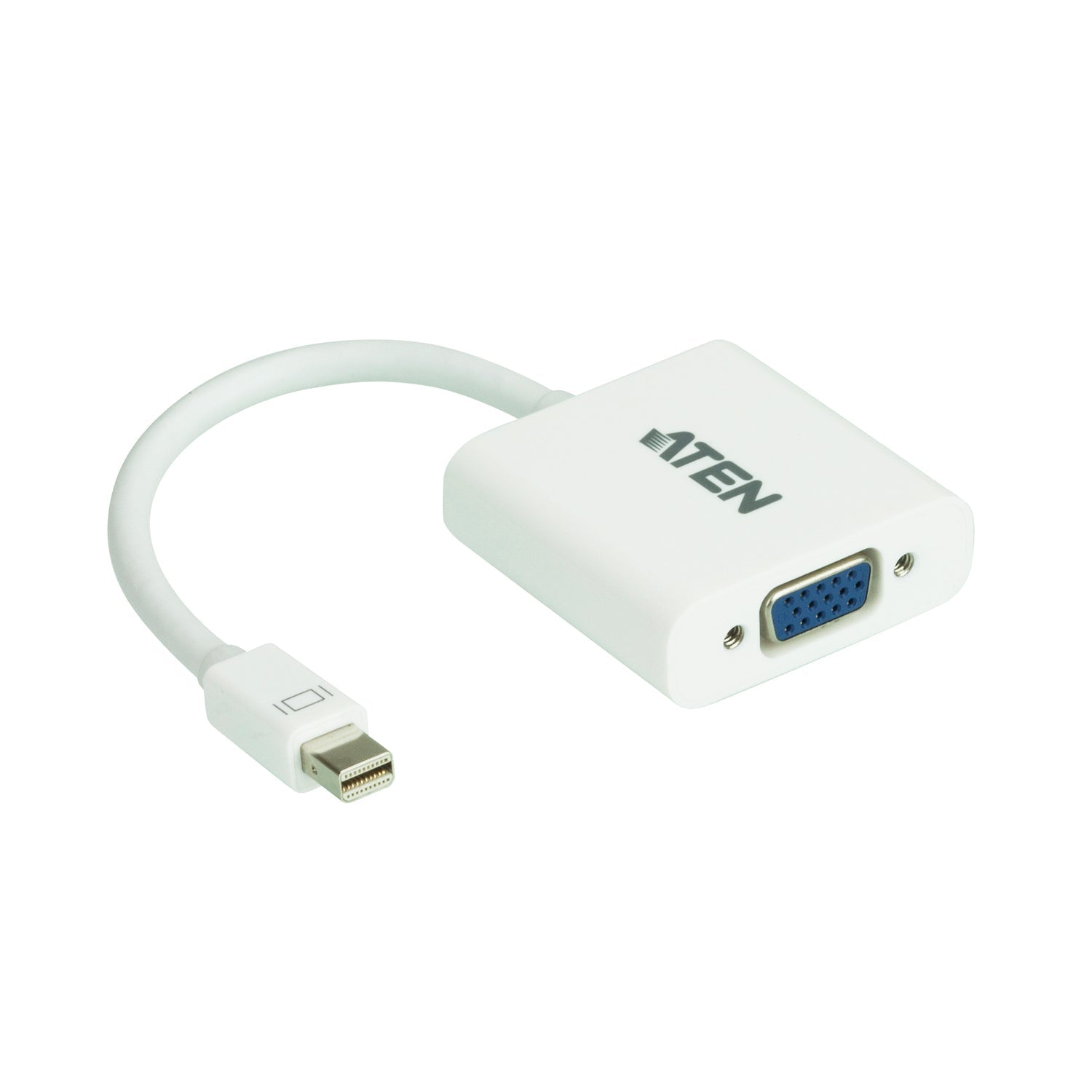

ATEN VC920 Mini DisplayPort to VGA Adapter
PRODUCT DESCRIPTION
ATEN VC920 Mini DisplayPort to VGA Adapter - 2 Years Local Warranty

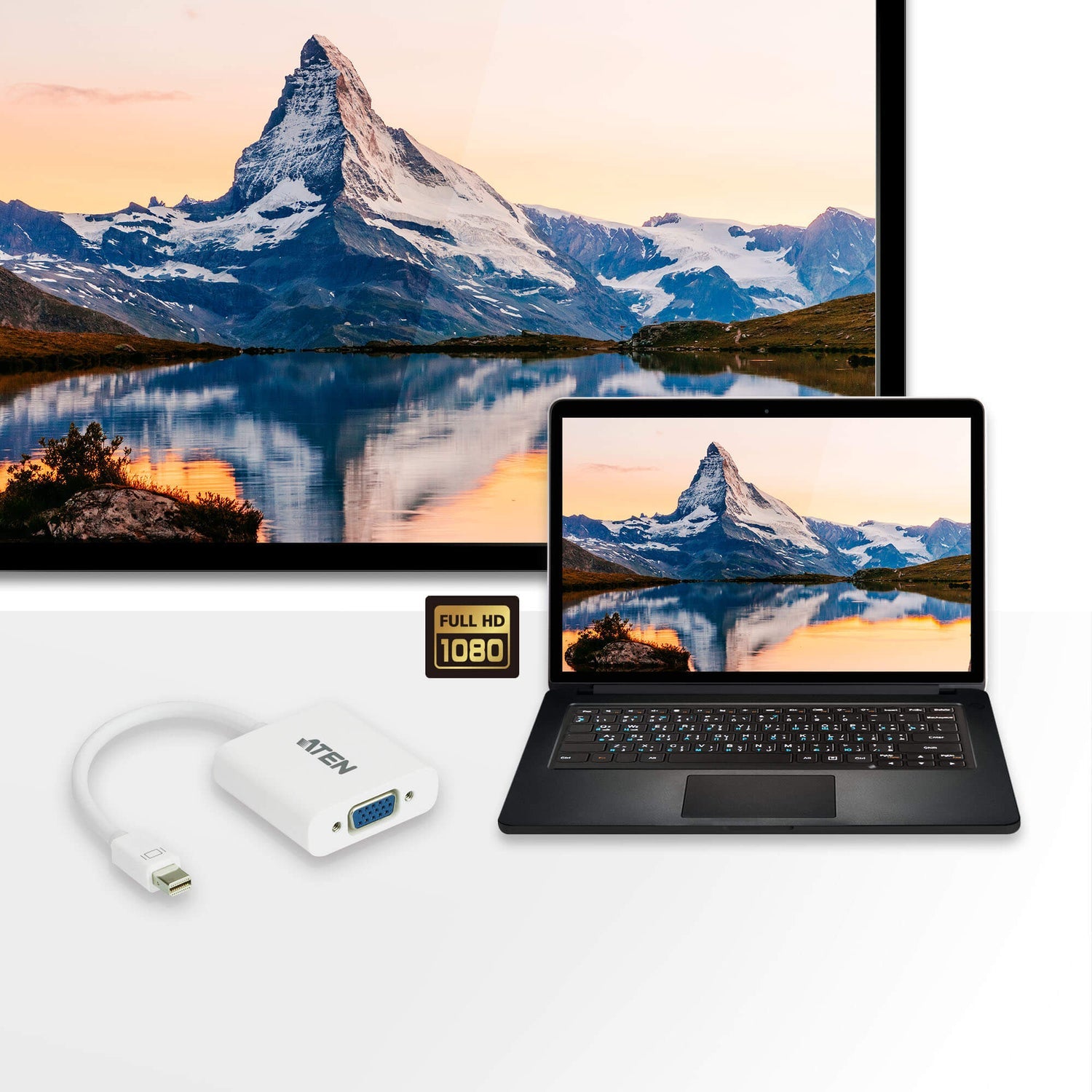

Keep Using VGA Projectors and Monitors

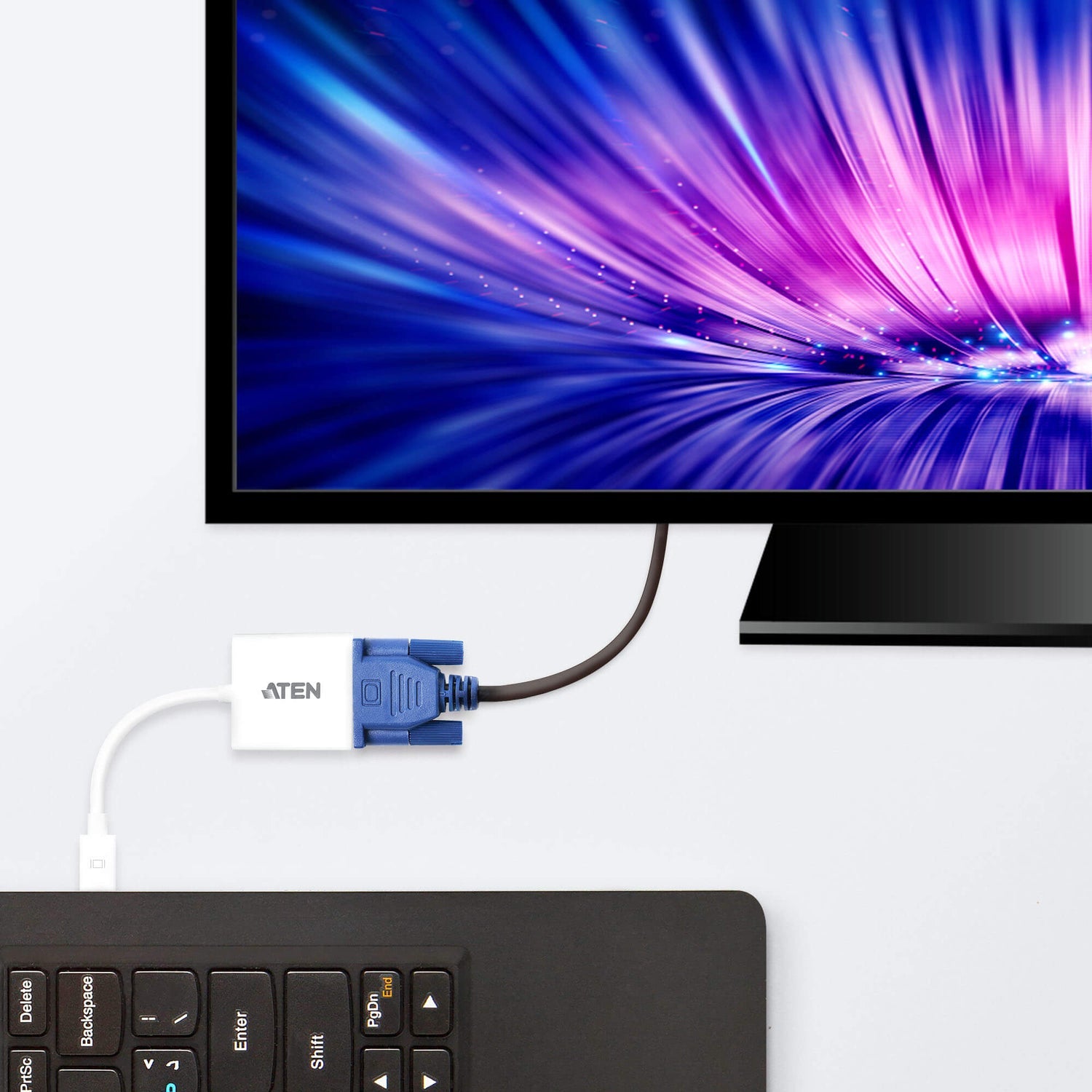

The VC920 converts a Mini DisplayPort output to VGA (HDB-15), so newer laptops can still present on VGA projectors and older monitors.
Up to 1920 x 1200
Outputs up to 1920 x 1200 (PC) or 1080p at a 165 MHz pixel clock, DisplayPort 1.2 compliant.
No Drivers Needed
Plug-and-play with no software. ATEN lists support for MacBook, MacBook Pro, MacBook Air, Mac mini and Mac Pro.
Compact for the Laptop Bag
A lightweight 0.04 kg adapter that is easy to keep with a laptop for meeting rooms and classrooms.
Supporting VGA projectors across classrooms or meeting rooms? Email sales@sourceit.com.sg for volume pricing.
ATEN VC920 Datasheet — Technical Specifications
General
| Product Name | ATEN Mini DisplayPort to VGA Adapter |
| Model | VC920 |
| Order Code | VC920-AT |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Connectors
| Video Input | 1 x Mini DisplayPort Male (white) |
| Video Output | 1 x HDB-15 (VGA) Female (blue) |
Video
| Max. Pixel Clock | 165 MHz |
| Max. Resolution | 1920 x 1200 (PC) / 1080p |
| Compliance | DisplayPort 1.2 |
Environmental and Physical
| Operating Temperature | 0–50 °C |
| Housing | Plastic |
| Weight | 0.04 kg |
| Dimensions | 20.00 x 4.30 x 2.01 cm |
Compatibility
| Software | No software or drivers required |
| Mac Support (listed by ATEN) | MacBook, MacBook Pro, MacBook Air, Mac mini, Mac Pro |
Compatibility & Applications
Typical Devices
Laptops and desktops with Mini DisplayPort output connected to VGA projectors, monitors and KVM switches.
Typical Use
Presenting on older classroom and meeting room projectors, and connecting legacy VGA monitors.
Selection Tip
VGA carries video only, so audio needs a separate connection. For HDMI displays, choose the VC980 or VC981.
Package Contents & ATEN Video Adapter Ordering Information
In the Box
1 x VC920 Mini DisplayPort to VGA Adapter.
ATEN Video Adapter Models
| Model | Key feature |
| VC980 | Mini DisplayPort to HDMI adapter, 1080p |
| VC981 | Mini DisplayPort to 4K HDMI active adapter |
| VC920 (this listing) | Mini DisplayPort to VGA adapter |
| VC960 | Mini DisplayPort to DVI adapter |
| VC985 | DisplayPort to HDMI adapter |
| VC986B | DisplayPort to True 4K HDMI active adapter |
| UC3008A1 | USB-C to 4K HDMI adapter |
| UC3002A | USB-C to VGA adapter |
Datasheet & Downloads
| Datasheet | VC920 / VC960 / VC980 Datasheet (PDF) |
| Quick start guide | VC920 / VC980 Quick Start Guide (PDF) |
| ATEN product page | VC920 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting VC920-AT.
Frequently Asked Questions — ATEN VC920
Does the VC920 carry audio?
No. VGA is video-only; use a separate audio connection.
What resolution does it support?
Up to 1920 x 1200 (PC) or 1080p.
Do I need drivers?
No. It is plug-and-play.
Which Macs are supported?
ATEN lists MacBook, MacBook Pro, MacBook Air, Mac mini and Mac Pro models with Mini DisplayPort output.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
