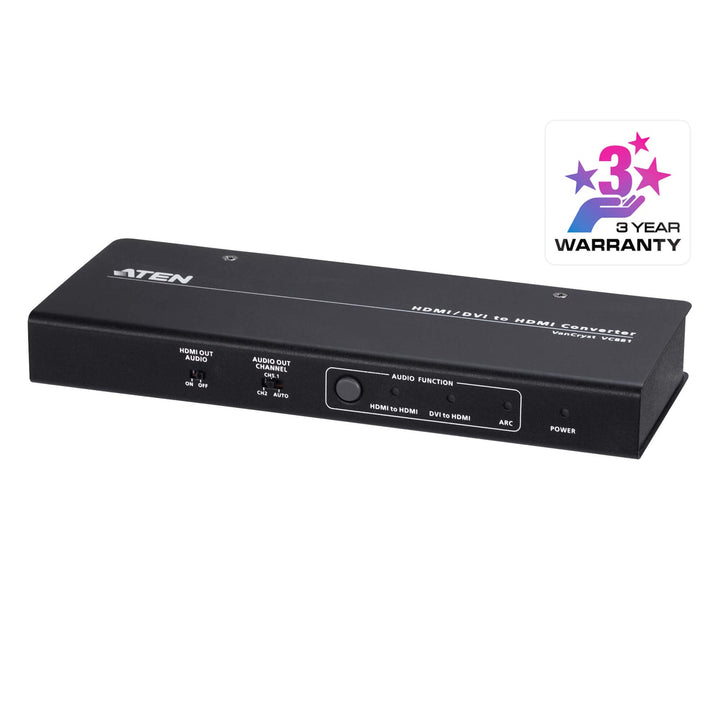

ATEN VC881 4K HDMI/DVI to HDMI Converter with Audio De-embedder
PRODUCT DESCRIPTION
ATEN VC881 4K HDMI/DVI to HDMI Converter with Audio De-embedder - 2 Years Local Warranty
Pull the Audio Out of HDMI
The VC881 extracts the audio stream from an HDMI signal and outputs it as Toslink optical (S/PDIF), coaxial or RCA stereo, so you can feed a sound bar, amplifier or mixer while the video continues to the display.
HDMI or DVI In, HDMI Out
Choose HDMI-to-HDMI or DVI-to-HDMI mode with a pushbutton. HDMI input supports up to 3840 x 2160 @ 30 Hz and DVI up to 1920 x 1200. A 3.5 mm audio input lets you add sound to a DVI source.
ARC Support
The HDMI output supports Audio Return Channel, and the unit is HDMI 1.4 (3D, Deep Color, 4K) and HDCP 1.4 compliant.
Simple and Upgradable
Pushbutton mode selection, firmware upgradability and a compact metal housing for AV racks and equipment cabinets.
Integrating audio systems in meeting rooms or venues? Email sales@sourceit.com.sg for configuration advice and pricing.
ATEN VC881 Datasheet — Technical Specifications
General
| Product Name | ATEN 4K HDMI/DVI to HDMI Converter with Audio De-embedder |
| Model | VC881 |
| Order Code | VC881-AT-E |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Connectors
| Video Inputs | 1 x HDMI Type A Female; 1 x DVI-D Female |
| Video Output | 1 x HDMI Type A Female (with ARC) |
| Audio Input | 1 x 3.5 mm jack |
| Audio Outputs | 1 x Toslink (optical); 1 x RCA coaxial; 2 x RCA stereo |
Video
| Maximum Resolution | HDMI: 3840 x 2160 @ 30 Hz; DVI: 1920 x 1200 |
| Max Data Rate | 10.2 Gbps (3.4 Gbps per lane) |
| Compliance | HDMI 1.4 (3D, Deep Color, 4K); HDCP 1.4 |
| Modes | HDMI to HDMI; DVI to HDMI (pushbutton selection) |
Distance
| Input | HDMI: 3 m; DVI: 1.8 m |
| Output | 3 m |
Power
| Power Consumption | DC 5 V, 1.77 W |
| Power Adapter | Included |
Environmental
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Metal |
| Weight | 0.47 kg |
| Dimensions (L x W x H) | 20.20 x 8.49 x 2.50 cm |
Compatibility & Applications
Typical Sources
PCs, media players, set-top boxes and game consoles with HDMI output, or legacy computers with DVI-D output.
Typical Use
Sending HDMI audio to sound bars, amplifiers and DSPs in meeting rooms, classrooms, bars and restaurants, home theatres and digital signage.
Selection Tip
Keep input cables within 3 m (HDMI) or 1.8 m (DVI). The VC881 supports 4K at 30 Hz; it is not a 4K60 device.
Package Contents & ATEN Video Converter Ordering Information
In the Box
1 x VC881 unit, 1 x power adapter, 1 x user instructions.
ATEN Video Converter Models
| Model | Key feature |
| VC881 (this listing) | 4K HDMI/DVI to HDMI converter with audio de-embedder |
| VC1280 | 4K HDMI/VGA to HDMI converter switch |
| VC180 | VGA/audio to HDMI converter |
| VC182 | VGA/audio to HDMI converter with scaler |
| VC812 | HDMI to VGA/audio converter with scaler |
| VC160A | VGA to DVI converter |
Datasheet & Downloads
| Datasheet | VC881 Datasheet (PDF) |
| User manual | VC881 User Manual (PDF) |
| ATEN product page | VC881 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting VC881-AT-E.
Frequently Asked Questions — ATEN VC881
What audio outputs does it have?
Toslink optical (S/PDIF), RCA coaxial and a pair of RCA stereo outputs.
Can I use a DVI source?
Yes. In DVI-to-HDMI mode it accepts DVI-D up to 1920 x 1200, and you can add audio through the 3.5 mm input.
Does it support 4K?
Yes, HDMI up to 3840 x 2160 @ 30 Hz.
Does it support ARC?
Yes. The HDMI output supports Audio Return Channel.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
