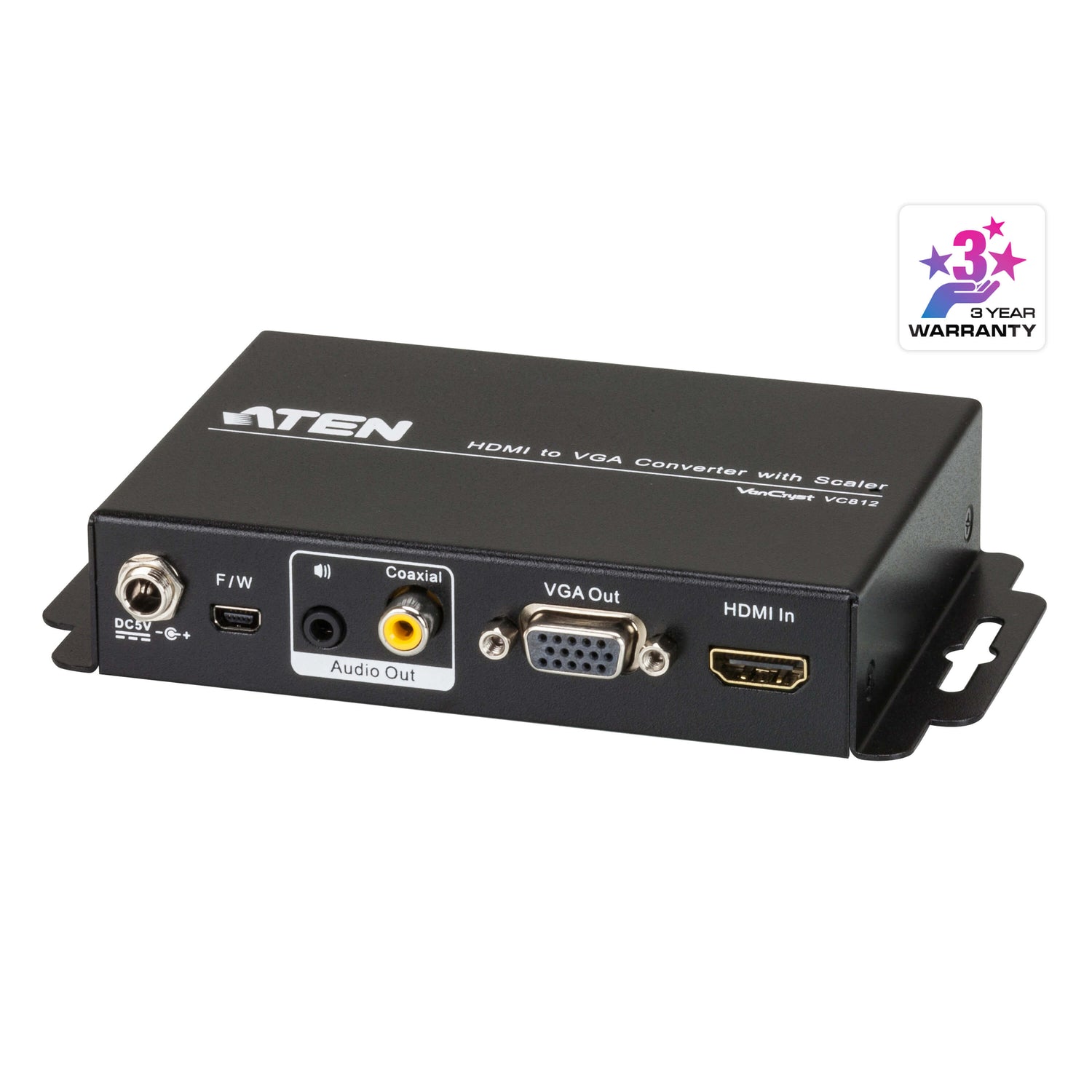

ATEN VC812 HDMI to VGA/Audio Converter with Scaler
PRODUCT DESCRIPTION
ATEN VC812 HDMI to VGA/Audio Converter with Scaler - 2 Years Local Warranty
Keep Using Your VGA Displays
The VC812 converts the HDMI output of a modern laptop, PC or media player to VGA, so existing VGA projectors and monitors stay in service.
Built-In Scaler and Picture Processing
A high-performance scaler converts resolutions automatically, with output up to 1080p and 1920 x 1200. 3D deinterlacing, video noise reduction and colour enhancement keep the picture clean.
Audio Out, Analogue or Digital
The HDMI audio is extracted to a 3.5 mm analogue stereo jack and a digital coaxial RCA output for speakers or an amplifier.
Easy Setup

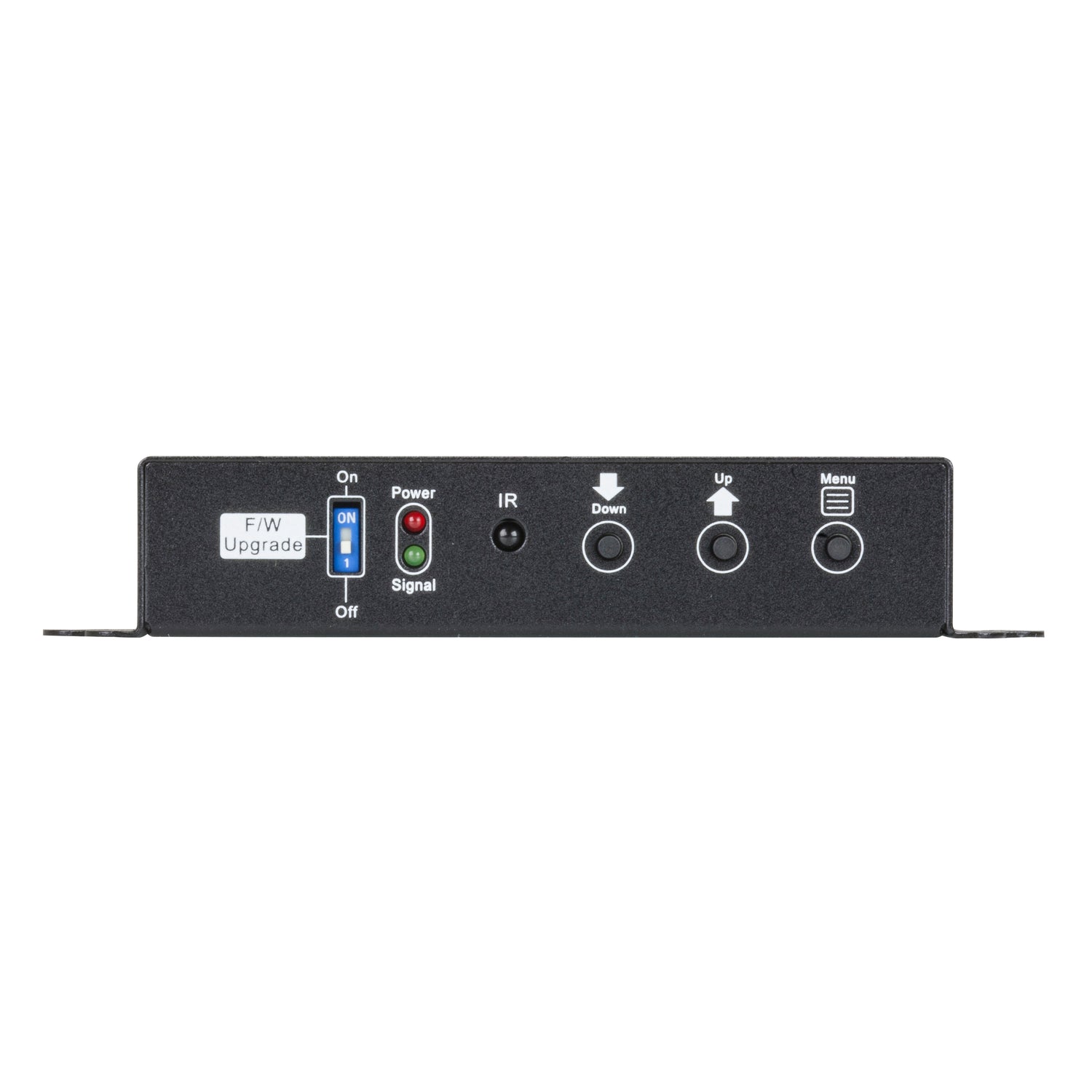

Automatic signal detection, an on-screen menu for video and system settings, and power and source LEDs. No software installation is required.
Keeping a fleet of VGA projectors in service? Email sales@sourceit.com.sg for volume pricing.
ATEN VC812 Datasheet — Technical Specifications
General
| Product Name | ATEN HDMI to VGA/Audio Converter with Scaler |
| Model | VC812 |
| Order Code | VC812-AT-E |
| Local Warranty (Singapore) | 2 years carry-in warranty |

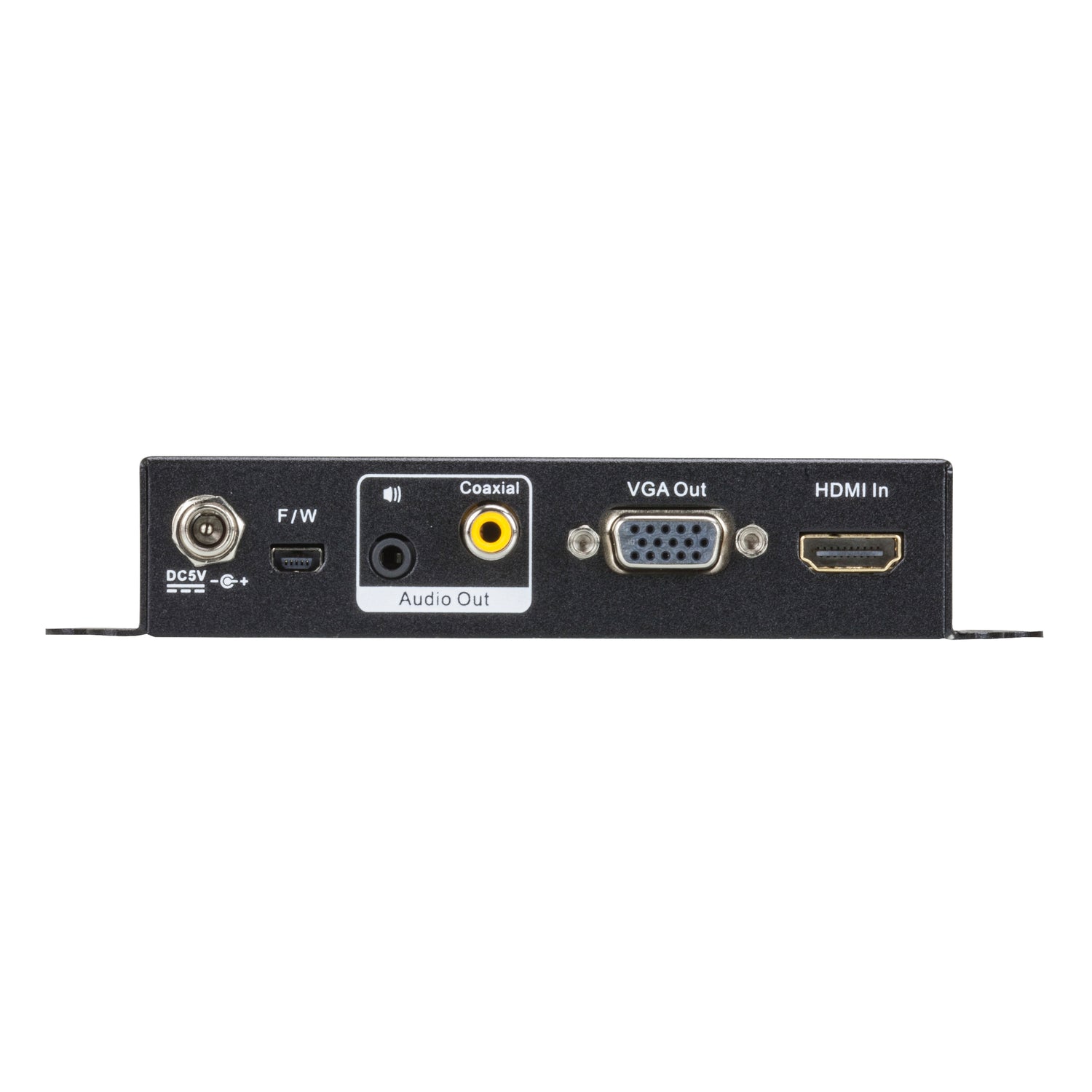

Connectors
| Video Input | 1 x HDMI Type A Female (100 Ω) |
| Video Output | 1 x HDB-15 (VGA) Female (75 Ω) |
| Audio Output | Analogue: 1 x mini stereo jack; Digital: 1 x RCA (coaxial, yellow) |
| Power | 1 x DC jack |
Video
| Max Pixel Clock | 165 MHz |
| Maximum Resolution | 1920 x 1200 |
| Scaler Output Resolutions | 480p; 576p; 800 x 600; 1024 x 768; 1280 x 720; 1280 x 1024; 1360 x 768; 1440 x 900; 1600 x 1200; 1680 x 1050; 1080i; 1080p; 1920 x 1200 |
| HDCP | Not supported |
Power
| Power Consumption | DC 5 V, 2.125 W |
| Power Adapter | Included |
Environmental
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 20–90% RH, non-condensing |
Physical
| Housing | Metal |
| Weight | 0.29 kg |
| Dimensions (L x W x H) | 11.00 x 8.30 x 2.80 cm |
Compatibility & Applications
Typical Sources
Laptops, PCs, media players and document cameras with HDMI output (non-HDCP content).
Typical Use
Connecting new laptops to existing VGA projectors and monitors in meeting rooms, classrooms, lecture halls and older digital signage.
Selection Tip
The VC812 does not support HDCP, so protected content such as Blu-ray or streaming video will not pass. For the opposite direction, VGA to HDMI, choose the VC182.
Package Contents & ATEN Video Converter Ordering Information
In the Box
1 x VC812 HDMI to VGA converter with scaler, 1 x power adapter, 1 x software CD, 1 x user instructions.
ATEN Video Converter Models
| Model | Key feature |
| VC810 | HDMI to VGA adapter |
| VC812 (this listing) | HDMI to VGA/audio converter with scaler |
| VC180 | VGA/audio to HDMI converter |
| VC182 | VGA/audio to HDMI converter with scaler |
| VC881 | 4K HDMI/DVI to HDMI converter with audio de-embedder |
| VC1280 | 4K HDMI/VGA to HDMI converter switch |
Datasheet & Downloads
| Datasheet | VC812 Datasheet (PDF) |
| User manual | VC812 User Manual (PDF) |
| Quick start guide | VC812 Quick Start Guide (PDF) |
| ATEN product page | VC812 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting VC812-AT-E.
Frequently Asked Questions — ATEN VC812
Does it support HDCP?
No. HDCP-protected content will not be converted.
What output resolutions can I choose?
The scaler offers resolutions from 480p up to 1080p and 1920 x 1200, including common PC resolutions such as 1024 x 768 and 1280 x 1024.
How do I get the audio out?
HDMI audio is output on a 3.5 mm analogue stereo jack and a digital coaxial RCA jack.
Does it need software?
No software installation is required. A power adapter is included.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
