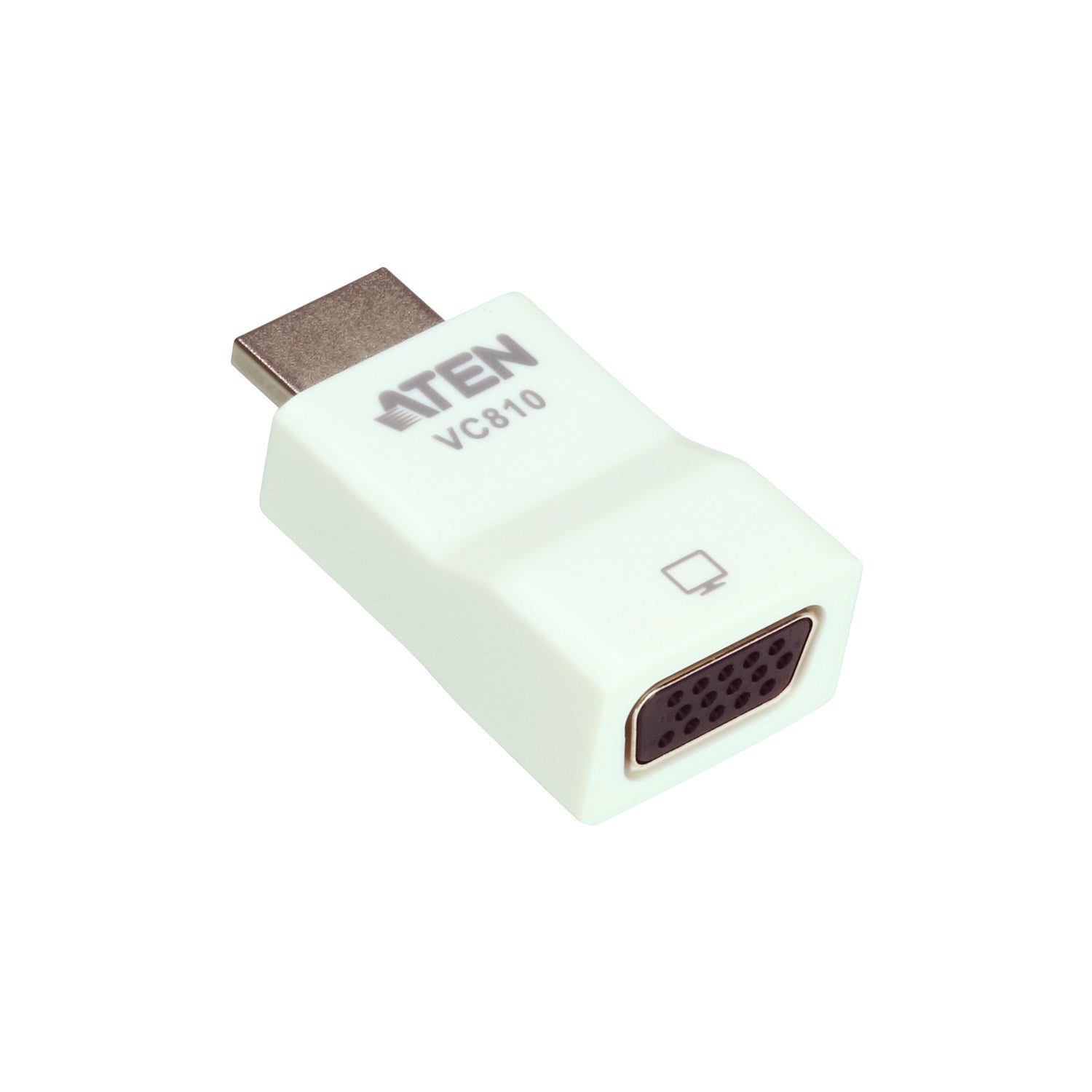

ATEN VC810 HDMI to VGA Adapter
PRODUCT DESCRIPTION
ATEN VC810 HDMI to VGA Adapter - 2 Years Local Warranty

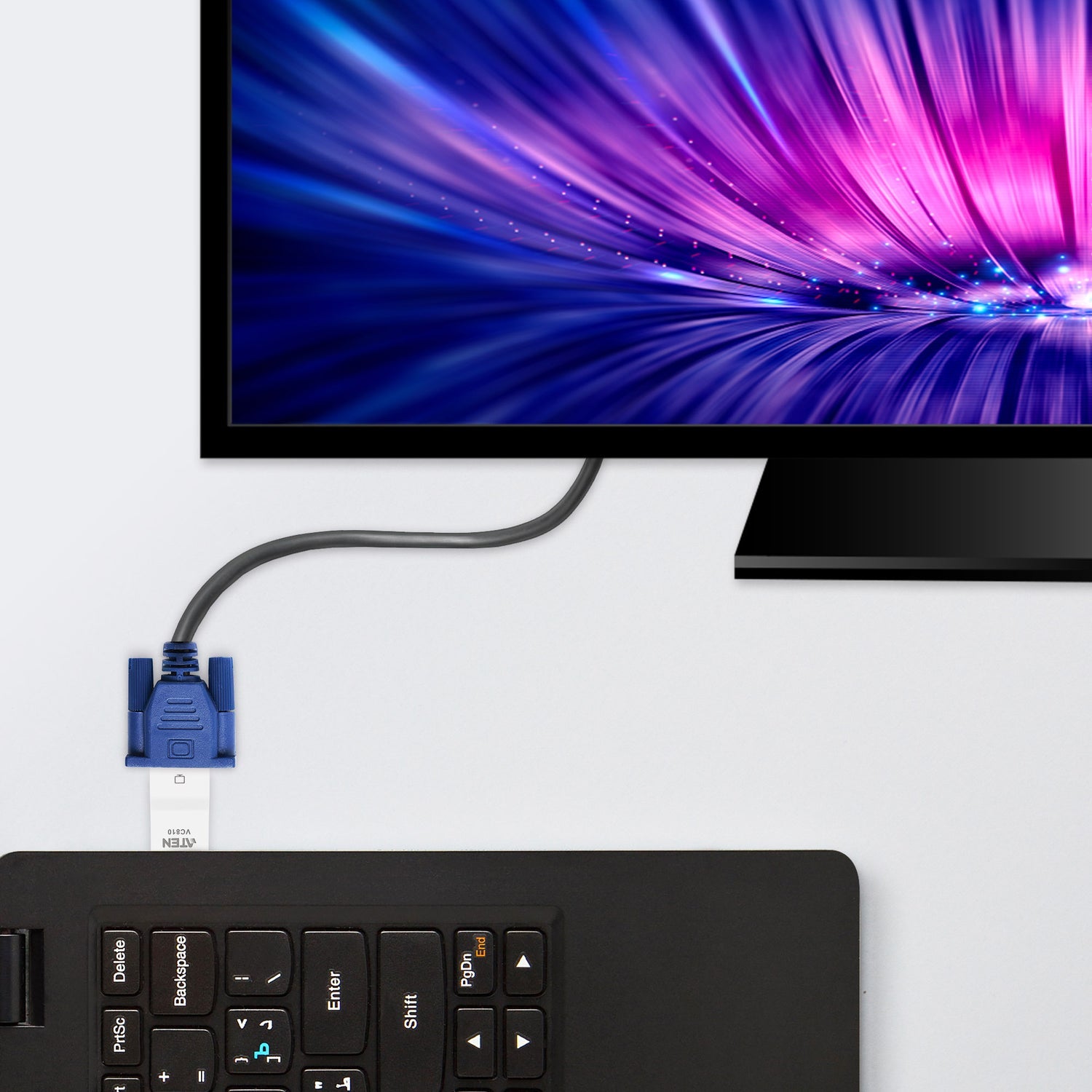

HDMI Laptops to VGA Projectors
The VC810 converts an HDMI output to VGA so laptops, mini PCs and other HDMI sources can connect to the VGA projectors and monitors still found in many meeting rooms and classrooms.
Up to 1920 x 1200
Supports VGA, SVGA, XGA, SXGA, UXGA and up to 1920 x 1200 (PC) / 1080p (HDTV), including widescreen formats.

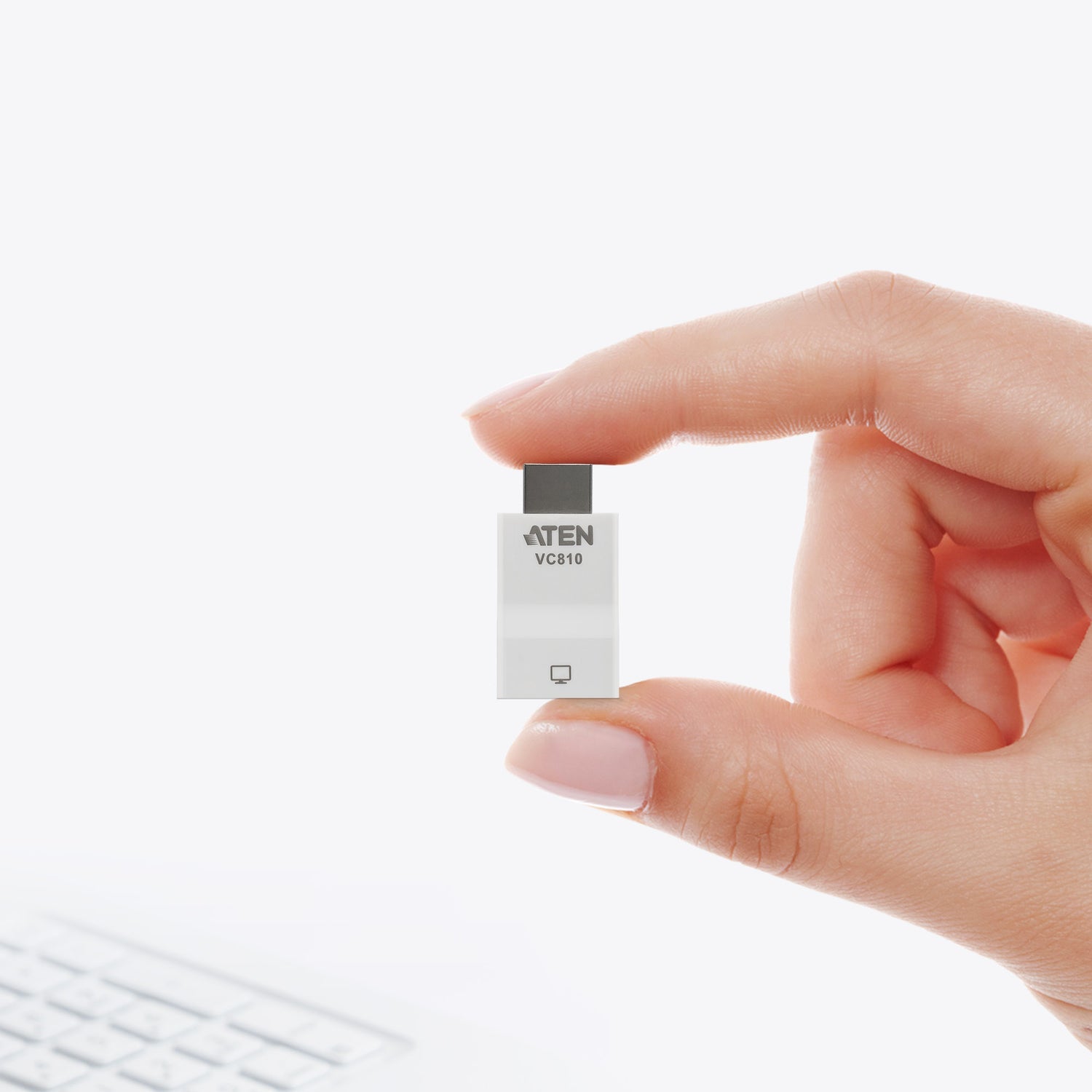

Tiny, Non-Powered, Driver-Free
At 4.55 cm long and 10 g, the VC810 lives in a laptop bag. It needs no external power and no software or drivers.
Stocking meeting rooms or IT kits with adapters? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ATEN VC810 Datasheet — Technical Specifications
General
| Product Name | ATEN HDMI to VGA Adapter |
| Model | VC810 |
| Order Code | VC810-AT |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Connectors
| Video Input | 1 x HDMI Type A Male |
| Video Output | 1 x HDB-15 (VGA) Female |
| Impedance | Input 100 Ω; output 75 Ω |
Video
| Resolution | VGA, SVGA, XGA, SXGA, UXGA and up to 1920 x 1200 (PC) / 1080p (HDTV) |
| Max. Pixel Clock | 200 MHz |
| Widescreen | Supported |
Power
| Power | Non-powered |
Environmental
| Operating Temperature | 0–60 °C |
| Storage Temperature | -10–70 °C |
| Humidity | 40–85% RH, non-condensing |
Physical
| Housing | Plastic |
| Weight | 0.01 kg |
| Dimensions (L x W x H) | 4.55 x 2.30 x 1.48 cm |
Compatibility & Applications
Typical Sources
Laptops, mini PCs, desktop PCs and other devices with a full-size HDMI output.
Typical Displays
VGA projectors, monitors and KVM consoles.
Selection Tip
The VC810 carries video only; connect audio separately if the projector has speakers. ATEN also bundles the VC810 with the VC925 in the CV211CP IT kit.
Package Contents & ATEN Video Adapter Ordering Information
In the Box
1 x VC810 HDMI to VGA converter.
ATEN Video Adapter Models
| Model | Key feature |
| VC985 | DisplayPort to HDMI adapter, up to 1080p |
| VC986 | DisplayPort to 4K HDMI active adapter, 4K@30Hz |
| VC986B | DisplayPort to True 4K HDMI active adapter, 4K@60Hz |
| VC965 | DisplayPort to DVI adapter |
| VC925 | DisplayPort to VGA adapter |
| VC981 | Mini DisplayPort to 4K HDMI active adapter |
| VC980 | Mini DisplayPort to HDMI adapter |
| VC960 | Mini DisplayPort to DVI adapter |
| VC920 | Mini DisplayPort to VGA adapter |
| VC810 (this listing) | HDMI to VGA adapter |
Datasheet & Downloads
| Datasheet | VC810 Datasheet (PDF) |
| Quick start guide | VC810 Quick Start Guide (PDF) |
| ATEN product page | VC810 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting VC810-AT.
Frequently Asked Questions — ATEN VC810
Does it need a power supply?
No. The VC810 is non-powered.
Does it carry audio?
No. ATEN does not list audio output; it converts video only.
What resolutions are supported?
Up to 1920 x 1200 (PC) / 1080p (HDTV), including widescreen formats.
Do I need drivers?
No. It is plug-and-play.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
