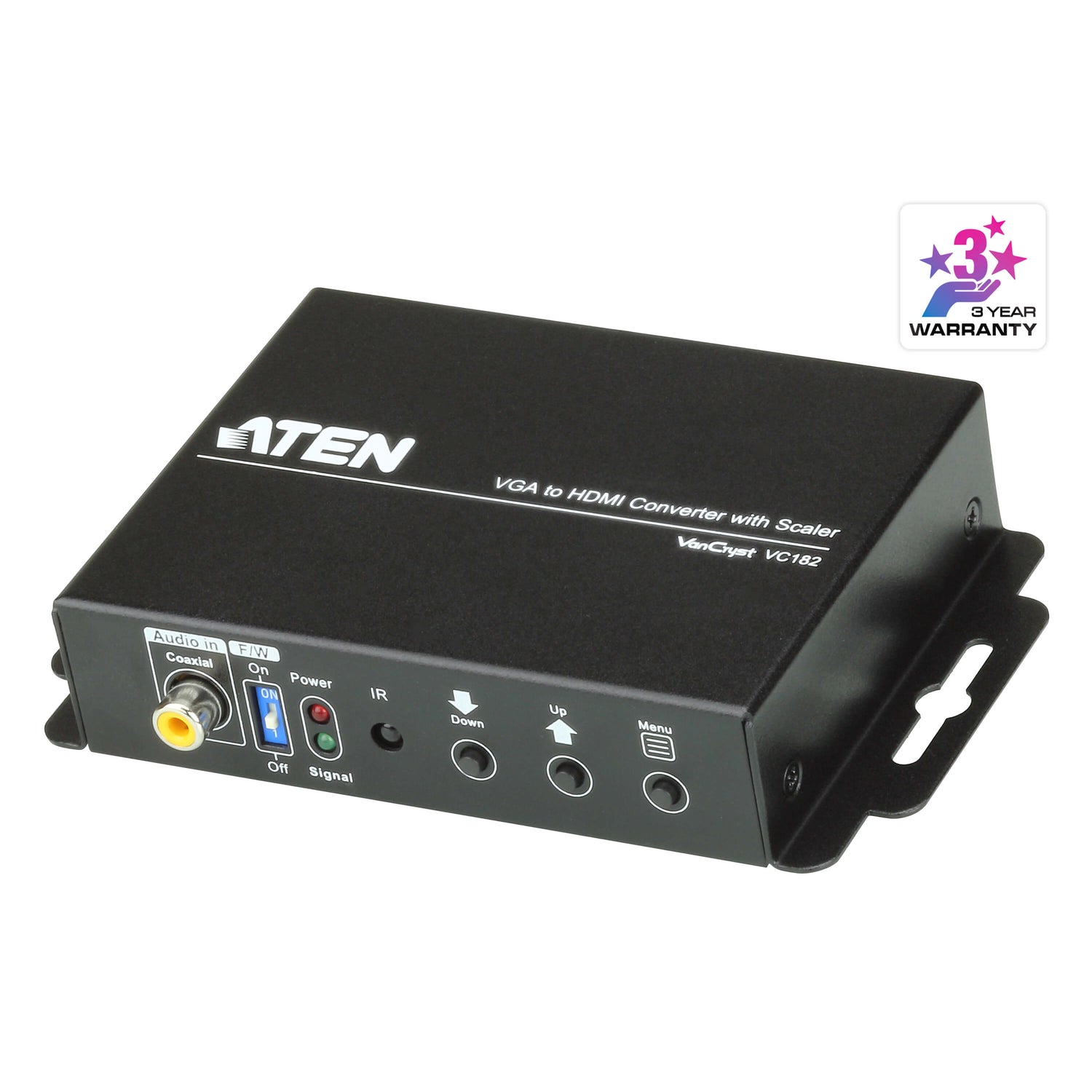

ATEN VC182 VGA/Audio to HDMI Converter with Scaler
PRODUCT DESCRIPTION
ATEN VC182 VGA/Audio to HDMI Converter with Scaler - 2 Years Local Warranty
Bring VGA Sources to HDMI Displays
The VC182 takes the VGA video from an older PC, laptop or media player, adds its analogue or digital audio, and outputs a single HDMI signal for today's TVs, projectors and monitors.
Built-In Scaler
A built-in scaling engine converts the incoming VGA signal to the resolution the display wants, up to 1080p and 1920 x 1200, with support for 16:9 and 4:3 aspect ratios and multiple selectable output resolutions.
Analogue or Digital Audio In
Audio can come from a 3.5 mm stereo jack or a digital coaxial RCA input and is embedded into the HDMI output, so one cable carries picture and sound to the display.
Simple Front-Panel Control
Menu and up/down pushbuttons set the output, while power and signal LEDs show status at a glance. The metal housing is built for meeting rooms and classrooms.
Converting a fleet of meeting rooms or classrooms from VGA to HDMI displays? Email sales@sourceit.com.sg for volume pricing.
ATEN VC182 Datasheet — Technical Specifications
General
| Product Name | ATEN VGA/Audio to HDMI Converter with Scaler |
| Model | VC182 |
| Order Code | VC182-AT-E |
| Local Warranty (Singapore) | 2 years carry-in warranty |

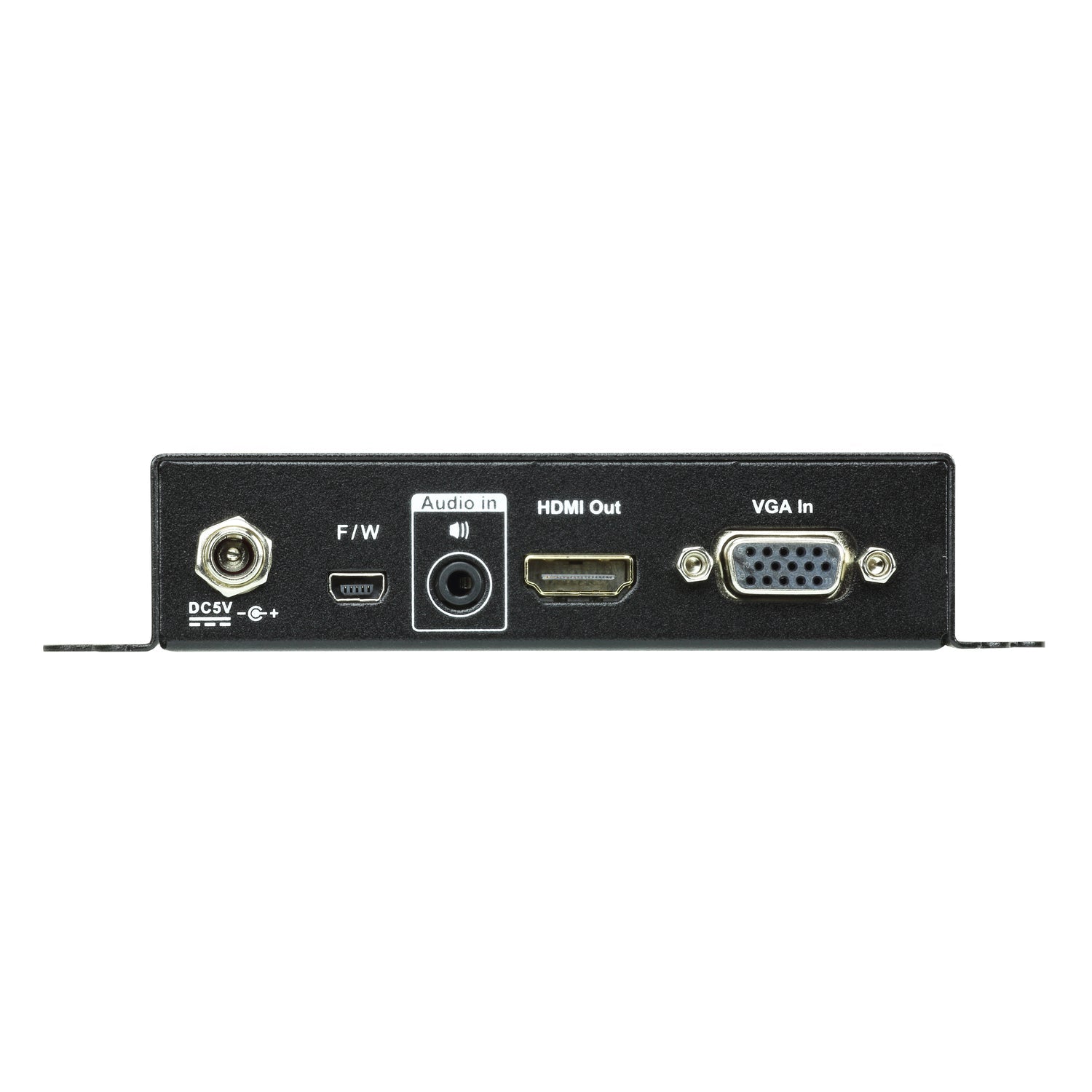

Connectors
| Video Input | 1 x HDB-15 (VGA) Female |
| Digital Audio Input | 1 x RCA Female (coaxial, yellow) |
| Analogue Audio Input | 1 x mini stereo jack |
| Video Output | 1 x HDMI Type A Female |
| Power | 1 x DC jack |
| Firmware Upgrade | 1 x Mini USB port |

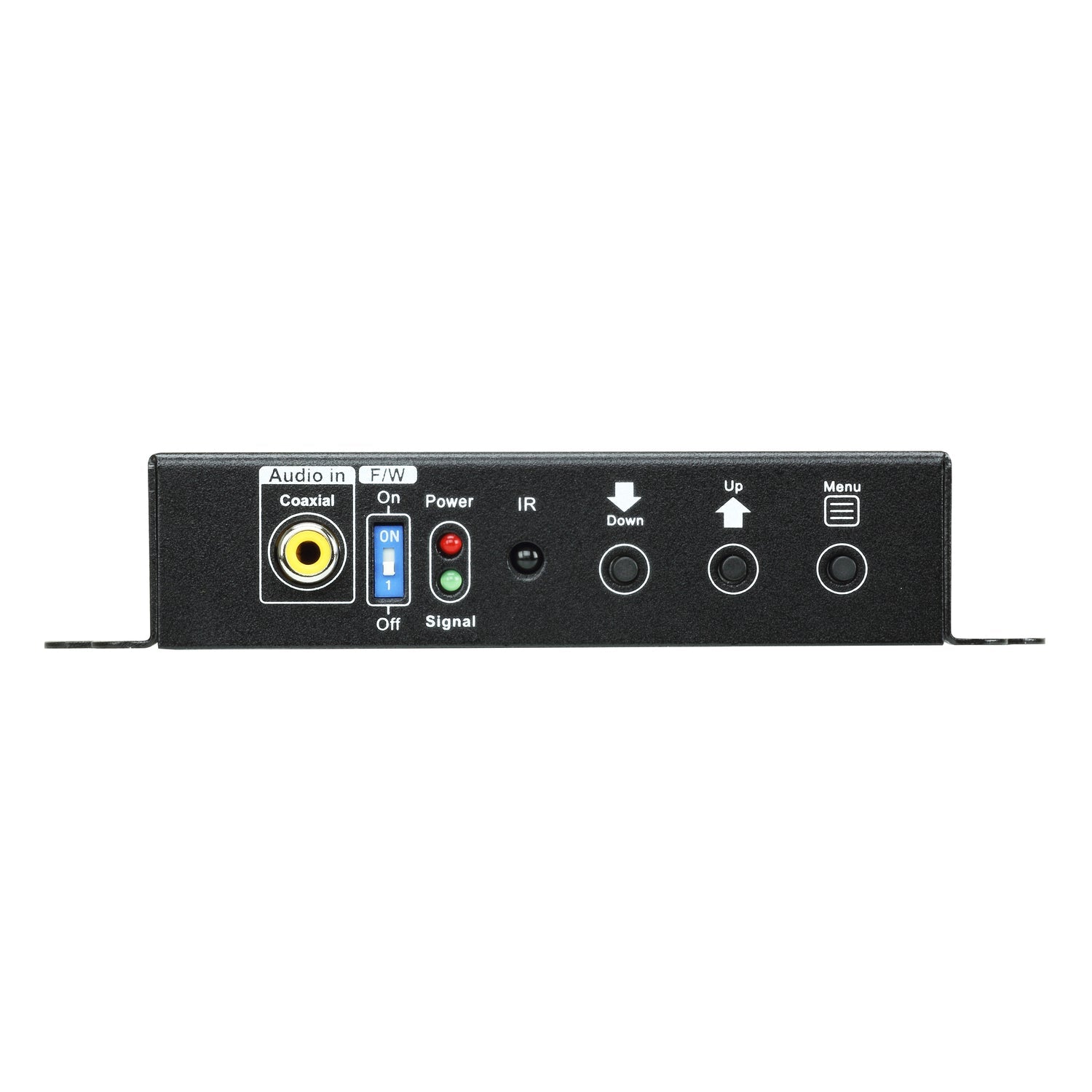

Controls & Indicators
| Pushbuttons | Menu, Up, Down |
| DIP Switch | 1 (firmware upgrade) |
| LEDs | Power (red), Signal (green) |
Video
| Maximum Output Resolution | 1080p; 1920 x 1200 |
| Max Pixel Clock | 165 MHz |
| Scaling | Built-in scaler, multiple selectable output resolutions |
| Aspect Ratios | 16:9 and 4:3 |
Power
| Power Consumption | DC 5 V, 5 W |
| Power Adapter | Included |
Environmental
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 20–90% RH, non-condensing |
Physical
| Housing | Metal |
| Weight | 0.31 kg |
| Dimensions (L x W x H) | 11.00 x 8.30 x 2.80 cm |
Compatibility & Applications
Typical Sources
Older desktop PCs and laptops, industrial and medical PCs, and media players that only have a VGA output plus analogue or coaxial audio.
Typical Use
Connecting legacy computers to new HDMI TVs, projectors and monitors in meeting rooms, classrooms, digital signage and control rooms during a phased AV upgrade.
Selection Tip
If you need the opposite direction, HDMI source to VGA display, see the VC812. For a simpler VGA/audio to HDMI conversion without scaling, ATEN offers the VC180.
Package Contents & ATEN Video Converter Ordering Information
In the Box
1 x VC182 VGA to HDMI Converter with Scaler, 1 x power adapter, 1 x software CD, 1 x user instructions.
ATEN Video Converter Models
| Model | Key feature |
| VC180 | VGA/audio to HDMI converter |
| VC182 (this listing) | VGA/audio to HDMI converter with scaler |
| VC812 | HDMI to VGA/audio converter with scaler |
| VC881 | 4K HDMI/DVI to HDMI converter with audio de-embedder |
| VC1280 | 4K HDMI/VGA to HDMI converter switch |
| VC160A | VGA to DVI converter |
Datasheet & Downloads
| Datasheet | VC182 Datasheet (PDF) |
| User manual | VC182 User Manual (PDF) |
| Quick start guide | VC182 Quick Start Guide (PDF) |
| ATEN product page | VC182 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting VC182-AT-E.
Frequently Asked Questions — ATEN VC182
What is the maximum output resolution?
Up to 1080p and 1920 x 1200 on the HDMI output, set by the built-in scaler.
Does it carry audio?
Yes. Connect analogue audio to the 3.5 mm stereo jack or digital audio to the coaxial RCA input, and it is embedded into the HDMI output.
Does it need power?
Yes. A power adapter is included.
Can it convert HDMI to VGA?
No. The VC182 is VGA to HDMI only. For HDMI to VGA, choose the VC812.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
