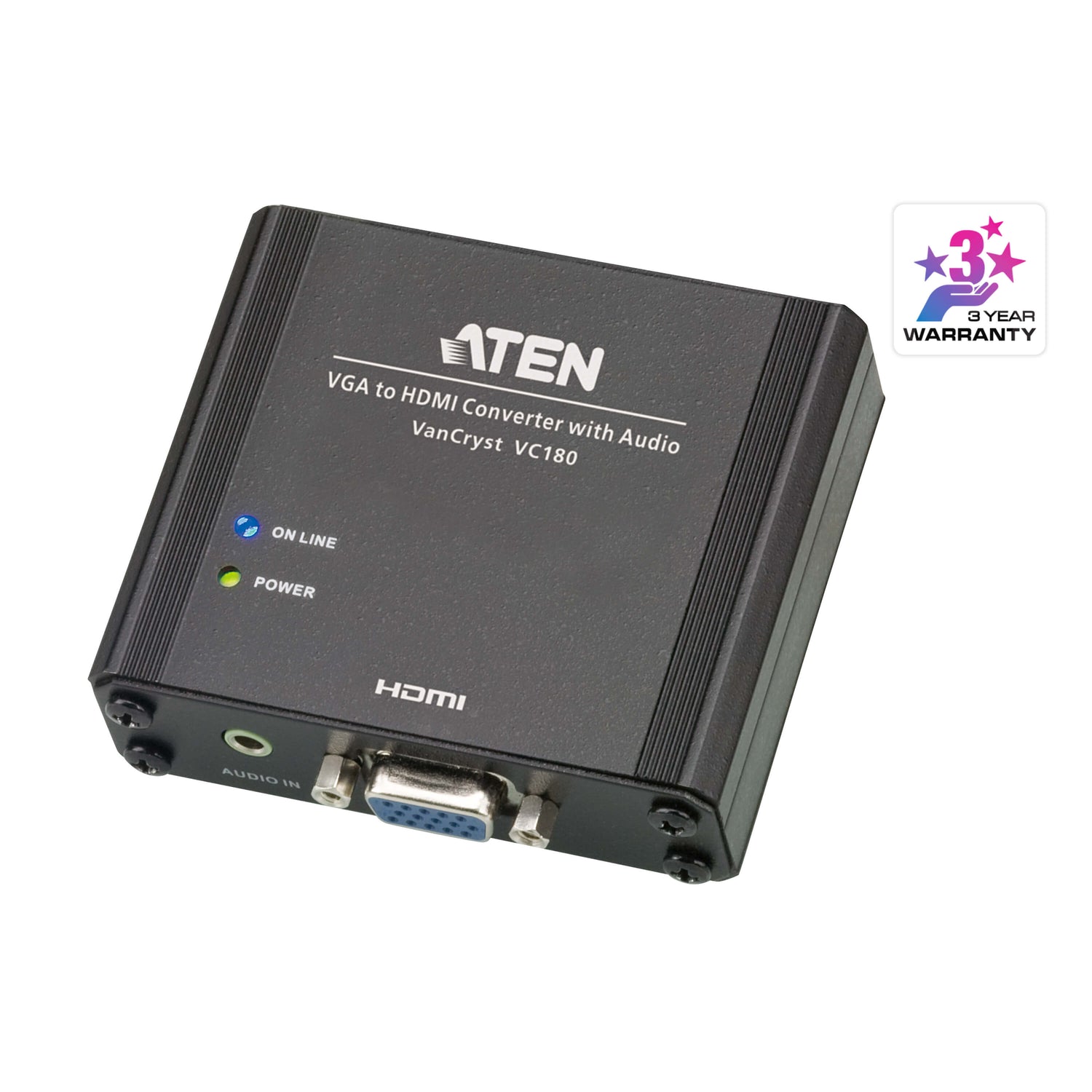

ATEN VC180 VGA/Audio to HDMI Converter
PRODUCT DESCRIPTION
ATEN VC180 VGA/Audio to HDMI Converter - 2 Years Local Warranty
Put VGA Sources on HDMI Screens, with Sound
The ATEN VC180 combines a VGA video signal and analogue stereo audio into a single HDMI output, so older PCs and VGA devices can drive HDMI TVs, monitors and projectors with sound.
Up to 1080p / WUXGA
Output up to 1920 x 1200 @ 60Hz. The VC180 automatically detects the input signal, shown by an LED.
Store Screen Position per Resolution
The Screen Position button lets you adjust the picture and stores the setting for each output resolution.
Flexible Power, No Software
Power from the VGA port or the included adapter. No software is required; works with Windows and Mac sources.
Upgrading meeting rooms to HDMI displays while keeping VGA sources? Email sales@sourceit.com.sg for volume pricing.
ATEN VC180 Datasheet — Technical Specifications
General
| Product Name | ATEN VGA/Audio to HDMI Converter |
| Model | VC180 |
| Order Code | VC180-AT-E |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Connectors

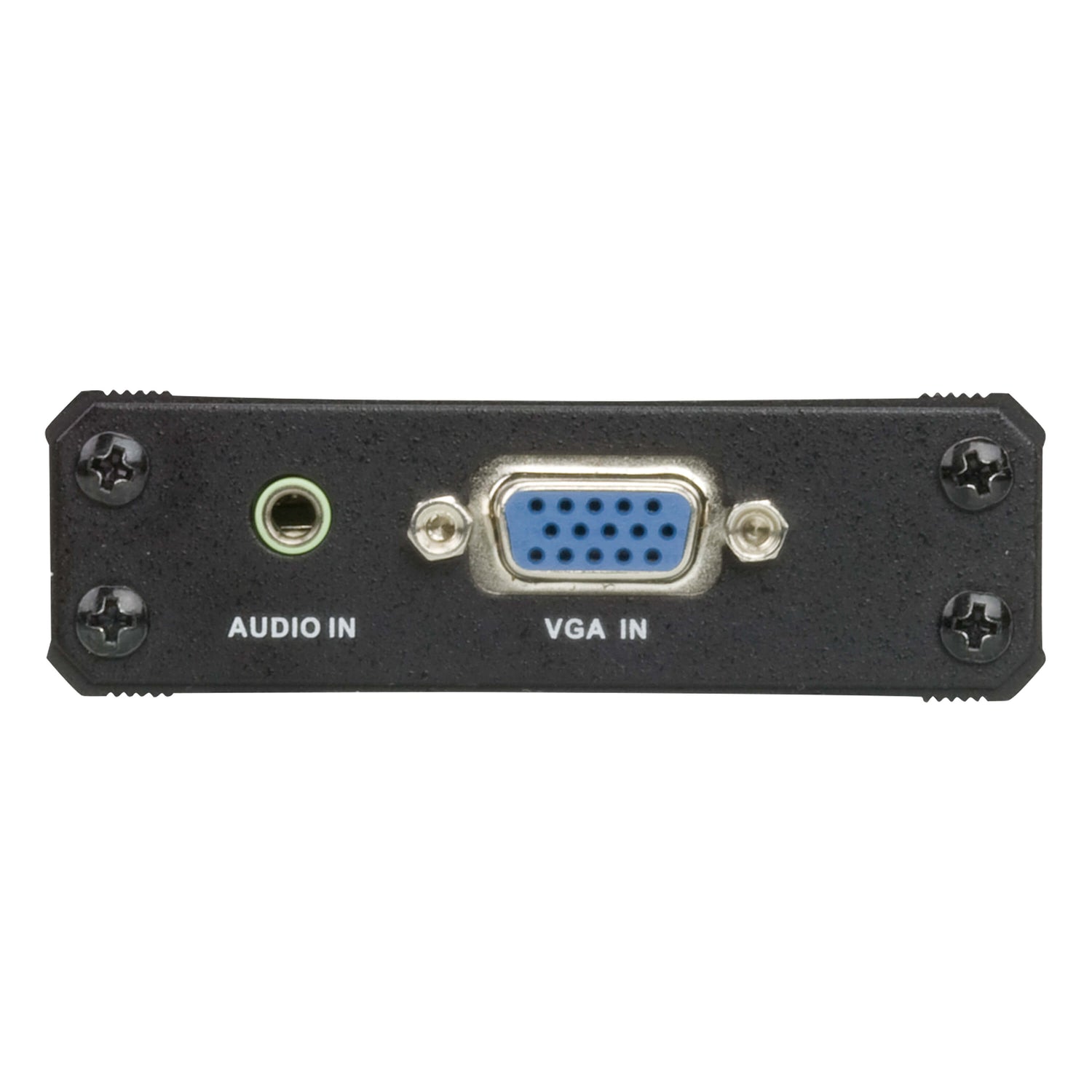

| Video Input | 1 x HDB-15 Female (Blue) |
| Audio Input | 1 x 3.5 mm stereo audio (Green) |

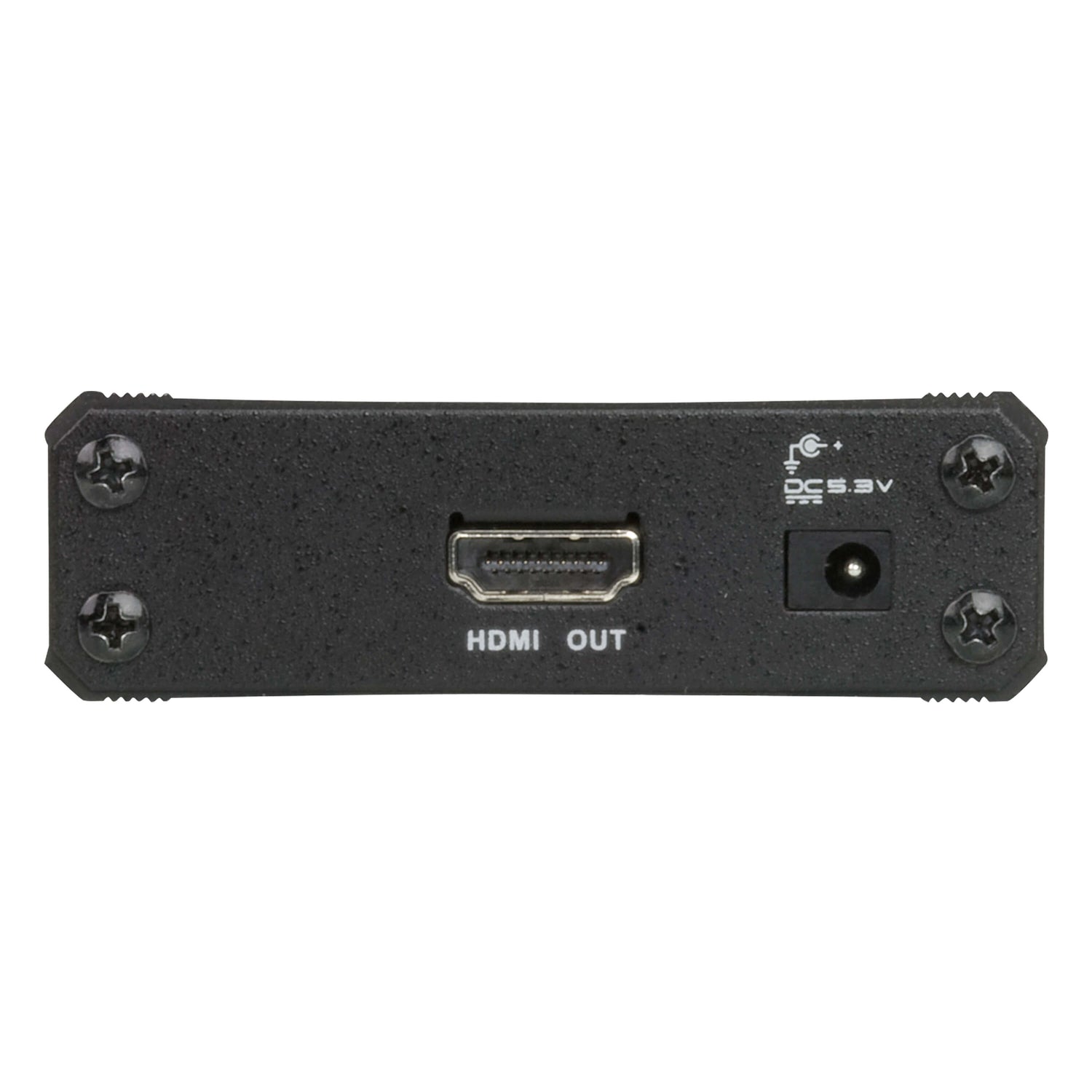

| Video Output | 1 x HDMI Type-A Female (Black) |
| Power | 1 x DC jack |
Video
| Max. Resolution | Up to 1920 x 1200 @ 60Hz (1080p, WUXGA) |
| Max. Pixel Clock | 165 MHz |
| Video Output Max. Distance | Up to 15 m |
LEDs
| Power | 1 (green) |
| On Line | 1 (blue) |
Power
| Power Source | VGA port or power adapter |
| Power Consumption | DC 5.3V, 3.2 W |
Environmental
| Operating Temperature | 0–50 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Metal |
| Weight | 0.15 kg |
| Dimensions (L x W x H) | 7.90 x 7.46 x 2.44 cm |
Compatibility & Applications
Typical Sources
PCs, notebooks and other devices with VGA output and a 3.5 mm audio output.
Typical Use
Connecting VGA notebooks or legacy PCs to HDMI TVs, monitors and projectors in meeting rooms, classrooms and digital signage.
Selection Tip
Need scaling to match the display's native resolution? The VC182 adds a scaler. For both HDMI and VGA inputs to one HDMI display, see the VC1280.
Package Contents & ATEN Video Converter Ordering Information
In the Box
1 x VC180 VGA/Audio to HDMI Converter, 1 x power adapter, 1 x user guide.
ATEN Video Converter Models
| Model | Key feature |
| VC180 (this listing) | VGA/audio to HDMI converter |
| VC182 | VGA/audio to HDMI converter with scaler |
| VC160A | VGA to DVI converter |
| VC812 | HDMI to VGA/audio converter with scaler |
| VC881 | 4K HDMI/DVI to HDMI converter with audio de-embedder |
| VC1280 | 2-port 4K HDMI/VGA to HDMI converter switch |
Datasheet & Downloads
| VC180 datasheet | VC180 Datasheet (PDF) |
| Quick start guide | VC180 Quick Start Guide (PDF) |
| ATEN product page | VC180 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting VC180-AT-E.
Frequently Asked Questions — ATEN VC180
Does the VC180 carry audio to HDMI?
Yes. It embeds the 3.5 mm stereo audio input into the HDMI output.
What is the maximum resolution?
Up to 1920 x 1200 @ 60Hz (1080p / WUXGA).
Does it need external power?
It can be powered from the VGA port or the included adapter.
Does it scale the picture?
The VC180 does not list a scaler. For scaling, choose the ATEN VC182.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
