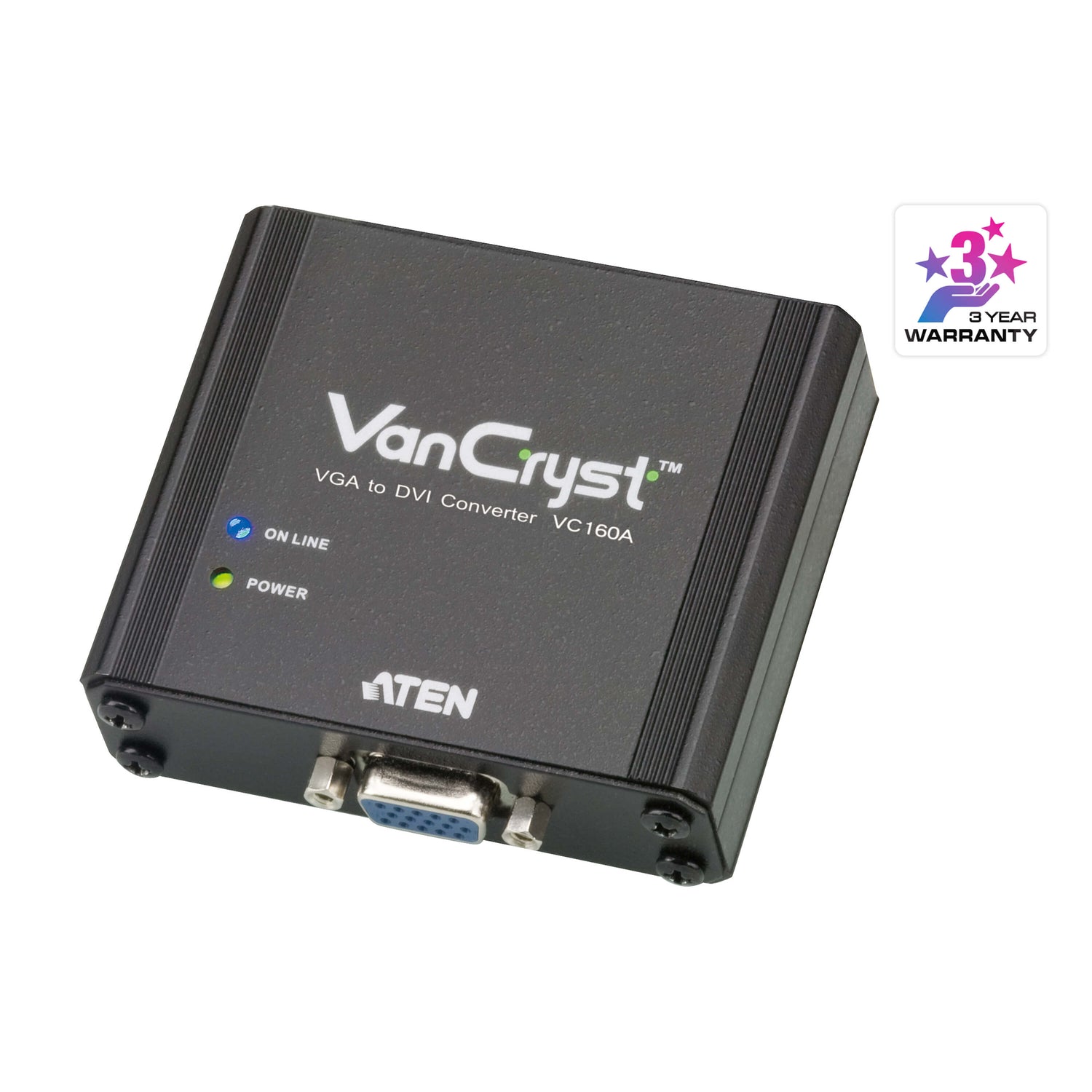

ATEN VC160A VGA to DVI Converter
PRODUCT DESCRIPTION
ATEN VC160A VGA to DVI Converter - 2 Years Local Warranty
Run a VGA Source on a DVI Display
The ATEN VC160A converts analogue VGA into digital DVI-D, letting older PCs, industrial controllers and other VGA-only equipment drive modern DVI monitors.
Up to 1920 x 1200 / 1080p
Output reaches 1920 x 1200 @ 60Hz on PC displays or 1080p on HDTVs. Smart Video Display optimisation and automatic input detection help produce a clean picture.
Adjust and Remember Screen Position
Four direction buttons and a memory button let you fine-tune the image position on the screen and store the setting.
Flexible Power, No Software
Power comes from the VGA port or the included adapter. No software is required, and it works with Windows and Mac sources.
Keeping legacy VGA equipment running with new displays? Email sales@sourceit.com.sg for configuration advice.
ATEN VC160A Datasheet — Technical Specifications
General
| Product Name | ATEN VGA to DVI Converter |
| Model | VC160A |
| Order Code | VC160A-AT-E |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Connectors

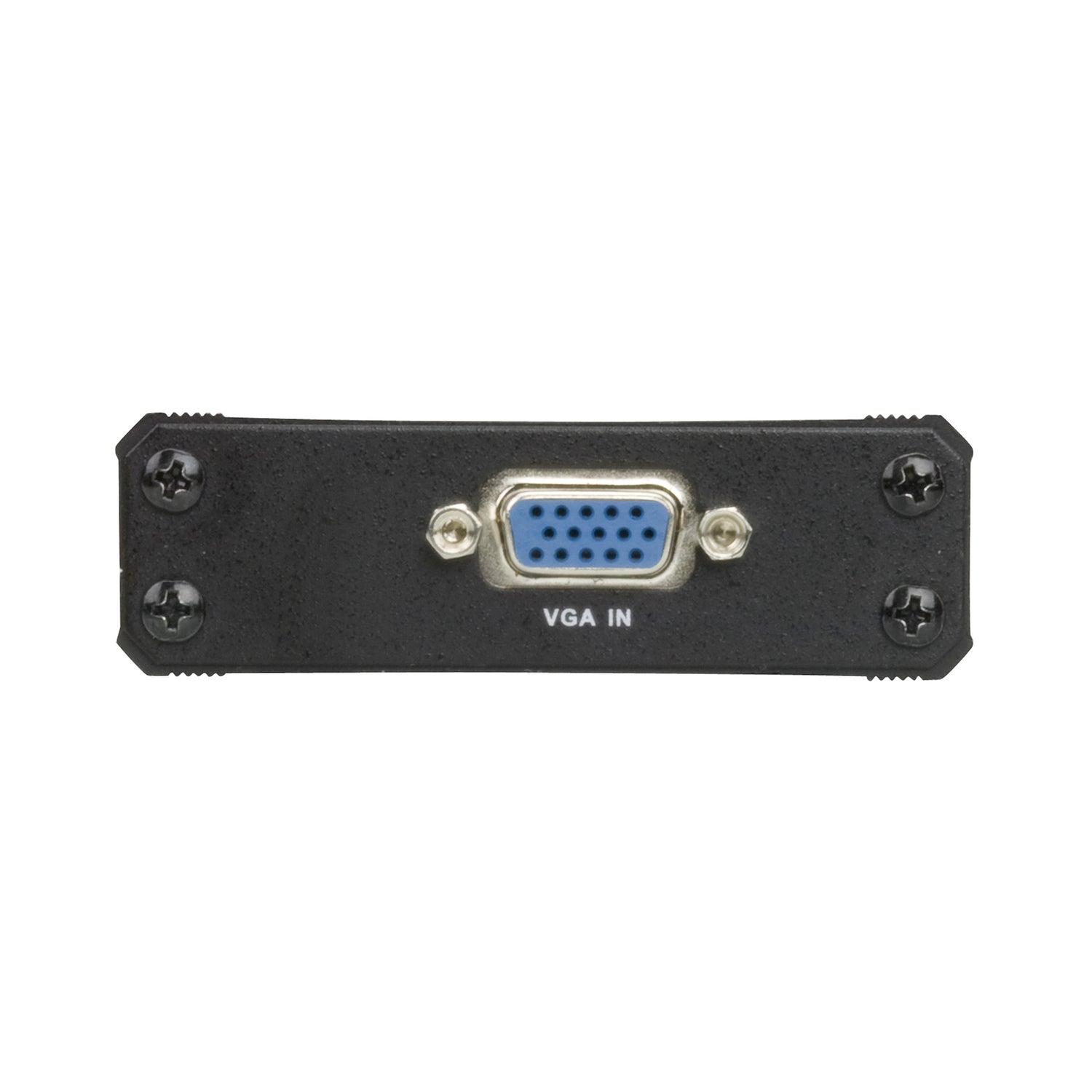

| Video Input | 1 x HDB-15 Female (Blue) |

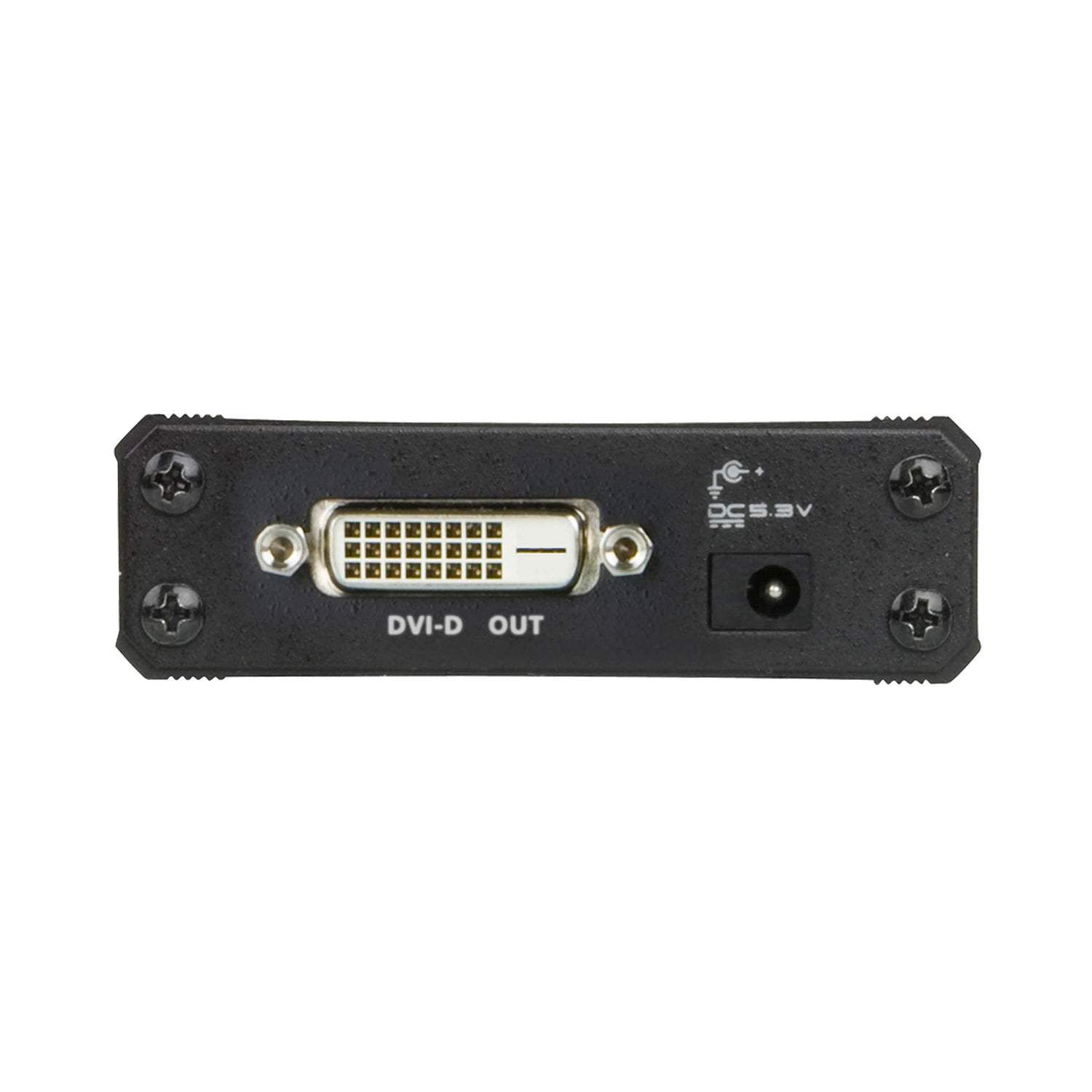

| Video Output | 1 x DVI-D Female (White) |
| Power | 1 x DC jack |
Video
| Max. Resolution | 1920 x 1200 @ 60Hz (PC); 1080p (HDTV) |
| Max. Pixel Clock | 165 MHz |
Controls and LEDs
| Direction Buttons | 4 x semi-recessed pushbuttons |
| Memory Button | 1 x semi-recessed pushbutton |
| LEDs | Power (green), video sync (blue) |
Power
| Power Source | VGA port or power adapter |
| Power Consumption | DC 5.3V, 2.8 W |
Environmental
| Operating Temperature | 0–50 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Metal |
| Weight | 0.15 kg |
| Dimensions (L x W x H) | 7.90 x 7.81 x 2.44 cm |
Compatibility & Applications
Typical Sources
PCs, notebooks, industrial PCs, test equipment and other devices with a VGA output.
Typical Use
Connecting VGA-only equipment to DVI monitors in factories, labs, control rooms and offices.
Selection Tip
The VC160A converts video only. If your display has HDMI and you need sound, the VC180 converts VGA plus audio to HDMI.
Package Contents & ATEN Video Converter Ordering Information
In the Box
1 x VC160A VGA to DVI Converter, 1 x power adapter, 1 x user guide.
ATEN Video Converter Models
| Model | Key feature |
| VC160A (this listing) | VGA to DVI converter |
| VC180 | VGA/audio to HDMI converter |
| VC182 | VGA/audio to HDMI converter with scaler |
| VC812 | HDMI to VGA/audio converter with scaler |
| VC881 | 4K HDMI/DVI to HDMI converter with audio de-embedder |
| VC1280 | 2-port 4K HDMI/VGA to HDMI converter switch |
Datasheet & Downloads
| VC160A datasheet | VC160A Datasheet (PDF) |
| Quick start guide | VC160A Quick Start Guide (PDF) |
| ATEN product page | VC160A on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting VC160A-AT-E.
Frequently Asked Questions — ATEN VC160A
Does the VC160A carry audio?
No. It converts VGA video to DVI-D only.
Does it need external power?
It can be powered from the VGA port or the included power adapter.
Can I adjust the picture position?
Yes. Use the four direction buttons and store the setting with the memory button.
Will it convert DVI back to VGA?
No. It converts in one direction only: VGA in, DVI-D out.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
