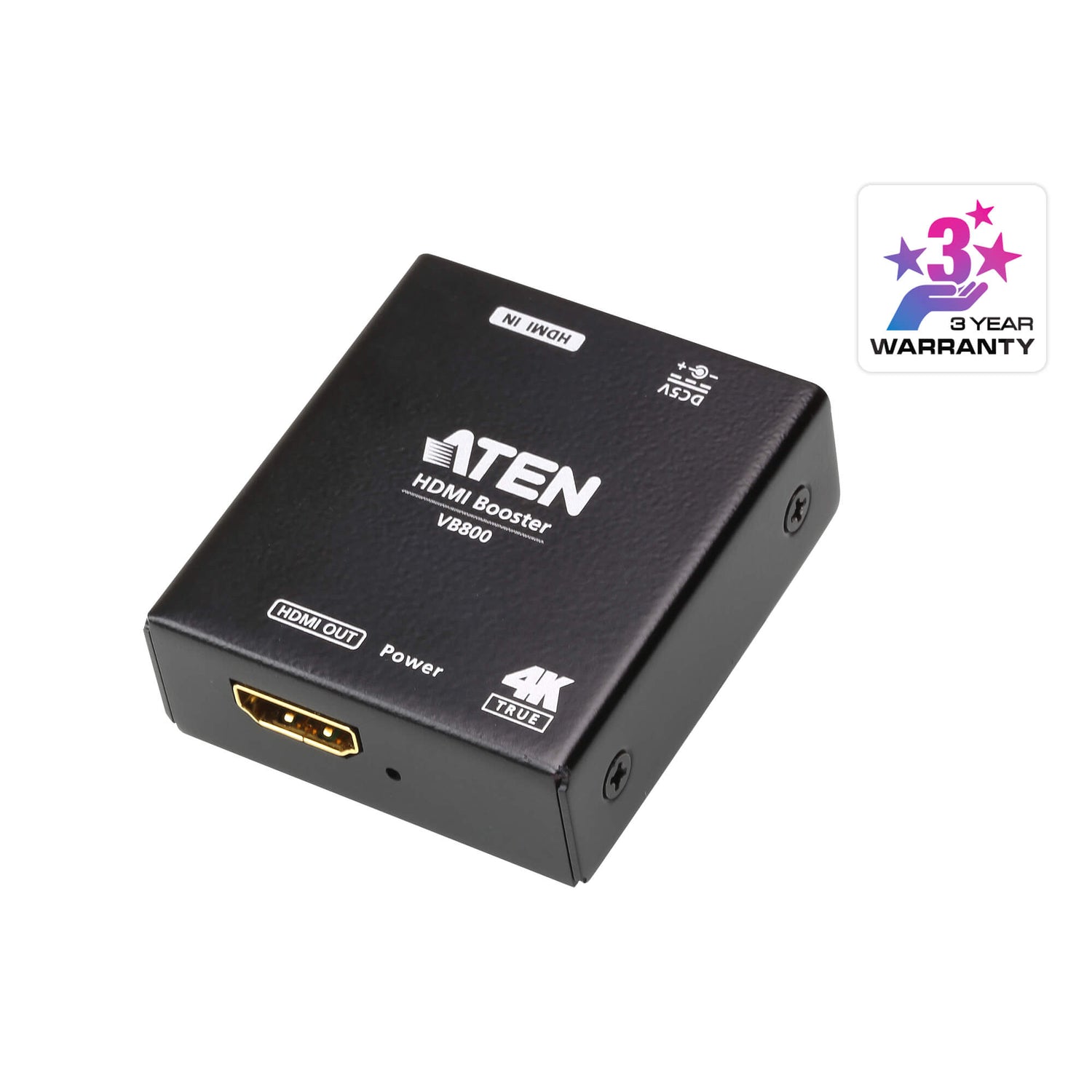

ATEN VB800 True 4K HDMI Booster
PRODUCT DESCRIPTION
ATEN VB800 True 4K HDMI Booster - 2 Years Local Warranty
Extend HDMI Further Without Losing 4K
The VB800 regenerates an HDMI signal so you can run longer cables: up to 10 m at 4K 60 Hz 4:4:4, or up to 20 m at 1080p 60 Hz, between a source and a display.
18 Gbps, HDR10+ and HDCP 2.2
Supports a maximum bandwidth of 600 MHz and 18 Gbps data rate (6 Gbps per lane), HDR10+ and HDCP 2.2 for today's 4K sources and displays.
Cascade for Longer Runs
Boosters can be cascaded up to 10 levels to bridge longer distances in halls, auditoriums and retail spaces.
Compact, Metal and Rack Mountable
A small metal housing with a power adapter and rack mount kit included, so it can be fixed behind a display or in an AV rack.
Running HDMI to displays across a room or venue? Email sales@sourceit.com.sg for a project quote and configuration advice.
ATEN VB800 Datasheet — Technical Specifications
General
| Product Name | ATEN True 4K HDMI Booster |
| Model | VB800 |
| Order Code | VB800-AT-E |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Connectors

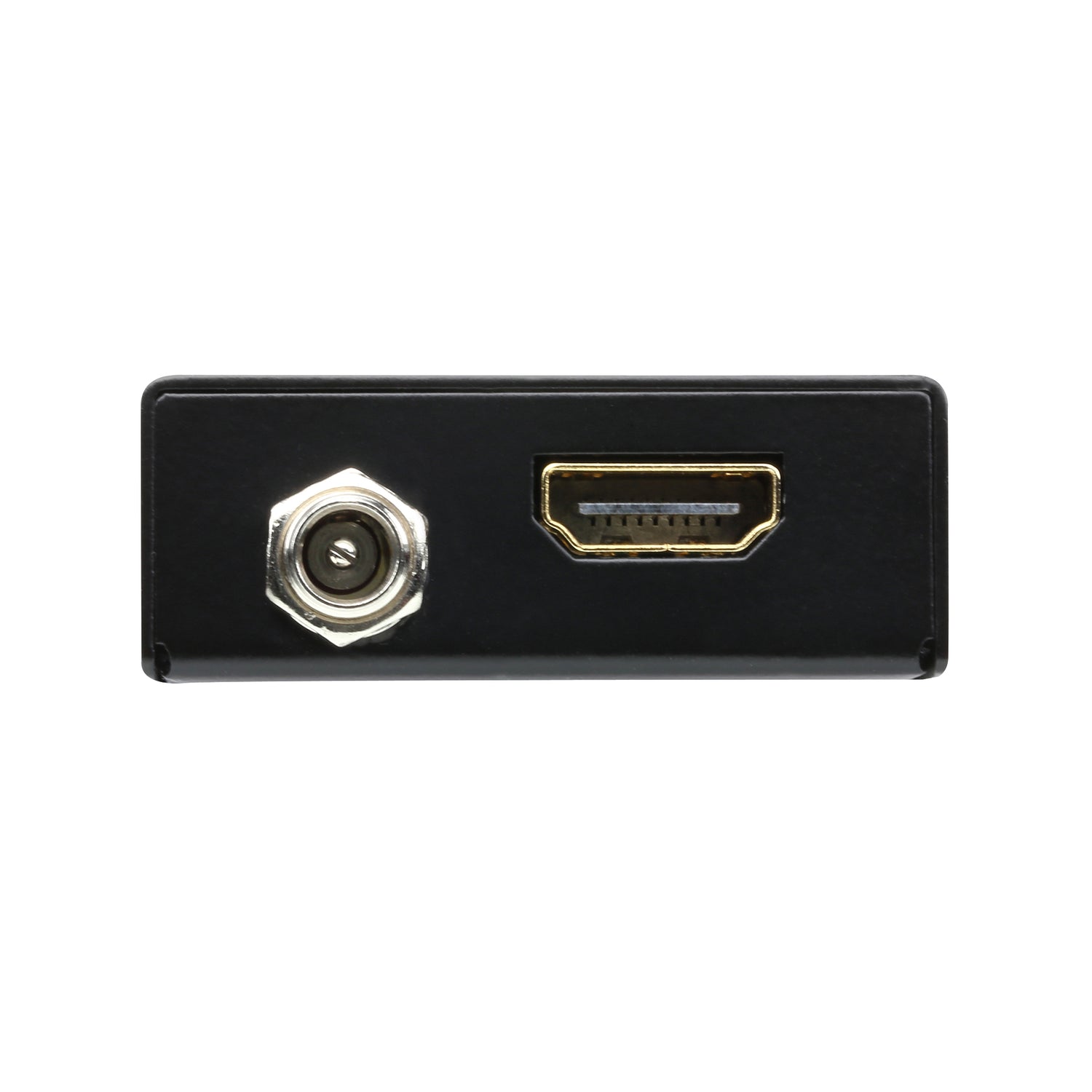

| Input | 1 x HDMI Type A Female |

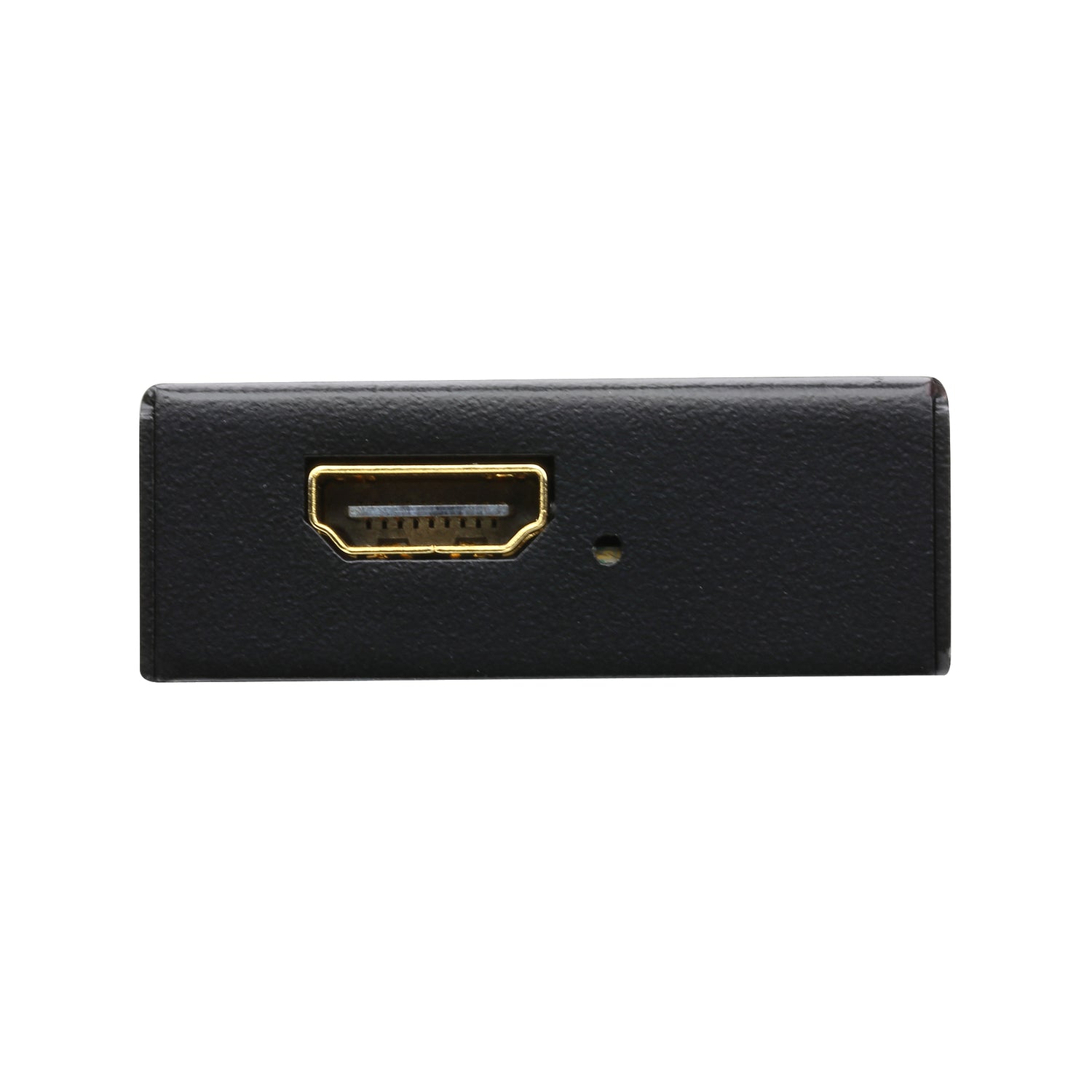

| Output | 1 x HDMI Type A Female |
Video
| Max. Bandwidth | 600 MHz |
| Data Rate | 18 Gbps (6 Gbps per lane) |
| Features | HDR10+; HDCP 2.2 compatible |
Distance
| 4K @ 60 Hz (4:4:4) | Up to 10 m |
| 1080p @ 60 Hz | Up to 20 m |
| Cascade | Up to 10 levels |
Power
| Power | DC 5 V (power adapter included) |
| Power Consumption | 0.99 W |
Physical
| Housing | Metal |
| Mounting | Rack mountable (rack mount kit included) |
| Weight | 0.09 kg |
| Dimensions | 4.90 x 5.60 x 1.70 cm |
Compatibility & Applications
Typical Devices
PCs, media players, cameras and AV switchers with HDMI output, feeding 4K displays, projectors and video walls.
Typical Use

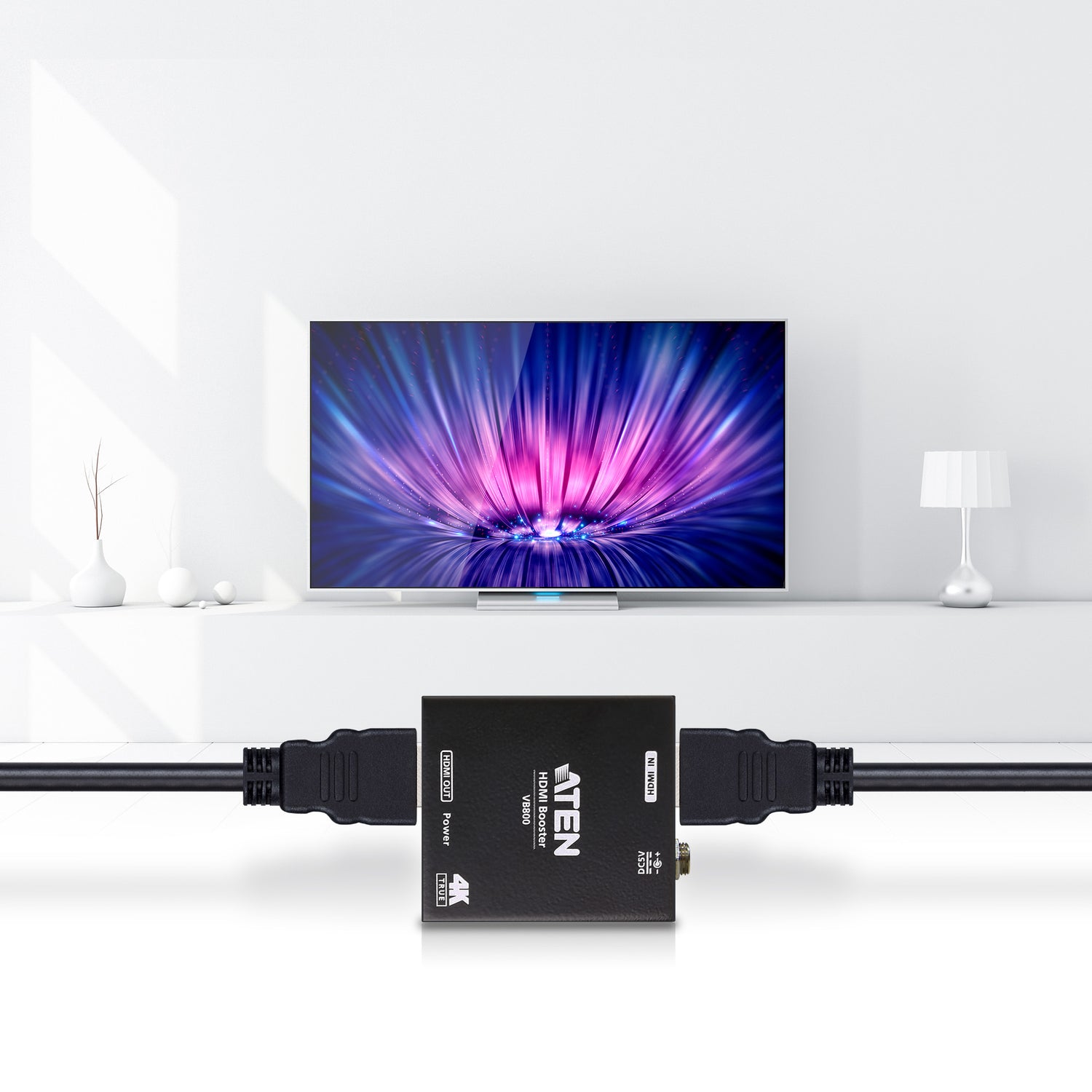

Meeting rooms, classrooms, retail displays and event spaces where the HDMI cable run exceeds what a passive cable can carry reliably.
Selection Tip
Use quality High Speed HDMI cables on both sides. For runs well beyond 20 m, an ATEN HDBaseT extender over Cat 6 is usually a better choice.
Package Contents & ATEN Video Booster Ordering Information
In the Box
1 x VB800 True 4K HDMI Booster, 1 x Power Adapter, 1 x Rack Mount Kit, 1 x User Instructions.
ATEN Booster and Extender Models
| Model | Key feature |
| VB800 (this listing) | True 4K HDMI booster, 4K@10 m / 1080p@20 m |
| VB905 | 4K DisplayPort booster |
| VE1821 | 4K HDMI Cat 6 extender |
| VE811 | HDMI HDBaseT extender |
| 2L-7D05H-1 | 5 m True 4K HDMI cable |
Datasheet & Downloads
| Datasheet | VB800 Datasheet (PDF) |
| Quick start guide | VB800 Quick Start Guide (PDF) |
| ATEN product page | VB800 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting VB800-AT-E.
Frequently Asked Questions — ATEN VB800
How far can I extend HDMI with the VB800?
Up to 10 m at 4K 60 Hz 4:4:4, or up to 20 m at 1080p 60 Hz. Boosters can be cascaded up to 10 levels.
Does it support HDR and HDCP 2.2?
Yes. HDR10+ and HDCP 2.2 are supported.
Does it need power?
Yes, a 5 V DC power adapter is included.
Can I mount it in a rack?
Yes. A rack mount kit is included.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
