ATEN US4324 2 x 4 USB 3.2 Gen 1 Sharing Switch
PRODUCT DESCRIPTION
ATEN US4324 2 x 4 USB 3.2 Gen 1 Sharing Switch - 2 Years Local Warranty
Four Devices, Two Computers, One Button

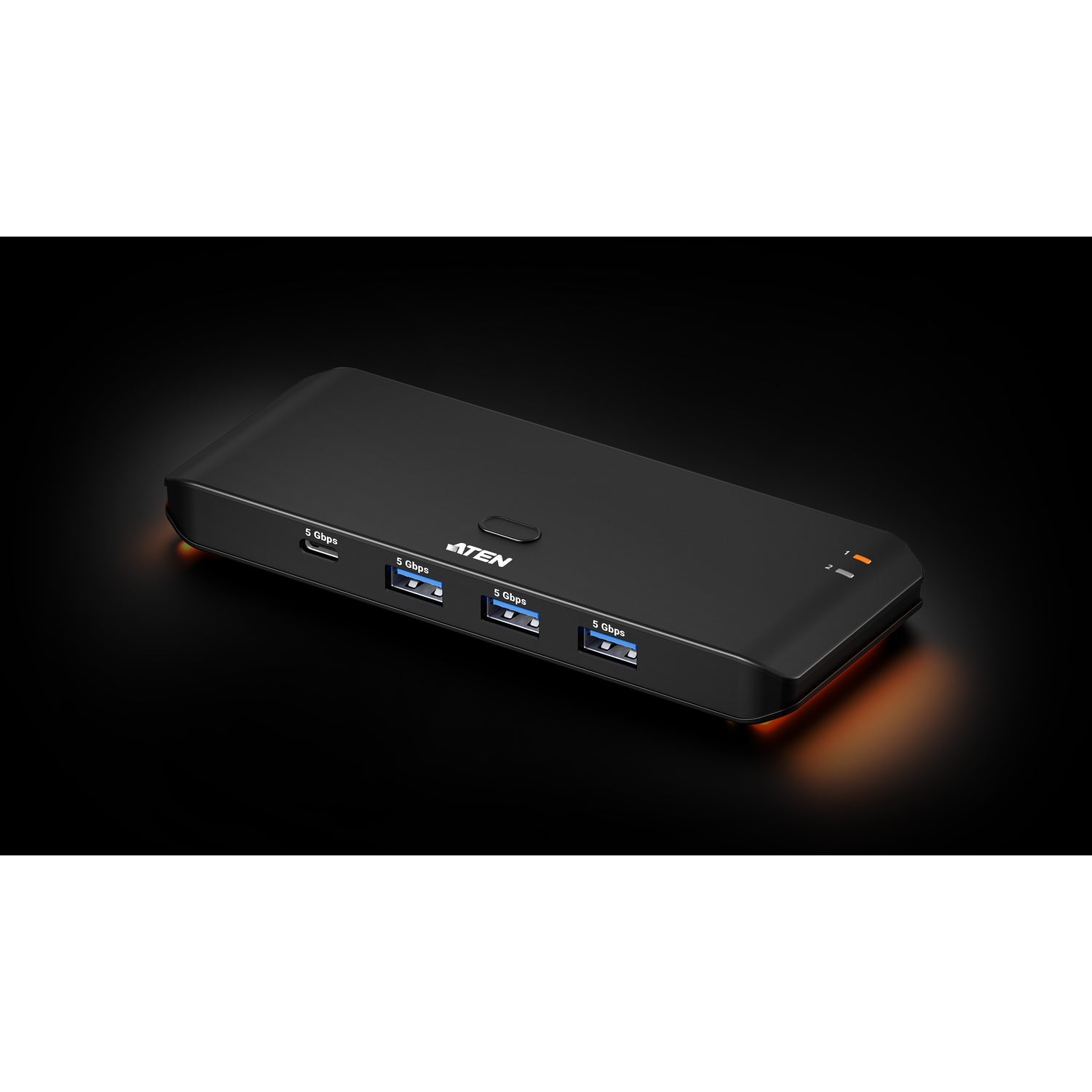

The US4324 shares four USB devices between two computers – three USB-A ports and one USB-C device port – so keyboard, mouse, webcam and drive follow you from one machine to the other.
5 Gbps USB 3.2 Gen 1
SuperSpeed USB 3.2 Gen 1 at up to 5 Gbps keeps external drives and HD webcams running at full speed.
Remote Port Selector Included
Switch with the pushbutton on the unit or with the included remote port selector, which you can place wherever is handiest on the desk. InstaSync technology keeps switching fast.
Compact essentials Design

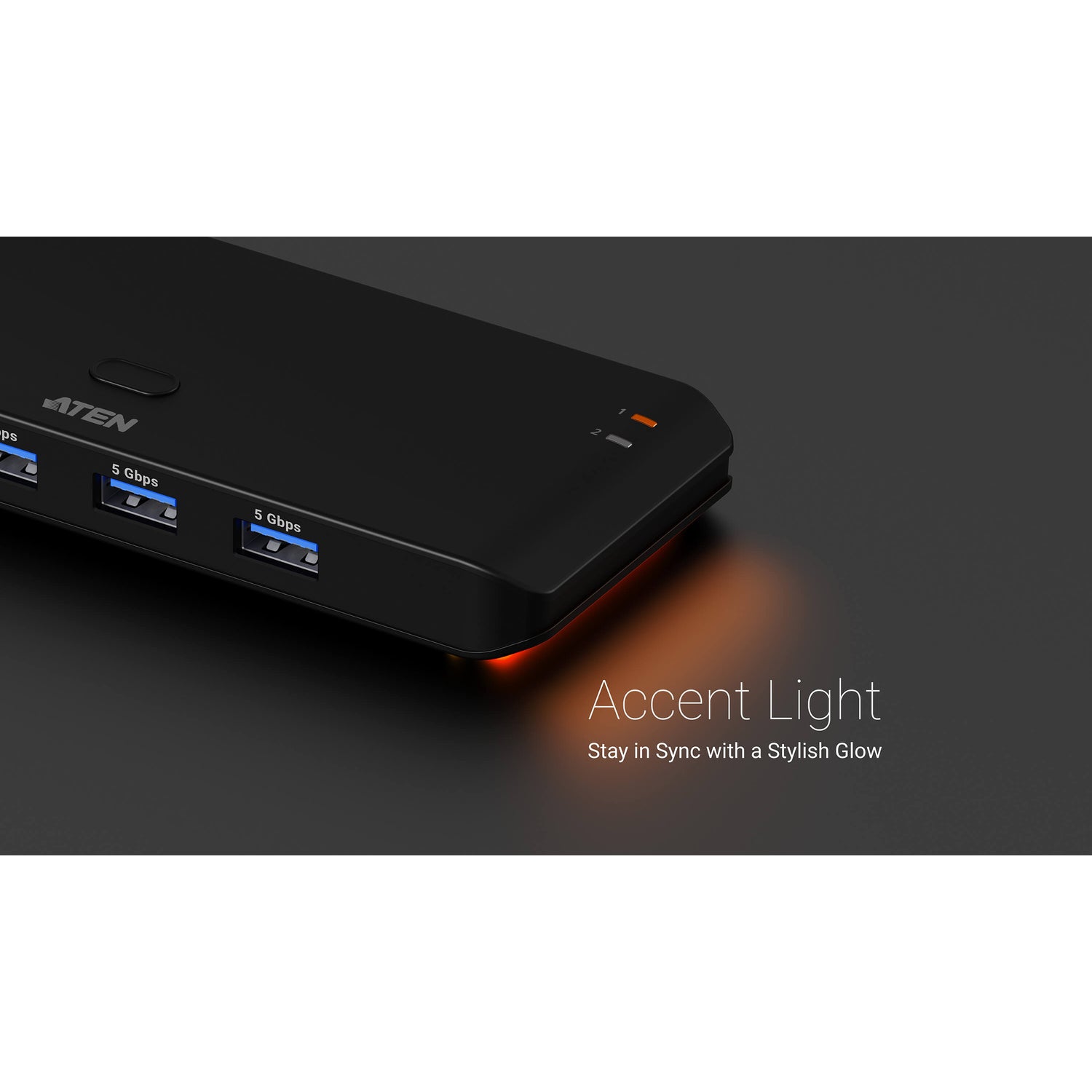

Slim 14.5 cm body with accent lighting, optional USB-C power input, and two 1.5 m USB 3.2 Gen 1 cables included. No drivers needed on Windows, macOS or Linux.
Rolling out shared desks or dual-PC workstations? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ATEN US4324 Datasheet — Technical Specifications
General
| Product Name | ATEN 2 x 4 USB 3.2 Gen 1 Sharing Switch |
| Model | US4324 |
| Order Code | US4324-AT |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Connectors

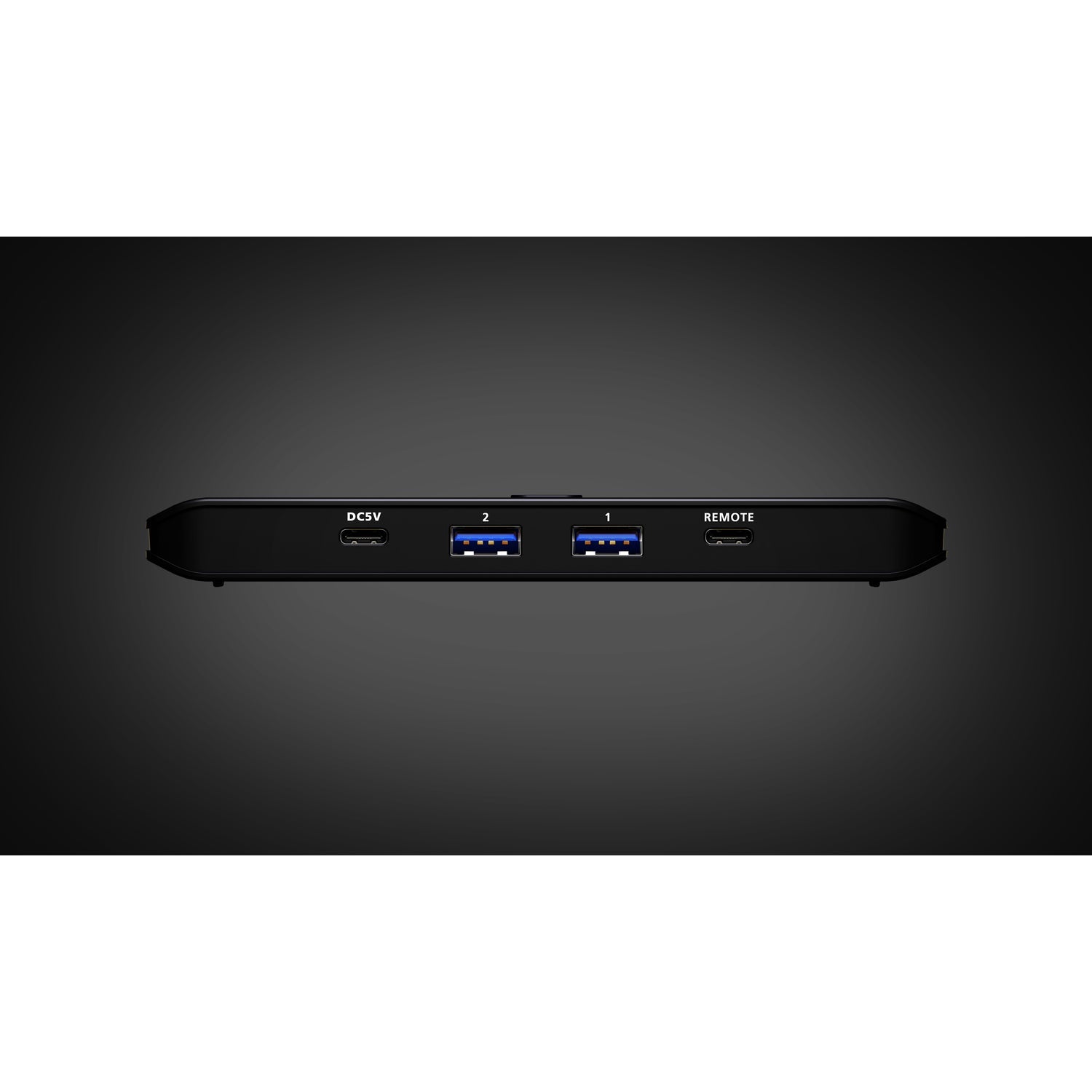

| Computer Connections | 2 |
| Computer Ports | 2 x USB Type-A Female |

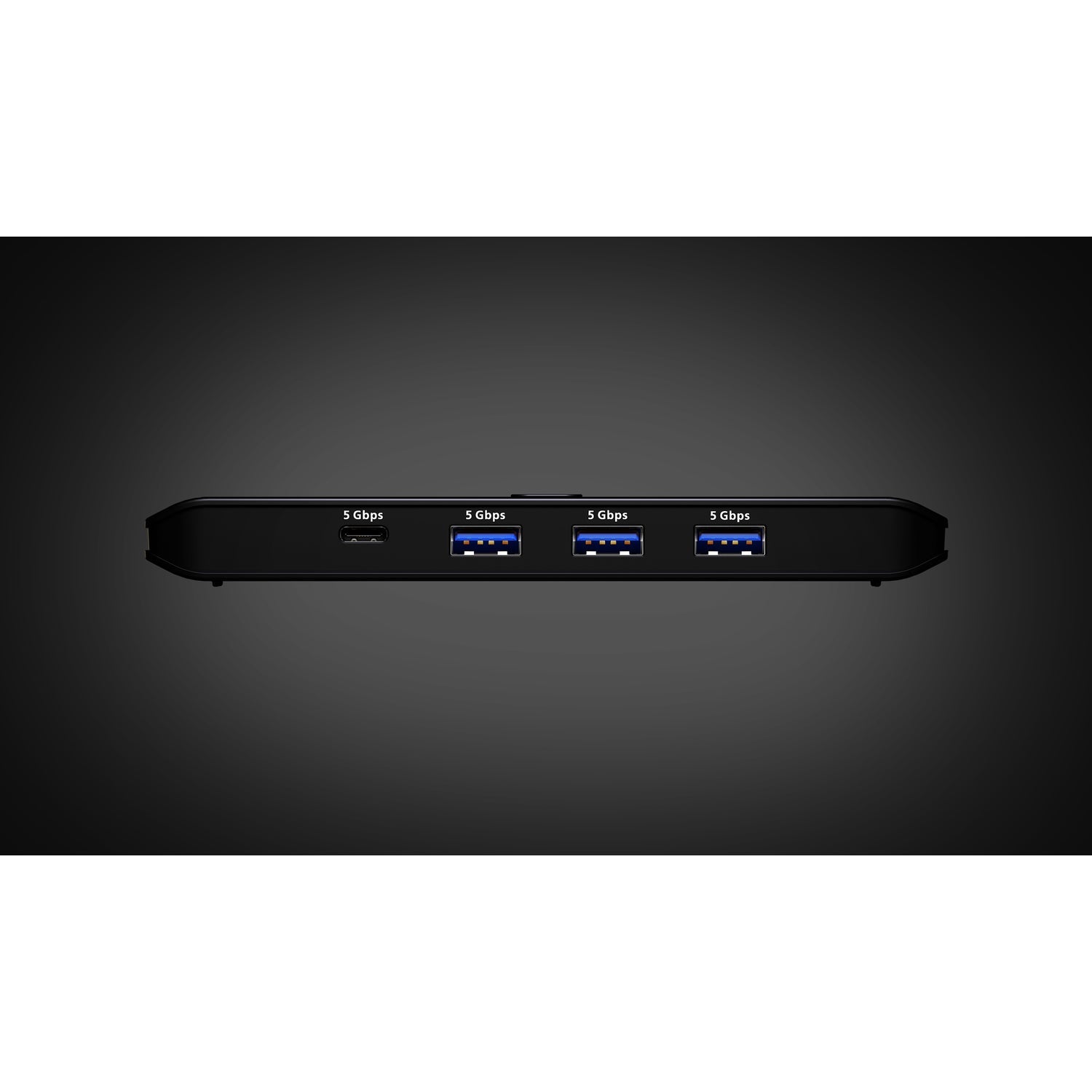

| Device Ports | 3 x USB Type-A Female; 1 x USB-C Female |
| Power | 1 x USB-C Female (optional) |
| Remote Port Selector | 1 x USB-C Female |
Performance
| USB Standard | USB 3.2 Gen 1 |
| Data Rate | 5 Gbps |
| Port Selection | Pushbutton / remote port selector |
| LEDs | 2 x Selected (Orange); 2 x Power (Orange, bottom) |
| Cables Included | 2 x USB 3.2 Gen 1 Type-A to Type-A (1.5 m) |
| Operating Systems | Windows, macOS, Linux |
Environmental
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 10–80% RH, non-condensing |
Physical
| Housing | Plastic |
| Weight | 77 g |
| Dimensions (L x W x H) | 14.5 x 5.65 x 1.52 cm |
Compatibility & Applications
Typical Devices
Keyboards, mice, USB webcams, headsets, external drives, printers and scanners, including one USB-C peripheral.
Typical Use

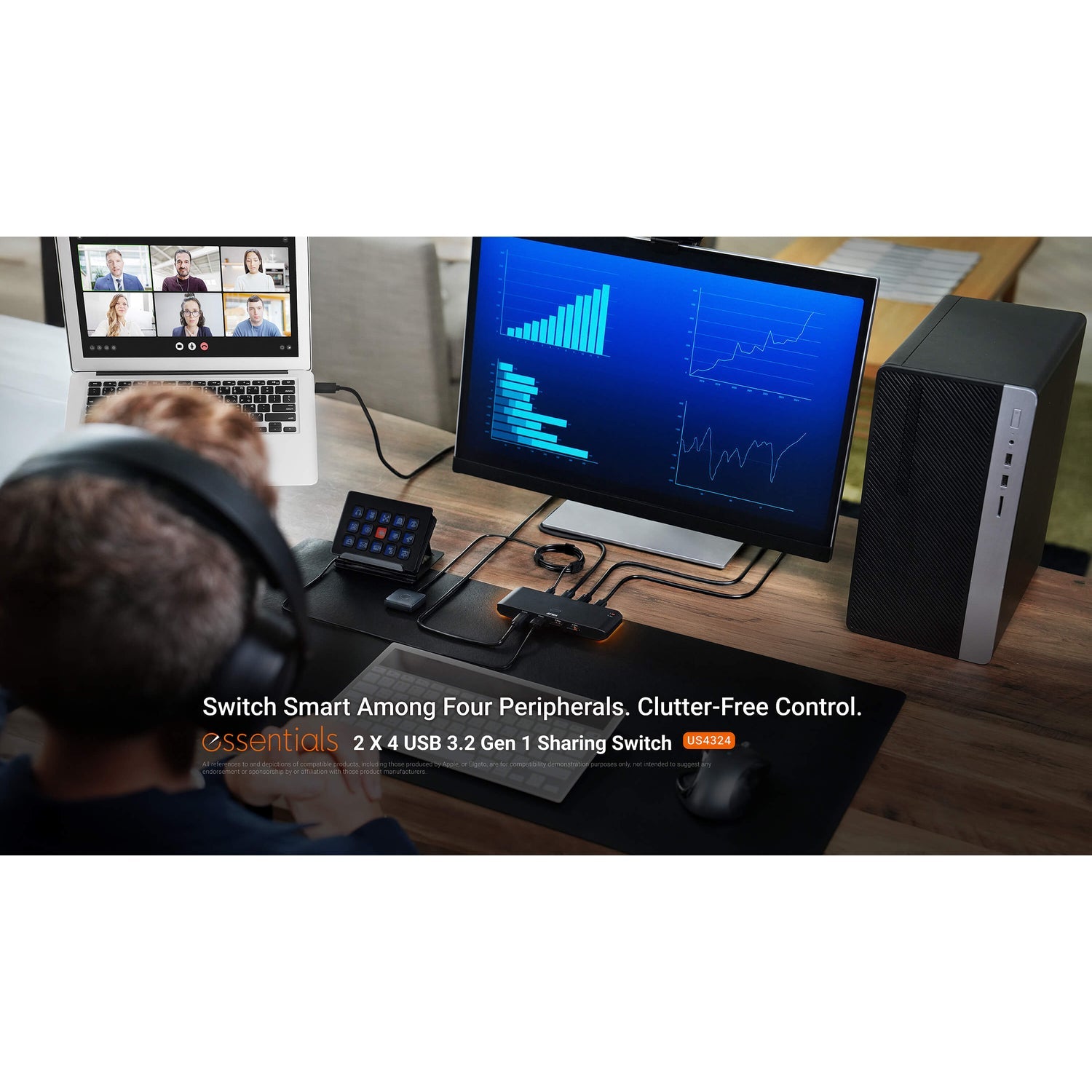

Home and office desks with a work laptop and a personal PC, and workstations where two computers share one set of peripherals.
Selection Tip
Both computers must have USB-A ports to use the included cables. If one computer is USB-C only, choose the US5324 (one Type-A and one Type-C host).
Package Contents & ATEN USB Sharing Switch Ordering Information
In the Box
1 x US4324 2 x 4 USB 3.2 Gen 1 Sharing Switch, 2 x USB Type-A to USB Type-A cables (1.5 m), 1 x remote port selector.
ATEN USB Sharing Switch Models
| Model | Key feature |
| US224 | 2 computers share 4 USB 2.0 devices, remote port selector |
| US4224 | 2 computers share 4 USB 2.0 devices, compact essentials design |
| US4322 | 2 computers share 2 USB 3.2 Gen 1 devices |
| US4324 (this listing) | 2 computers share 4 USB 3.2 Gen 1 devices |
| US5324 | 2 x 4 USB 3.2 Gen 1, one Type-A and one Type-C host |
| US3342 | 2 USB-C computers share 4 USB 3.2 Gen 2 devices, 85 W PD pass-through |
| US3344 | 4 computers share 4 USB 3.2 Gen 1 devices |
Datasheet & Downloads
| Datasheet | US4324 Datasheet (PDF) |
| Quick start guide | US4324 Quick Start Guide (PDF) |
| ATEN product page | US4324 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting US4324-AT.
Frequently Asked Questions — ATEN US4324
What is the difference between the US4324 and the US5324?
They share the same body and four device ports. The US4324 connects to two USB Type-A computers; the US5324 connects to one Type-A and one Type-C computer.
How do I switch computers?
Press the pushbutton on the switch or the included remote port selector.
Do I need drivers?
No. It is plug-and-play and hot-pluggable on Windows, macOS and Linux.
Is a power adapter required?
A USB-C power input is provided as an option for higher-draw devices.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
