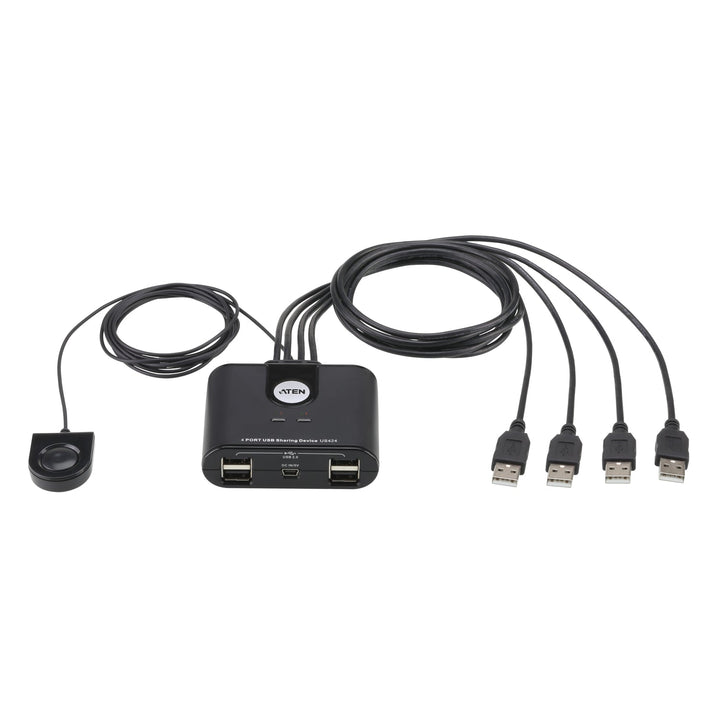

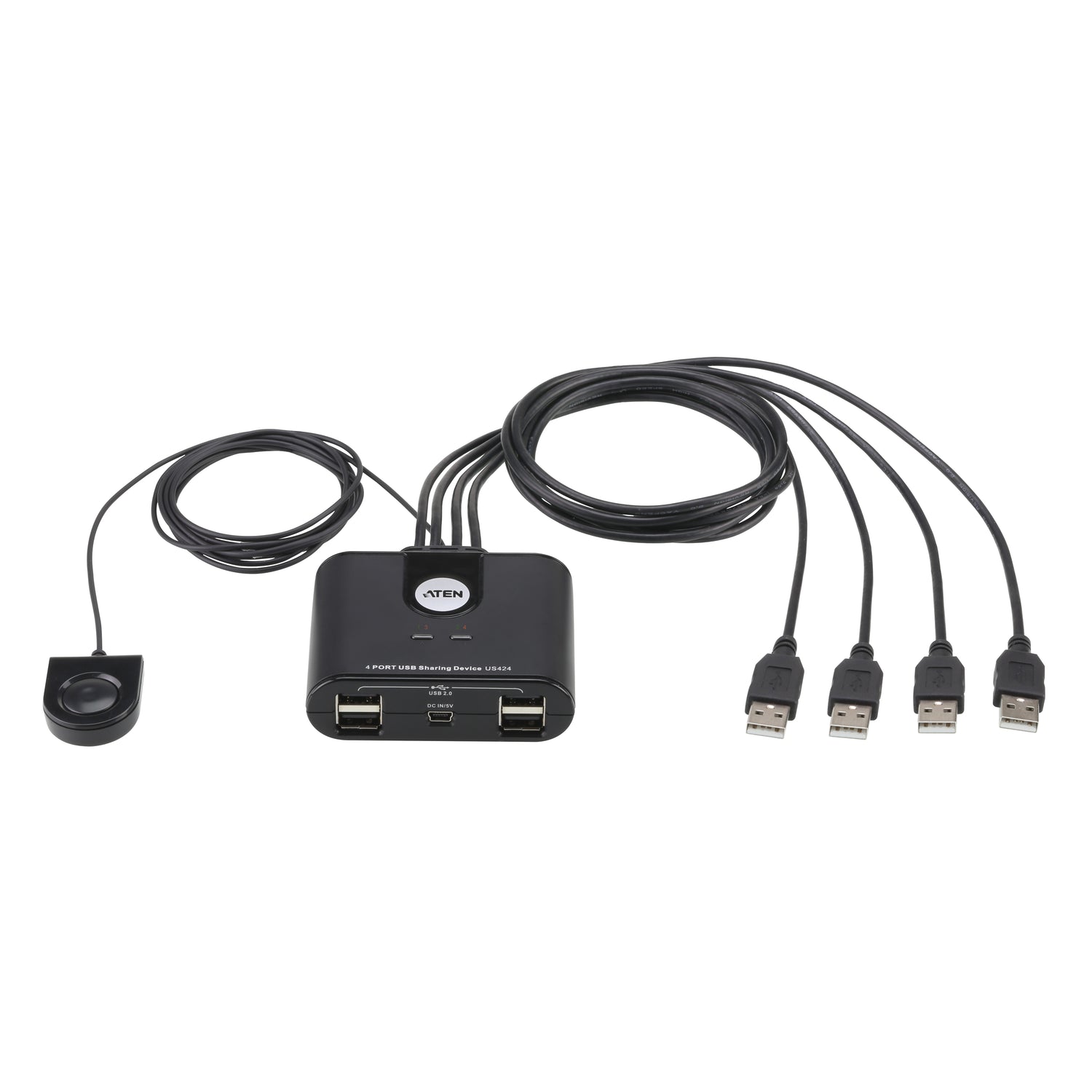

ATEN US424 4 x 4 USB 2.0 Peripheral Sharing Switch
PRODUCT DESCRIPTION
ATEN US424 4 x 4 USB 2.0 Peripheral Sharing Switch - 2 Years Local Warranty
Four Computers, Four Shared USB Devices
The ATEN US424 lets four computers share four USB 2.0 devices: a USB keyboard, mouse and up to two peripherals such as a printer, scanner, card reader or external drive.
Switch from the Desktop
A remote port selector on a 1.8 m cable sits on the desk so you can change computers without reaching behind the equipment, with LEDs showing which computer has focus.
Cables Attached, Nothing to Install
The four computer connections are attached USB Type-A cables (2 x 1.2 m and 2 x 1.8 m). The switch is hot-pluggable, has over-current protection and runs without a power adapter, with an optional mini USB power input for power-hungry devices.
Multiplatform
Works with Windows, Linux, Mac and Sun systems.
Setting up shared peripherals across several desks or labs? Email sales@sourceit.com.sg for volume pricing.
ATEN US424 Datasheet — Technical Specifications
General
| Product Name | ATEN 4 x 4 USB 2.0 Peripheral Sharing Switch |
| Model | US424 |
| Order Code | US424-AT |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Connectors
| Computer Connections | 4 |
| Computer Connectors | 4 x USB Type-A Male (Black), attached cables |

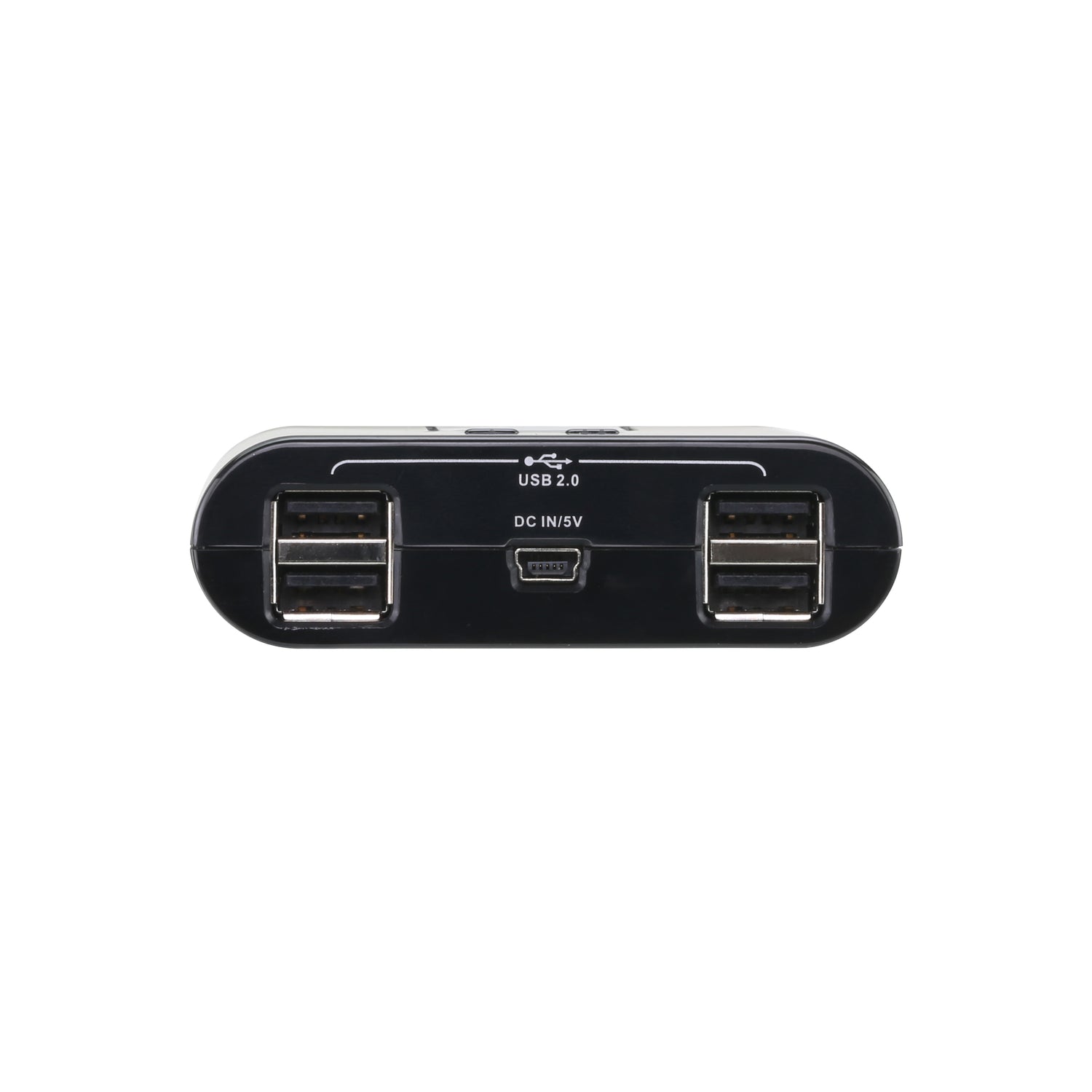

| Device Connectors | 4 x USB Type-A Female (Black) |
| Power (Optional) | 1 x USB Mini-B Female (Black) |
Control
| Computer Selection | Remote port selector |
| LEDs | 2 (green / orange) |
Cables
| USB Cable Length | 2 x 1.2 m / 2 x 1.8 m |
| Remote Port Selector Cable | 1.8 m |
USB
| Standard | USB 2.0 |
Environmental
| Operating Temperature | 5–40 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Plastic |
| Weight | 240 g |
| Dimensions (L x W x H) | 8.24 x 6.65 x 2.53 cm |
Compatibility & Applications
Typical Devices
USB keyboards and mice, printers, scanners, card readers, external drives and other USB 2.0 peripherals.
Typical Use
Desks or labs with several computers that should share one keyboard and mouse, or offices where four PCs share a single printer or scanner.
Selection Tip
For two computers, the US224 is the 2 x 4 version. If you also need to switch the monitor between computers, choose a KVM switch instead; for 5 Gbps devices see the US3344.
Package Contents & ATEN USB Peripheral Sharing Switch Ordering Information
In the Box
1 x US424 4 x 4 USB 2.0 Peripheral Sharing Switch (with attached USB cables and remote port selector).
ATEN USB Sharing Switch Models
| Model | Key feature |
| US424 (this listing) | 4 x 4 USB 2.0, remote port selector |
| US224 | 2 x 4 USB 2.0 peripheral sharing switch |
| US221A | 2 x 1 USB 2.0 peripheral switch |
| US421A | 4 x 1 USB 2.0 peripheral switch |
| US4224 | 2 x 4 USB 2.0 sharing switch |
| US234 | 2 x 4 USB 3.2 Gen 1 peripheral sharing switch |
| US3344 | 4 x 4 USB 3.2 Gen 1 peripheral sharing switch |
Datasheet & Downloads
| US424 datasheet | US224 / US424 Datasheet (PDF) |
| ATEN product page | US424 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting US424-AT.
Frequently Asked Questions — ATEN US424
Can it share a monitor too?
No. The US424 shares USB devices only. To switch a monitor as well, use a KVM switch.
How do I change computers?
Use the remote port selector on its 1.8 m cable; LEDs show the selected computer.
Does it need a power adapter?
No, it runs without one. An optional mini USB power input is provided for extra power.
Is it USB 3.0?
No, it is USB 2.0. For USB 3.2 Gen 1 (5 Gbps), choose the US3344.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
