ATEN US3324 2 x 4 USB 3.2 Gen 1 Peripheral Sharing Switch
PRODUCT DESCRIPTION
ATEN US3324 2 x 4 USB 3.2 Gen 1 Peripheral Sharing Switch - 2 Years Local Warranty
2 Computers Share 4 USB Devices
The US3324 lets 2 computers share up to four USB devices, such as printers, scanners, external drives, webcams or a keyboard and mouse, switching the whole set from one computer to another.
SuperSpeed 5 Gbps
USB 3.2 Gen 1 delivers up to 5 Gbps for fast file transfers to shared drives, and stays backward compatible with USB 2.0 and 1.1 devices.
Switch from Your Desk
A remote port selector on a 1.8 m cable puts switching at your fingertips while the unit sits out of the way.
Bus-Powered with Optional Power
Runs on bus power, with an optional micro-USB power jack for high-draw devices. Over-current protection and hot-plugging are built in, and it works with Windows, Linux and Mac.
Sharing printers, scanners or drives across a team? Email sales@sourceit.com.sg for volume pricing.
ATEN US3324 Datasheet — Technical Specifications
General
| Product Name | ATEN 2 x 4 USB 3.2 Gen 1 Peripheral Sharing Switch |
| Model | US3324 |
| Order Code | US3324-AT |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Connections
| Computers | 2 |
| USB Devices | 4 |
| Port Selection | Remote port selector (1.8 m cable) |
Connectors

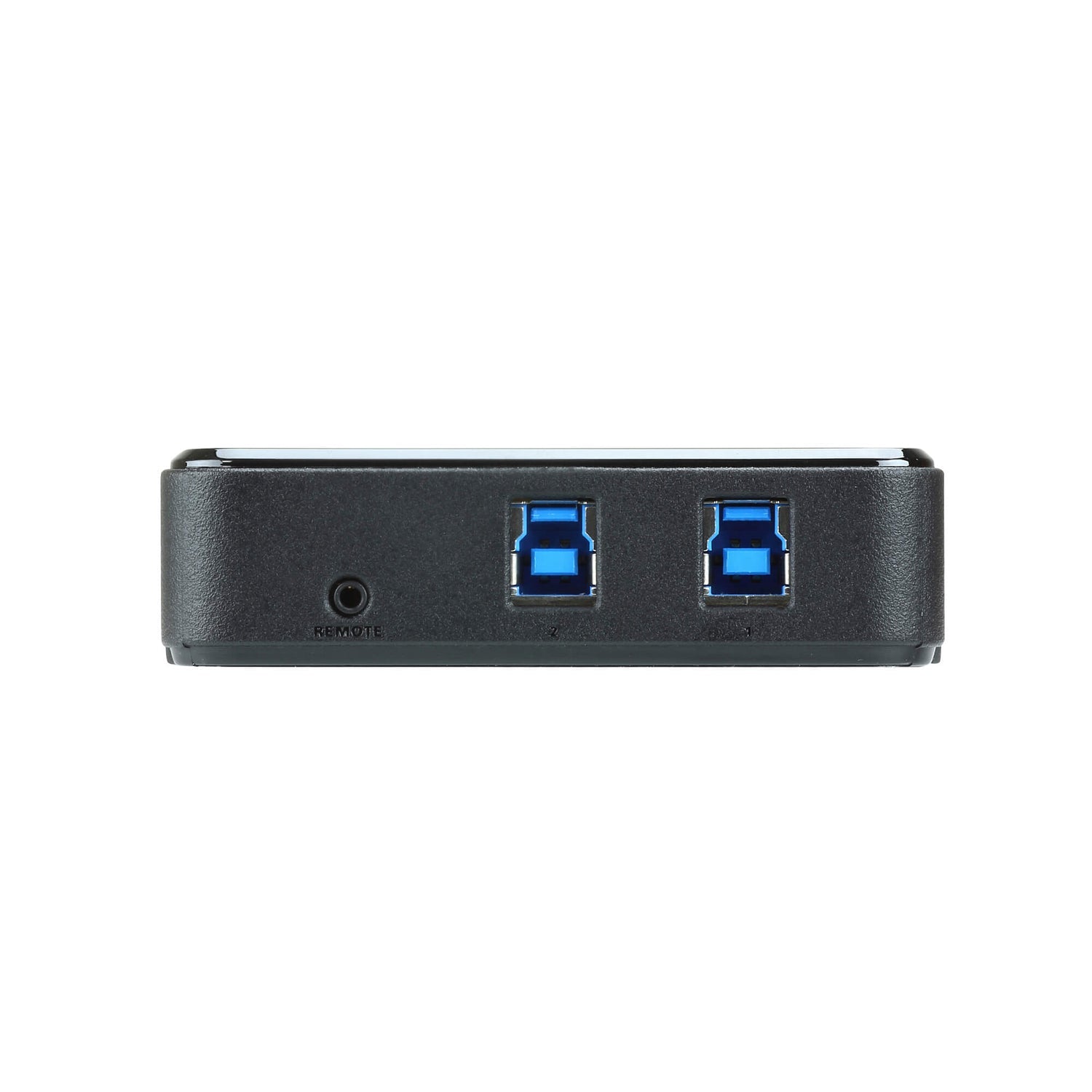

| Computer | 2 x USB Type-B Female |

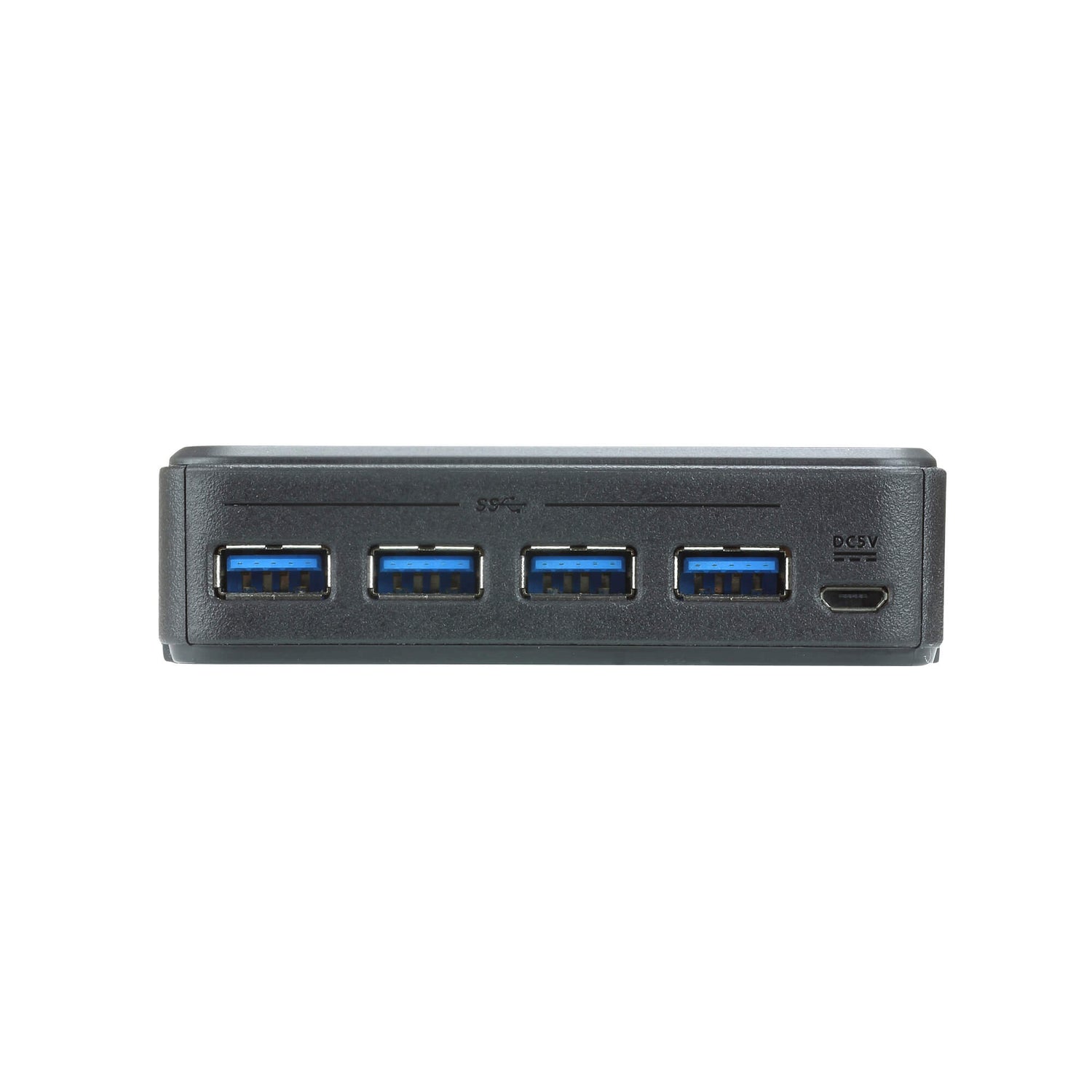

| Devices | 4 x USB Type-A Female |
| Power | Optional micro-USB power jack |
USB
| Data Rate | Up to 5 Gbps (USB 3.2 Gen 1) |
| Compatibility | Backward compatible with USB 2.0 / 1.1 |
| Protection | Over-current protection |
Power
| Power | Bus-powered; optional micro-USB power |
Physical
| Housing | Plastic |
| Weight | 0.12 kg |
| Dimensions | 9.37 x 9.30 x 2.68 cm |
Compatibility
| Operating Systems | Windows, Linux, Mac |
Compatibility & Applications
Typical Devices
USB printers, scanners, external hard drives and SSDs, webcams, card readers, keyboards and mice shared between desktops and laptops.
Typical Use
Small offices and labs where several computers need occasional access to the same printer, scanner or storage device.
Selection Tip
A peripheral sharing switch switches USB devices only, not video. A Type-B to Type-C cable is included for connecting a USB-C computer. For four computers, see the US434 or US3344.
Package Contents & ATEN USB Peripheral Sharing Switch Ordering Information
In the Box
1 x US3324 switch, 2 x USB 3.2 Gen 1 Type-B to Type-A cables (1.2 m), 1 x USB 3.2 Gen 1 Type-B to Type-C cable (1.8 m), 1 x Remote Port Selector, 1 x User Instructions.
ATEN USB Peripheral Sharing Switch Models
| Model | Key feature |
| US234 | 2x4 USB 3.2 Gen 1 peripheral sharing switch |
| US3324 (this listing) | 2x4 USB 3.2 Gen 1 sharing switch, USB-C host cable included |
| US434 | 4x4 USB 3.2 Gen 1 peripheral sharing switch |
| US3344 | 4x4 USB 3.2 Gen 1 peripheral sharing switch |
| US3342 | 2x4 USB-C Gen 2 peripheral sharing switch |
| US4324 | 2x4 USB 3.2 Gen 1 sharing switch |
| US224 | 2x4 USB 2.0 peripheral sharing switch |
| US424 | 4x4 USB 2.0 peripheral sharing switch |
Datasheet & Downloads
| Datasheet | US234 / US434 / US3324 / US3344 Datasheet (PDF) |
| Quick start guide | US234 / US434 / US3324 / US3344 Quick Start Guide (PDF) |
| ATEN product page | US3324 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting US3324-AT.
Frequently Asked Questions — ATEN US3324
Can all computers use the devices at the same time?
No. All four devices are switched together to one computer at a time, selected with the remote port selector.
Does it switch my monitor too?
No. It shares USB devices only. For monitor sharing, use an ATEN KVM switch.
Do I need a power adapter?
It is bus-powered. An optional micro-USB power jack is available for high-draw devices.
Are cables included?
Yes. 1 x US3324 switch, 2 x USB 3.2 Gen 1 Type-B to Type-A cables (1.2 m), 1 x USB 3.2 Gen 1 Type-B to Type-C cable (1.8 m), 1 x Remote Port Selector, 1 x User Instructions.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
