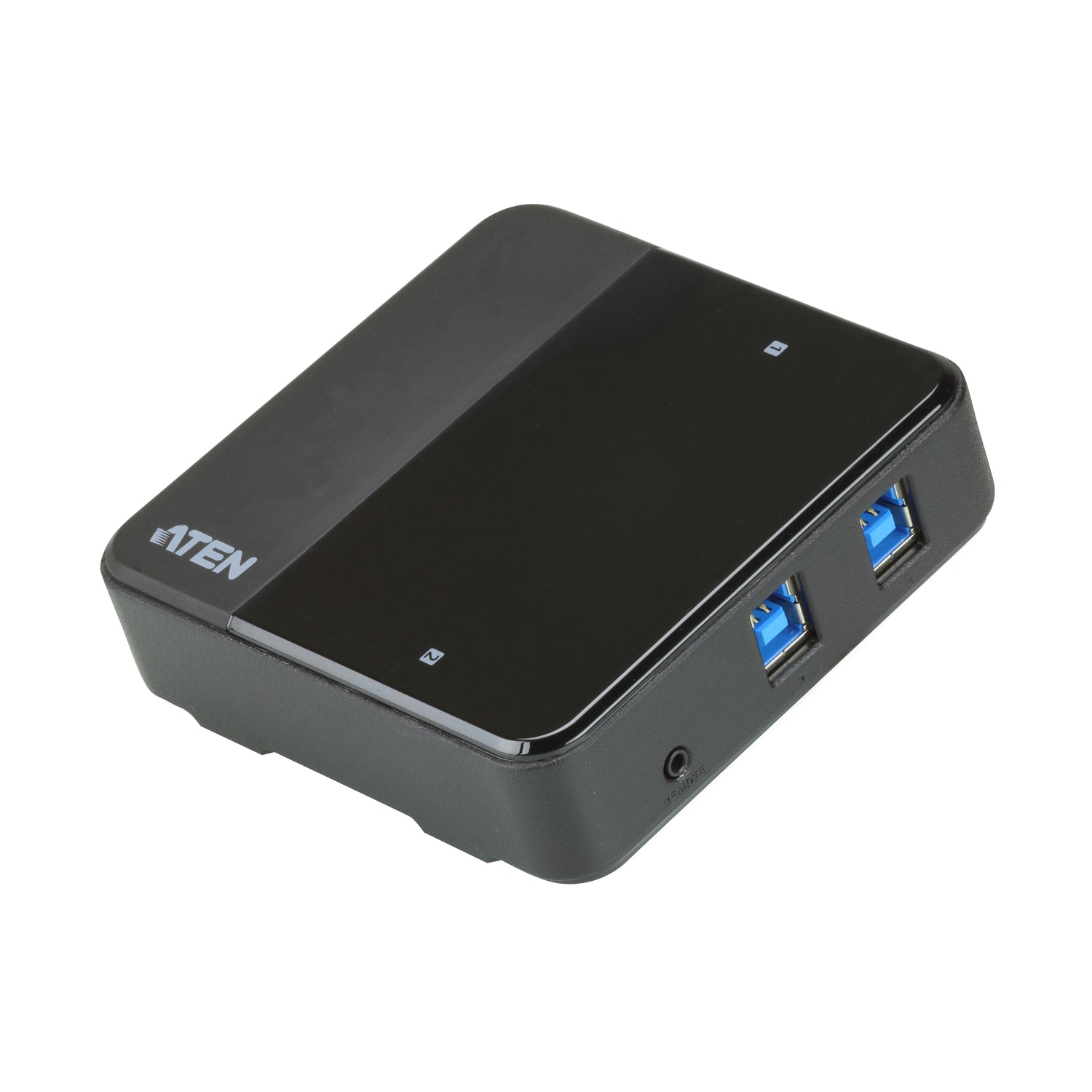

ATEN US234 2 x 4 USB 3.2 Gen 1 Peripheral Sharing Switch

SKU: US234-AT

S$138.00
Unit price per

Shipping calculated at checkout.

PRODUCT DESCRIPTION

ATEN US234 2 x 4 USB 3.2 Gen 1 Peripheral Sharing Switch - 2 Years Local Warranty

Share Four 5 Gbps USB Devices Between Two Computers

The ATEN US234 lets two computers share four USB 3.2 Gen 1 devices, such as a keyboard, mouse, webcam, external drive, printer or scanner, at data rates up to 5 Gbps.

One-Touch Switching from the Desk

Change which computer owns the devices with the remote port selector on a 1.8 m cable, and see the active computer at a glance from the white LEDs.

Bus-Powered, With Optional Extra Power

The US234 runs from the computers' USB ports with no adapter required. A Micro USB power jack is there if your devices need additional power, and over-current protection guards the ports.

Plug and Play on Windows, Linux and Mac

No drivers are needed. Two USB Type-B to Type-A cables (1.2 m) are included to connect the computers.

Rolling out shared desks or dual-PC workstations? Email sales@sourceit.com.sg for volume pricing and lead time.

ATEN US234 Datasheet — Technical Specifications

General

Product Name	ATEN 2 x 4 USB 3.2 Gen1 Peripheral Sharing Switch
Model	US234
Order Code	US234-AT
Local Warranty (Singapore)	2 years carry-in warranty

Connectors

Computer Connections	2

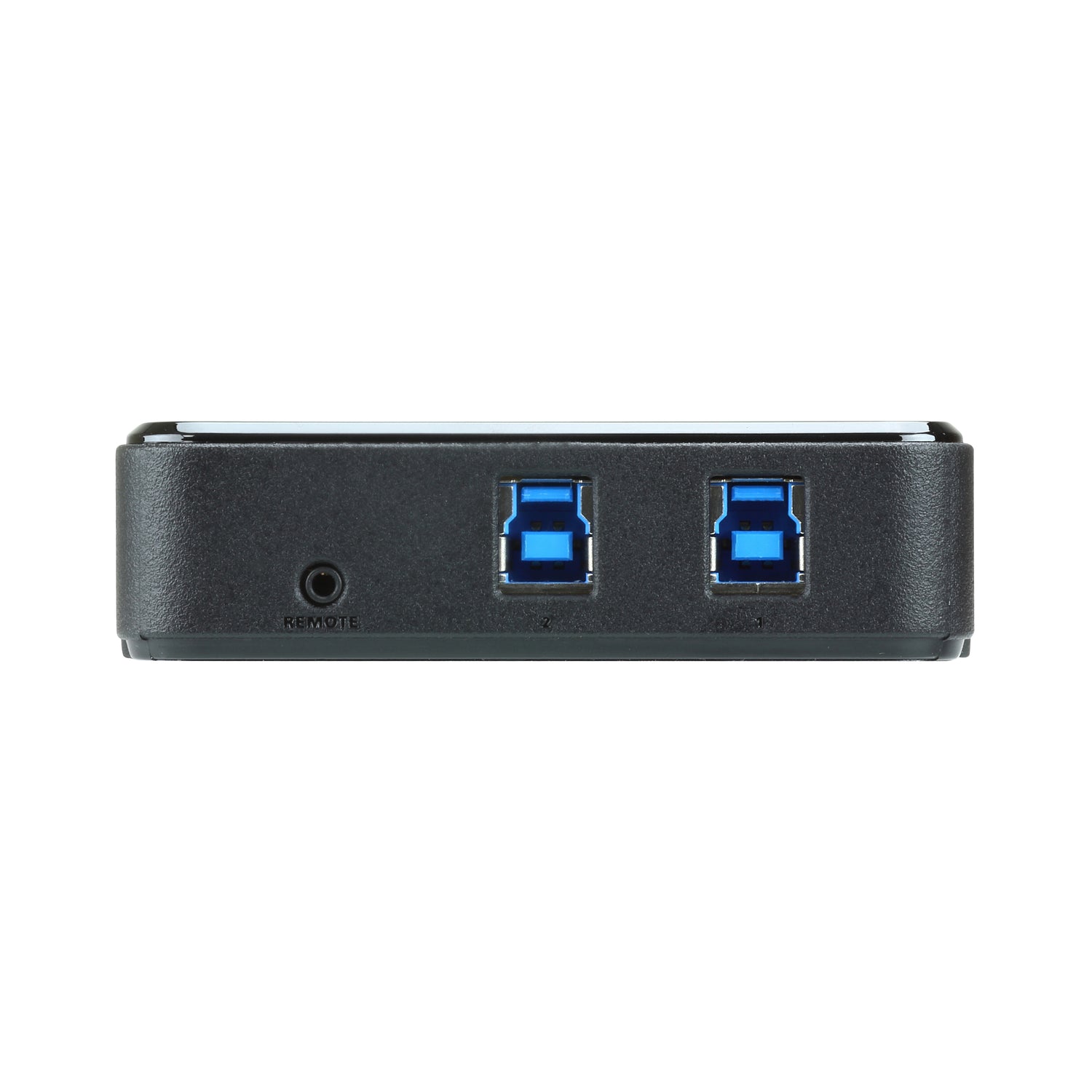

Computer Connectors	2 x USB Type-B Female (Blue)

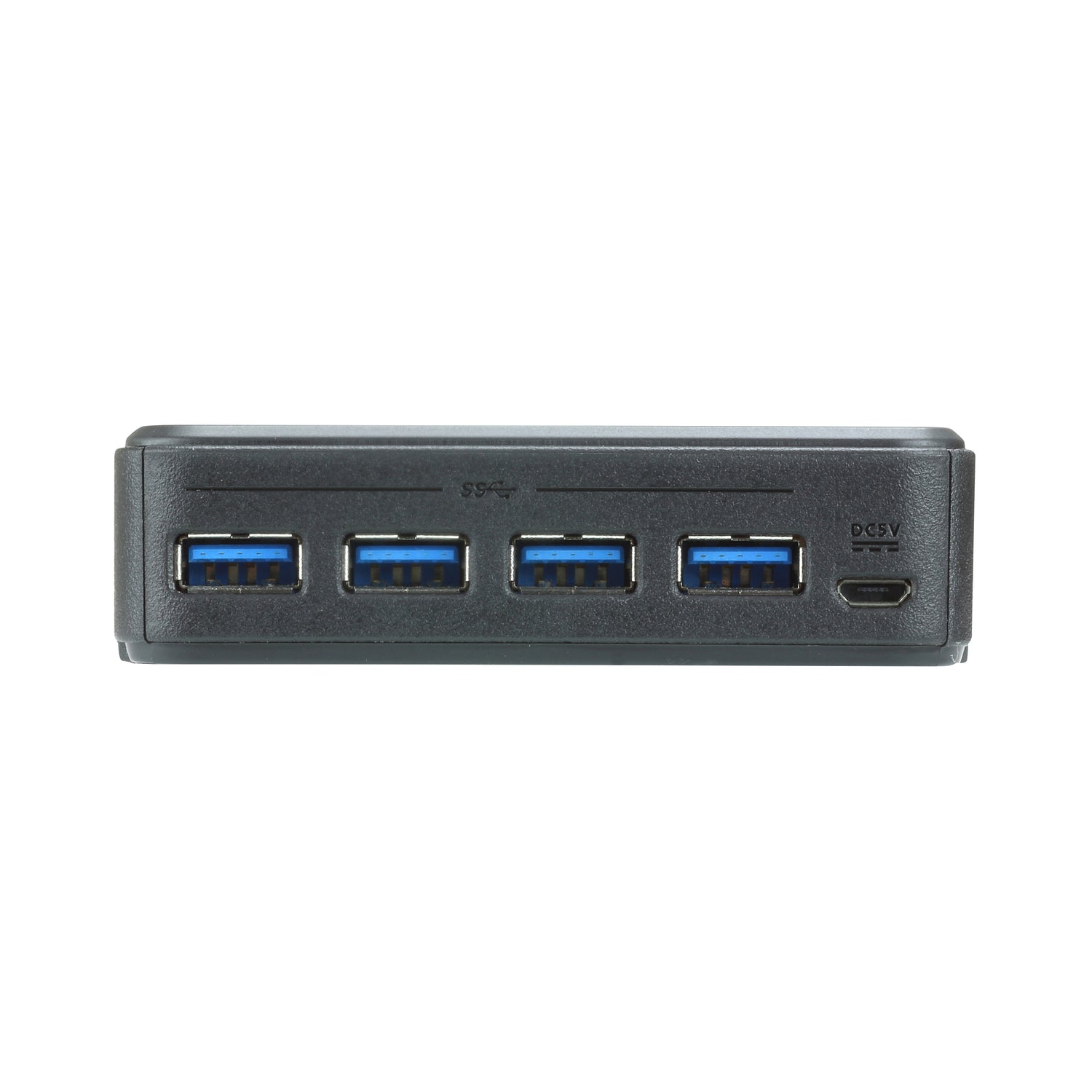

Device Connectors	4 x USB Type-A Female (Blue)
Power (Optional)	1 x USB Micro-B Female (Black)

USB

Standard	USB 3.2 Gen 1
Data Rate	Up to 5 Gbps

Control

Port Selection	Remote port selector
LEDs	2 (white, selected)

Cables

USB Cables	2 x USB Type-A to Type-B, 1.2 m
Remote Port Selector Cable	1.8 m

Power

Power Mode

Bus-powered; optional Micro USB power input

Environmental

Operating Temperature	0–40 °C
Storage Temperature	-20–60 °C
Humidity	0–80% RH, non-condensing

Physical

Housing	Plastic
Weight	0.12 kg
Dimensions (L x W x H)	9.37 x 9.30 x 2.68 cm

Compatibility

Operating Systems

Windows, Linux, Mac

Compatibility & Applications

Typical Devices

USB keyboards and mice, webcams, headsets, external SSDs and hard drives, card readers, printers and scanners.

Typical Use

A work notebook and a personal PC sharing the same desk peripherals, hot desks, and labs where two computers share a printer, scanner or storage device.

Selection Tip

For four computers choose the US3344 (4 x 4). The US234 shares USB devices only; to switch a monitor as well, use a KVM switch such as the CS22H or US3312.

Package Contents & ATEN USB Peripheral Sharing Switch Ordering Information

In the Box

1 x US234 2 x 4 USB 3.2 Gen 1 Peripheral Sharing Switch, 2 x USB 3.2 Gen 1 Type-B to Type-A cables (1.2 m), 1 x remote port selector, 1 x user instructions.

ATEN USB Sharing Switch Models

Model	Key feature
US234 (this listing)	2 x 4 USB 3.2 Gen 1, remote port selector
US3344	4 x 4 USB 3.2 Gen 1 peripheral sharing switch
US3324	2 x 4 USB 3.2 Gen 1 peripheral sharing switch
US434	4 x 4 USB 3.2 Gen 1 peripheral sharing switch
US4324	2 x 4 USB 3.2 Gen 1 sharing switch
US5324	2 x 4 USB 3.2 Gen 1 sharing switch, USB-A + USB-C host
US424	4 x 4 USB 2.0 peripheral sharing switch

Datasheet & Downloads

Datasheet	US234 / US434 / US3324 / US3344 Datasheet (PDF)
Quick start guide	US234 / US434 / US3324 / US3344 Quick Start Guide (PDF)
ATEN product page	US234 on aten.com

Need a PDF sent directly? Email sales@sourceit.com.sg quoting US234-AT.

Frequently Asked Questions — ATEN US234

How fast is the US234?

It is USB 3.2 Gen 1, supporting data rates up to 5 Gbps.

Does it need a power adapter?

No. It is bus-powered. A Micro USB power jack is available if attached devices need extra power.

Can I connect a USB-C notebook?

The computer ports are USB Type-B and the included cables are Type-B to Type-A. For USB-C hosts, consider the US3344, which includes Type-B to Type-C cables, or the US5324.
