ATEN US224 2 x 4 USB 2.0 Peripheral Sharing Switch
PRODUCT DESCRIPTION
ATEN US224 2 x 4 USB 2.0 Peripheral Sharing Switch - 2 Years Local Warranty
Keyboard, Mouse and Two Peripherals for Two PCs

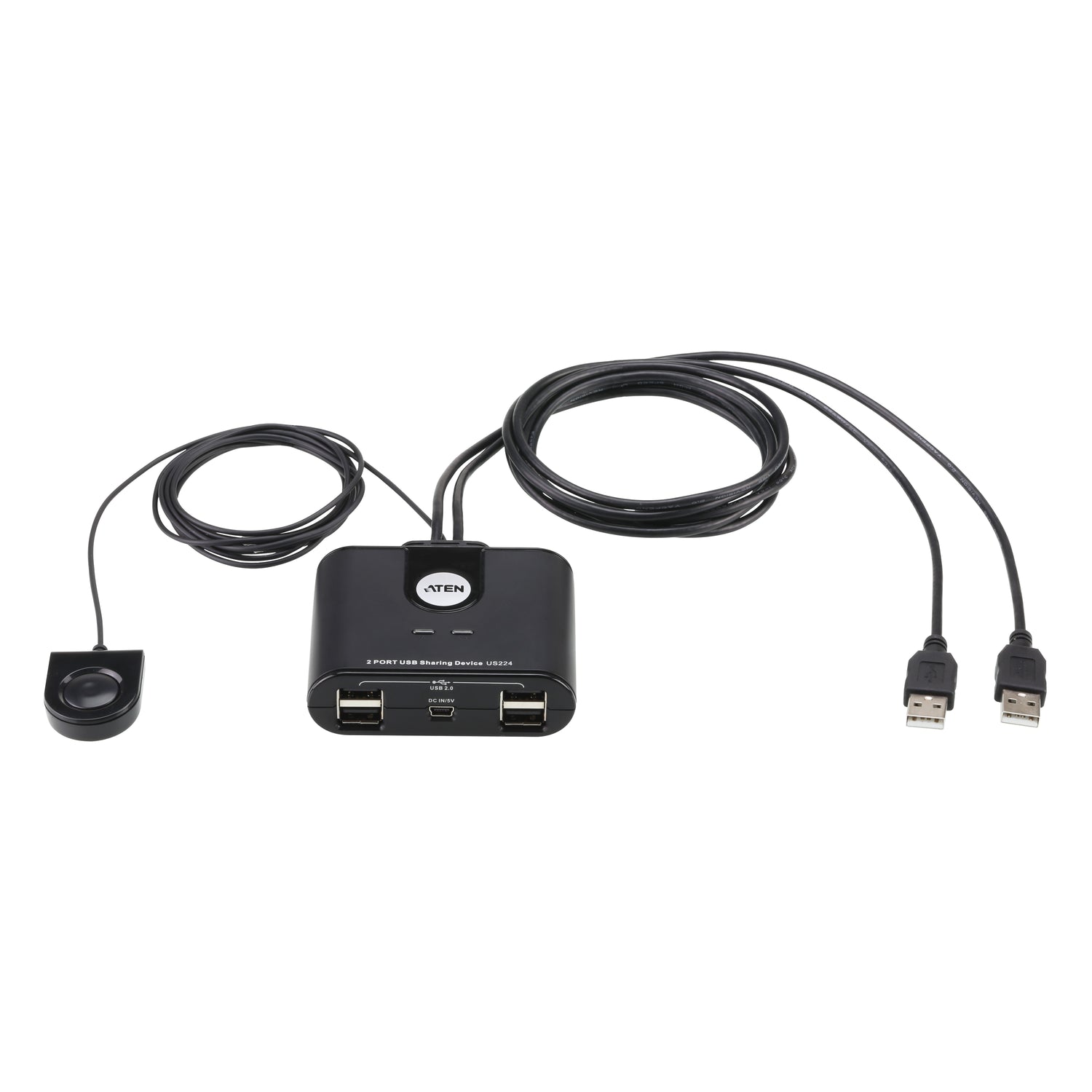

The US224 lets two computers share four USB 2.0 devices – typically a keyboard and mouse plus a printer and scanner – so one set of peripherals serves both machines.
All-in-One, No Loose Cables
The two 1.2 m computer cables are built in, so there are no separate cables to buy or lose, and the desk stays tidy.
Remote Port Selector
Switch computers with the external remote port selector on its 1.8 m lead; green LEDs show which computer has focus.
Non-Powered with Optional Power
The US224 runs without a power adapter for most setups, with a USB mini-B input for an optional USB power adapter. Overcurrent protection and hot-plugging are built in.
Fitting out reception, counters or dual-PC desks? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ATEN US224 Datasheet — Technical Specifications
General
| Product Name | ATEN 2 x 4 USB 2.0 Peripheral Sharing Switch |
| Model | US224 |
| Order Code | US224-AT |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Connectors
| Computer Connectors | 2 x USB Type-A Male (built-in cables) |

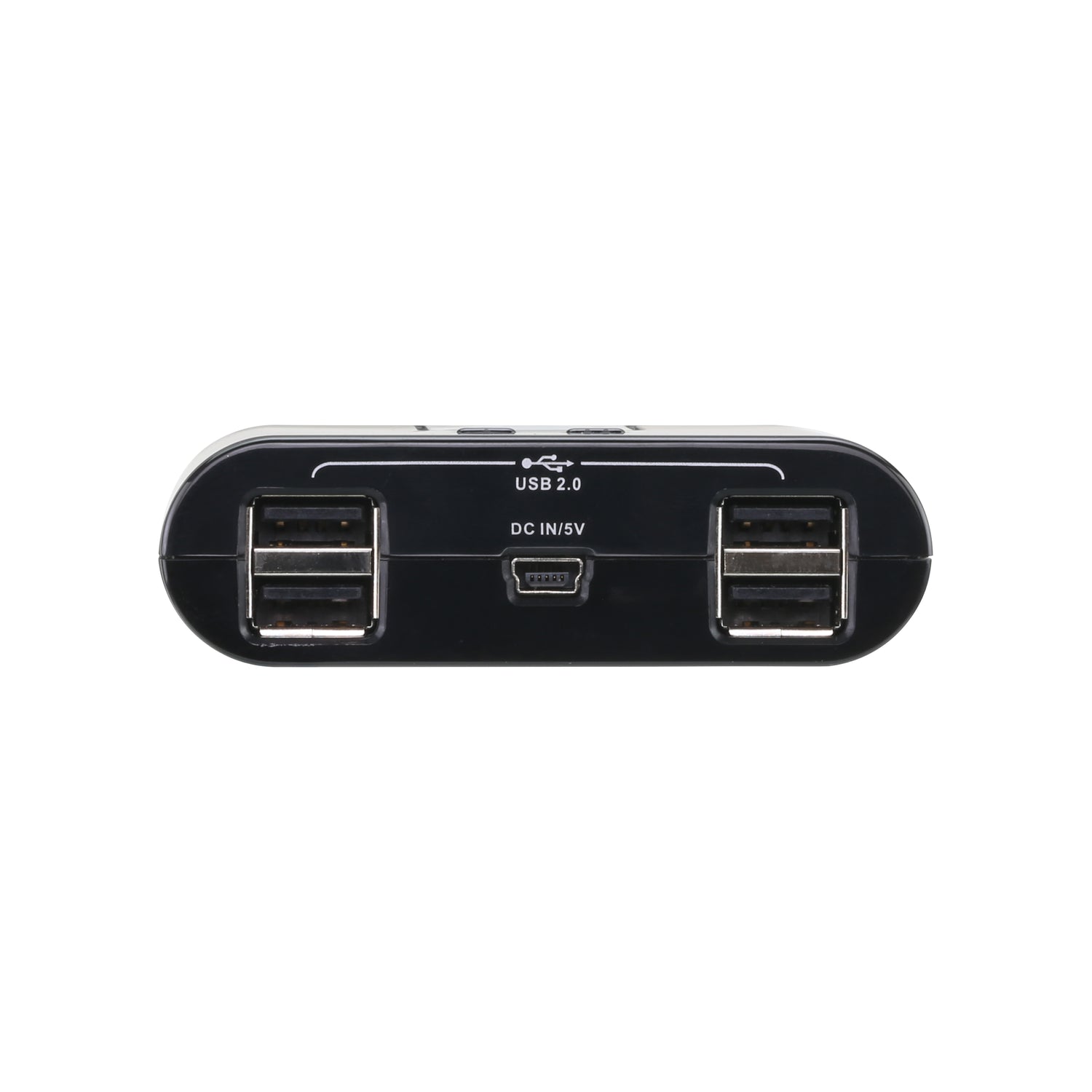

| Device Ports | 4 x USB Type-A Female |
| Power | 1 x USB mini-B Female (optional power) |
Cables & Operation
| Computer Cable Length | 2 x 1.2 m |
| Remote Port Selector Cable | 1.8 m |
| Port Selection | Remote port selector |
| LEDs | 2 (Green) |
| USB Standard | USB 2.0 compliant |
| Operating Systems | Windows, Linux, Mac and Sun |
Power
| Power | Non-powered (supports optional USB power adapter) |
| Protection | Overcurrent protection |
Environmental
| Operating Temperature | 5–40 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Plastic |
| Weight | 145 g |
| Dimensions (L x W x H) | 8.24 x 6.65 x 2.53 cm |
Compatibility & Applications
Typical Devices
USB keyboards and mice, printers, scanners, card readers and other USB 2.0 peripherals.
Typical Use
Two computers on one desk – a desktop and a laptop, or two PCs at a counter – sharing input devices and a printer. Each computer keeps its own monitor.
Selection Tip
The US224 suits keyboard, mouse and printer sharing. For faster external drives, choose a USB 3.2 Gen 1 model such as the US4324.
Package Contents & ATEN USB Sharing Switch Ordering Information
In the Box
1 x US224 2 x 4 USB 2.0 Peripheral Sharing Switch.
ATEN USB Sharing Switch Models
| Model | Key feature |
| US221A | 2 computers share 1 USB 2.0 device |
| US421A | 4 computers share 1 USB 2.0 device |
| US224 (this listing) | 2 computers share 4 USB 2.0 devices, remote port selector |
| US4224 | 2 computers share 4 USB 2.0 devices, compact essentials design |
| US4324 | 2 computers share 4 USB 3.2 Gen 1 devices |
| US3344 | 4 computers share 4 USB 3.2 Gen 1 devices |
Datasheet & Downloads
| Datasheet | US224 / US424 Datasheet (PDF) |
| ATEN product page | US224 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting US224-AT.
Frequently Asked Questions — ATEN US224
Are cables included?
The two computer cables (1.2 m each) are built into the switch, so no extra cables are needed.
How do I switch between computers?
Press the remote port selector, which sits on a 1.8 m cable.
Does it need power?
It is non-powered for typical use, with an optional USB mini-B power input for higher-draw devices.
Does it switch my monitor too?
No. It shares USB devices only. For keyboard, video and mouse switching, see ATEN cable KVM switches such as the CS22U.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
