ATEN UH3240 11-in-1 USB-C Multiport Dock with Power Pass-Through
PRODUCT DESCRIPTION
ATEN UH3240 11-in-1 USB-C Multiport Dock with Power Pass-Through - 2 Years Local Warranty
Eleven Ports from One USB-C Cable

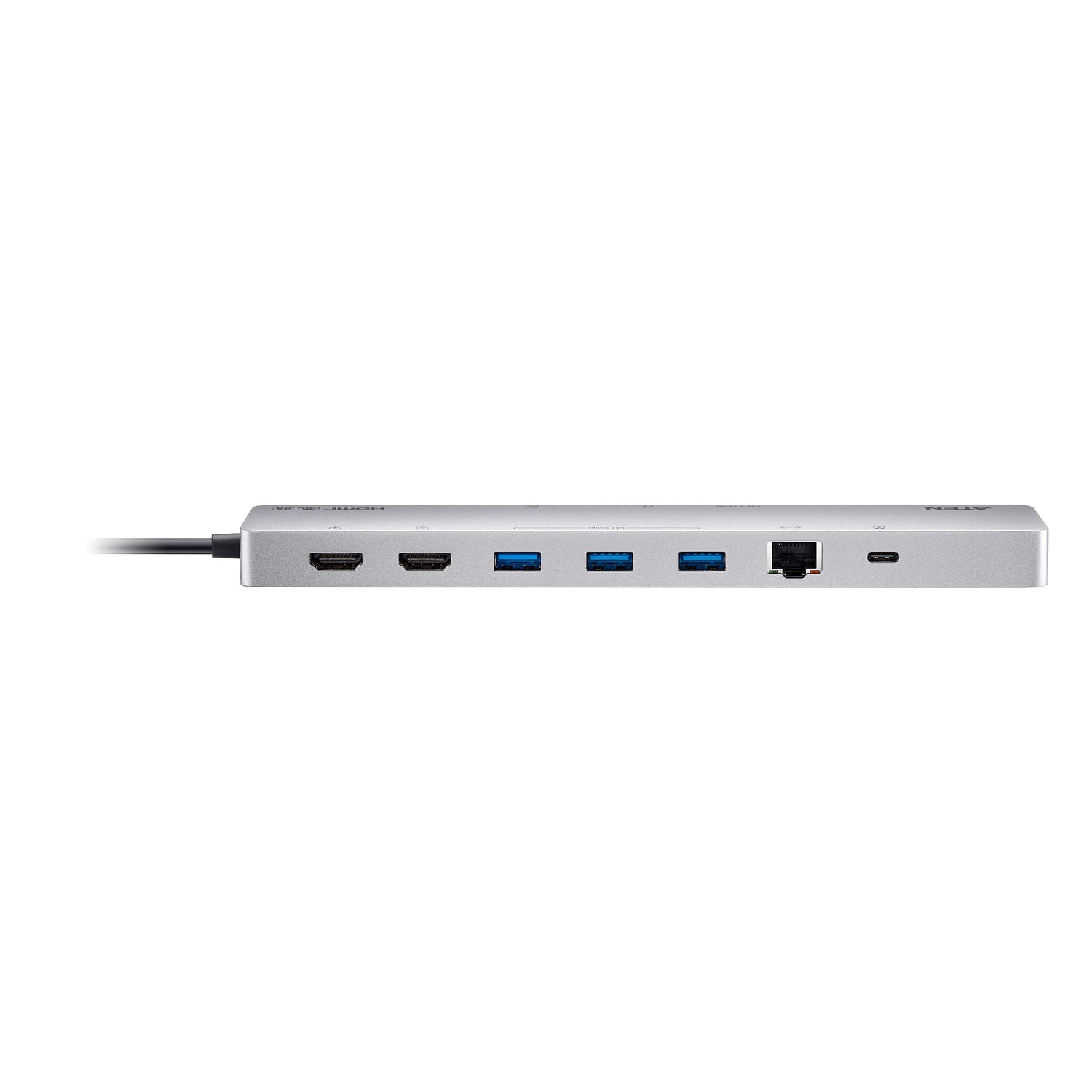

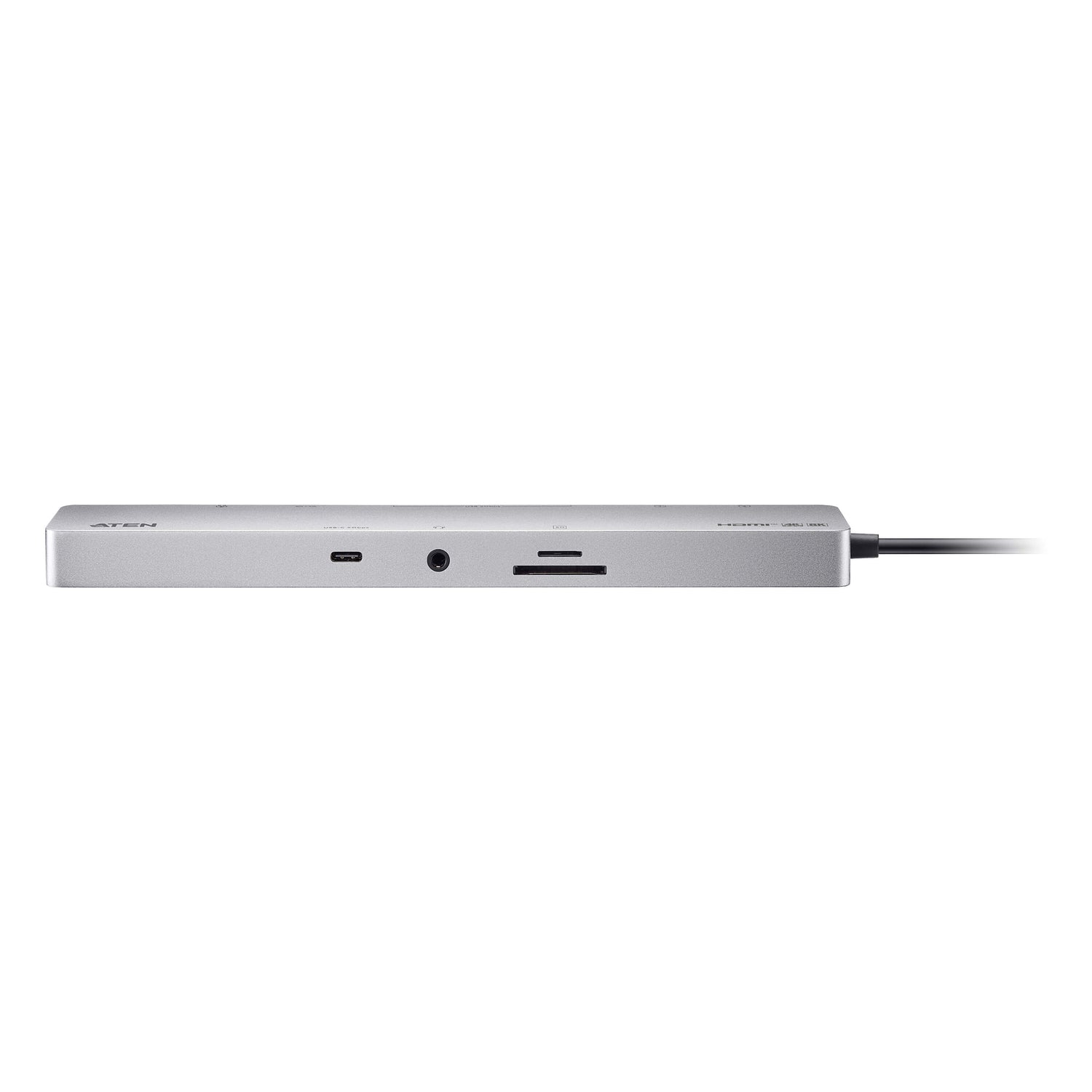

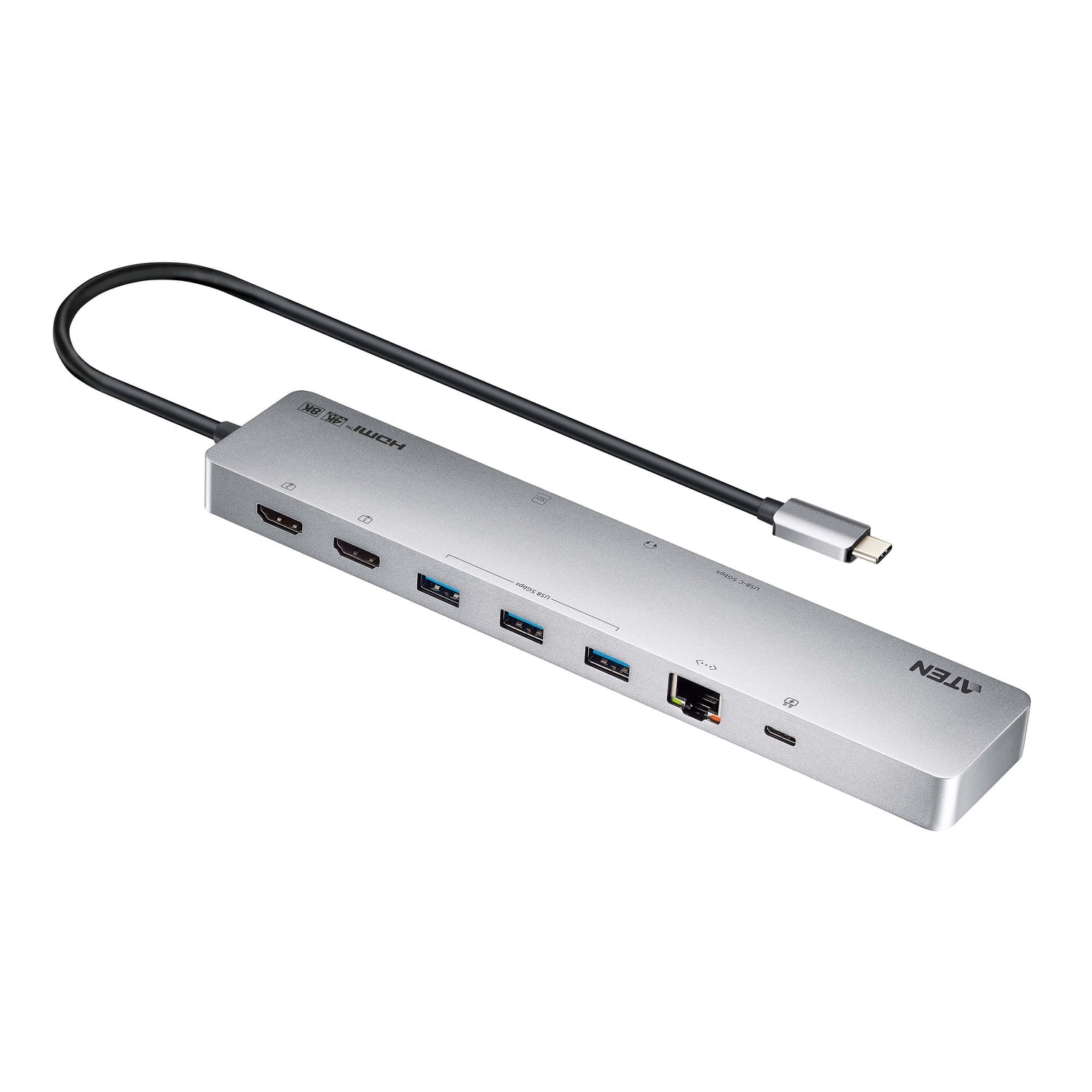

The UH3240 turns a single USB-C port into two HDMI outputs, three USB-A and one USB-C data port, Gigabit Ethernet, SD and microSD card readers, a 3.5 mm audio jack and a USB-C power input.
Dual 4K or Single 8K
Drive two displays at 3840 x 2160 at 60 Hz, or a single display at up to 7680 x 4320 or 3840 x 2160 at 120 Hz. Requires a host with DP 1.4 Alt Mode; MST supports dual extended 4K on Windows.
Charge While You Work
Connect your laptop's USB-C charger to the dock for USB Power Delivery 3.0 pass-through of up to 100W.
Slim Aluminium for Desk or Travel
An aluminium body with a built-in 40 cm USB-C cable, weighing 0.18 kg. Thunderbolt and Apple M1/M2/M3 compatible.
Deploying USB-C laptops across an office? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ATEN UH3240 Datasheet — Technical Specifications
General
| Product Name | ATEN 11-in-1 USB-C Multiport Dock with Power Pass-Through |
| Model | UH3240 |
| Order Code | UH3240-AT |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Connectors
| Computer | 1 x USB-C 3.2 Gen 1 Male cable (40 cm) |
| USB Devices | 3 x USB 3.2 Gen 1 Type-A Female; 1 x USB 3.2 Gen 1 Type-C Female |
| Video | 2 x HDMI Female |
| Network | 1 x Gigabit Ethernet |
| Audio | 1 x 3.5 mm stereo 4-pole jack |
| Card Readers | 1 x SD slot; 1 x microSD slot (SD/SDHC/SDXC, up to 2 TB) |
| Power | 1 x USB Type-C Female (USB PD 3.0 input, up to 100W) |
Video
| Single Display | Up to 7680 x 4320 or 3840 x 2160 @ 120 Hz |
| Dual Display | 3840 x 2160 @ 60 Hz |
| Requirement | DP 1.4 Alt Mode; MST for dual extended displays |
USB and Power
| USB Data Rate | Up to 5 Gbps (USB 3.2 Gen 1) |
| Power Delivery | USB PD 3.0 pass-through up to 100W (5 / 9 / 12 / 15 / 20 V) |
Environmental
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Aluminium |
| Weight | 0.18 kg |
| Dimensions | 22.00 x 4.30 x 1.60 cm |
Compatibility
| Operating Systems | Windows 10+, macOS 10.12+, Android 8.0+, iPadOS 13.1+, iOS 17.0+ |
| Host | USB-C with DP 1.4 Alt Mode; Thunderbolt and Apple M1/M2/M3 compatible |
| Mac Dual Display | On Mac, two monitors show the same (single extended) content |
Compatibility & Applications
Typical Devices
USB-C laptops and tablets with DisplayPort Alt Mode, including Windows ultrabooks, MacBooks and iPad Pro, connected to HDMI monitors, wired network, USB peripherals and memory cards.
Typical Use
Hot desks, home offices and meeting rooms where one cable should connect a laptop to displays, network and peripherals, and charge it.
Selection Tip
Dual extended 4K displays need MST support, which macOS does not provide; Macs mirror the same content on both HDMI outputs. Use your laptop's own USB-C charger for power pass-through.
Package Contents & ATEN USB-C Dock Ordering Information
In the Box
1 x UH3240 USB-C Multiport Dock with Power Pass-Through, 1 x user instructions.
ATEN USB-C Dock and Adapter Models
| Model | Key feature |
| UH3240 (this listing) | 11-in-1 USB-C dock, dual HDMI, 100W PD pass-through |
| UC3008A1 | USB-C to 4K HDMI adapter |
| UC3238 | 2.7 m USB-C to 4K HDMI converter cable |
| UC3002A | USB-C to VGA adapter |
| US3311 | 2-port USB-C DisplayPort KVM dock switch |
Datasheet & Downloads
| Datasheet | UH3240 Datasheet (PDF) |
| User manual | UH3240 User Manual (PDF) |
| Quick start guide | UH3240 Quick Start Guide (PDF) |
| ATEN product page | UH3240 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting UH3240-AT.
Frequently Asked Questions — ATEN UH3240
Can I run two extended 4K monitors?
On Windows hosts with DP 1.4 Alt Mode and MST, yes, at 3840 x 2160 at 60 Hz each. On a Mac, both monitors show the same content.
Will it charge my laptop?
Yes. Connect your USB-C charger to the dock's PD input for up to 100W pass-through.
Does it work with MacBooks with Apple silicon?
ATEN lists Apple M1/M2/M3 and Thunderbolt compatibility, with macOS 10.12 or later.
Which memory cards can it read?
SD, SDHC and SDXC cards in the SD slot, and microSD cards, up to 2 TB.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
