ATEN USB 3.2 Gen 1 Extender Cable 5 m / 10 m (UE350A / UE3310)
PRODUCT DESCRIPTION
ATEN USB 3.2 Gen 1 Extender Cable 5 m / 10 m (UE350A / UE3310) - 2 Years Local Warranty
Move USB 3 Devices Further from the PC
ATEN's USB 3.2 Gen 1 extender cables carry full 5 Gbps SuperSpeed USB past the limits of a normal passive cable. Choose the 5 m UE350A for a desk or meeting table, or the 10 m UE3310 to reach a webcam, conference camera, card reader or external drive on the far side of a room.

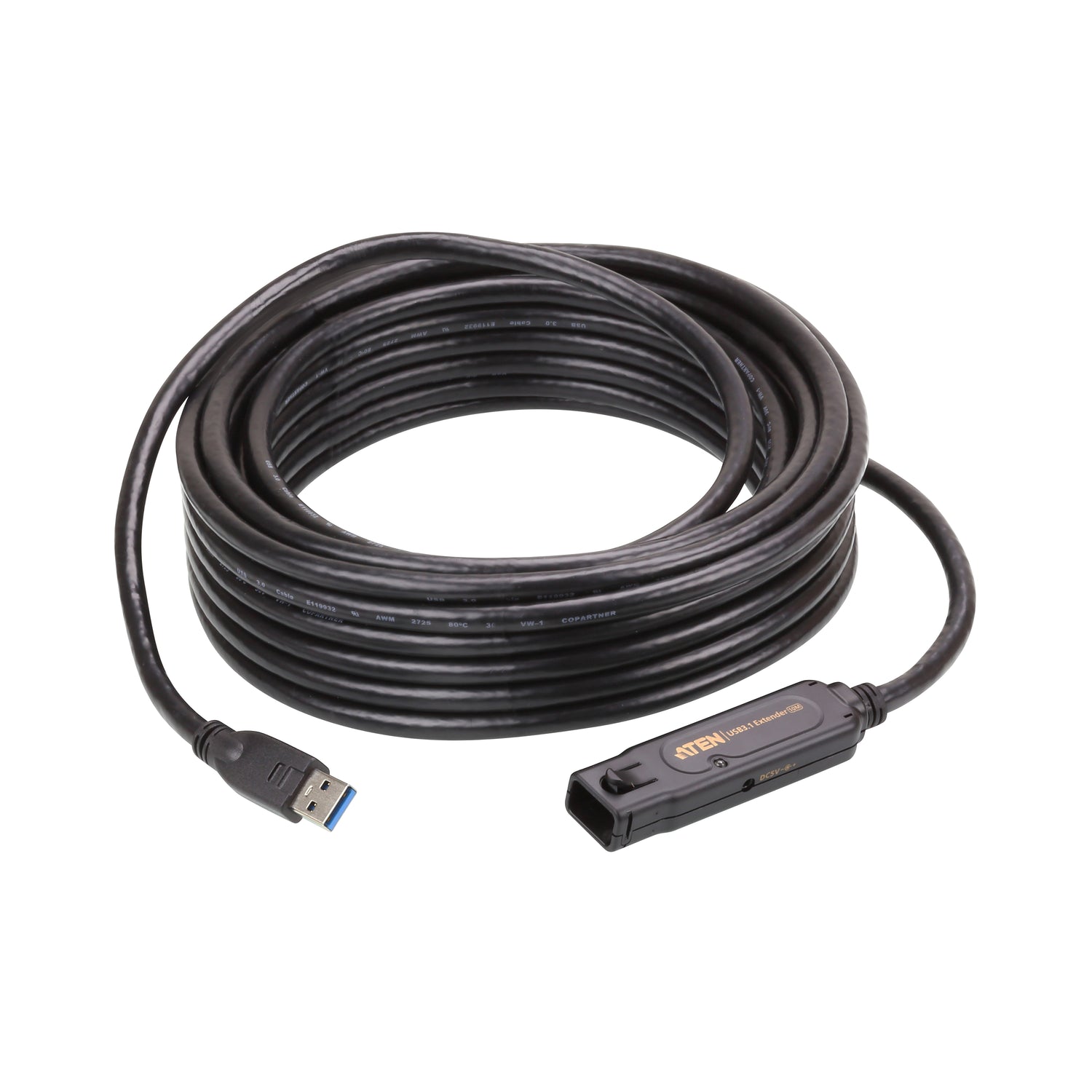

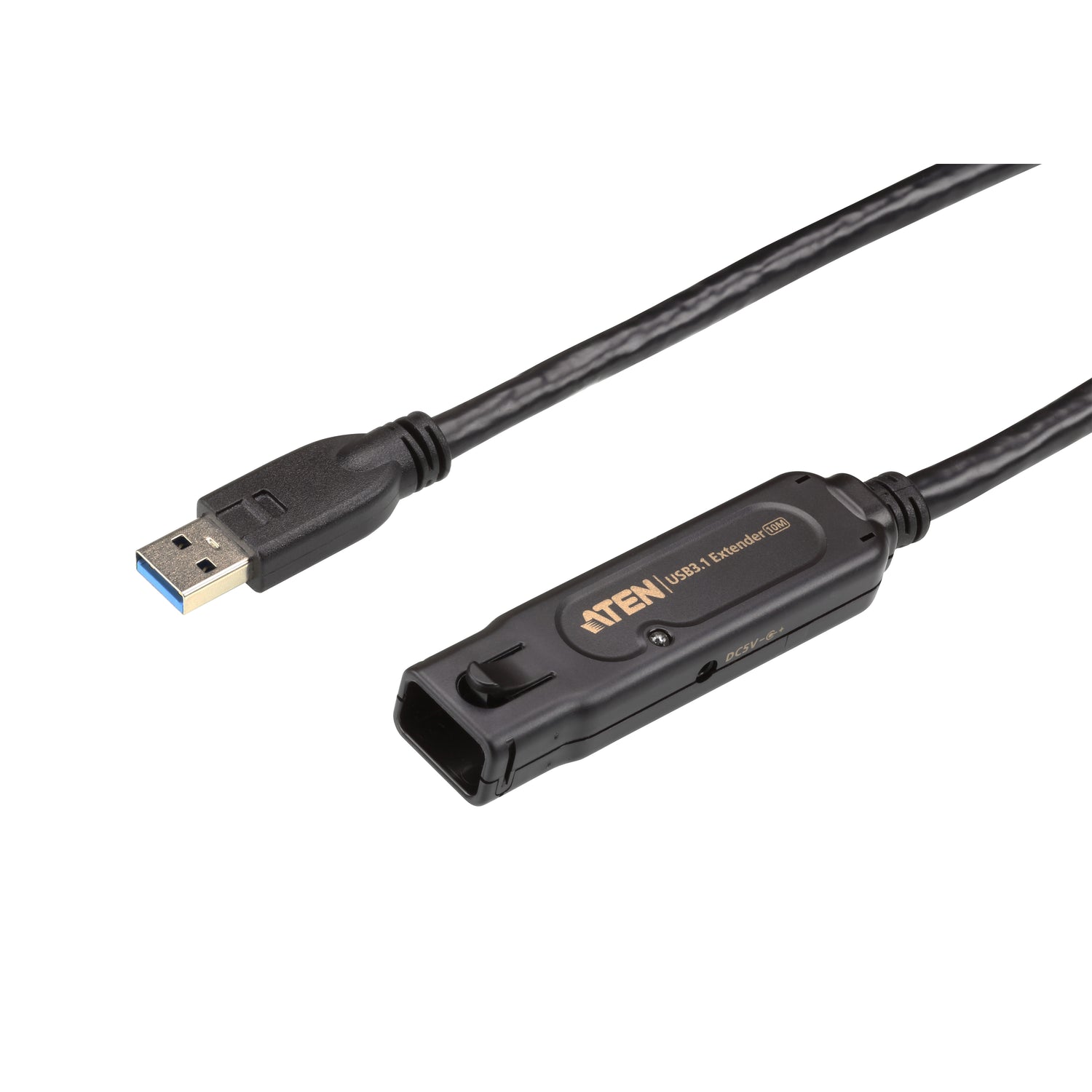

UE3310: Powered and Daisy-Chainable to 50 m
The 10 m UE3310 ships with its own AC power adapter so bus-powered devices at the far end get a stable supply, and UE3310 cables can be daisy-chained for a total distance of up to 50 m. Its ultra-slim locker head keeps the connection secure.

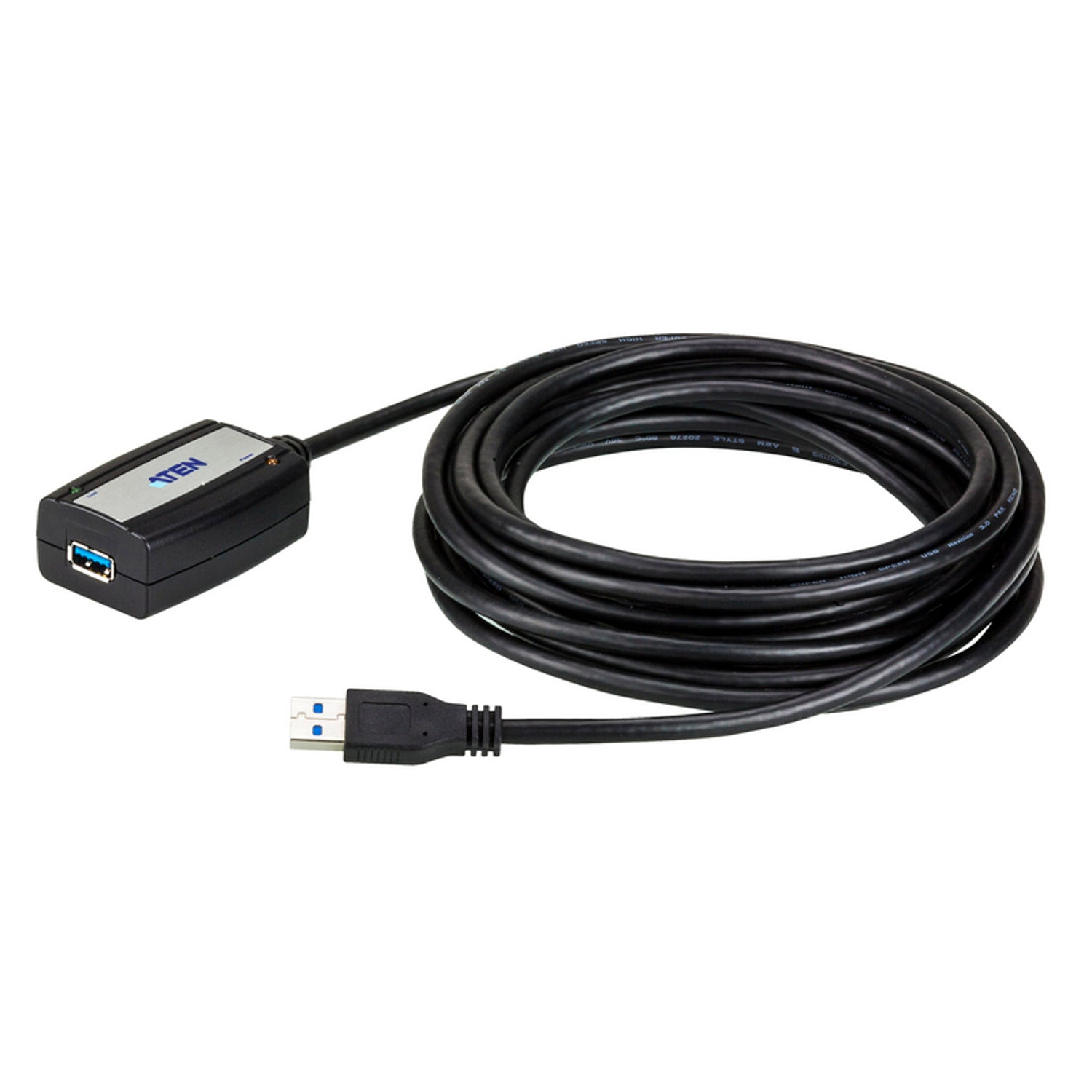

UE350A: Simple 5 m Extension
The UE350A has a built-in USB 3.2 Gen 1 hub IC and needs no external power, so it is plug-and-play on Windows and macOS. High-draw devices may need their own power supply.
No Drivers, Backward Compatible
Both cables are USB 3.2 Gen 1 with backward compatibility to USB 2.0 and 1.1, and need no driver installation.
Fitting out several meeting rooms or classrooms? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ATEN UE350A / UE3310 Datasheet — Technical Specifications
General
| Product Name | ATEN USB 3.2 Gen 1 Extender Cable |
| Models | UE350A (5 m), UE3310 (10 m) |
| Order Codes | UE350A-AT, UE3310-AT-E |
| Local Warranty (Singapore) | 2 years carry-in warranty |
UE3310 (10 m)
| Connectors | 1 x USB 3.2 Gen 1 Type-A Male (upstream); 1 x USB 3.2 Gen 1 Type-A Female (downstream) |
| Data Rate | Up to 5 Gbps |
| Cable Length | 10 m |
| Maximum Distance | Up to 50 m when daisy-chained |
| Power | AC power adapter included |
| Housing | Plastic |
| Dimensions | 8.19 x 2.22 x 1.75 cm |
| Weight | 0.76 kg |
| Operating Temperature | 0–40 °C |
UE350A (5 m)
| Connectors | 1 x USB Type-A Male (upstream); 1 x USB Type-A Female (downstream) |
| Data Rate | Up to 5 Gbps |
| Cable Length | 5 m |
| Hub IC | Built-in USB 3.2 Gen 1 hub IC, hot-swappable |
| Power | Bus-powered (no adapter required) |
| Housing | Plastic |
| Dimensions | 6.02 x 4.00 x 2.40 cm |
| Weight | 0.22 kg |
Compatibility
| USB Standards | USB 3.2 Gen 1, backward compatible with USB 2.0 / 1.1 |
| Operating Systems | Windows and macOS (no driver required) |
Compatibility & Applications
Typical Devices
USB webcams and conference cameras, speakerphones, external drives, card readers, scanners, printers and other USB peripherals that need to sit further from the computer.
Typical Use
Meeting rooms with a camera at the screen, classroom document cameras, kiosks and digital signage, and lab benches where the PC is under the desk or in a cabinet.
Choosing a Length
Up to 5 m, the UE350A is the simpler choice. For 10 m or longer, the powered UE3310 is recommended, and several UE3310 cables can be chained to reach up to 50 m.
Package Contents & ATEN USB Extender Cable Ordering Information
In the Box
UE3310: 1 x UE3310 USB 3.2 Gen 1 extender cable, 1 x AC power adapter, 1 x 16 cm USB extension cable, 1 x user instructions. UE350A: 1 x UE350A USB 3.2 Gen 1 extender cable.
Available Options
| Option | Order code |
| 5 m (UE350A) | UE350A-AT |
| 10 m (UE3310) | UE3310-AT-E |
ATEN USB Extender Cables
| Model | Key feature |
| UE250 | 5 m USB 2.0 extender cable |
| UE2120 | 12 m USB 2.0 extender cable, daisy-chain to 60 m |
| UE350A | 5 m USB 3.2 Gen 1 extender cable |
| UE3310 | 10 m USB 3.2 Gen 1 extender cable, daisy-chain to 50 m |
Datasheet & Downloads
| UE3310 datasheet | UE3310 Datasheet (PDF) |
| UE3310 user manual | UE3310 / UE3315A User Manual (PDF) |
| UE350A datasheet | UE350A Datasheet (PDF) |
| ATEN product page | UE3310 on aten.com |
| ATEN product page | UE350A on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting UE3310-AT-E or UE350A-AT.
Frequently Asked Questions — ATEN UE350A / UE3310
What is the difference between the UE350A and the UE3310?
The UE350A is a 5 m bus-powered extender. The UE3310 is 10 m, includes an AC power adapter and can be daisy-chained up to 50 m.
Do I need to install drivers?
No. Both cables are plug-and-play on Windows and macOS.
Will it work with USB 2.0 devices?
Yes. Both are backward compatible with USB 2.0 and USB 1.1.
Can I use it for a conference camera?
Yes. Extending a USB webcam or conference camera to the display is a common use. For runs over 5 m, choose the powered UE3310.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
