ATEN USB 2.0 Extender Cable 5 m / 12 m (UE250 / UE2120)
PRODUCT DESCRIPTION
ATEN USB 2.0 Extender Cable 5 m / 12 m (UE250 / UE2120) - 2 Years Local Warranty
Reach USB 2.0 Devices Beyond the Usual 5 m
ATEN's active USB 2.0 extender cables carry High-Speed USB at up to 480 Mbps further than a normal cable. The UE250 adds 5 m per cable and the UE2120 adds 12 m per cable.
Daisy-Chain for Longer Runs
Chain up to five UE250 cables for up to 25 m, or up to five UE2120 cables for up to 60 m, to reach a printer, webcam, keyboard or sensor on the far side of a room or hall.
No Power Adapter Needed
Both cables are bus-powered with no adapter required, and are plug-and-play with native driver support.
Built for Installation

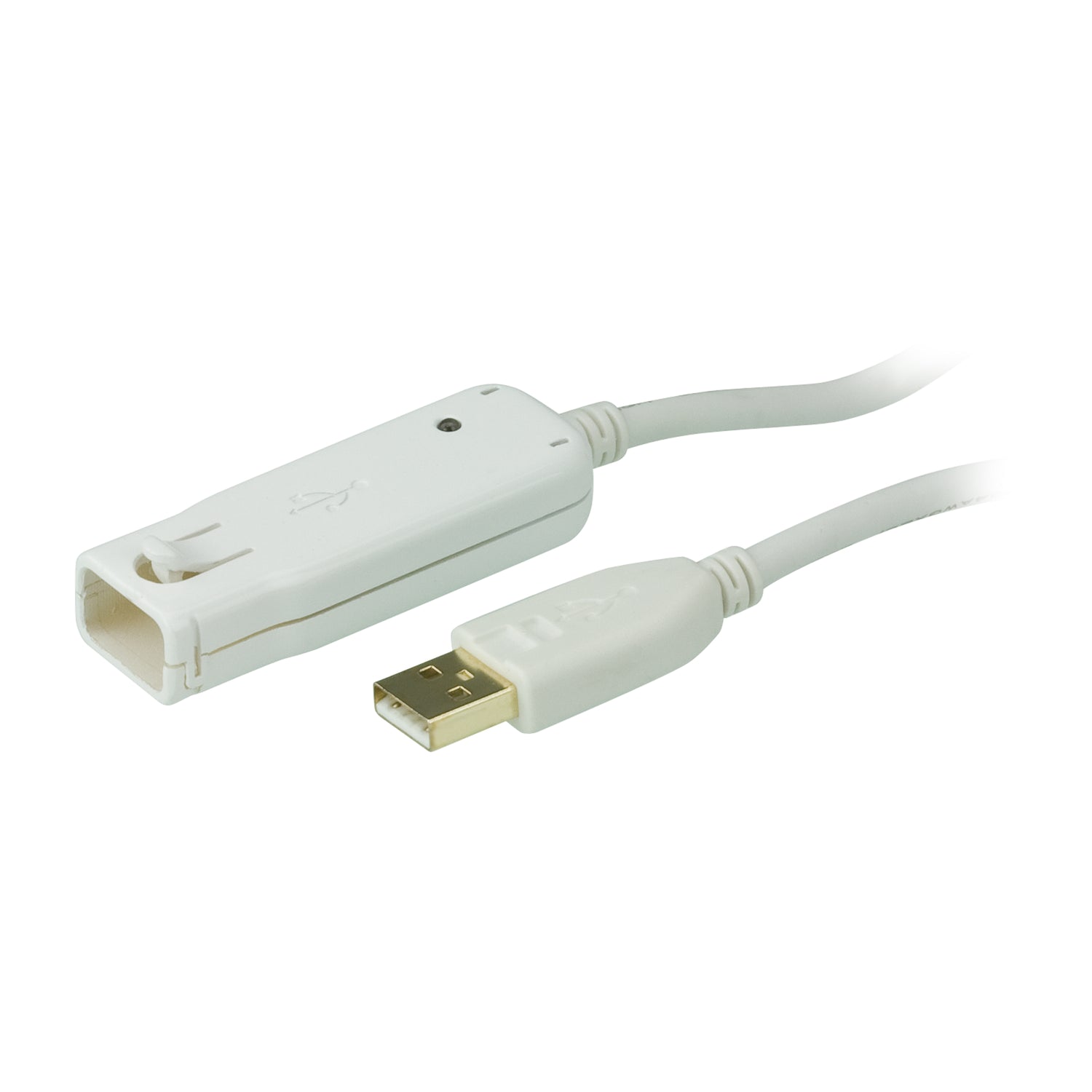

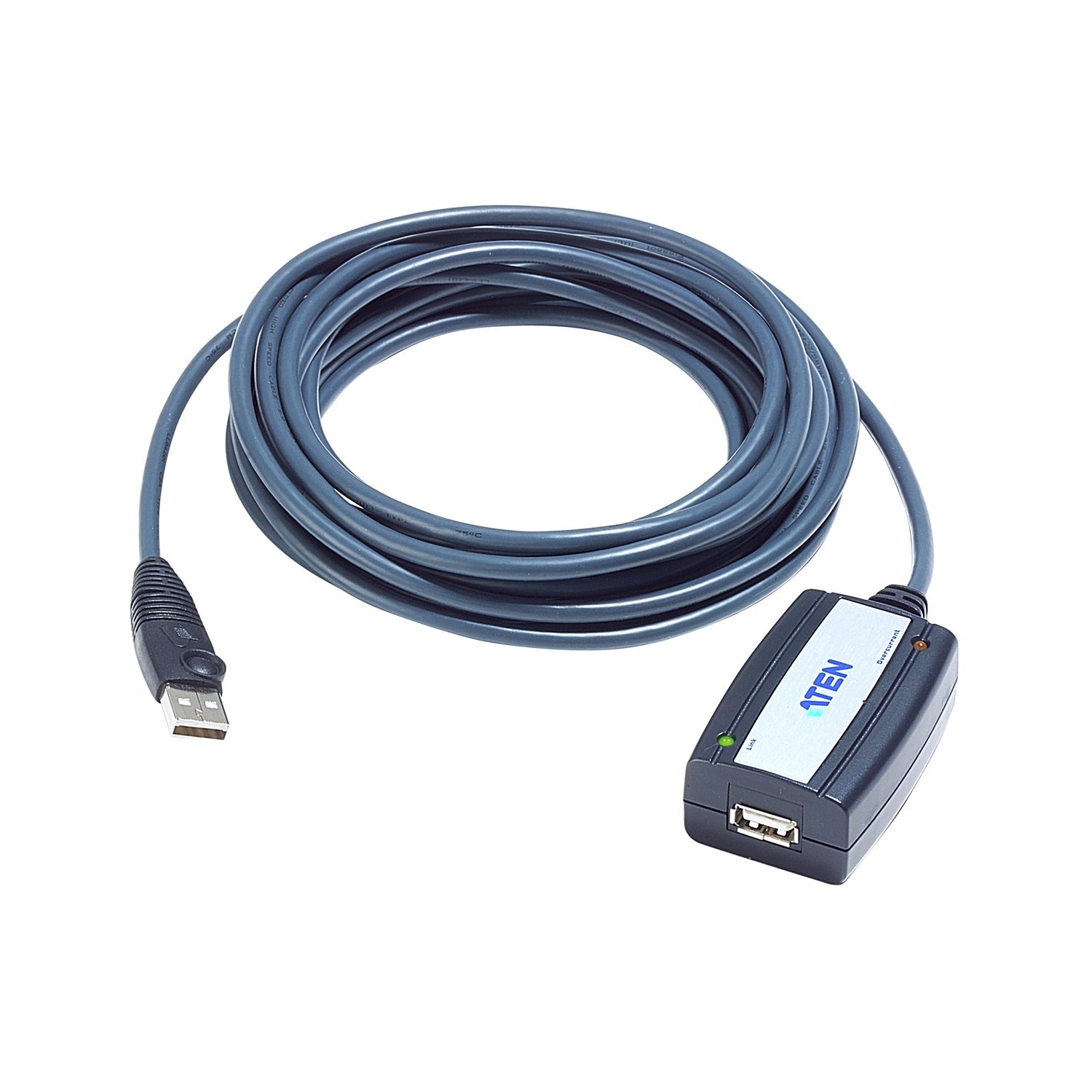

The UE250 has Link and Overcurrent LEDs for quick troubleshooting; the UE2120 has a lockable mechanical design to keep the connection secure.
Planning a long USB run for a kiosk, classroom or factory floor? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ATEN UE250 / UE2120 Datasheet — Technical Specifications
General
| Product Name | ATEN USB 2.0 Extender Cable |
| Models | UE250 (5 m), UE2120 (12 m) |
| Order Codes | UE250-AT, UE2120 |
| Local Warranty (Singapore) | 2 years carry-in warranty |
UE250 (5 m)
| Connectors | 1 x USB Type-A Male, 1 x USB Type-A Female |
| Data Rate | Up to 480 Mbps (USB 2.0 High, Full and Low Speed) |
| Distance | 5 m per cable; daisy-chain up to 25 m |
| Power | Bus-powered, no adapter required |
| LEDs | Link (green), Overcurrent (red) |
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
| Weight | 0.20 kg |
| Dimensions (repeater housing) | 6.02 x 4.00 x 2.40 cm |
UE2120 (12 m)
| Connectors | 1 x USB Type-A Male, 1 x USB Type-A Female |
| Data Rate | High-Speed 480 Mbps, Full-Speed 12 Mbps, Low-Speed 1.5 Mbps |
| Distance | 12 m per cable; daisy-chain up to 5 cables for 60 m |
| Power | Bus-powered, no adapter required |
| Design | Lockable mechanical design |
| Operating Temperature | 0–40 °C |
| Housing | Plastic |
| Weight | 0.56 kg |
Compatibility
| USB Standards | USB 2.0, backward compatible with USB 1.1 |
| Drivers | Plug-and-play, no driver required |
Compatibility & Applications
Typical Devices
USB 2.0 printers, webcams, keyboards and mice, barcode scanners, card readers, touch panels and other USB 2.0 peripherals.
Typical Use
Kiosks and signage, classroom and lecture-hall equipment, factory stations and reception desks where the PC is far from the device.
Choosing a Length
Use the UE250 for runs up to 5 m, or chained for up to 25 m. For 12 m or more, the UE2120 needs fewer cables and chains up to 60 m. For USB 3 devices, see the UE350A and UE3310.
Package Contents & ATEN USB Extender Cable Ordering Information
In the Box
UE250: 1 x USB 2.0 Extender Cable, 1 x User Manual. UE2120: 1 x 1-Port USB 2.0 Extender Cable.
Available Options
| Option | Order code |
| 5 m (UE250) | UE250-AT |
| 12 m (UE2120) | UE2120 |
ATEN USB Extender Cables
| Model | Key feature |
| UE250 (this listing) | 5 m USB 2.0 extender cable, chain to 25 m |
| UE2120 (this listing) | 12 m USB 2.0 extender cable, chain to 60 m |
| UE350A | 5 m USB 3.2 Gen 1 extender cable |
| UE3310 | 10 m USB 3.2 Gen 1 extender cable, chain to 50 m |
| UCE3250 | 4-port USB 2.0 Cat 5 extender, up to 50 m |
Datasheet & Downloads
| UE250 datasheet | UE250 Datasheet (PDF) |
| UE250 user manual | UE250 User Manual (PDF) |
| UE2120 datasheet | UE2120 / UE2120H Datasheet (PDF) |
| ATEN product page | UE250 on aten.com |
| ATEN product page | UE2120 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting UE250-AT or UE2120.
Frequently Asked Questions — ATEN UE250 / UE2120
How far can I extend USB with these cables?
Up to 25 m with five chained UE250 cables, or up to 60 m with five chained UE2120 cables.
Do they need a power adapter?
No. Both are bus-powered. High-draw devices at the far end may need their own power supply.
Will they work with USB 3 devices?
They are USB 2.0 extenders, so USB 3 devices run at USB 2.0 speed if they support it. For USB 3 speeds choose the UE350A or UE3310.
Do I need drivers?
No. They are plug-and-play.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
