ATEN UCE33100 4-Port USB 3.2 Gen 1 Cat 6A Extender (up to 100 m)
PRODUCT DESCRIPTION
ATEN UCE33100 4-Port USB 3.2 Gen 1 Cat 6A Extender (up to 100 m) - 2 Years Local Warranty
USB 3 at 100 m over One Cable
The UCE33100 carries USB 3.2 Gen 1 at up to 5 Gbps over a single Cat 6A cable for up to 100 m. The remote unit gives you four USB Type-A ports for cameras, drives, scanners, touch panels and other peripherals far from the computer.
One Power Adapter for Both Ends
24 V power is delivered over the cable, so only one power adapter is needed for the pair. The compact metal units are wall-mountable.
RS-232 and FSYNC Pass-Through
Bi-directional RS-232 and FSYNC GPIO signals travel alongside USB on terminal-block connectors, useful for machine vision, industrial control and camera synchronisation.
Plug and Play
No driver or software is needed on any operating system, and the extender is backward compatible with USB 2.0 and 1.1 devices.
Extending USB cameras or controls across a site? Email sales@sourceit.com.sg for volume pricing and lead time.
ATEN UCE33100 Datasheet — Technical Specifications
General
| Product Name | ATEN 4-Port USB 3.2 Gen 1 Cat 6A Extender (up to 100 m) |

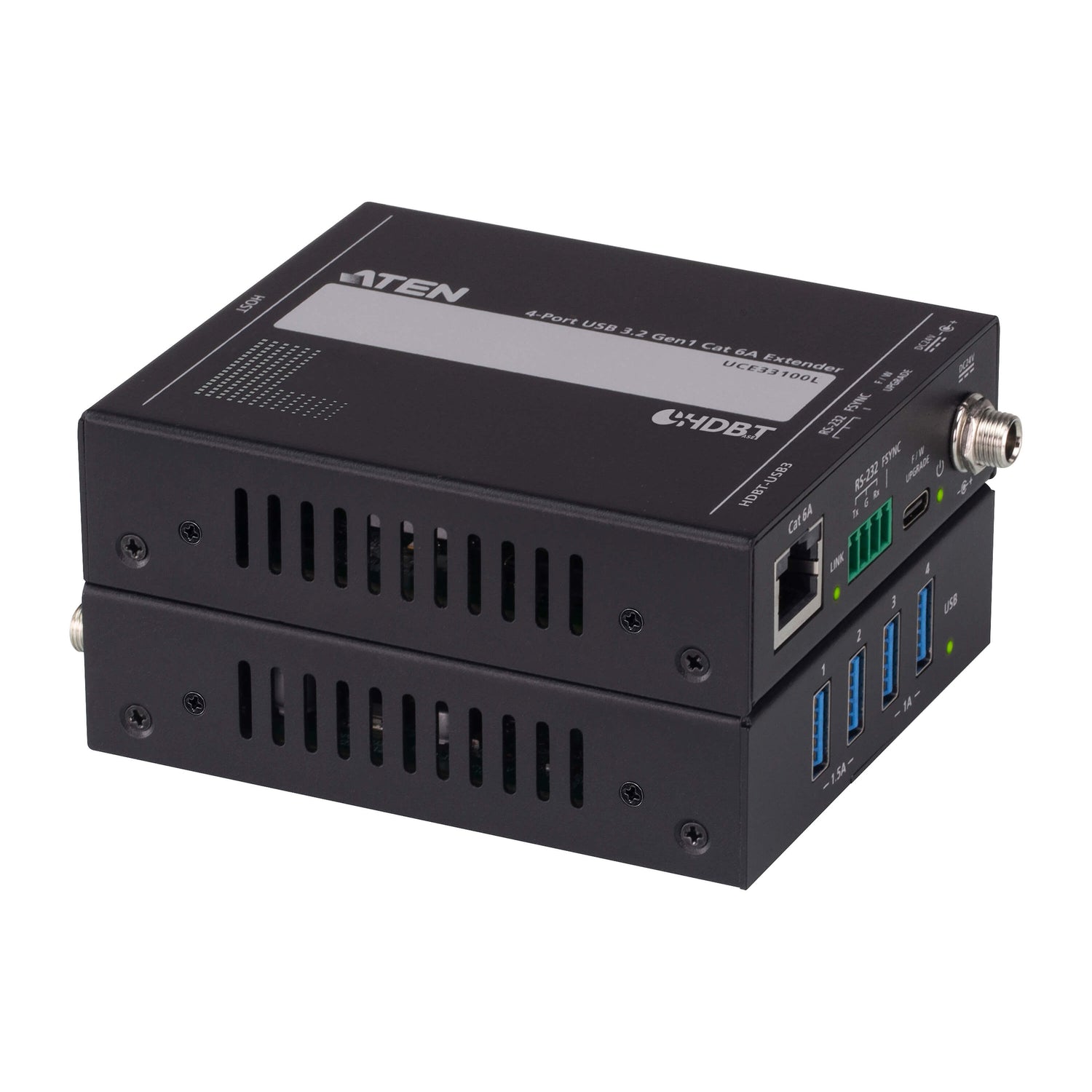

| Model | UCE33100 (UCE33100L local + UCE33100R remote) |
| Order Code | UCE33100-AT-B |
| Local Warranty (Singapore) | 2 years carry-in warranty |

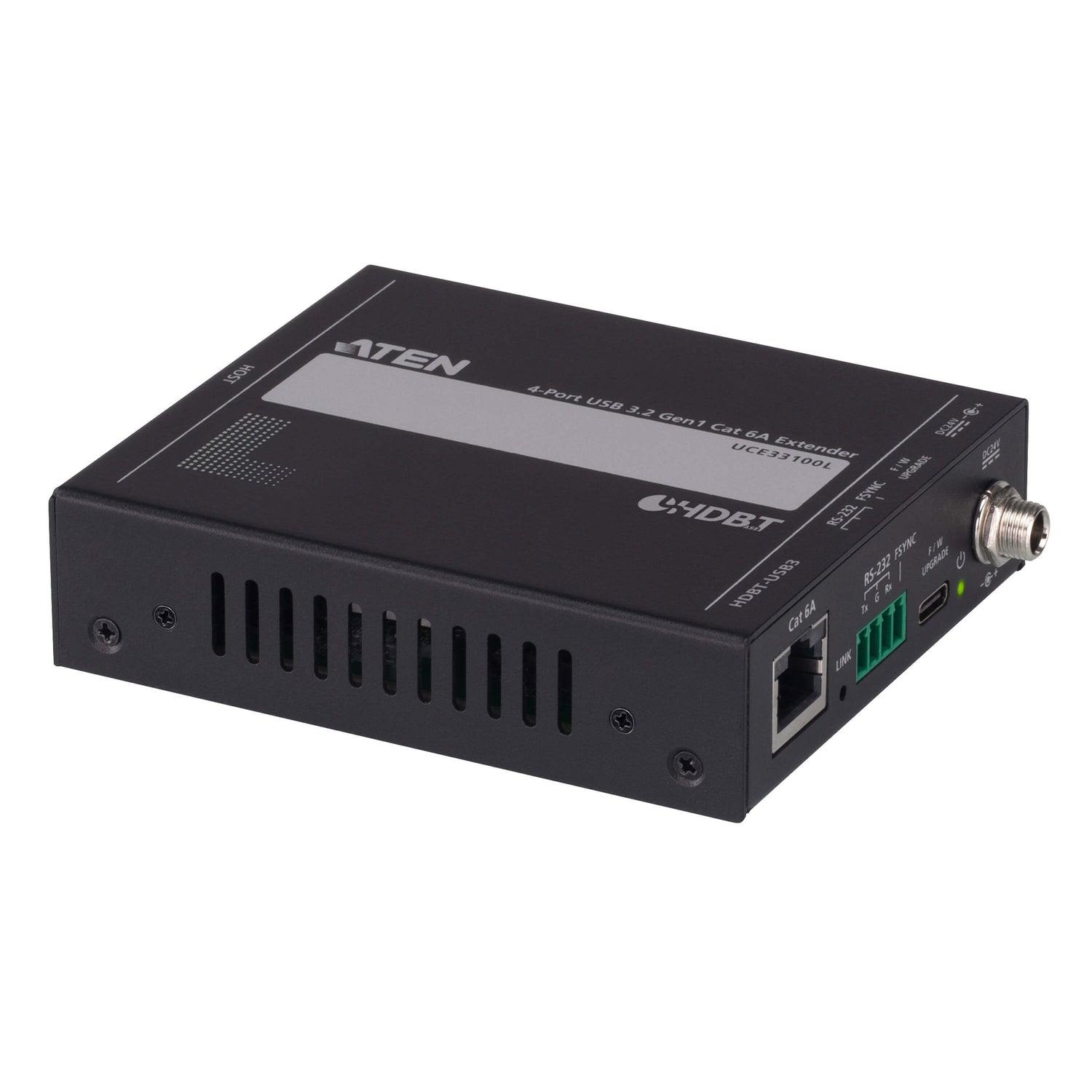

Local Unit (UCE33100L)
| Upstream | 1 x USB Type-B Female |
| Unit to Unit | 1 x RJ-45 Female (HDBT-USB3) |
| Firmware Upgrade | 1 x USB-C (firmware upgrade only) |
| RS-232 | 1 x 3-pin terminal plug |
| FSYNC | 1 x 1-pin terminal plug |
| Power | 1 x DC jack |

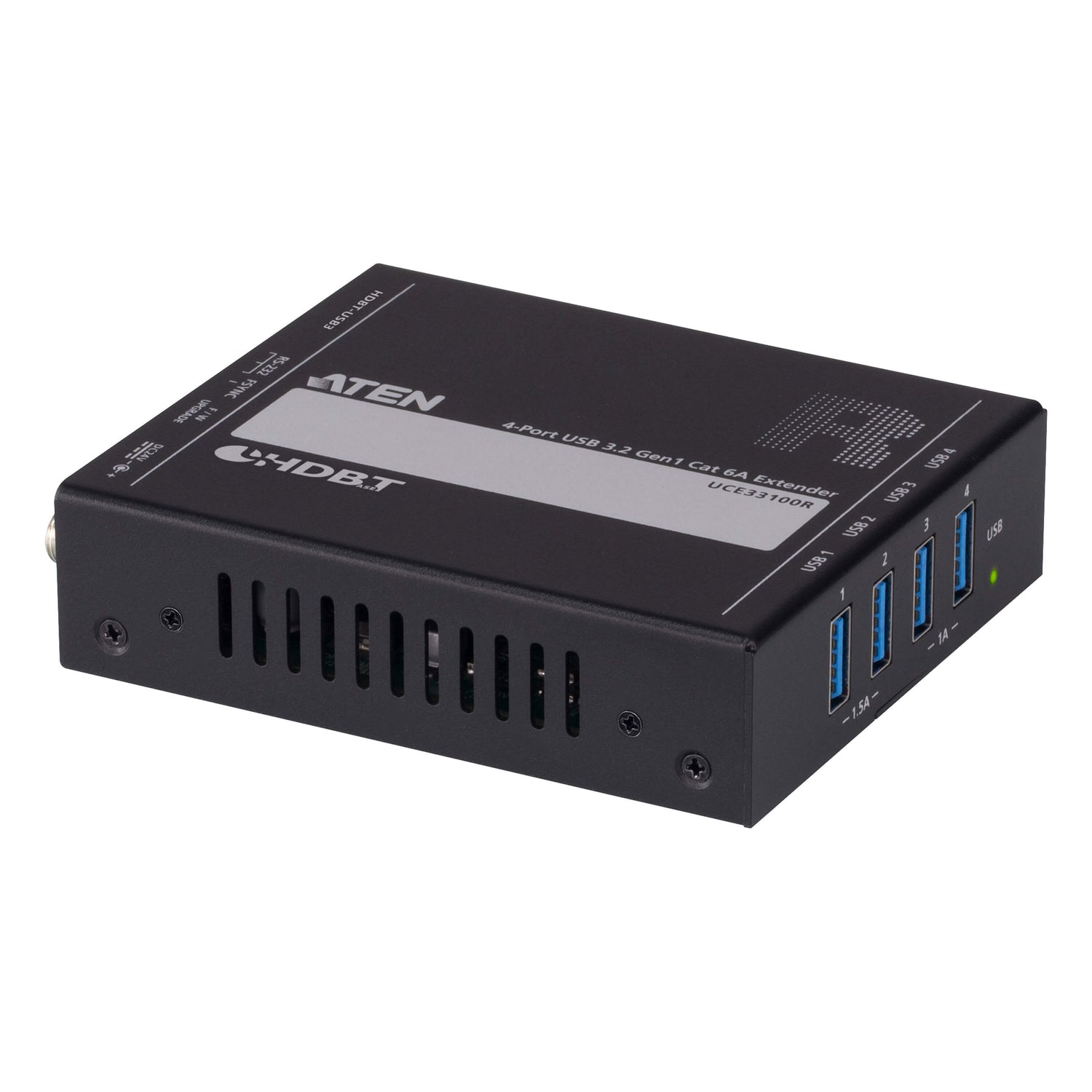

Remote Unit (UCE33100R)
| Unit to Unit | 1 x RJ-45 Female (HDBT-USB3) |
| Downstream | 4 x USB Type-A Female |
| Firmware Upgrade | 1 x USB-C (firmware upgrade only) |
| RS-232 | 1 x 3-pin terminal plug |
| FSYNC | 1 x 1-pin terminal plug |
| Power | 1 x DC jack |
Performance
| USB Specification | USB 3.2 Gen 1 (5 Gbps); backward compatible with USB 2.0 / 1.1 |
| Cable | Cat 6A |
| Distance | Up to 100 m |
| Drivers | None required |
Power & Environmental
| Power | 24 V power over cable; one power adapter |
| Power Consumption | Local: DC 24 V, 1.92 W; Remote: DC 24 V, 2.64 W |
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 20–90% RH, non-condensing |
Physical
| Housing | Metal |
| Weight | 0.26 kg |
| Dimensions (L x W x H) | 10.75 x 8.50 x 2.55 cm |
Compatibility & Applications
Typical Devices
USB 3 webcams and machine-vision cameras, external drives, document cameras, interactive touch displays, card readers and USB hubs.
Typical Use
Factories and machine vision, meeting rooms and lecture halls with the PC in a rack, medical and lab imaging, and kiosks where peripherals are far from the computer.
Cable Tip
Use Cat 6A for the full 5 Gbps at 100 m. For USB 2.0 devices only over Cat 5, the UCE3250 is a lower-cost option.
Package Contents & ATEN USB Cat Extender Ordering Information
In the Box
1 x UCE33100 local unit and remote unit, 1 x USB 3.2 Gen 1 Type-A to Type-B cable, 2 x 4-pin terminal blocks, 4 x mounting kits, 1 x power adapter, 1 x user instructions.
ATEN USB Extender Models
| Model | Key feature |
| UCE33100 (this listing) | 4-port USB 3.2 Gen 1 Cat 6A extender, 100 m |
| UCE3250 | 4-port USB 2.0 Cat 5 extender, 50 m |
| UE3310 | 10 m USB 3.2 Gen 1 extender cable |
| UE350A | 5 m USB 3.2 Gen 1 extender cable |
| UE2120 | 12 m USB 2.0 extender cable |
| UE250 | 5 m USB 2.0 extender cable |
Datasheet & Downloads
| Datasheet | UCE33100 Datasheet (PDF) |
| User manual | UCE33100 User Manual (PDF) |
| Quick start guide | UCE33100 Quick Start Guide (PDF) |
| ATEN product page | UCE33100 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting UCE33100-AT-B.
Frequently Asked Questions — ATEN UCE33100
How fast is it?
USB 3.2 Gen 1, up to 5 Gbps, over a single Cat 6A cable up to 100 m.
Do I need power at both ends?
No. 24 V power is delivered over the cable, so one power adapter powers the pair.
Do I need drivers?
No. It is plug-and-play with no driver or software required.
Will USB 2.0 devices work?
Yes. It is backward compatible with USB 2.0 and 1.1.
What are the RS-232 and FSYNC terminals for?
They pass bi-directional RS-232 control and FSYNC GPIO signals between the two units alongside USB.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
