ATEN UCE3250 4-Port USB 2.0 Cat 5 Extender (up to 50 m)
PRODUCT DESCRIPTION
ATEN UCE3250 4-Port USB 2.0 Cat 5 Extender (up to 50 m) - 2 Years Local Warranty
Four USB Devices, Up to 50 m from the PC
The UCE3250 extends USB 2.0 over a single Ethernet cable to a remote unit with four USB ports, so keyboards, mice, webcams, scanners, printers and flash drives can sit up to 50 m from the computer.
Full High-Speed USB 2.0
It is USB 2.0 compliant with data rates up to 480 Mbps and backward compatible with USB 1.1 full and low speed devices.
Plug-and-Play
No drivers or software are needed. The local unit draws its power from the computer, while the remote unit is powered by the included adapter so all four ports have a stable supply.
Rugged and Mountable
Both units have metal housings and the remote unit can be wall mounted, making the kit suitable for kiosks, classrooms, factory floors and meeting rooms.
Extending USB to several kiosks, classrooms or meeting rooms? Email sales@sourceit.com.sg for volume pricing and lead time.
ATEN UCE3250 Datasheet — Technical Specifications
General
| Product Name | ATEN 4-Port USB 2.0 Cat 5 Extender (up to 50 m) |

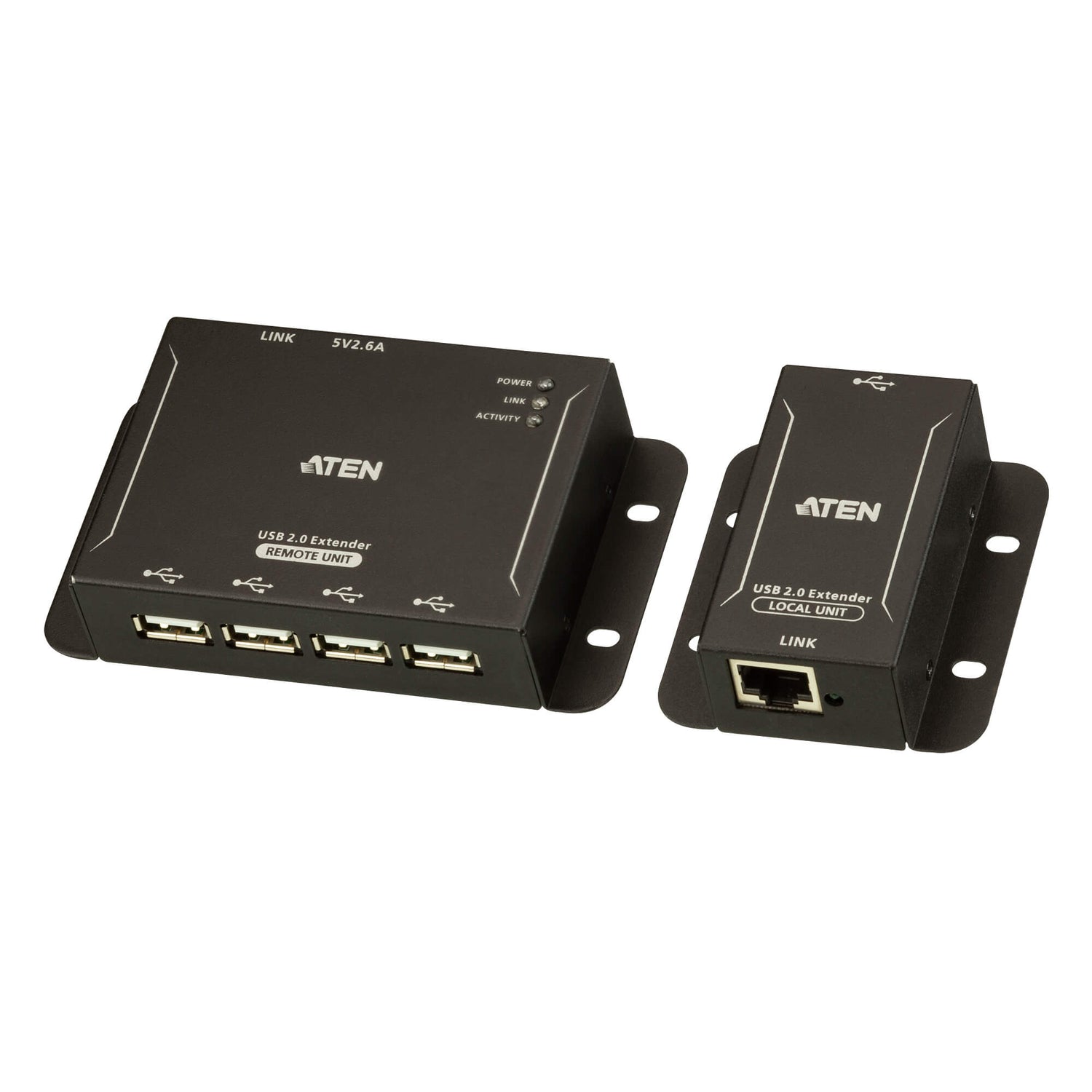

| Model | UCE3250 (UCE3250L local unit + UCE3250R remote unit) |
| Order Code | UCE3250-AT-E |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Connectors

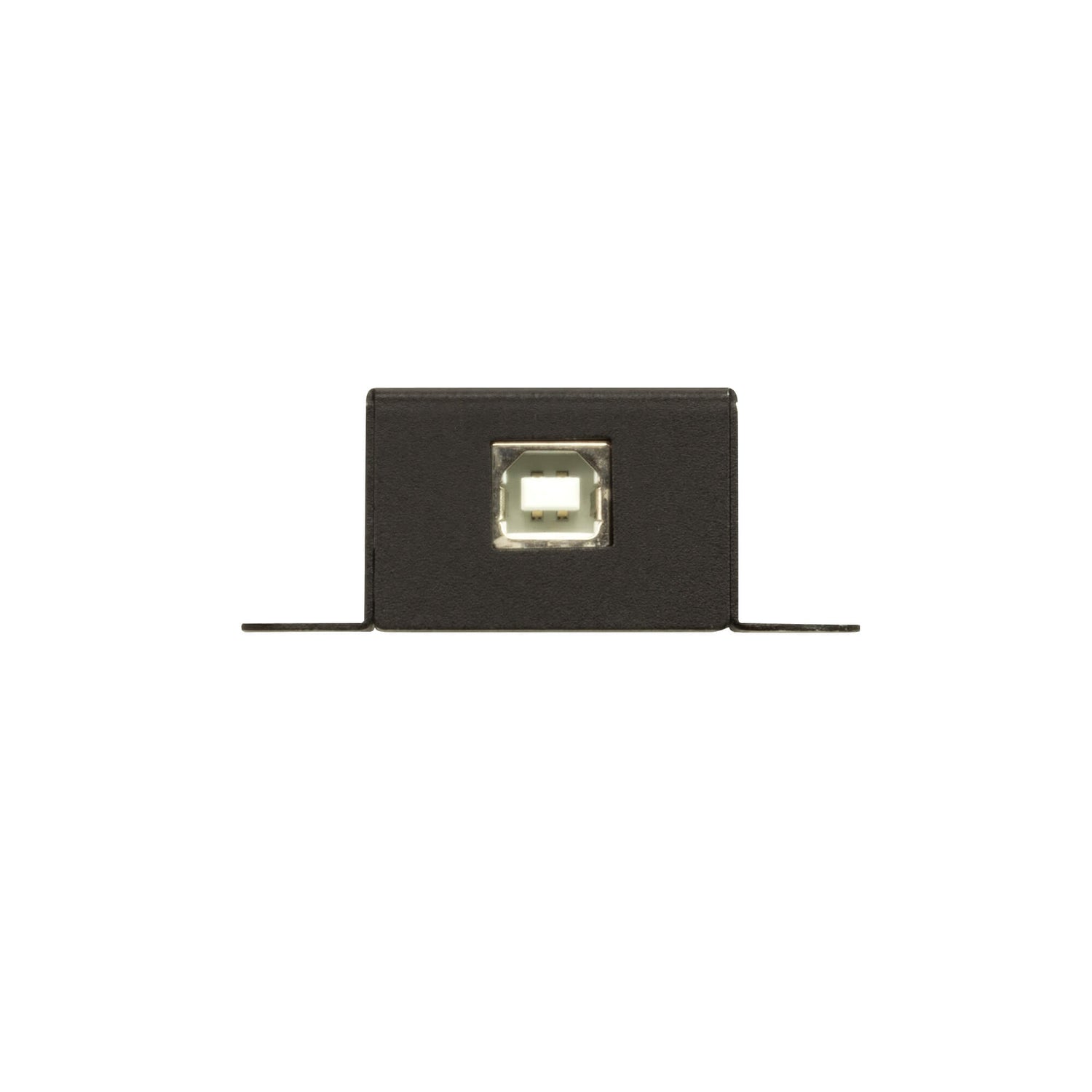

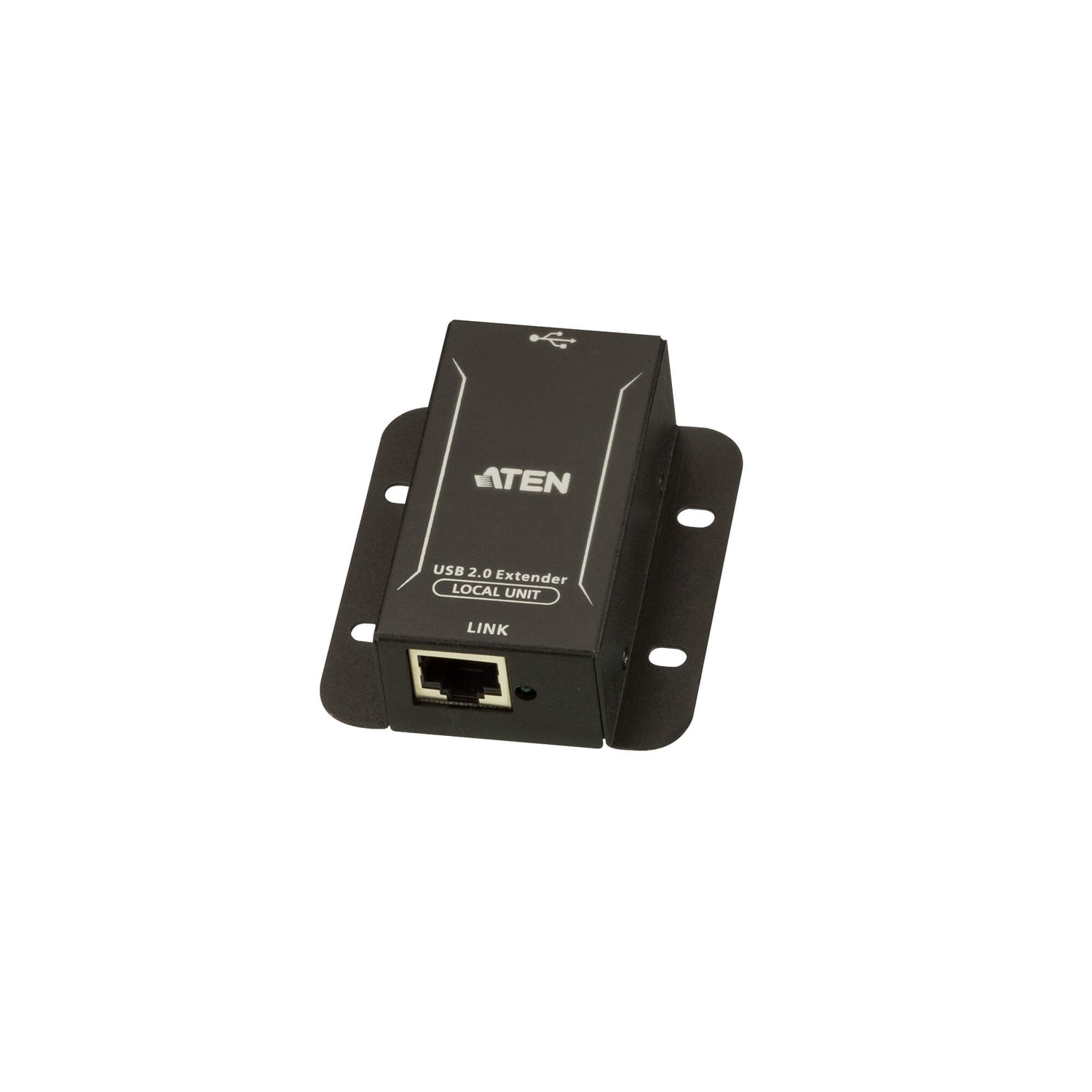

| Local Unit (UCE3250L) | 1 x USB Type-B Female; 1 x RJ-45 Female |

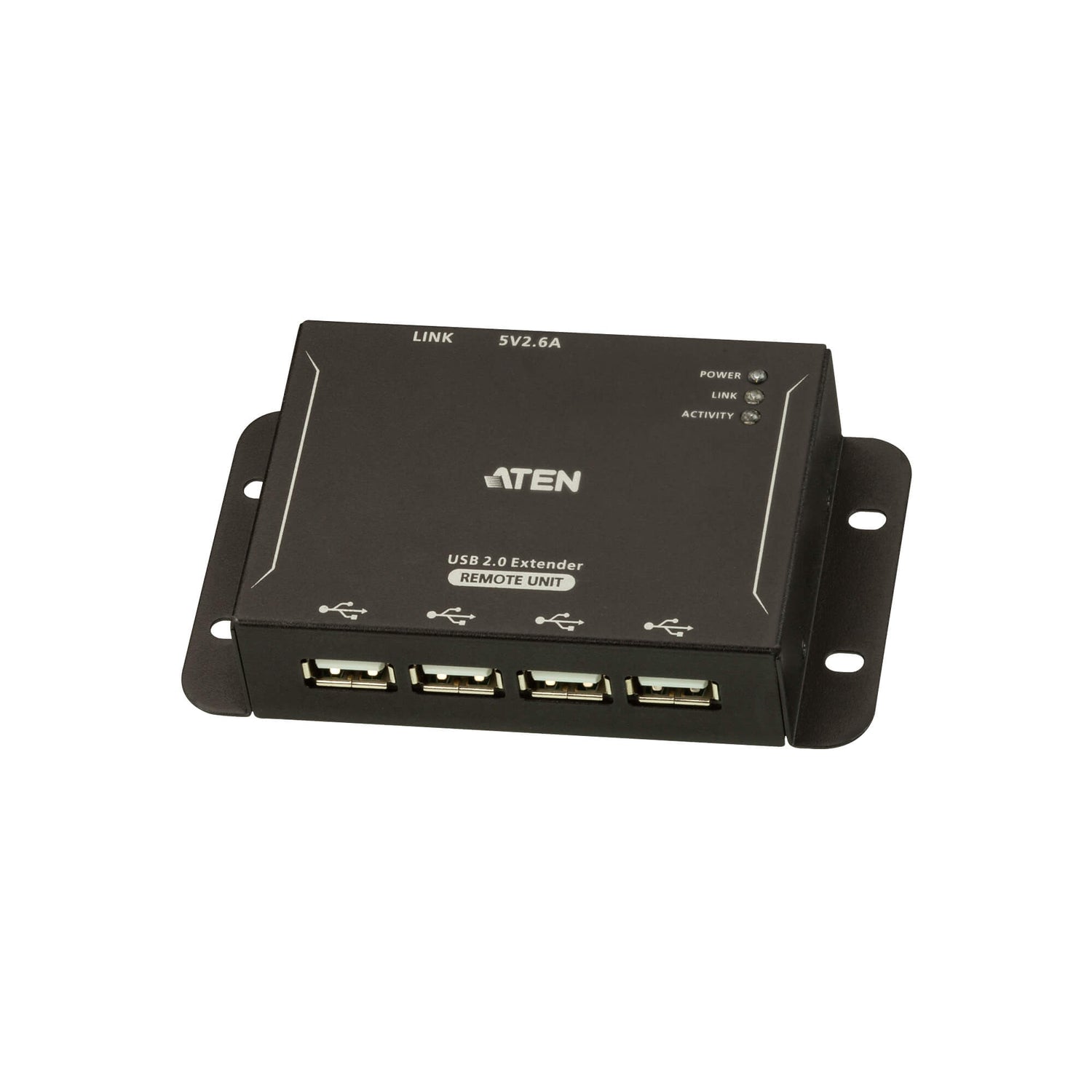

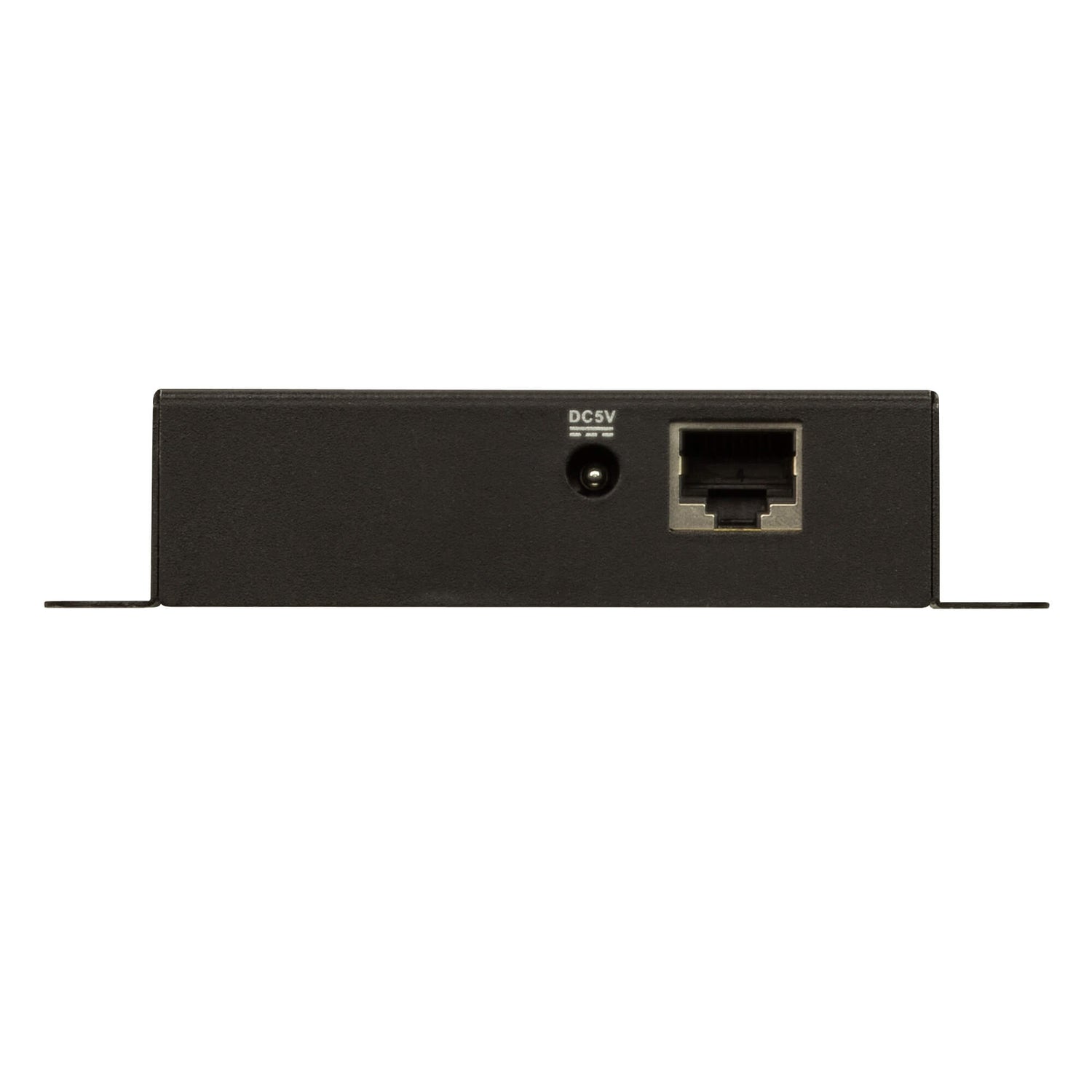

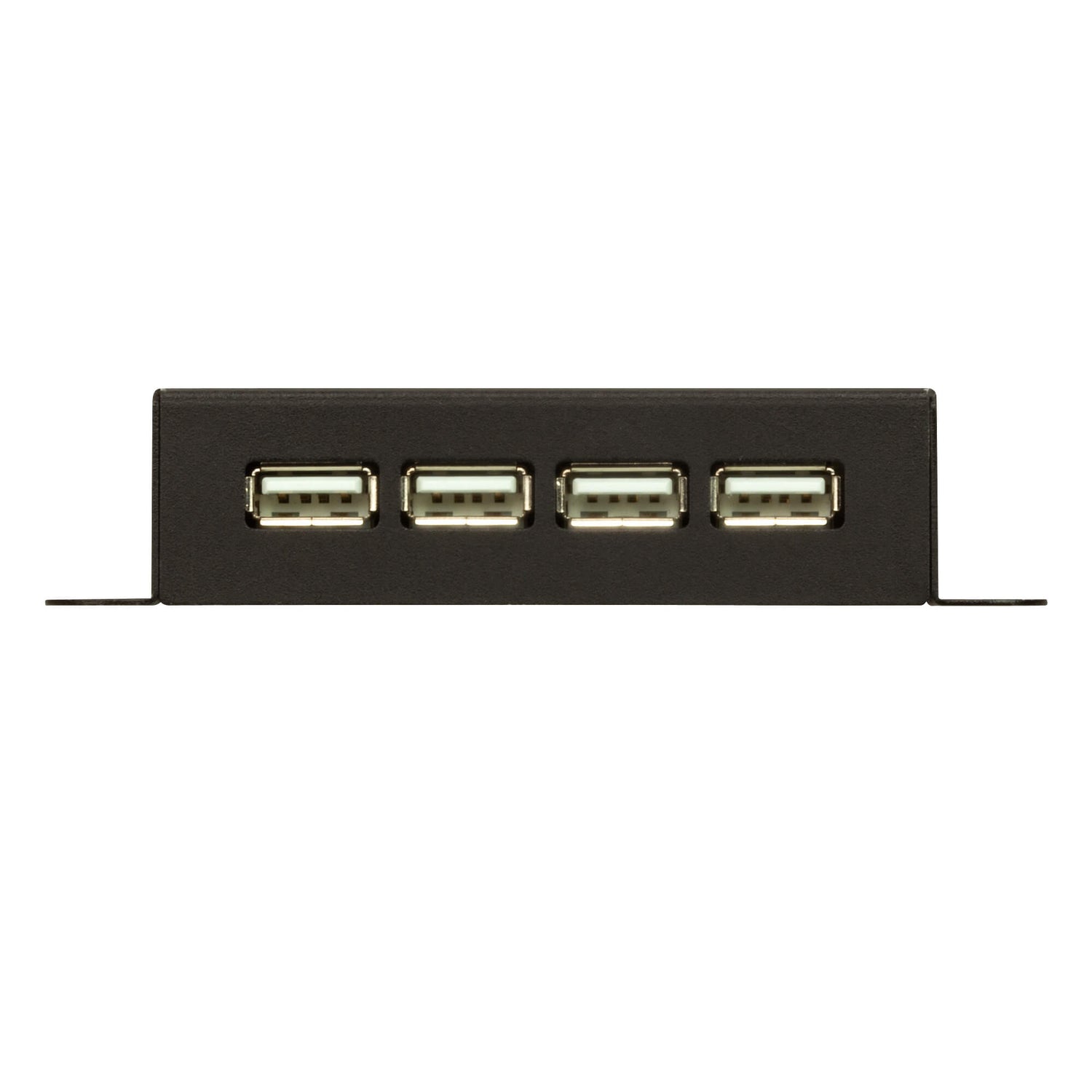

| Remote Unit (UCE3250R) | 4 x USB Type-A Female; 1 x RJ-45 Female; 1 x DC jack |
USB
| USB Specification | USB 2.0 / 1.1 High / Full / Low Speed |
| Data Rate | Up to 480 Mbps |
| Supported Devices | 4 |
Distance
| Maximum Distance | Up to 50 m |
| Cable | Cat 5e / Cat 6 Ethernet cable |
Power
| Remote Unit Power Consumption | DC 5 V, 13 W (48 BTU/h) |
| Power Adapter | Included (for remote unit) |
Environmental
| Operating Temperature | 0–50 °C |
| Storage Temperature | -20–70 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Metal |
| Weight | Local: 0.09 kg; Remote: 0.16 kg |
| Dimensions (L x W x H) | Local: 6.70 x 6.02 x 2.37 cm; Remote: 6.33 x 11.04 x 2.41 cm |
Compatibility
| Operating Systems | Windows, macOS and Linux (no driver required) |
Compatibility & Applications
Typical Devices
Keyboards and mice, USB webcams, touch screens, barcode scanners, card readers, printers, scanners and flash drives.
Typical Use
Kiosks and digital signage, classrooms and lecture theatres, factory workstations, and meeting rooms where the PC is in a cabinet or equipment room.
Selection Tip
For USB 3.2 Gen 1 speeds over longer copper runs, look at the UCE33100. For a short single-device extension, a USB extender cable such as the UE350A may be enough.
Package Contents & ATEN USB Extender Ordering Information
In the Box
1 x UCE3250L local unit, 1 x UCE3250R remote unit, 1 x USB Type-A to Type-B cable, 1 x power adapter, 1 x user instructions.
ATEN USB Extender Models
| Model | Key feature |
| UE250 | 5 m USB 2.0 extender cable |
| UE2120 | 12 m USB 2.0 extender cable |
| UE350A | 5 m USB 3.2 Gen 1 extender cable |
| UE3310 | 10 m USB 3.2 Gen 1 extender cable |
| UCE3250 (this listing) | 4-port USB 2.0 Cat 5 extender, up to 50 m |
| UCE33100 | 4-port USB 3.2 Gen 1 Cat 6A extender |
Datasheet & Downloads
| Datasheet | UCE3250 Datasheet (PDF) |
| User manual | UCE3250 User Manual (PDF) |
| Quick start guide | UCE3250 Quick Start Guide (PDF) |
| ATEN product page | UCE3250 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting UCE3250-AT-E.
Frequently Asked Questions — ATEN UCE3250
How far can it extend USB?
Up to 50 m over a single Cat 5e or Cat 6 Ethernet cable.
How many devices can I connect at the remote end?
Four. The remote unit has four USB Type-A ports.
Does it support USB 3.0 speeds?
No. It is USB 2.0 (up to 480 Mbps). USB 3.x devices will run at USB 2.0 speed.
Do I need drivers?
No. It is plug-and-play on Windows, macOS and Linux.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
