ATEN UC8000 MicLIVE 6-CH Podcast AI Audio Mixer
PRODUCT DESCRIPTION
ATEN UC8000 MicLIVE 6-CH Podcast AI Audio Mixer - 2 Years Local Warranty
AI-Optimised Sound for Podcasts and Streams

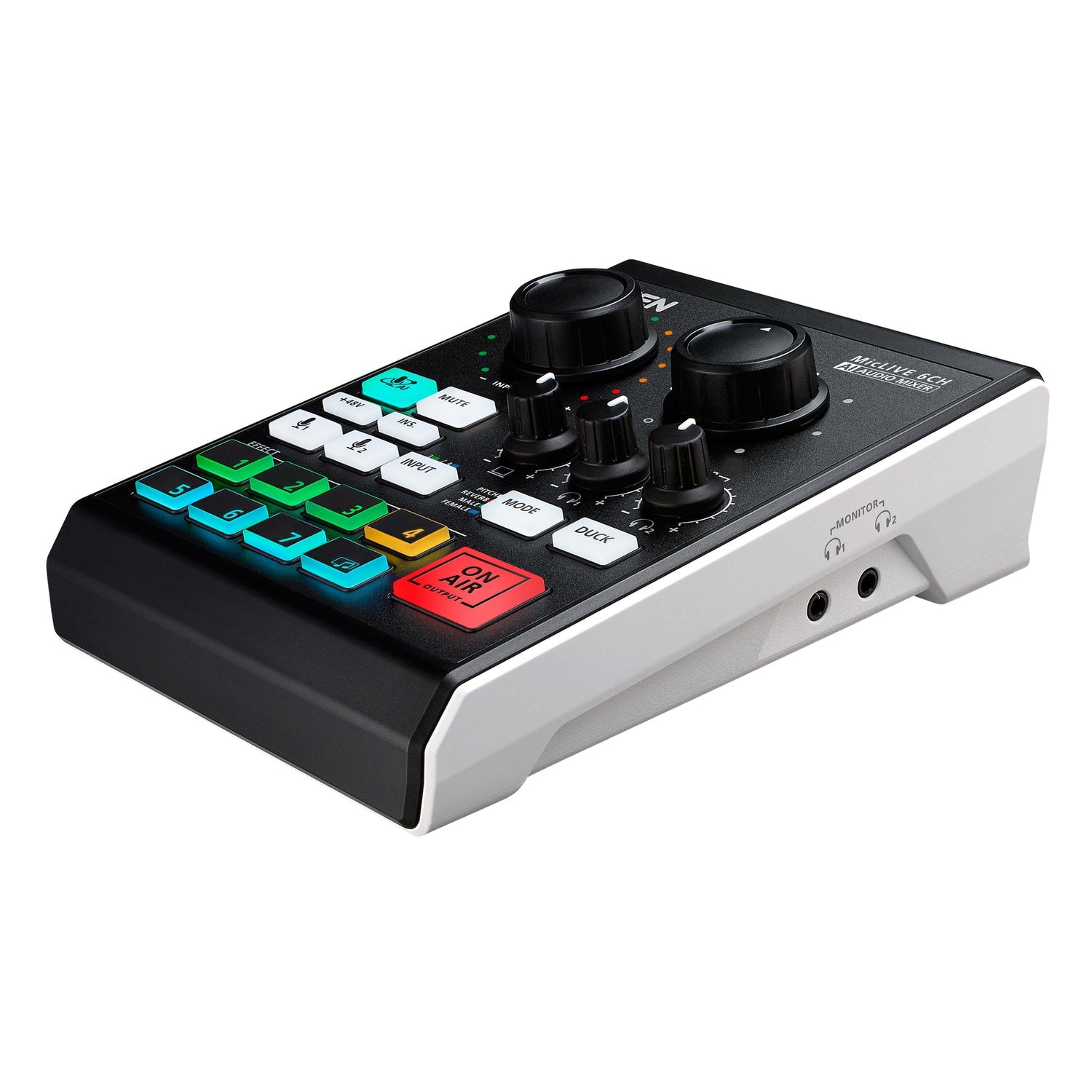

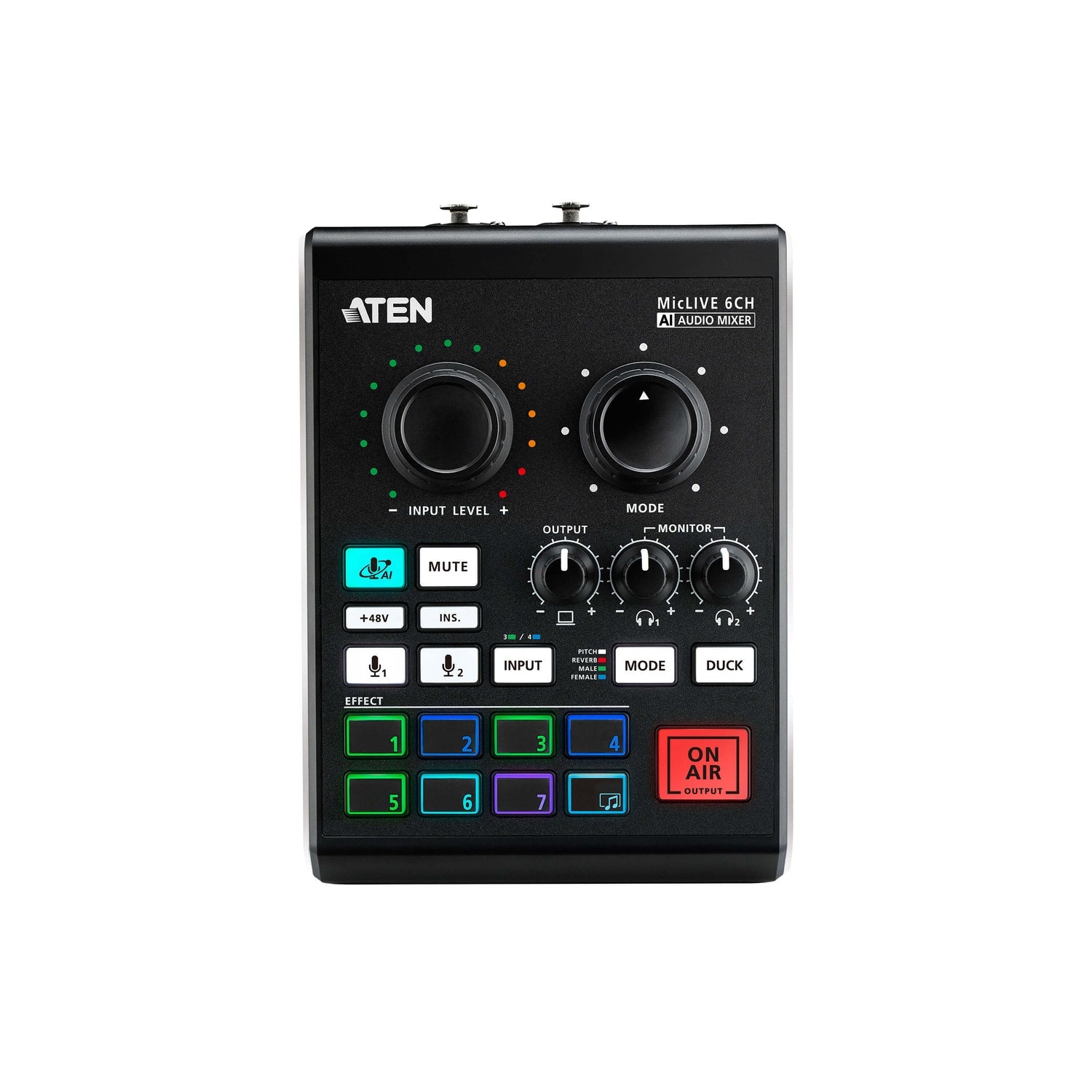

The ATEN UC8000 MicLIVE is a 6-channel USB audio mixer with built-in AI SmartEQ that optimises voice sound automatically, so hosts get a polished result without studio know-how.
Two Mic Inputs with Phantom Power

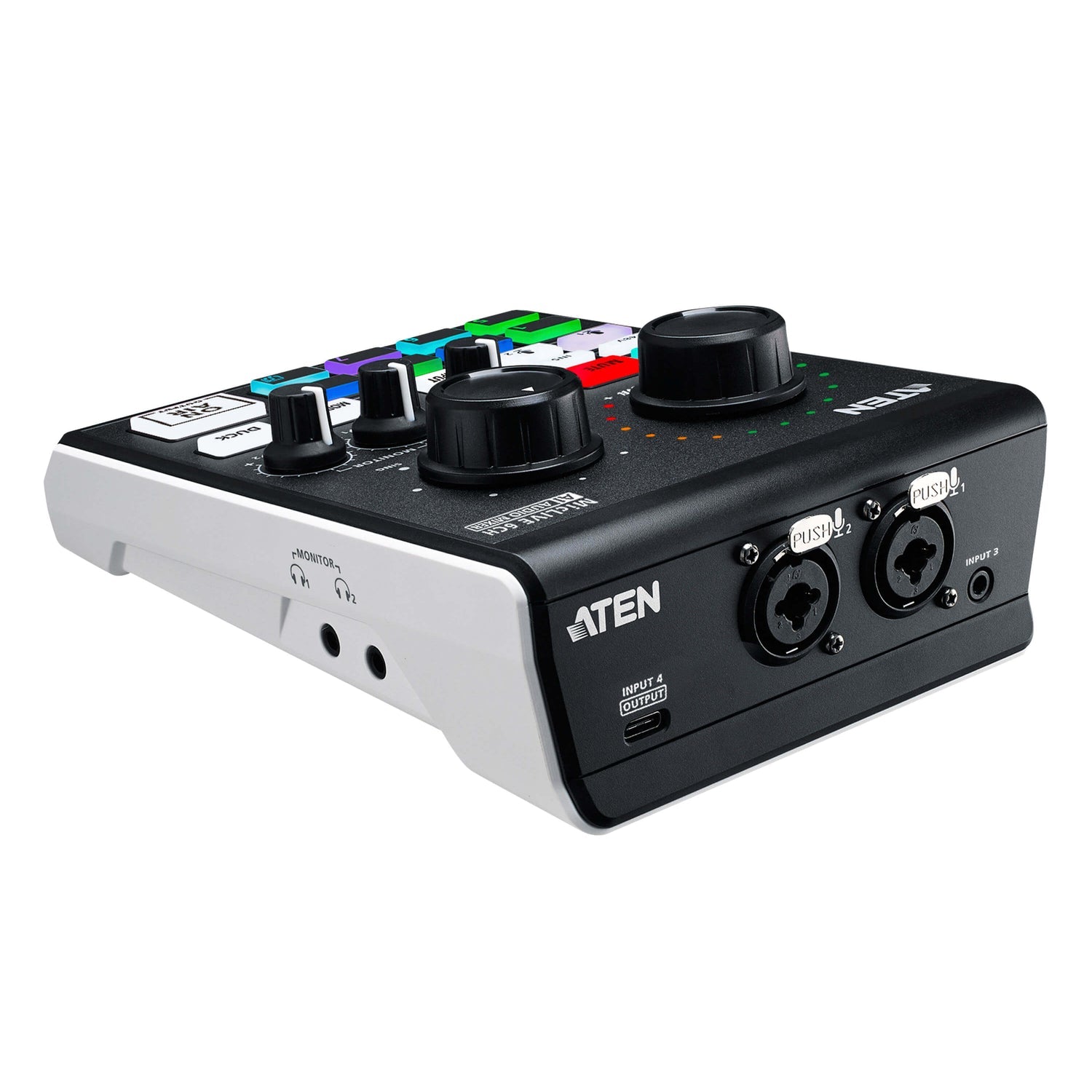

Two XLR combo inputs accept dynamic or condenser microphones and instruments, with a built-in preamp and +48V phantom power. Line-in and USB audio inputs bring in phone calls, music or a computer.
Creative Tools Built In

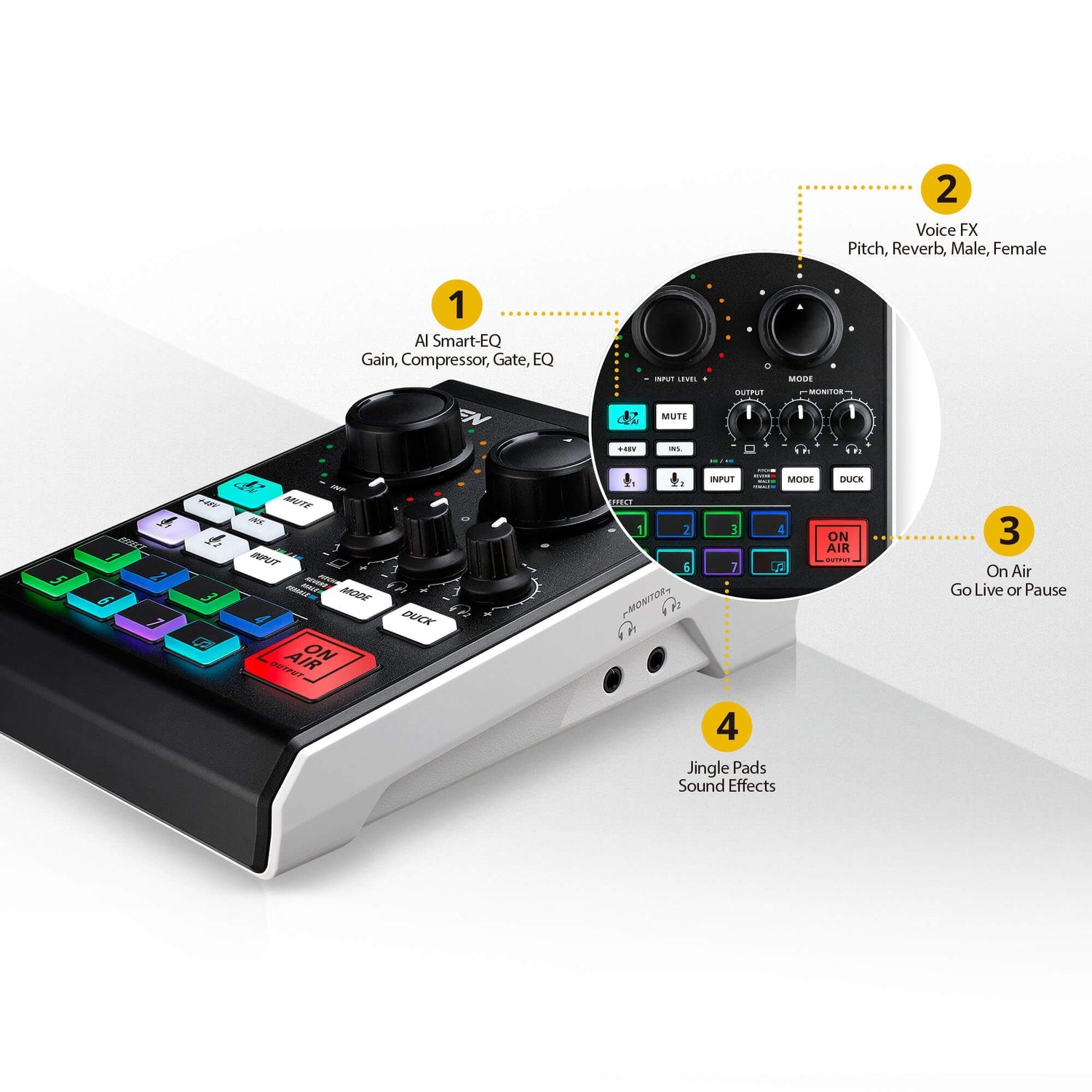

24 voice effects (reverb, pitch and gender), eight customisable jingle pads and auto ducking make live shows easy to run, with two headphone outputs for host and guest.
One USB-C Cable
USB-C bus-powered, recording at 24-bit / 96 kHz, and compatible with Windows, macOS and recent iPads.
Setting up a podcast or streaming studio for your organisation? Email sales@sourceit.com.sg for a complete kit quote.
ATEN UC8000 Datasheet — Technical Specifications
General
| Product Name | ATEN Podcast AI Audio Mixer MicLIVE 6-CH |
| Model | UC8000 |
| Order Code | UC8000-AT |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Inputs and Outputs
| Audio Inputs | 2 x XLR combo; 1 x line-in (1/8" TRRS); USB audio-in (USB-C) |
| Audio Outputs | 1 x line-out (1/8" TRRS); USB audio-out (USB-C); 2 x headphone (1/8" TRS) |
| Connection | 1 x USB-C Female, USB bus-powered |
Audio
| Audio Sampling | 24-bit / 96 kHz |
| ADC Dynamic Range | 92 dB |
| DAC Dynamic Range | 95 dB |
Microphone Inputs
| Frequency Response | 20 Hz – 20 kHz |
| Dynamic Range | 90 dB |
| THD+N | -82 dB |
| Gain Range | 40 dB (dynamic), 30 dB (condenser) |
| Phantom Power | +48 VDC |
Other Inputs and Outputs
| Instrument Input Impedance | 1 MΩ |
| Line Input Max. Level | 1 Vrms |
| Line Output Max. Level | 1 Vrms |
| Headphone Output Max. Level | 2 Vrms |
Power
| Power Consumption | DC 5V, 2.55 W |
Environmental
| Operating Temperature | 0–40 °C |
Physical
| Weight | 0.42 kg |
| Dimensions (L x W x H) | 13.05 x 18.09 x 6.27 cm |
System Requirements
| Operating Systems | Windows 10 or higher (64-bit); macOS 10.13 or higher (64-bit); iPad Pro (3rd gen+), iPad Air (4th gen+), iPad mini (6th gen+) |
Compatibility & Applications
Typical Devices
Dynamic and condenser XLR microphones, instruments, smartphones via line-in, and Windows PCs, Macs or iPads via USB-C.
Typical Use
Podcasts, live streaming, online teaching, corporate webcasts and two-person interviews.
Selection Tip
Pair it with the ATEN UC3022 CAMLIVE PRO for two-camera video plus professional audio in a streaming setup.
Package Contents & ATEN Audio Mixer Ordering Information
In the Box
1 x MicLIVE 6-CH AI Audio Mixer, 1 x USB-C cable (0.3 m), 1 x user instructions.
ATEN Content Creation Models
| Model | Key feature |
| UC8000 (this listing) | MicLIVE 6-channel AI audio mixer |
| UC3022 | CAMLIVE PRO dual HDMI to USB-C UVC capture |
| UC3310 | CAMLIVE MX UVC camera seamless matrix |
| UC9040 | StreamLIVE PRO all-in-one multi-channel AV mixer |
Datasheet & Downloads
| UC8000 datasheet | UC8000 Datasheet (PDF) |
| UC8000 user manual | UC8000 User Manual (PDF) |
| Quick start guide | UC8000 Quick Start Guide (PDF) |
| ATEN product page | UC8000 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting UC8000-AT.
Frequently Asked Questions — ATEN UC8000
Can I use condenser microphones?
Yes. The XLR combo inputs provide +48V phantom power.
Does it need a power adapter?
No. It is powered over its USB-C connection.
Does it work with an iPad?
Yes: iPad Pro (3rd gen or later), iPad Air (4th gen or later) and iPad mini (6th gen or later).
Can two people monitor at once?
Yes. There are two headphone outputs with volume control.
What does AI SmartEQ do?
It automatically optimises the EQ of the voice input for clearer, more balanced sound.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
