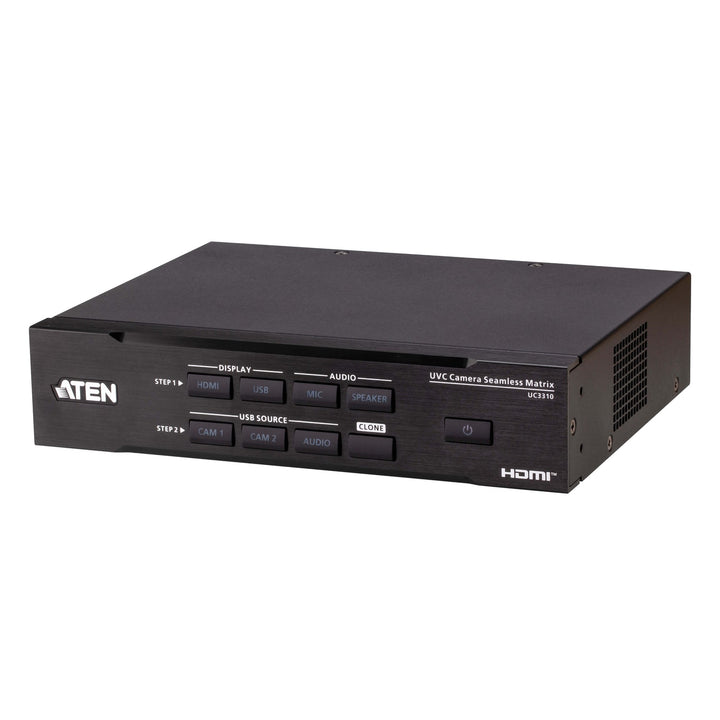

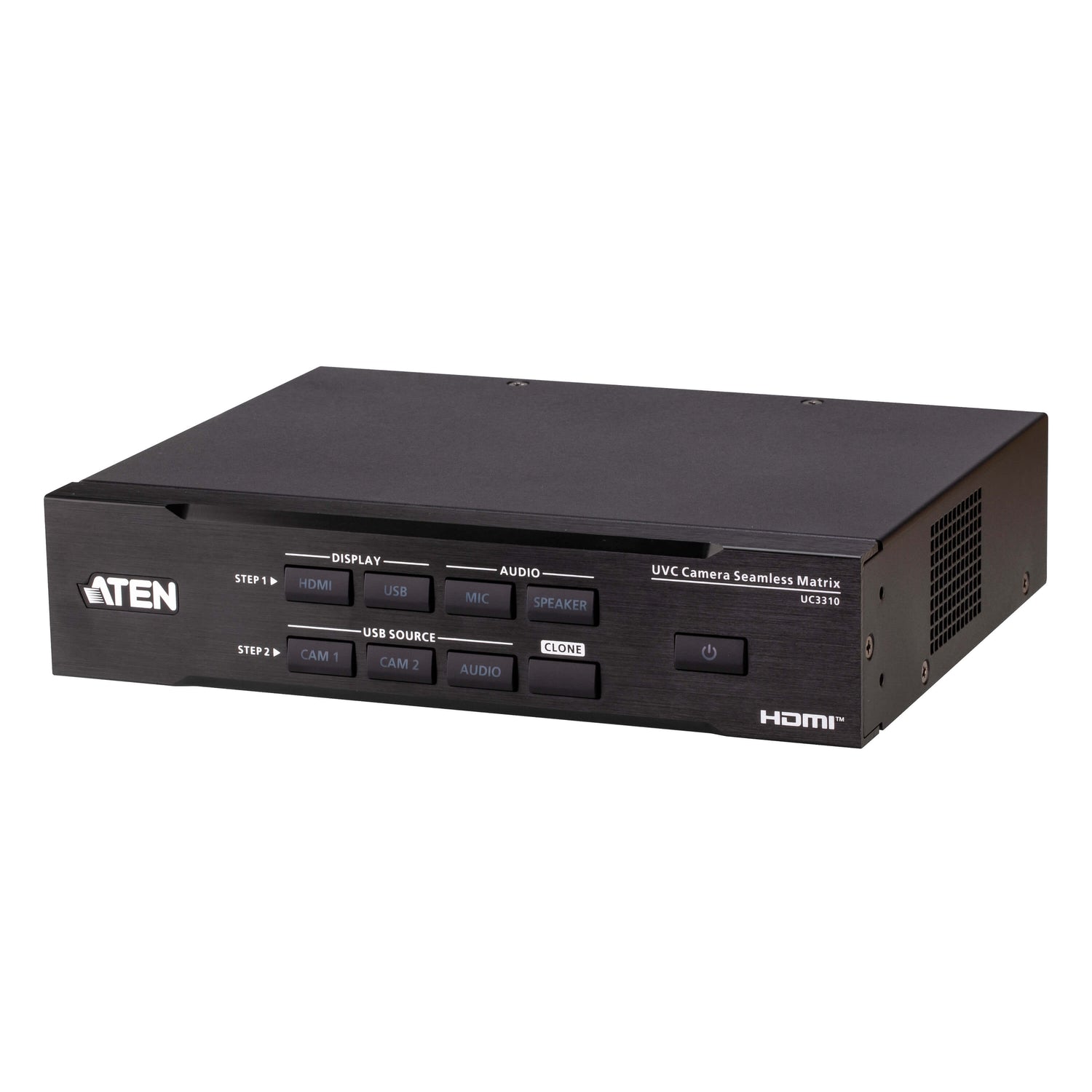

ATEN UC3310 CAMLIVE MX UVC Camera Seamless Matrix
PRODUCT DESCRIPTION
ATEN UC3310 CAMLIVE MX UVC Camera Seamless Matrix - 2 Years Local Warranty
Two USB Cameras, One Seamless Feed
The CAMLIVE MX takes up to two 4K @ 30 USB (UVC) cameras and switches between them seamlessly, sending the programme to an HDMI output and, at the same time, to the computer as a UVC camera at up to 4K30 (MJPEG) or 1080p30.
Works with Your Meeting and Streaming Apps
The computer sees the UC3310 as a standard webcam, so it works with Microsoft Teams, Zoom, OBS, XSplit, YouTube, Facebook, GoToWebinar and Twitch without drivers, on Windows 10 and later, macOS 12 and later and Android.
Audio Matrix and PTZ Control
A USB audio input and output matrix routes sound alongside the video, and a built-in RS-485 interface with VISCA protocol controls PTZ cameras.
Easy to Operate and Integrate

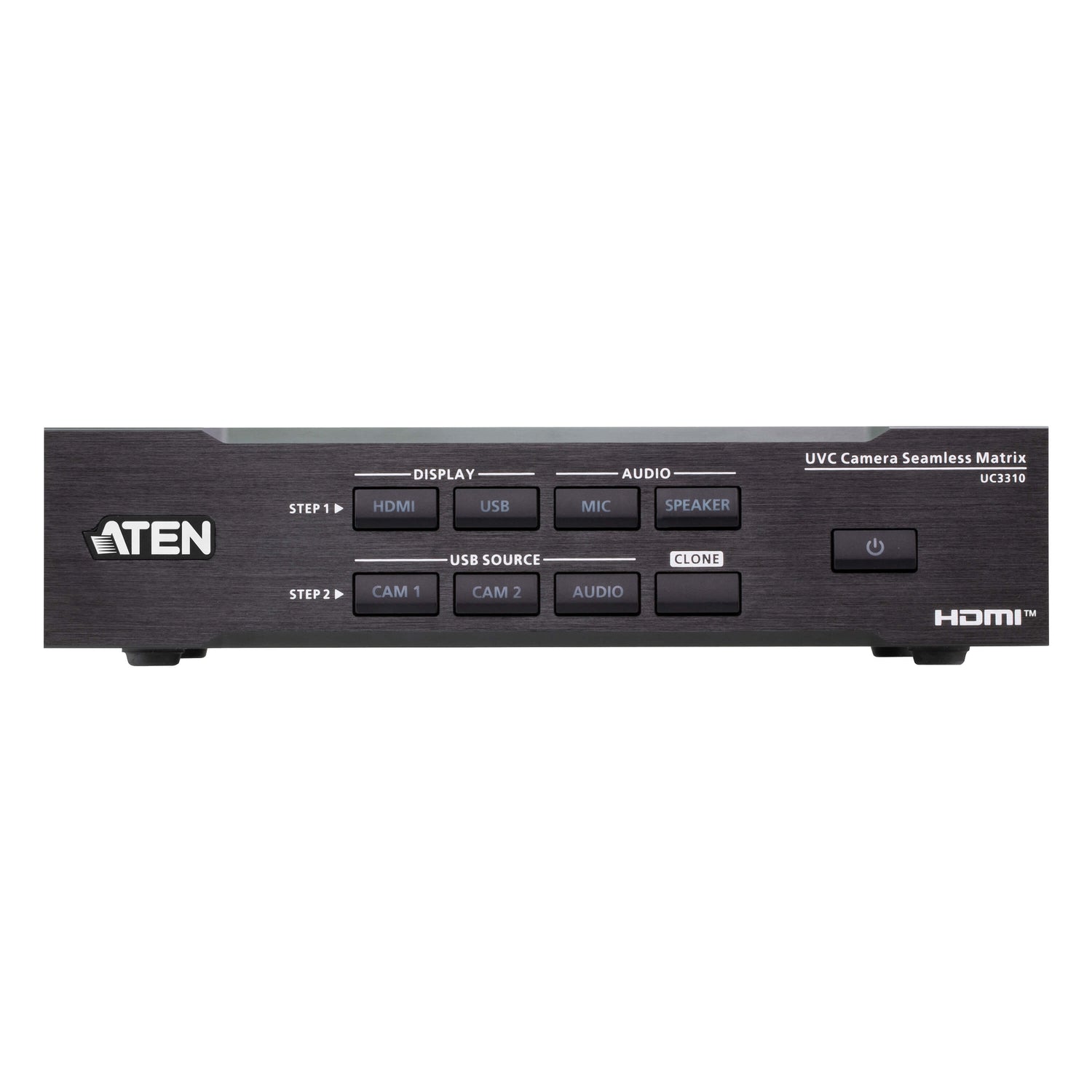

Front-panel pushbuttons make source selection simple, and RS-232 (RJ-45) integrates the unit with the ATEN VK control system. An optional rack mount kit is available.
Planning hybrid meeting rooms, lecture capture or a small studio? Email sales@sourceit.com.sg for configuration advice and a project quote.
ATEN UC3310 Datasheet — Technical Specifications
General
| Product Name | ATEN CAMLIVE MX UVC Camera Seamless Matrix |
| Model | UC3310 |
| Order Code | UC3310-AT-G |
| Local Warranty (Singapore) | 2 years carry-in warranty |

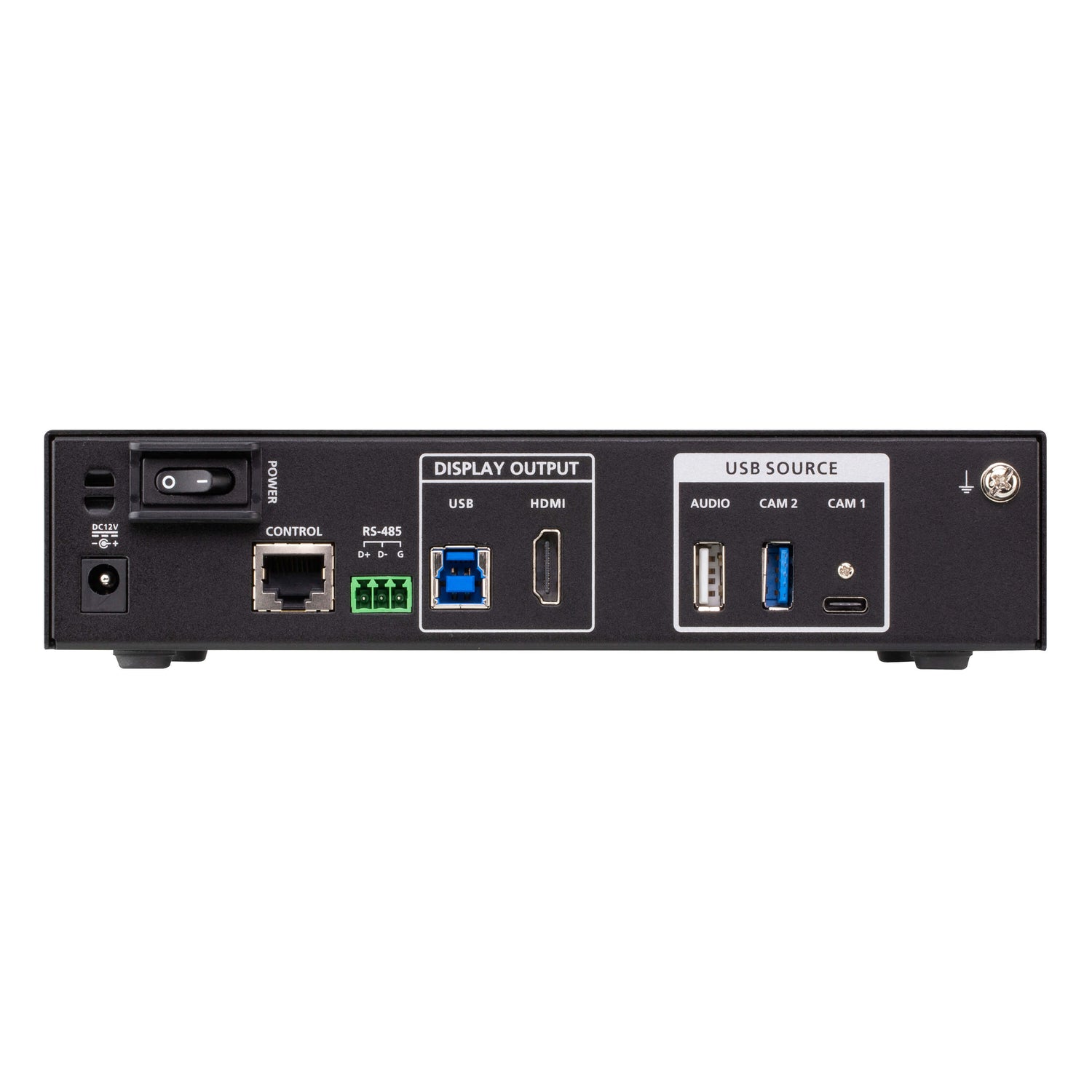

Inputs & Outputs
| Video Inputs | 1 x USB 3.2 Gen 1 Type-A Female; 1 x USB 3.2 Gen 1 Type-C Female (UVC cameras) |
| Audio Input | 1 x USB 2.0 Type-A Female |
| Video Output | 1 x HDMI Type A Female (PGM) |
| USB to Computer | 1 x USB 3.2 Gen 1 Type-B Female |
Video
| USB Camera Input | 720p to 2160p (24–60 fps) |
| HDMI Output | 720p / 1080p up to 60; 2160p24/25/30 |
| USB (UVC) Output | 4Kp30 (MJPEG); 1080p30; 720p24/25/30 (MJPEG) |
Audio
| Format | 16-bit PCM, 48 kHz |
| Routing | USB audio input/output matrix switching |
Control
| RS-232 | RJ-45; 50 bps–921.6 Kbps (default 9600 bps) |
| RS-485 | Terminal block; VISCA protocol for PTZ cameras; 50–115200 bps (default 9600 bps) |
| Front Panel | Pushbuttons for source selection |
Power
| Power | DC 12 V, 6.50 W |
| Power Adapter | Included (IEC C13, 100–240 VAC) |
Environmental
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Metal |
| Weight | 0.98 kg |
| Dimensions (L x W x H) | 16.46 x 20.00 x 4.40 cm |
System Requirements
| Operating Systems | Windows 10 and later; macOS 12 and later; Android (no driver required) |
| Minimum PC | Intel i3 dual core 2.8 GHz or higher, 4 GB RAM, 1 x USB Type-A port |
Compatibility & Applications
Typical Sources
USB (UVC) webcams and conference cameras, including PTZ cameras with VISCA control over RS-485, plus a USB microphone or audio interface.
Typical Use

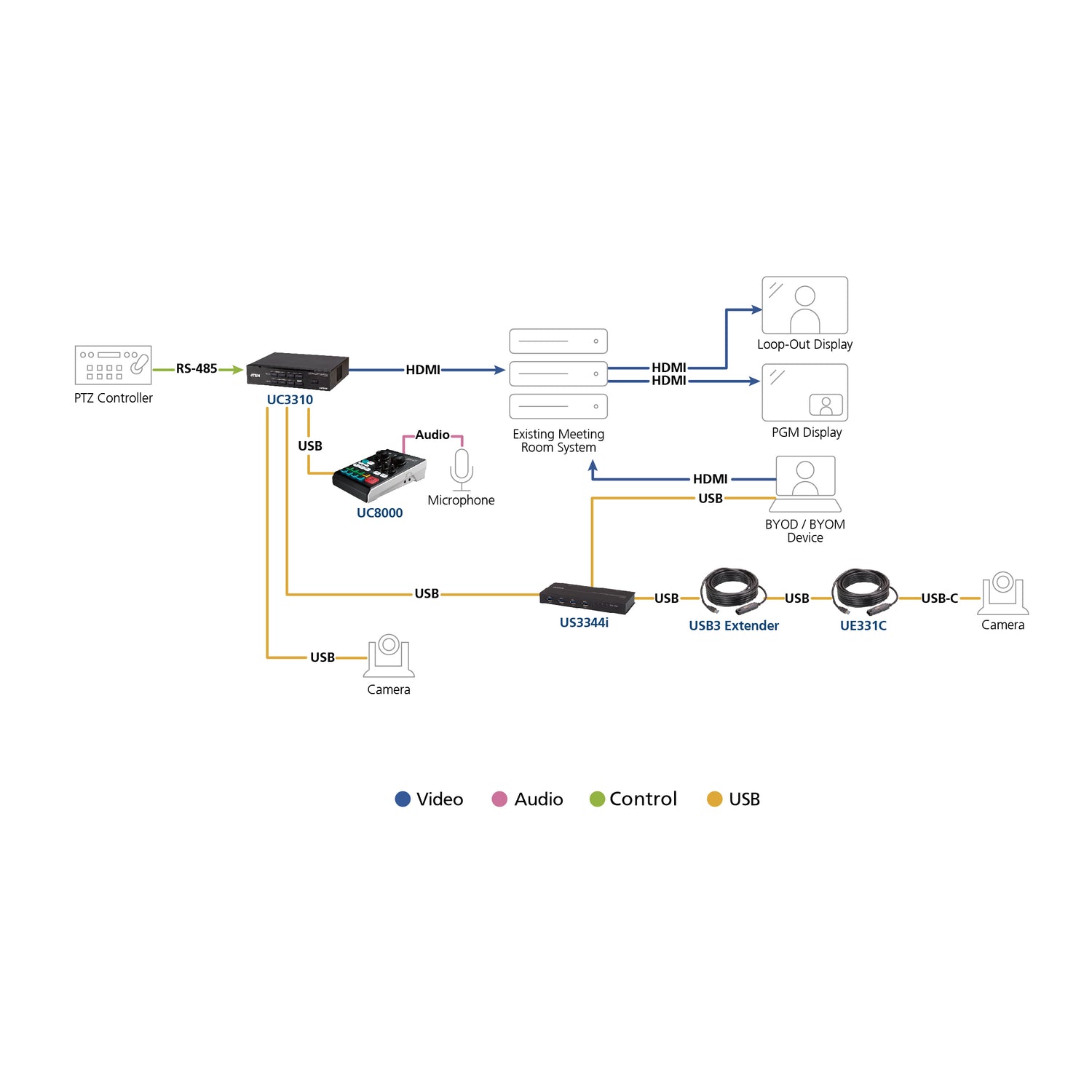

Hybrid meeting rooms with a presenter camera and a room camera, lecture capture, church and event streaming, and small studios needing clean camera switching.
Selection Tip
Use the HDMI output for a local monitor or recorder while the UVC output feeds your meeting or streaming app. For HDMI cameras rather than USB, consider the CAMLIVE PRO UC3022.
Package Contents & ATEN CAMLIVE Ordering Information
In the Box
1 x UC3310, 1 x USB Type-A to Type-B cable (1.8 m), 1 x power adapter and power cord, 1 x user instructions.
ATEN Capture and Streaming Models
| Model | Key feature |
| UC3310 (this listing) | CAMLIVE MX UVC camera seamless matrix |
| UC3022 | CAMLIVE PRO dual HDMI to UVC capture |
| UC9040 | StreamLIVE PRO multi-channel streaming |
| UC8000 | MicLIVE 6-channel AI audio mixer |
Datasheet & Downloads
| Datasheet | UC3310 Datasheet (PDF) |
| User manual | UC3310 User Manual (PDF) |
| Quick start guide | UC3310 Quick Start Guide (PDF) |
| ATEN product page | UC3310 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting UC3310-AT-G.
Frequently Asked Questions — ATEN UC3310
How many cameras can I connect?
Two USB (UVC) cameras: one on the USB Type-A input and one on the USB-C input.
Does it work with Teams and Zoom?
Yes. The computer sees it as a UVC camera, compatible with Microsoft Teams, Zoom, OBS, XSplit, YouTube, Facebook, GoToWebinar and Twitch, with no driver needed.
Can it control PTZ cameras?
Yes, via the built-in RS-485 interface using the VISCA protocol.
What is the maximum output resolution?
HDMI up to 2160p30 and USB output up to 4Kp30 (MJPEG).
Can I rack mount it?
An optional rack mount kit is available from ATEN.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
