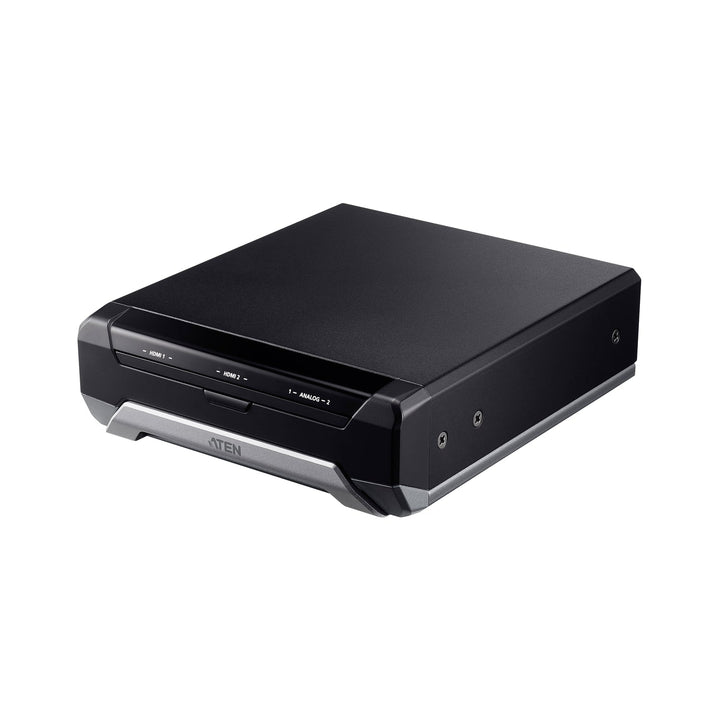

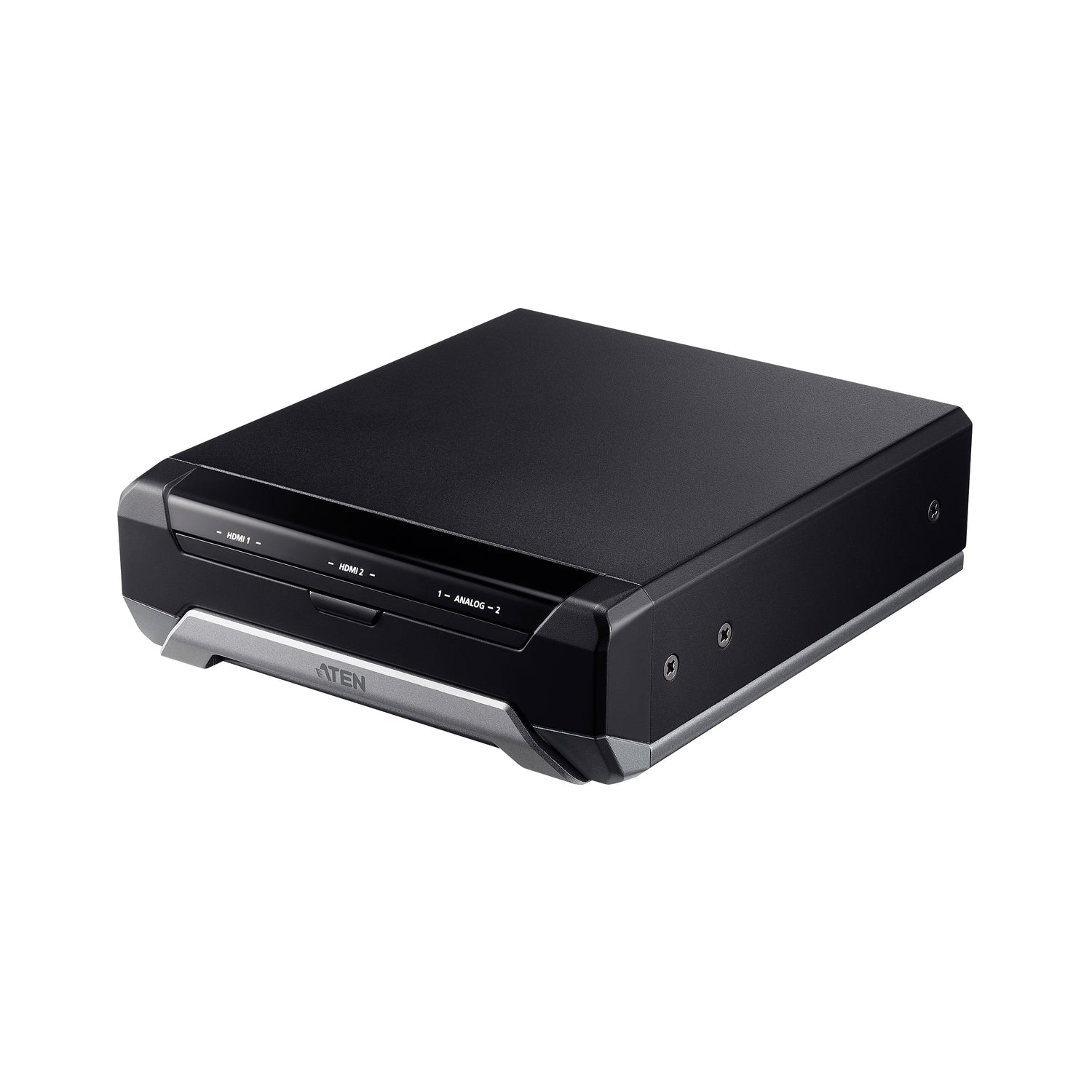

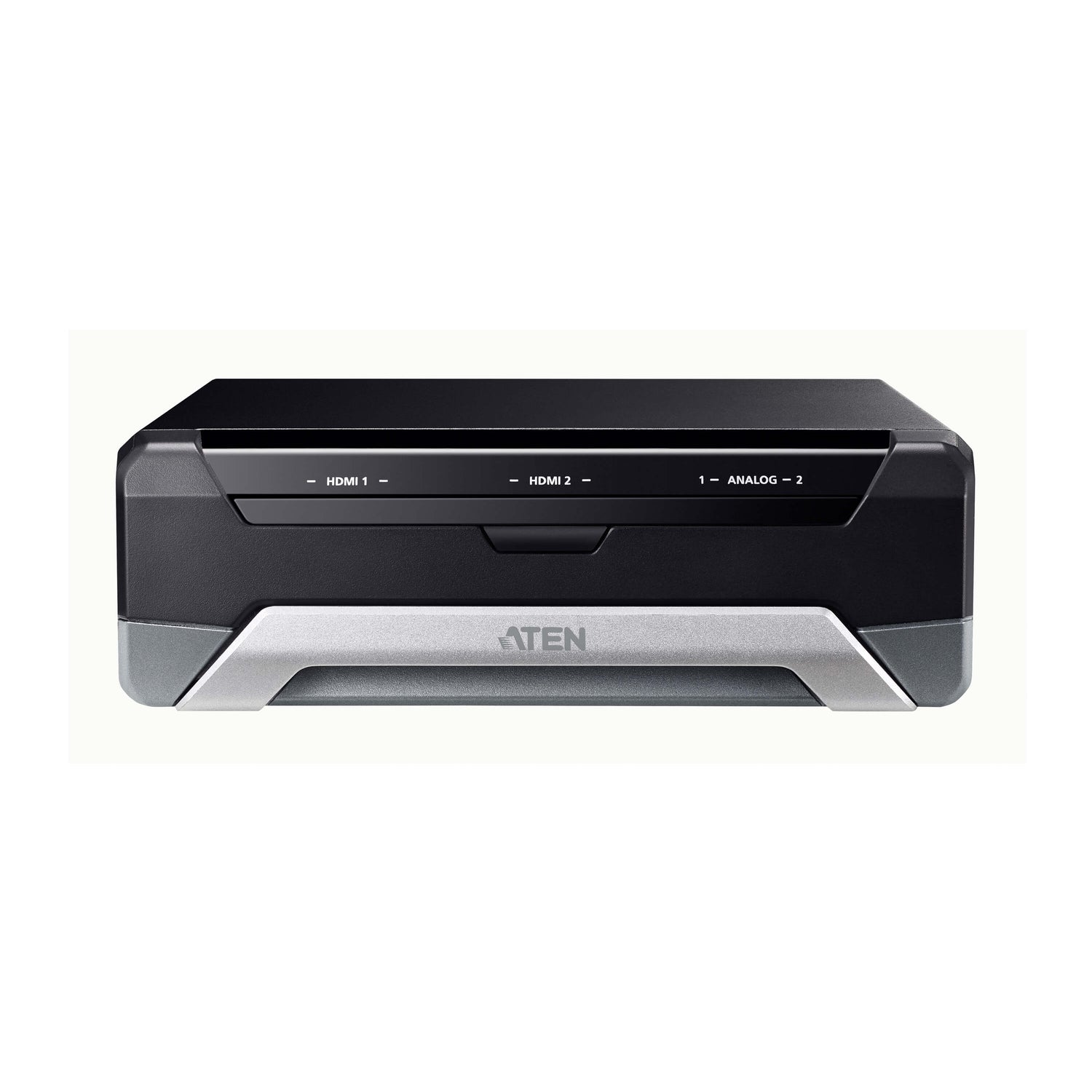

ATEN UC3022 CAMLIVE PRO Dual HDMI to USB-C UVC Video Capture
PRODUCT DESCRIPTION
ATEN UC3022 CAMLIVE PRO Dual HDMI to USB-C UVC Video Capture - 2 Years Local Warranty
Two HDMI Cameras, One USB Webcam Feed
The ATEN UC3022 CAMLIVE PRO captures and mixes two unencrypted HDMI sources (up to 2160p30) and delivers them to your computer as uncompressed 1080p60 UVC video with UAC audio, so streaming and meeting apps see it as a standard webcam.
Live Production from an App

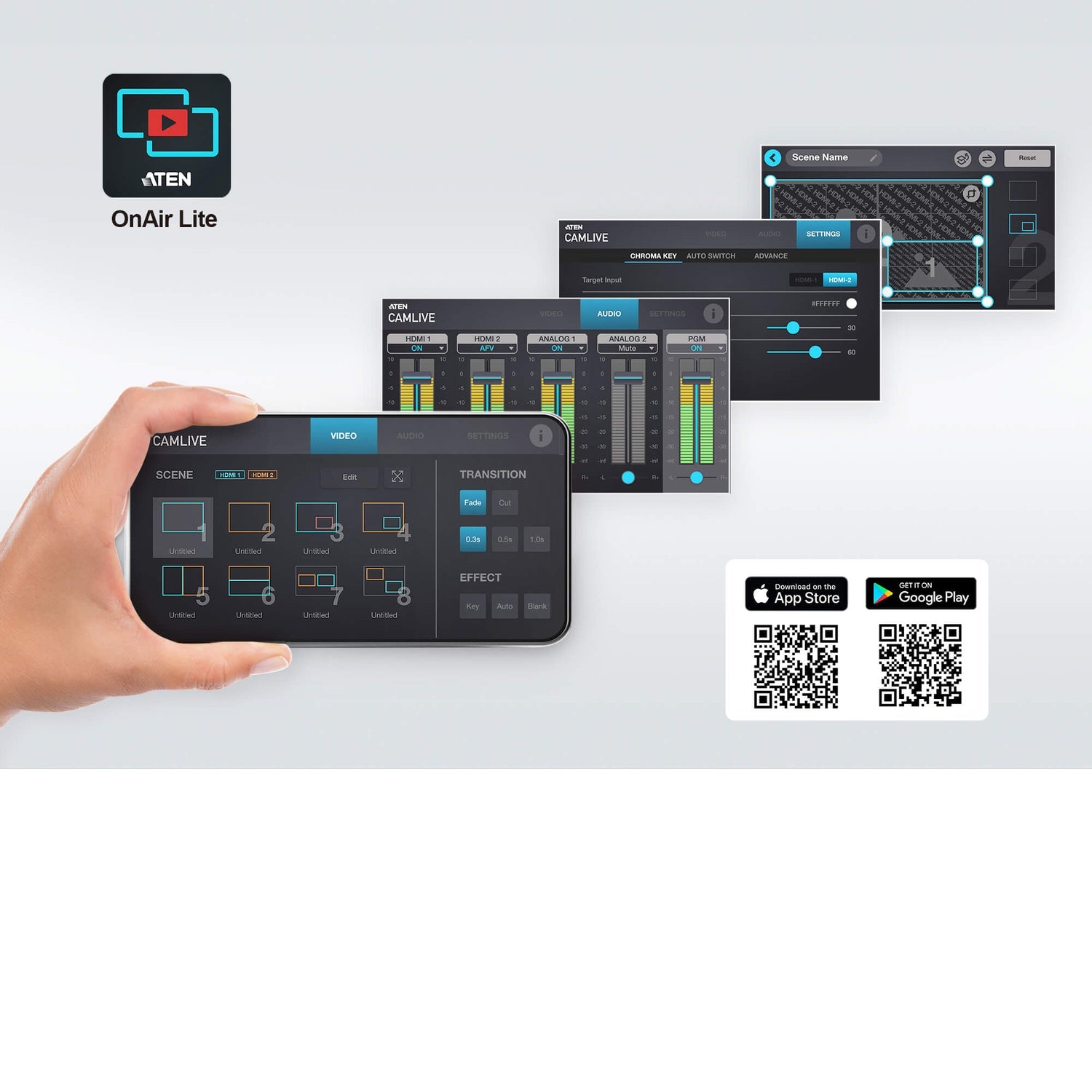

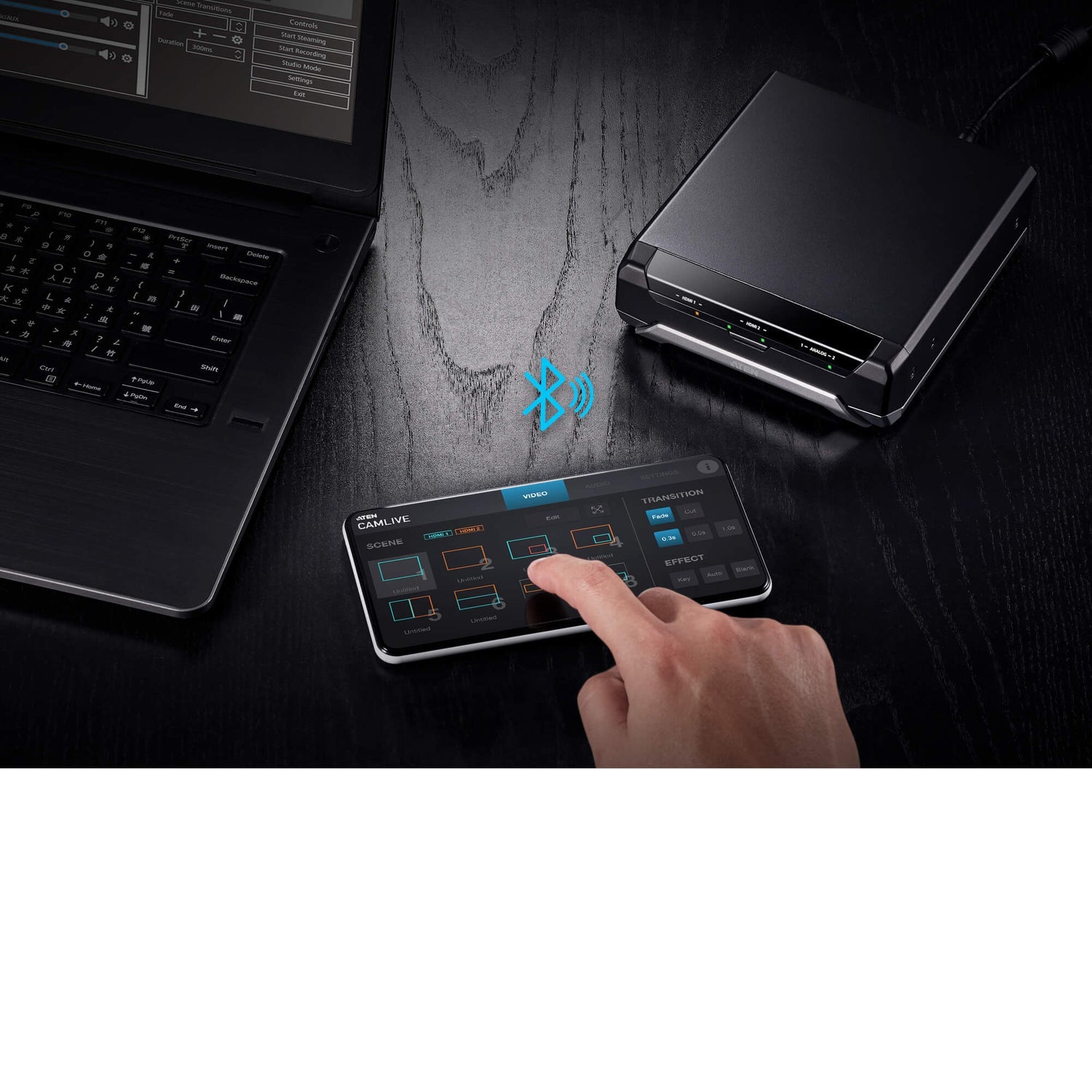

Control it wirelessly from the app with multi-crop, remote deck, chroma key and picture-in-picture style layouts, and watch the result on the real-time HDMI program output.
Pro Audio Inputs
A balanced XLR and an unbalanced RCA input feed the built-in audio mixer, so you can bring in a professional microphone or mixer alongside camera audio.
USB-C or USB-A Hosts
Connects over USB 3.2 Gen 1 with both USB-B to USB-C and USB-B to USB-A cables included; compatible with USB and Thunderbolt 3 computers running Windows, macOS, Android or iOS.
Setting up a studio, classroom or church streaming kit? Email sales@sourceit.com.sg for configuration advice and a quote.
ATEN UC3022 Datasheet — Technical Specifications
General
| Product Name | ATEN CAMLIVE PRO (Dual HDMI to USB-C UVC Video Capture) |
| Model | UC3022 |
| Order Code | UC3022-AT-E |
| Local Warranty (Singapore) | 2 years carry-in warranty |

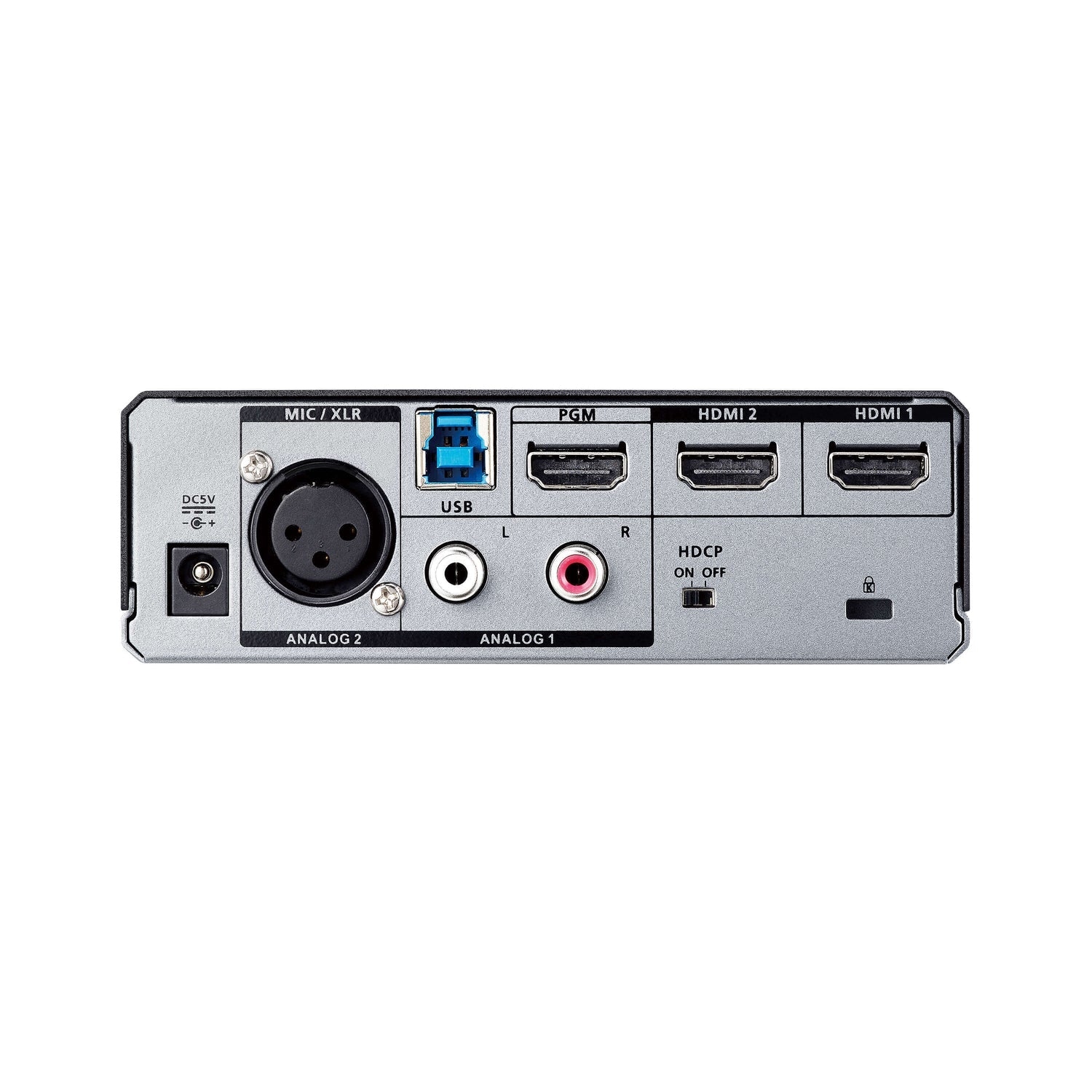

Connectors
| Video Inputs | 2 x HDMI Type-A Female (Black) |
| Video Output | 1 x HDMI Type-A Female (program video, Black) |
| USB Port | USB 3.2 Gen 1 Type-B (Blue) |
| Audio Inputs | 1 x balanced XLR; 1 x unbalanced RCA |
Video
| HDMI Input Formats | 720p50/60, 1080p24/25/30/50/60, 2160p24/25/30 (unencrypted) |
| UVC Output Formats | 720p50/60, 1080p24/25/30/50/60 |
| Output Stream | Uncompressed 1080p60 and 720p60 UVC with UAC audio |
Audio
| Audio Format | 16-bit PCM, 44.1 kHz and 48 kHz |
Control
| Wireless Control | Bluetooth Low Energy (app) |
Power
| Power Consumption | DC 5V, 4.4 W |
| Power Adapter | Included |
Environmental
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Metal |
| Weight | 0.68 kg |
| Dimensions (L x W x H) | 13.00 x 15.18 x 4.25 cm |
System Requirements
| Operating Systems | Windows 10+, macOS 10.13+, Android 5.x+, iOS 10.1+ |
Compatibility & Applications
Typical Sources
Camcorders, mirrorless and DSLR cameras with clean HDMI output, document cameras, and computers or consoles with unencrypted HDMI output.
Typical Use

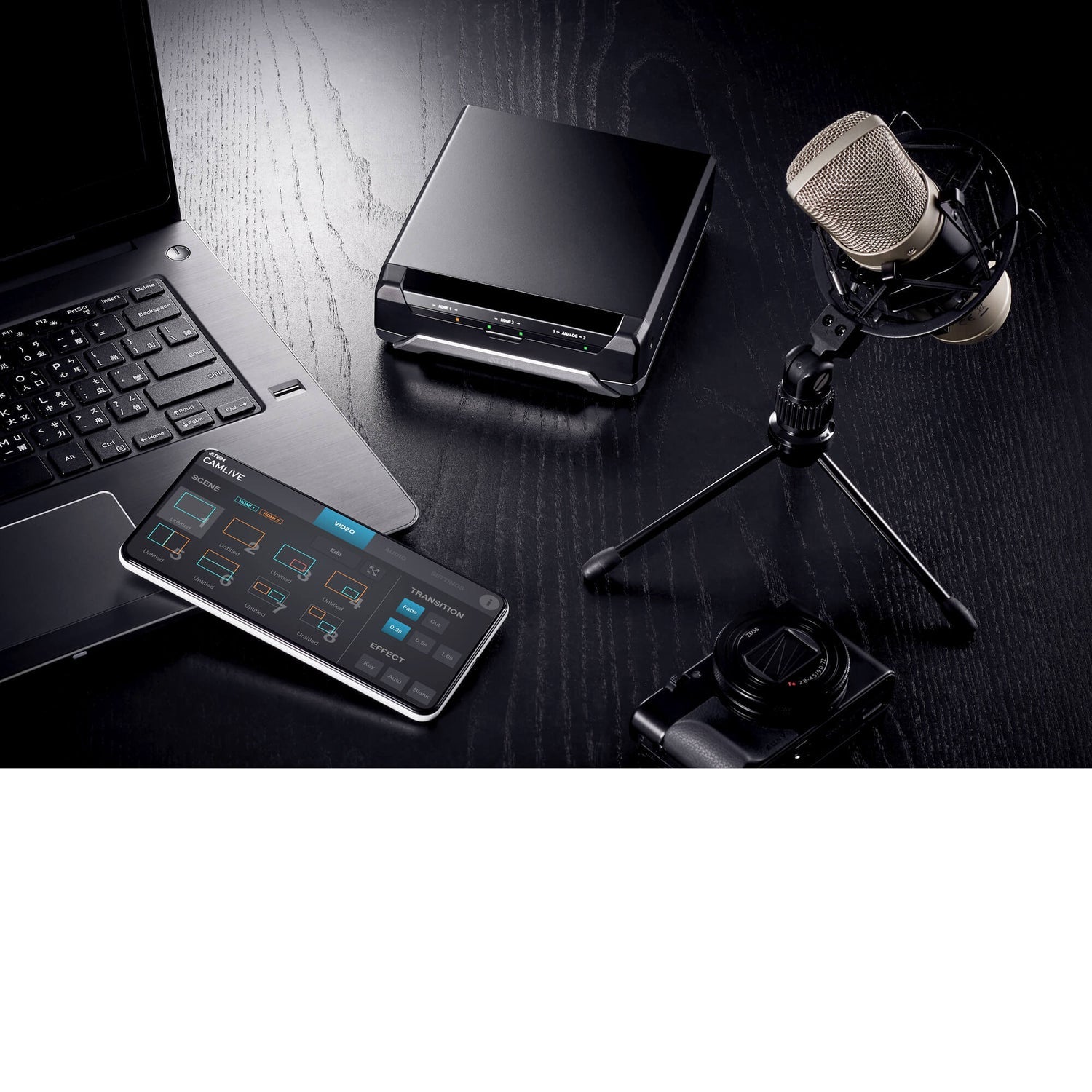

Live streaming, hybrid classes and lectures, webinars, church services and video meetings that need two camera angles and better audio.
Selection Tip
HDMI inputs must be unencrypted (no HDCP) to be captured. For multi-channel AV mixing with more inputs, see the ATEN UC9040 StreamLIVE PRO.
Package Contents & ATEN Video Capture Ordering Information
In the Box
1 x UC3022 CAMLIVE PRO, 1 x USB-B to USB-C cable, 1 x USB-B to USB-A cable, 1 x power adapter, 1 x camera mount adapter kit, 1 x user instructions.
ATEN Capture & Streaming Models
| Model | Key feature |
| UC3022 (this listing) | CAMLIVE PRO dual HDMI to USB-C UVC capture |
| UC3310 | CAMLIVE MX UVC camera seamless matrix |
| UC9040 | StreamLIVE PRO all-in-one multi-channel AV mixer |
| UC8000 | MicLIVE 6-channel AI audio mixer |
Datasheet & Downloads
| UC3022 datasheet | CAMLIVE PRO Datasheet (PDF) |
| UC3022 user manual | UC3022 User Manual (PDF) |
| Quick start guide | UC3022 Quick Start Guide (PDF) |
| ATEN product page | UC3022 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting UC3022-AT-E.
Frequently Asked Questions — ATEN UC3022
Do I need drivers or capture software?
It outputs standard UVC video and UAC audio, so streaming and conferencing apps can use it like a webcam.
Can it capture 4K?
It accepts HDMI inputs up to 2160p30 and outputs to the computer at up to 1080p60.
Can I capture copy-protected HDMI sources?
No. Inputs must be unencrypted for capture.
Can I connect a professional microphone?
Yes. It has a balanced XLR input as well as an unbalanced RCA input.
Does it work with a USB-C notebook?
Yes. A USB-B to USB-C cable is included, plus a USB-B to USB-A cable.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
