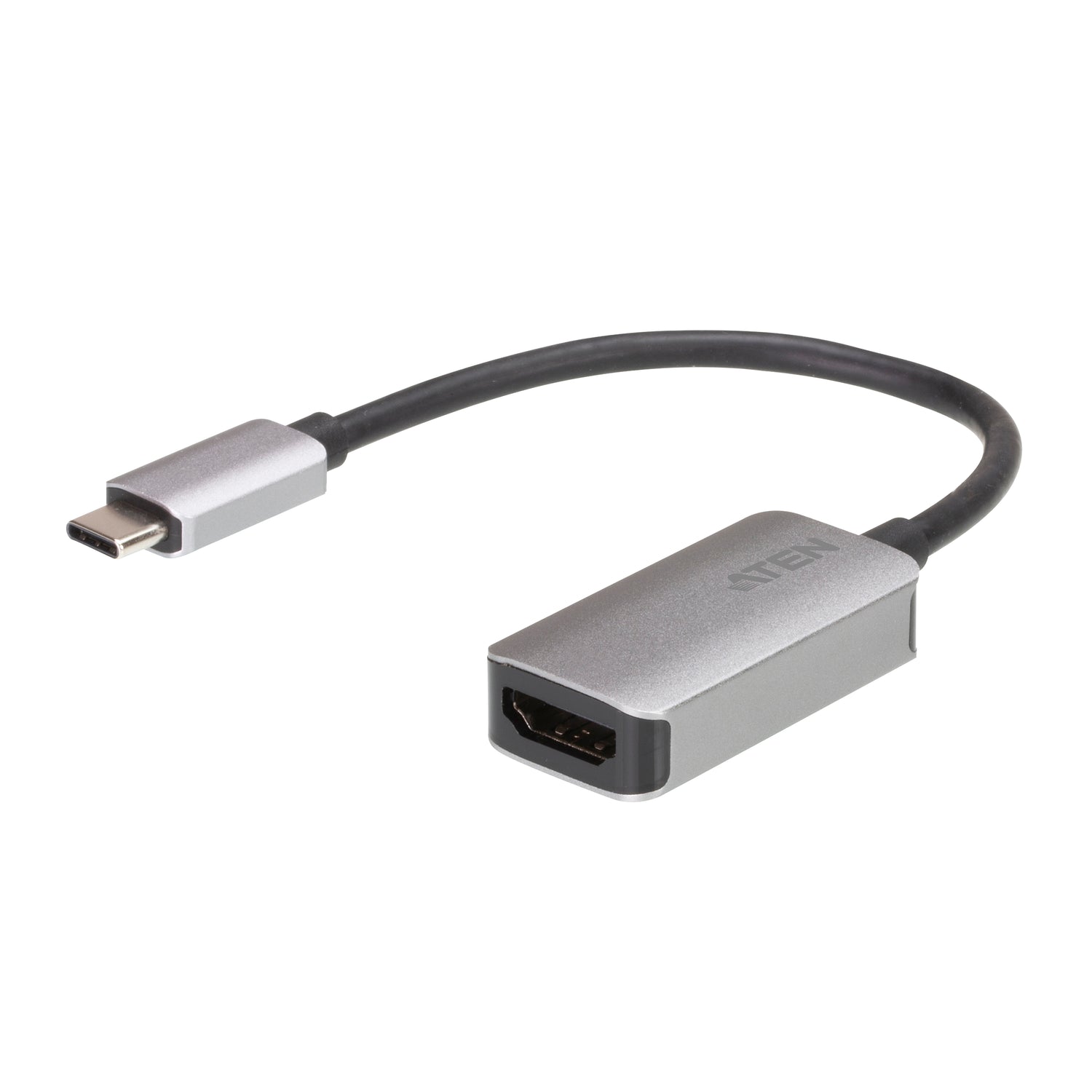

ATEN UC3008A1 USB-C to 4K HDMI Adapter
PRODUCT DESCRIPTION
ATEN UC3008A1 USB-C to 4K HDMI Adapter - 2 Years Local Warranty
4K at 60 Hz from a USB-C Port
The UC3008A1 turns a USB-C port with DisplayPort Alt Mode into an HDMI output at up to 4096 x 2160 at 60 Hz, ideal for connecting a USB-C laptop, tablet or phone to a 4K monitor, TV or projector.
HDMI 2.0 and HDCP 2.2
HDMI 2.0 with HDCP 2.2 support and a 594 MHz pixel clock for smooth 4K playback of protected content.
Thunderbolt 3 Compatible, Plug-and-Play
Works with USB-C ports supporting DP Alt Mode and is Thunderbolt 3 compatible. Bus-powered, with no software needed.
Compact Aluminium Design

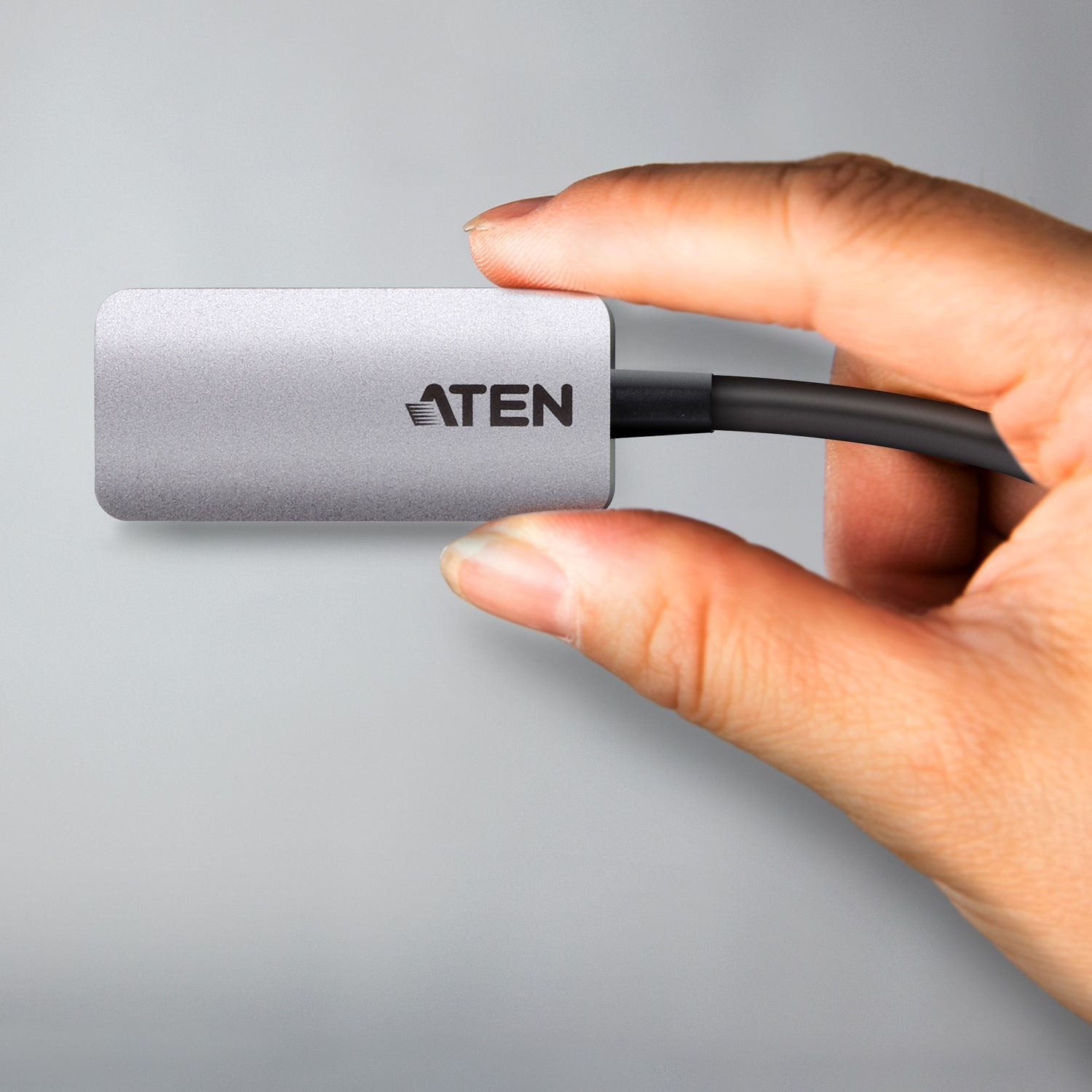

A 15.4 cm USB-C cable and aluminium housing weighing just 0.02 kg, small enough to live in a laptop bag.
Rolling out USB-C laptops? Email sales@sourceit.com.sg for volume pricing on adapters and docks.
ATEN UC3008A1 Datasheet — Technical Specifications
General
| Product Name | ATEN USB-C to 4K HDMI Adapter |
| Model | UC3008A1 |
| Order Code | UC3008A1-AT |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Connectors
| Input | USB 3.2 Gen 1 Type-C cable (15.4 cm) |
| Output | 1 x HDMI Female |
Video
| Max. Resolution | 4096 x 2160 @ 60 Hz |
| Max. Pixel Clock | 594 MHz |
| Standards | USB-C DP Alt Mode (Thunderbolt 3 compatible), HDMI 2.0, HDCP 2.2 |
Power
| Power | USB bus-powered |
| Power Consumption | 1 W |
Physical
| Housing | Aluminium |
| Weight | 0.02 kg |
| Dimensions | 4.32 x 1.10 x 2.20 cm |
Compatibility
| Operating Systems | Windows 10 or later, Mac OS X 10.12 or later, Android 8.0 or later, iOS 12.1 or later (iPad Pro) |
| Software | Plug-and-play, no software required |
Compatibility & Applications
Typical Devices

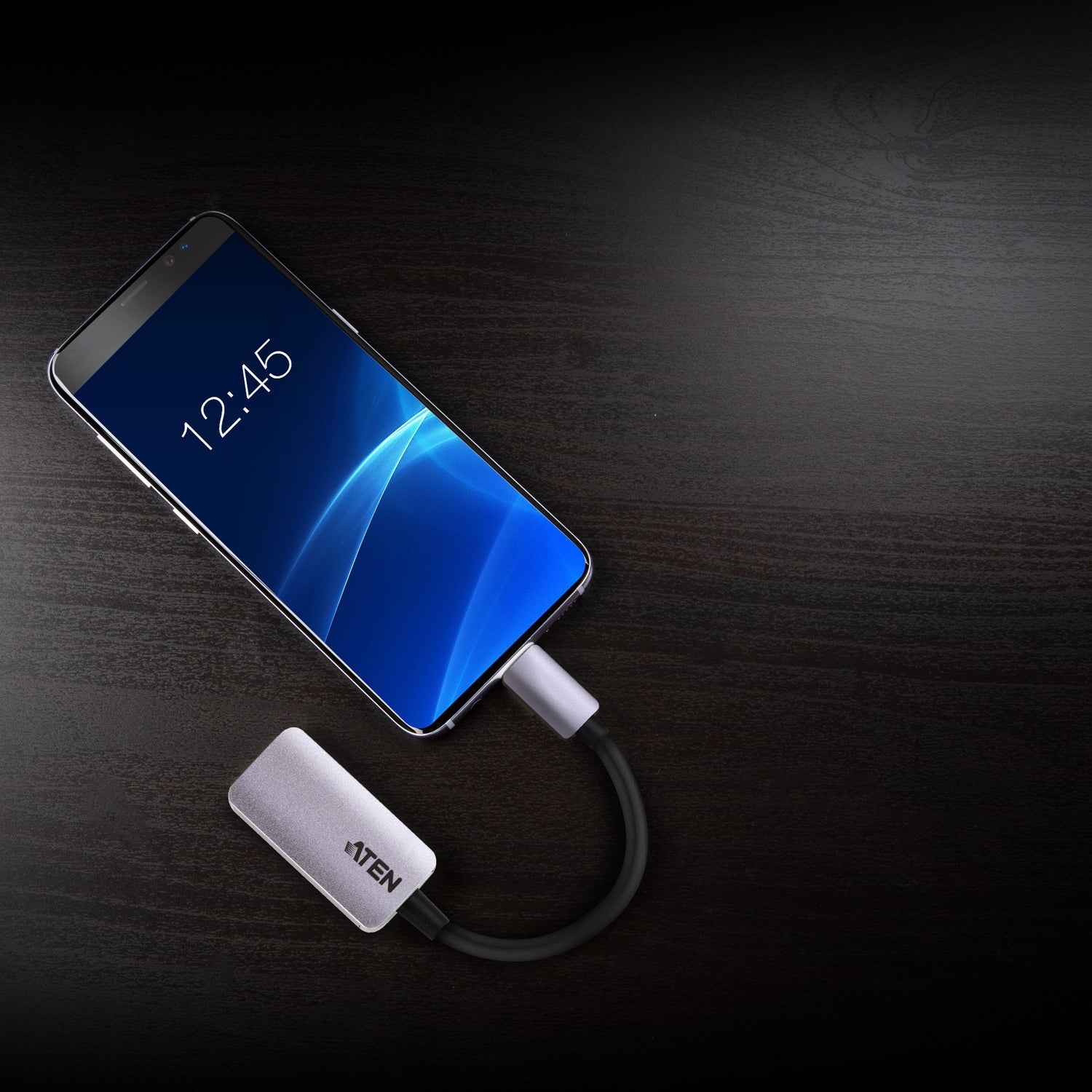

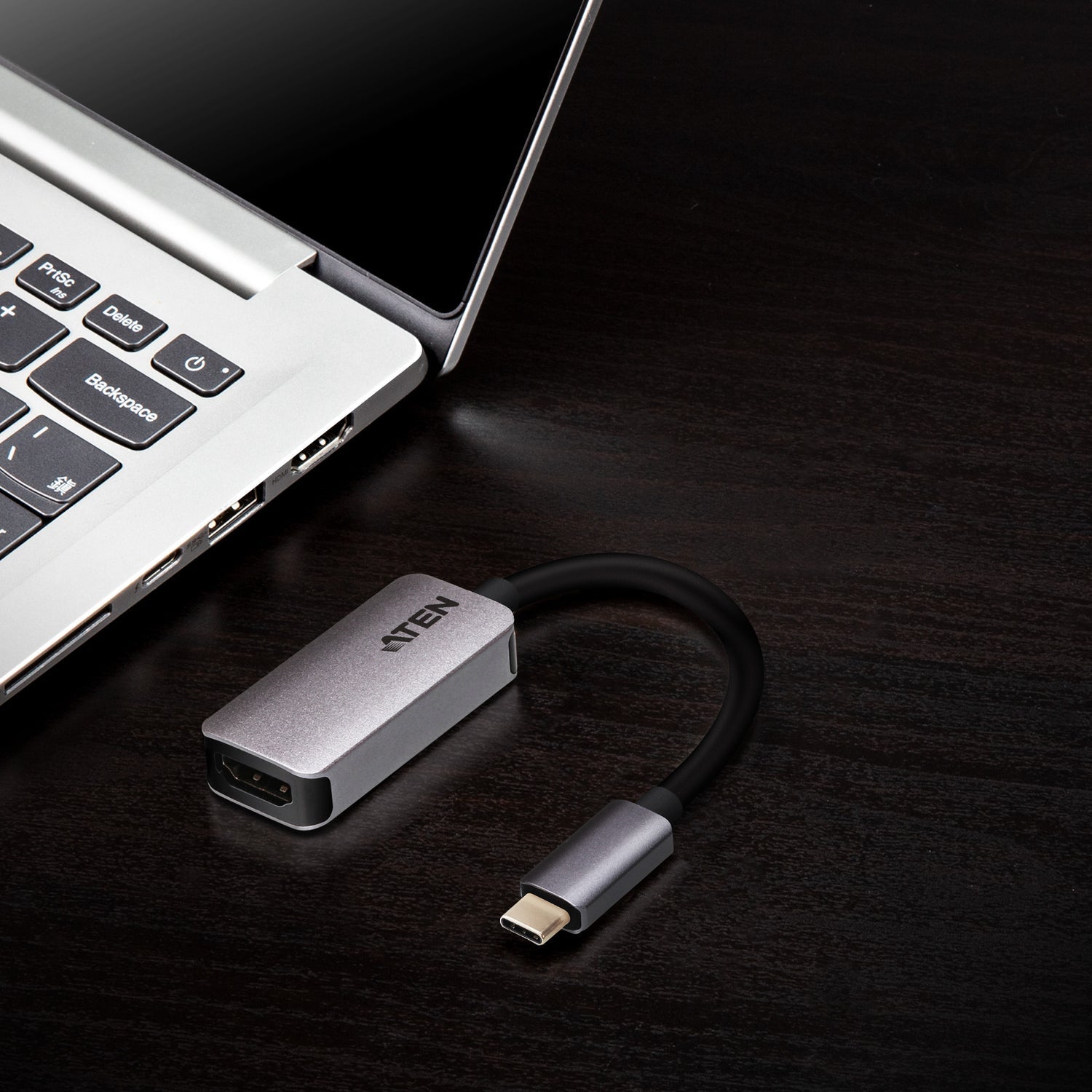

Laptops, tablets and phones with a USB-C port supporting DisplayPort Alt Mode or Thunderbolt 3, connected to HDMI monitors, TVs and projectors.
Typical Use

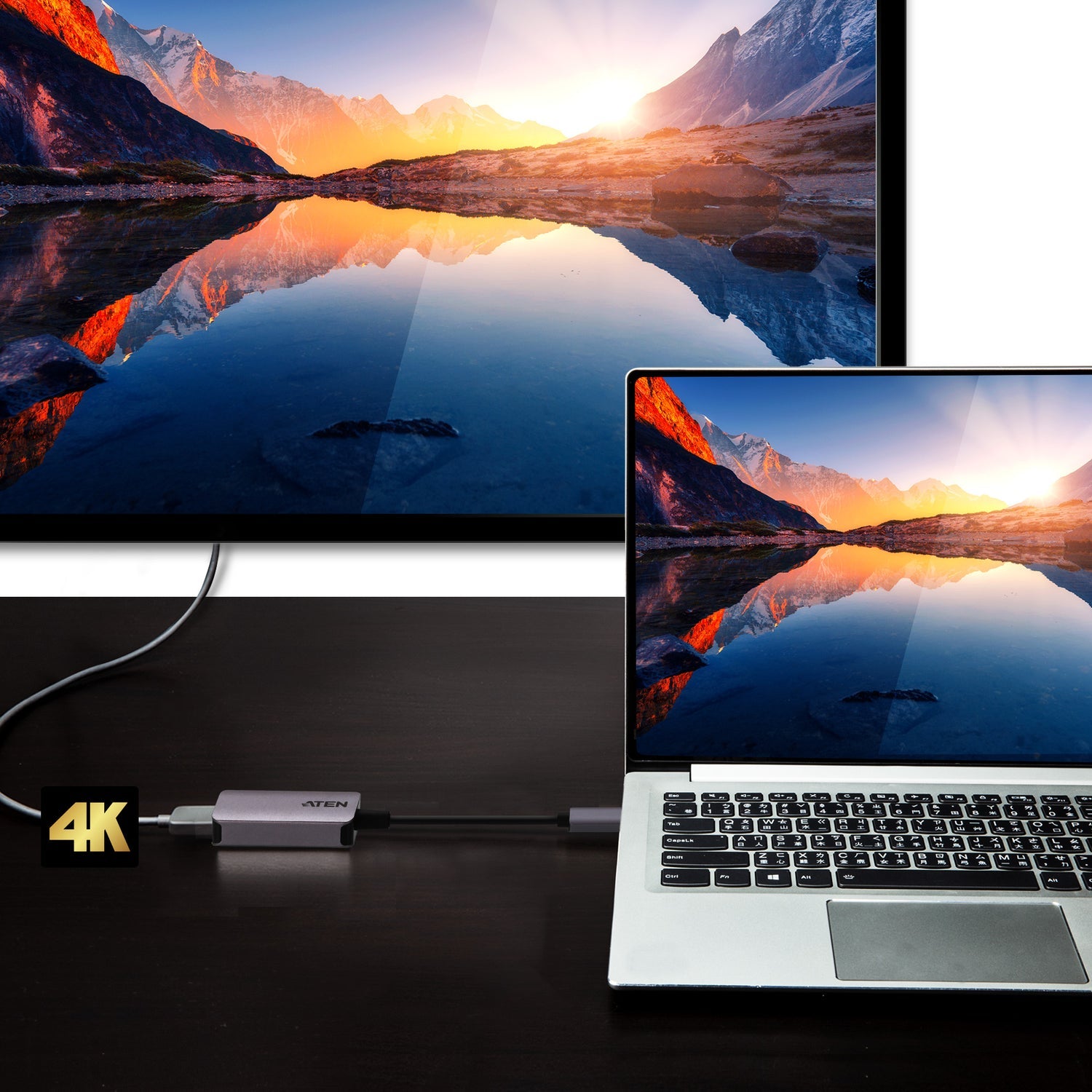

Presenting from a USB-C laptop, adding a 4K desk monitor and hot-desking.
Selection Tip
Your USB-C port must support video output (DP Alt Mode). For extra USB, Ethernet and charging ports, consider the ATEN UH3240 dock.
Package Contents & ATEN USB-C Adapter Ordering Information
In the Box
1 x UC3008A1 USB-C to 4K HDMI Adapter.
ATEN USB-C Video Models
| Model | Key feature |
| UC3008A1 (this listing) | USB-C to 4K HDMI adapter, 4K@60Hz |
| UC3238 | 2.7 m USB-C to 4K HDMI converter cable |
| UC3002A | USB-C to VGA adapter |
| UH3240 | 11-in-1 USB-C multiport dock, 100W pass-through |
| VC981 | Mini DisplayPort to 4K HDMI active adapter |
Datasheet & Downloads
| Datasheet | UC3008A1 Datasheet (PDF) |
| ATEN product page | UC3008A1 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting UC3008A1-AT.
Frequently Asked Questions — ATEN UC3008A1
Does my USB-C port support this adapter?
The port must support DisplayPort Alt Mode; Thunderbolt 3 ports are compatible. USB-C ports that only carry data or charging will not output video.
What is the maximum resolution?
4096 x 2160 at 60 Hz.
Does it work with an iPad Pro?
ATEN lists iOS 12.1 or later on iPad Pro (USB-C).
Do I need to install drivers?
No. It is plug-and-play and bus-powered.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
