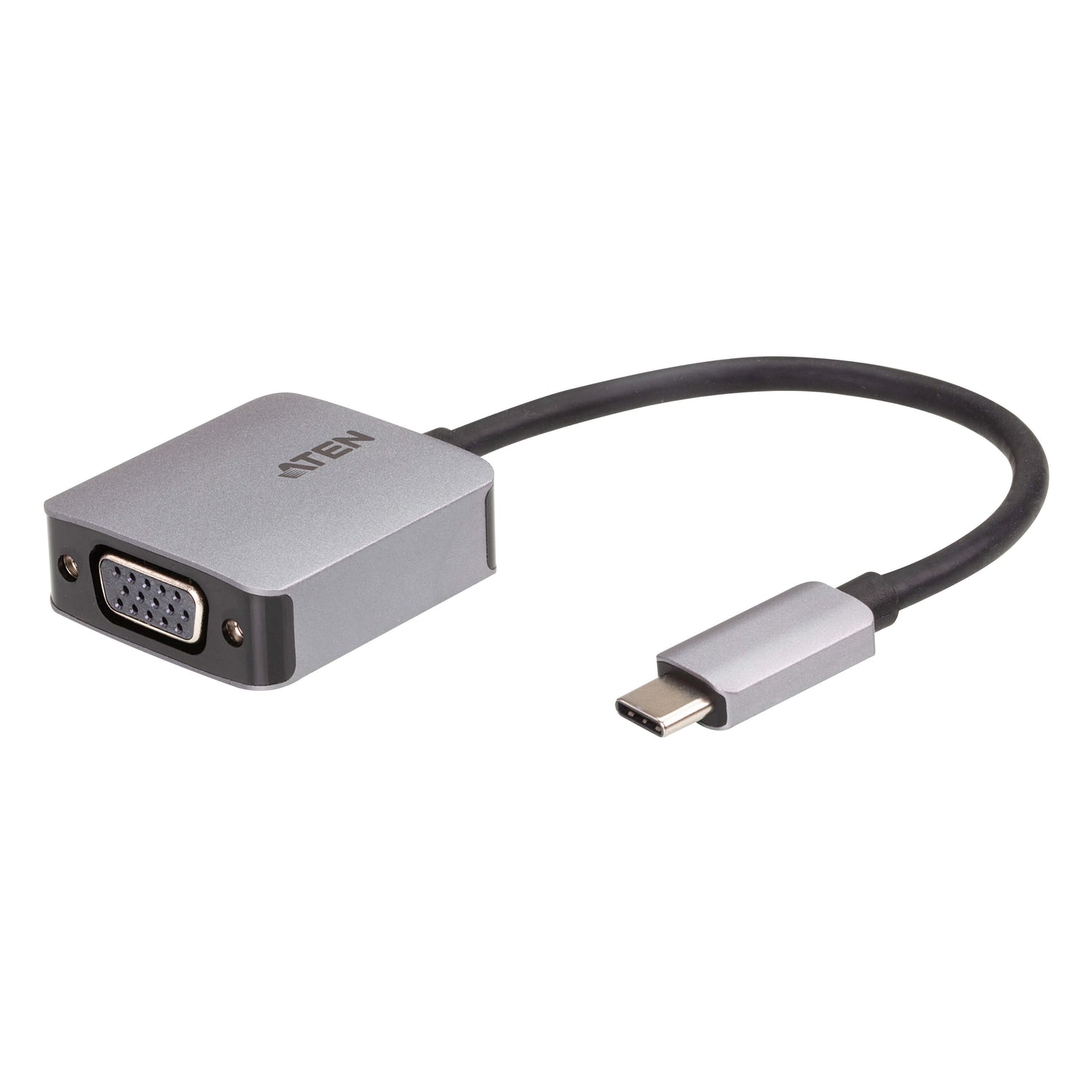

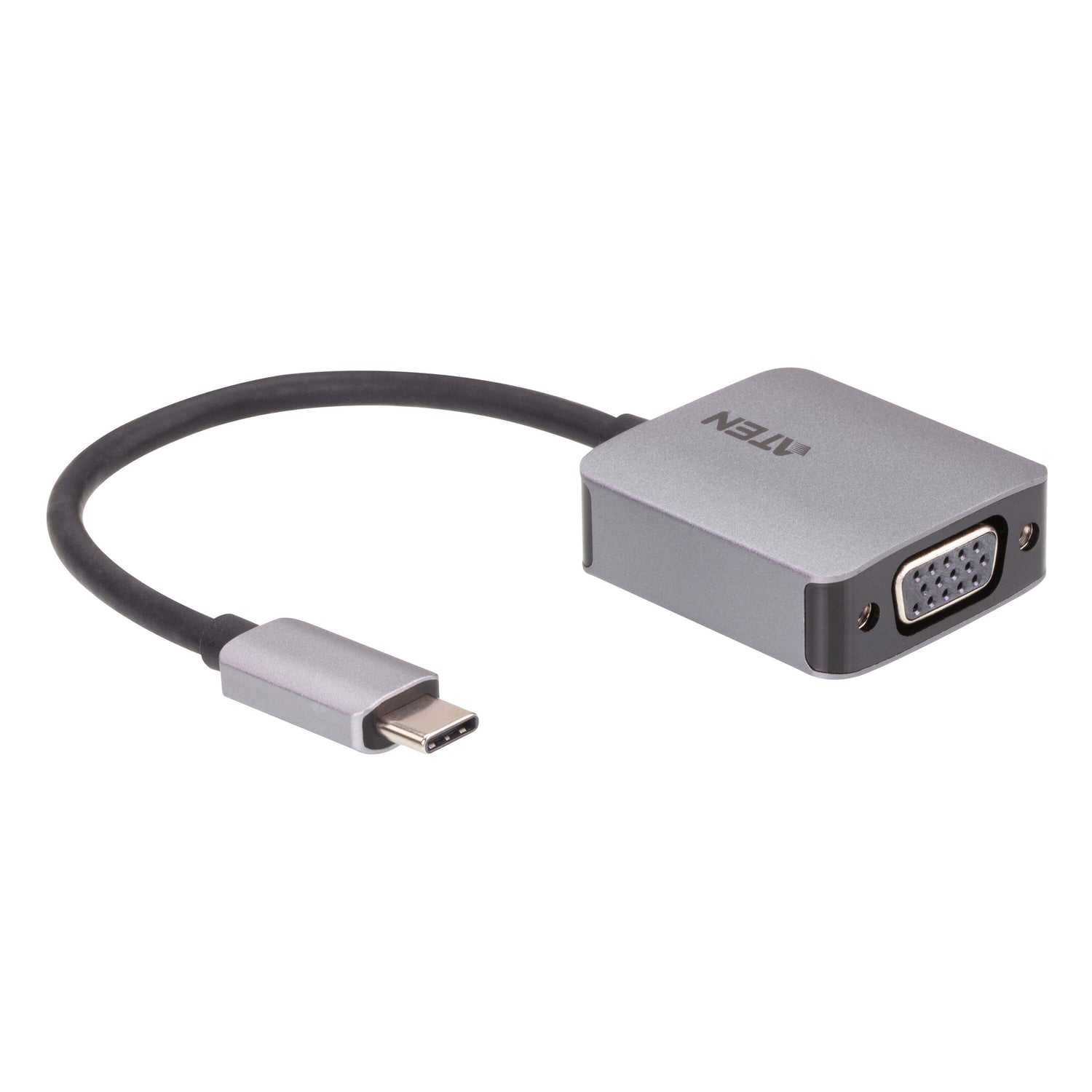

ATEN UC3002A USB-C to VGA Adapter
PRODUCT DESCRIPTION
ATEN UC3002A USB-C to VGA Adapter - 2 Years Local Warranty

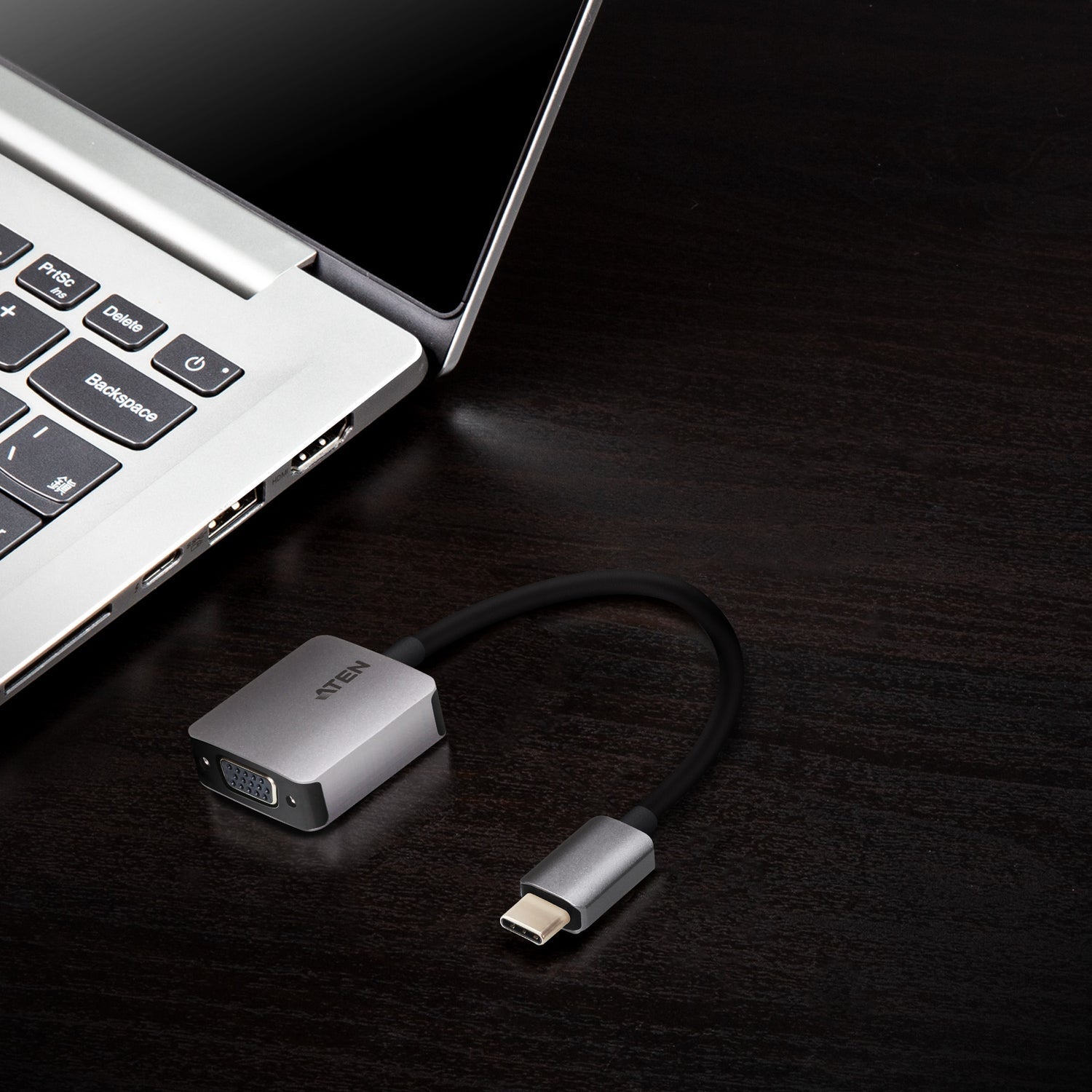

USB-C Laptop to VGA Projector

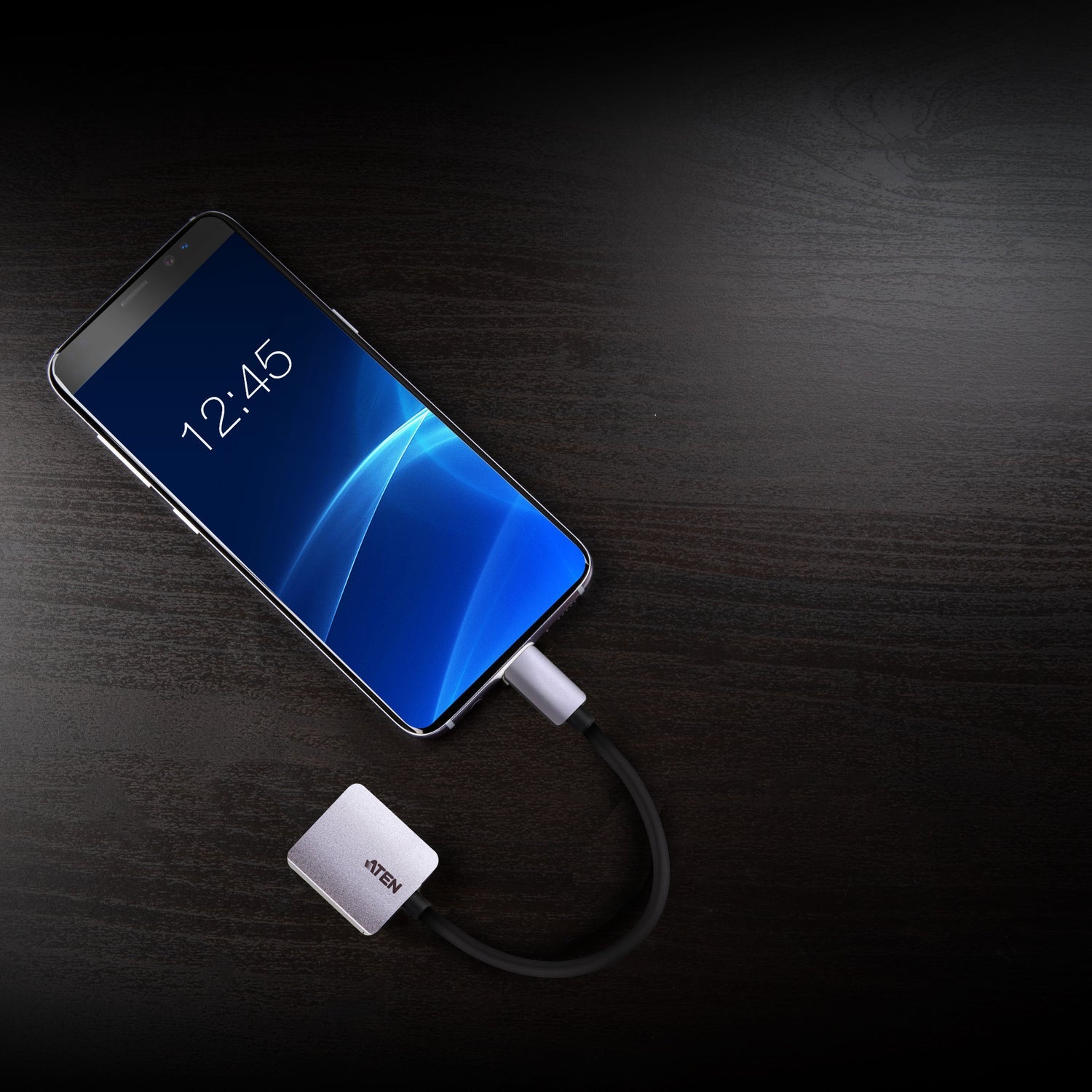

The UC3002A connects a USB-C laptop, tablet or smartphone with DisplayPort Alt Mode to a VGA display or projector at up to 1920 x 1200 @ 60Hz.
Thunderbolt 3 Compatible
Uses USB-C DP Alt Mode and is Thunderbolt 3 compatible, so it works from the USB-C or Thunderbolt 3 port on most modern laptops.
Premium Aluminium Casing
The aluminium casing resists signal interference and helps with heat, in a compact, lightweight 20 g design.
Plug and Play
No software required. Works with Windows, macOS, Android and iPad Pro (3rd gen).
Stocking meeting rooms with USB-C adapters? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ATEN UC3002A Datasheet — Technical Specifications
General
| Product Name | ATEN USB-C to VGA Adapter |
| Model | UC3002A |
| Order Code | UC3002A-AT |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Connectors
| Video Input | 1 x USB-C Male |
| Video Output | 1 x HDB-15 (VGA) Female |
Video
| Max. Resolution | 1920 x 1200 @ 60Hz |
| Max. Pixel Clock | 148.5 MHz |
| Compliance | USB 3.2 Gen 1 Type-C with DP Alt Mode (Thunderbolt 3 compatible); USB Billboard Device Class |
Compatibility
| Operating Systems | Windows, macOS, Android, iPad Pro (3rd gen) |
Power
| Power Consumption | 5V: 0.68 W |
Environmental
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Aluminium |
| Weight | 0.02 kg |
| Dimensions (L x W x H) | 3.95 x 1.40 x 9.60 cm |
Compatibility & Applications
Typical Sources
USB-C laptops, MacBooks, iPad Pro (3rd gen) and Android devices whose USB-C port supports DisplayPort Alt Mode, plus Thunderbolt 3 ports.
Typical Use

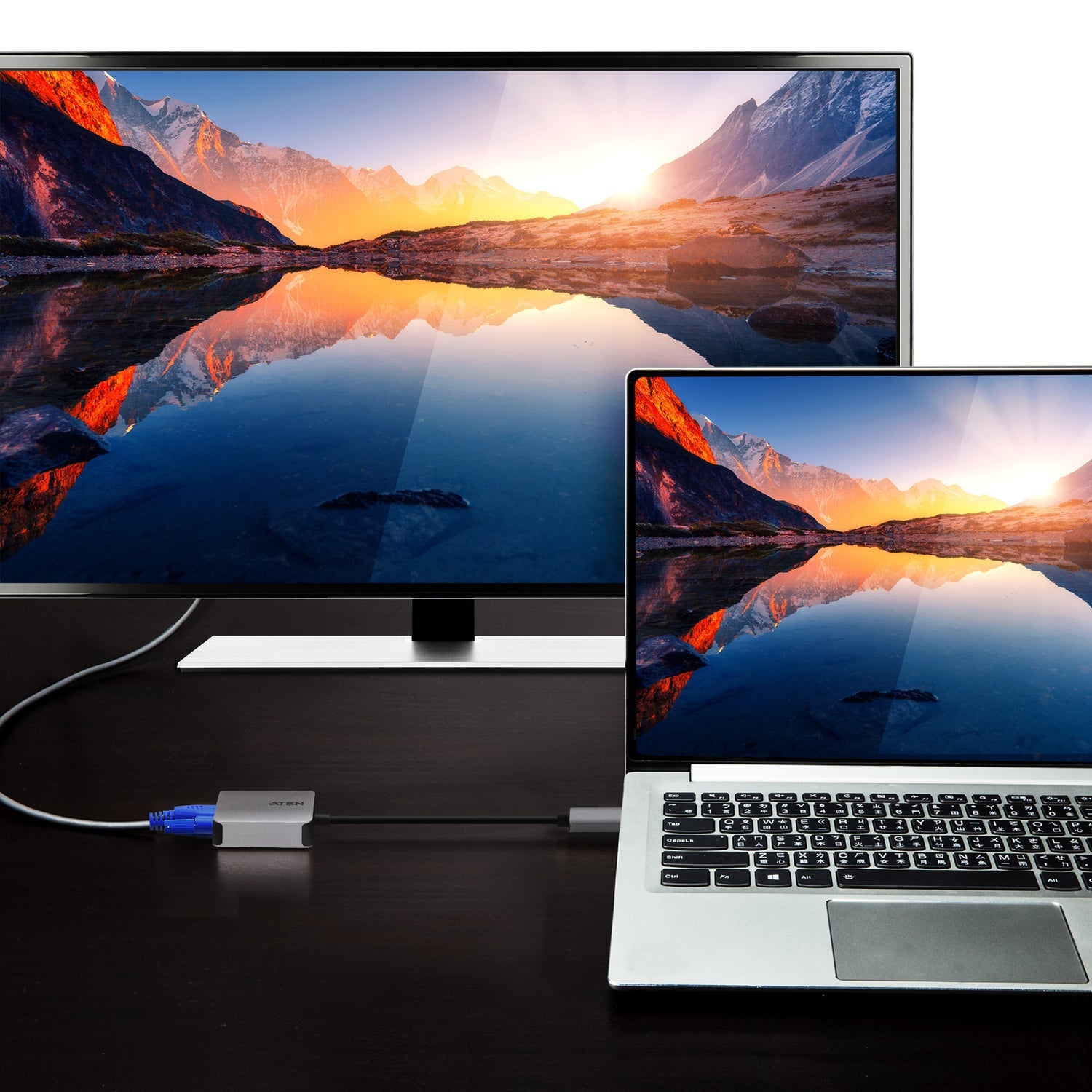

Presenting from a modern laptop to legacy VGA projectors and monitors in meeting rooms, classrooms and hotels.
Selection Tip
Check that your device's USB-C port supports video output (DP Alt Mode). For HDMI displays, see the UC3008A1 adapter or the UC3238 2.7 m USB-C to HDMI cable.
Package Contents & ATEN USB-C Video Adapter Ordering Information
In the Box
1 x UC3002A USB-C to VGA Adapter.
ATEN USB-C Video Adapter Models
| Model | Key feature |
| UC3002A (this listing) | USB-C to VGA adapter, up to 1920 x 1200 |
| UC3008A1 | USB-C to 4K HDMI adapter |
| UC3238 | 2.7 m USB-C to 4K HDMI converter cable |
| UH3240 | USB-C multiport dock with power pass-through |
Datasheet & Downloads
| Datasheet | UC3002A Datasheet (PDF) |
| ATEN product page | UC3002A on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting UC3002A-AT.
Frequently Asked Questions — ATEN UC3002A
Will it work with any USB-C port?
The USB-C port must support DisplayPort Alt Mode (or be Thunderbolt 3). USB-C ports that carry data only will not output video.
What is the maximum resolution?
1920 x 1200 @ 60Hz.
Does it work with iPad?
ATEN lists iPad Pro (3rd gen) support.
Do I need drivers?
No. It is plug-and-play.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
