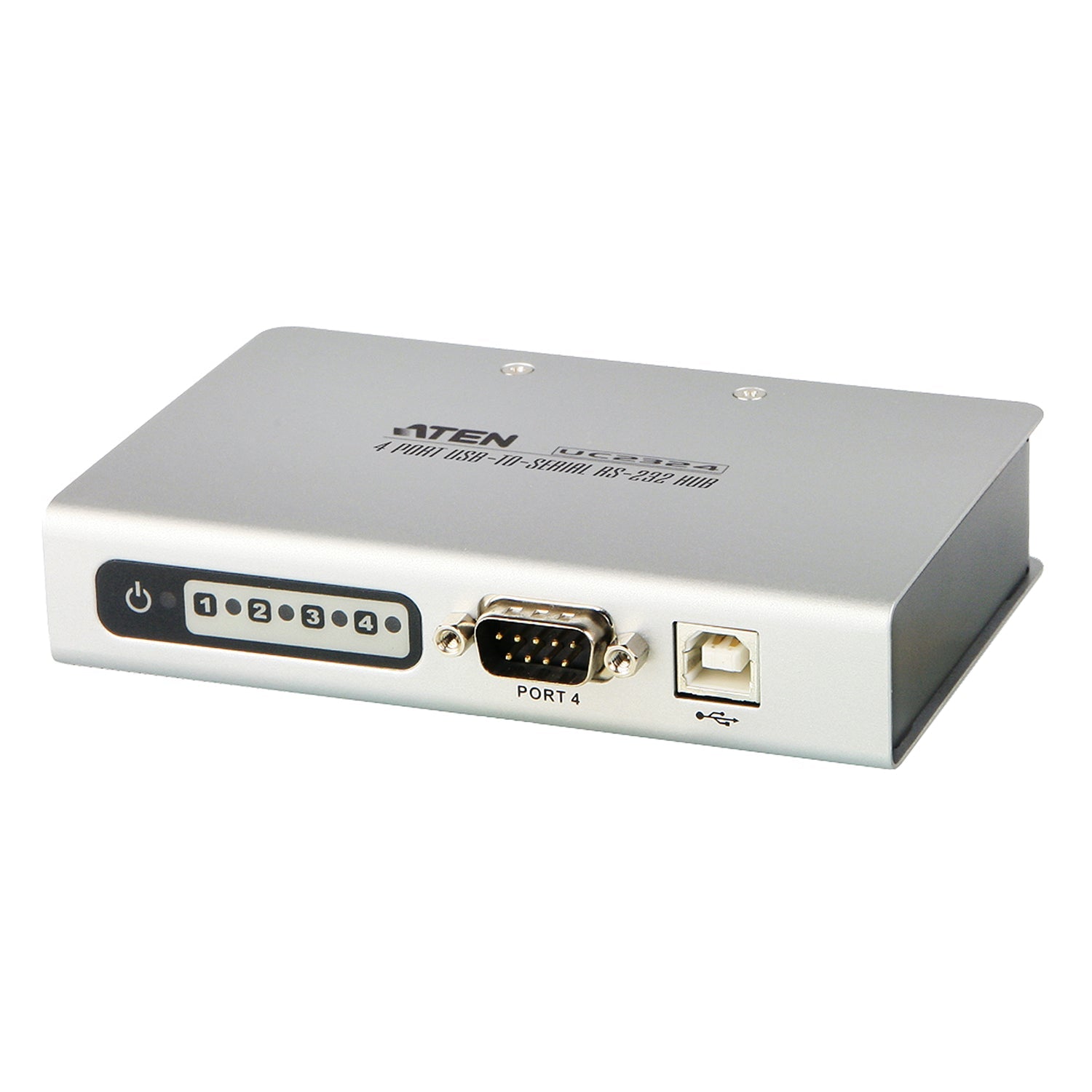

ATEN UC2324 4-Port USB to RS-232 Hub
PRODUCT DESCRIPTION
ATEN UC2324 4-Port USB to RS-232 Hub - 2 Years Local Warranty
Four Serial Ports from One USB Port
The UC2324 gives a modern PC or laptop four full RS-232 serial ports through a single USB connection. Use it to talk to network switch consoles, PLCs, POS equipment, barcode scanners, lab instruments and other serial devices without hunting for a machine with legacy COM ports.
Full RS-232 Signal Set
Each DB-9 male port carries the full RS-232 signal set (TXD, RXD, RTS, CTS, DTR, DSR, DCD, RI, GND) with a 16-byte hardware FIFO, configurable data bits (5-8) and stop bits (1, 1.5, 2), for reliable communication with older equipment.
Bus Powered, With Optional Adapter
The hub runs from USB bus power, with a DC jack for an optional external adapter where the host port cannot supply enough current. It is hot-swappable and plug-and-play once the driver is installed.
Built for the Bench and the Rack Room
A compact metal housing and built-in 16 kV ESD protection make the UC2324 a sturdy companion for field engineers, labs and equipment rooms.
Equipping a support team or a test lab with serial access? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ATEN UC2324 Datasheet — Technical Specifications
General
| Product Name | ATEN 4-Port USB to RS-232 Hub |
| Model | UC2324 |
| Order Code | UC2324-AT |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Connectors
| Device Connections | 4 |

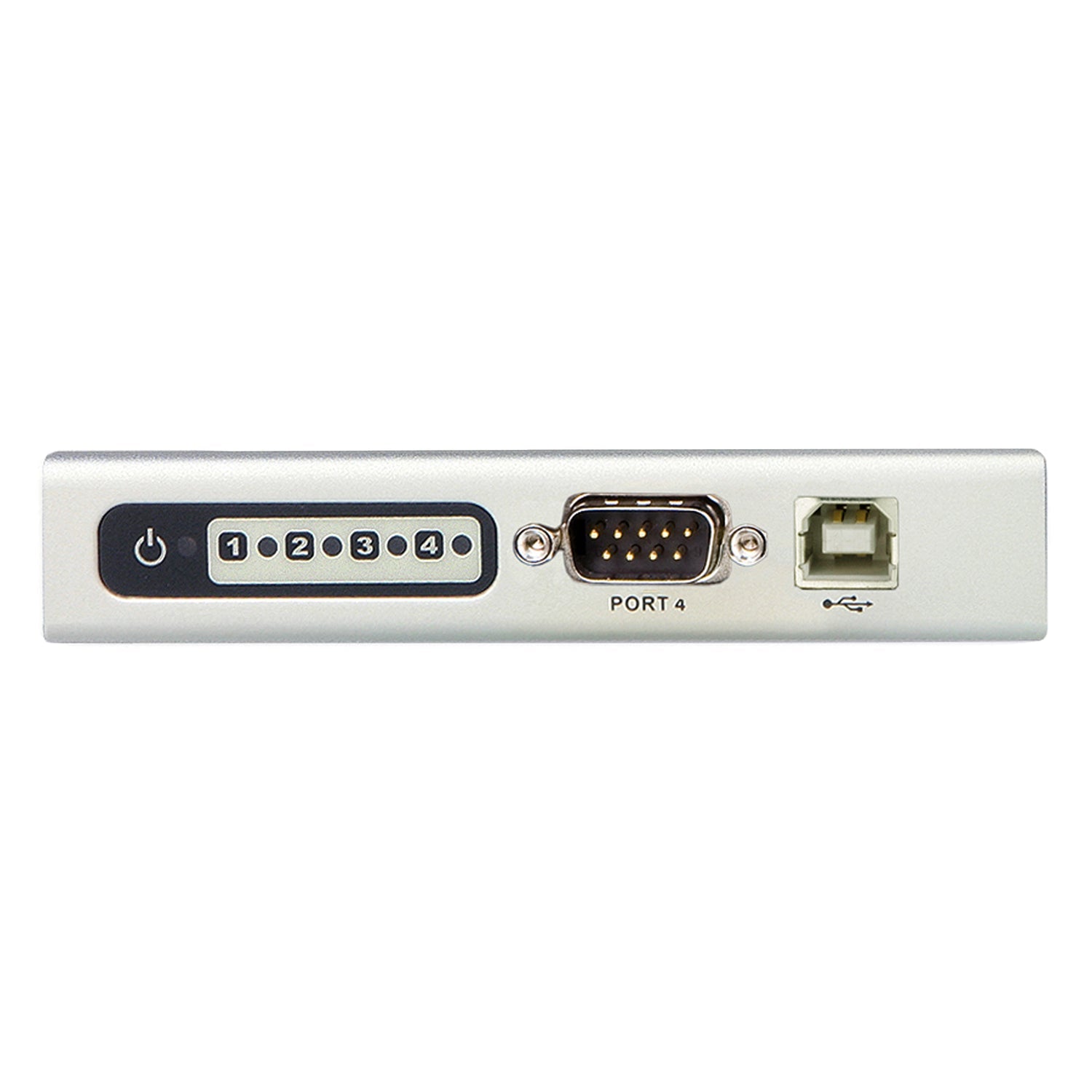

| USB (Host) | 1 x USB Type-B Female (White) |

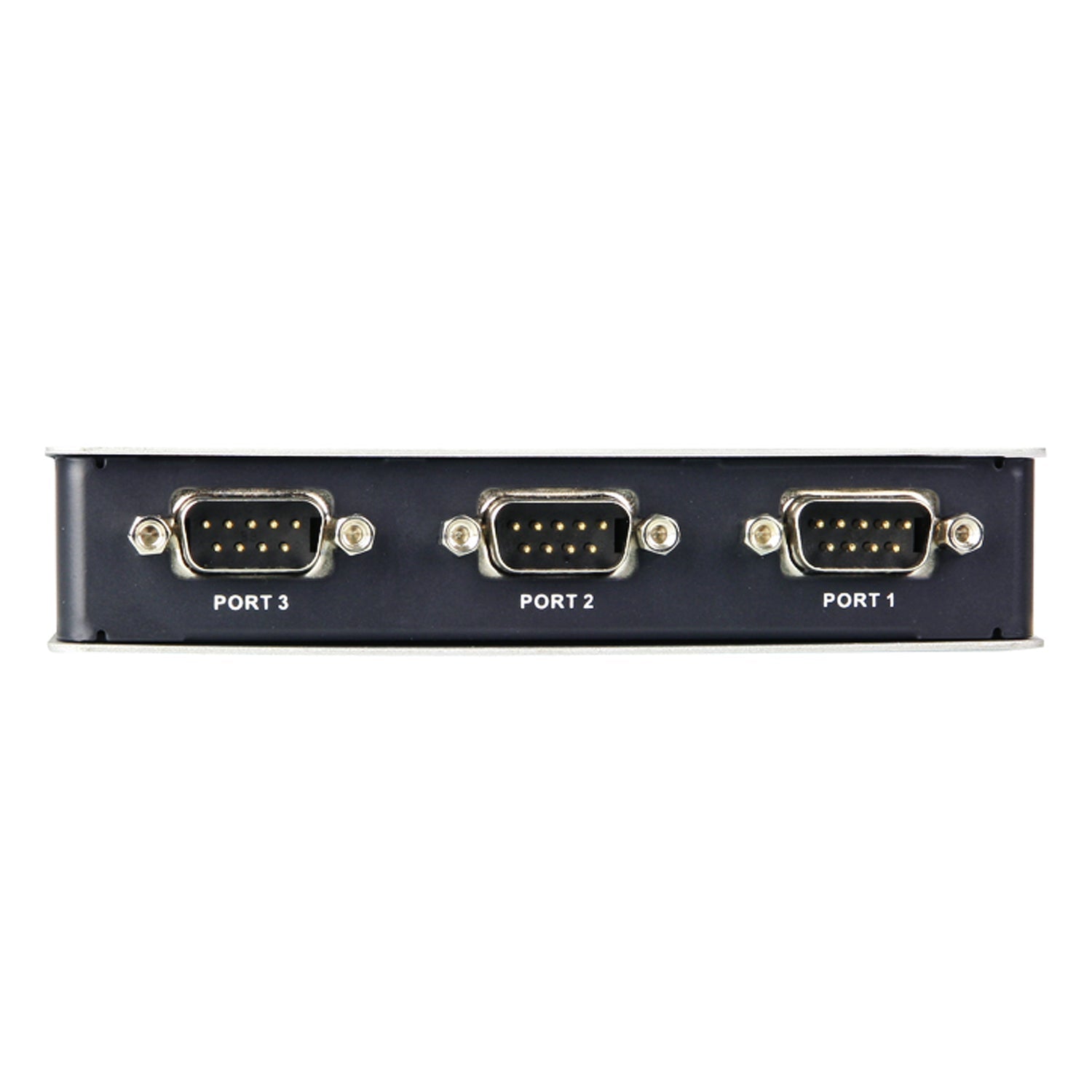

| Serial | 4 x DB-9 Male (Black) |
| Power | 1 x DC Jack |
Performance
| USB Compliance | USB 1.1 compliant; USB 2.0 compatible |
| Data Transfer Rate | Up to 115.2 Kbps per serial port |
| FIFO | 16-byte hardware FIFO |
| RS-232 Signals | TXD, RXD, RTS, CTS, DTR, DSR, DCD, RI, GND |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| ESD Protection | Built-in 16 kV |
Power
| Power Mode | USB bus powered; external power adapter optional |
| Power Consumption | 0.6 W |
Environmental
| Operating Temperature | 0–50 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Metal |
| Weight | 0.32 kg |
| Dimensions (L x W x H) | 12.50 x 8.00 x 2.50 cm |
Compatibility
| Operating Systems | Windows and Linux (driver required) |
Compatibility & Applications
Typical Devices
Network switch and router console ports, UPS and PDU serial interfaces, PLCs and industrial controllers, POS terminals, receipt printers, barcode scanners, GPS receivers and laboratory instruments.
Typical Use
IT and network engineers configuring several devices at once, test benches that log data from multiple serial instruments, and point-of-sale or kiosk PCs that still drive serial peripherals.
Selection Tip
Need only one port? A single-port USB to RS-232 adapter such as the UC232A is simpler. Choose the UC2324 when you need four ports from one USB connection.
Package Contents & ATEN USB to Serial Hub Ordering Information
In the Box
1 x UC2324 USB-to-Serial Hub, 1 x USB cable, 1 x installation disk, 1 x user manual, 1 x quick start guide.
ATEN USB to Serial Models
| Model | Key feature |
| UC232A | USB to RS-232 adapter, single DB-9 port |
| UC232A1 | USB to RS-232 converter with 1 m cable |
| UC232AF | USB to RS-232 adapter with FTDI chipset |
| UC232C | USB-C to RS-232 adapter |
| UC232BF | USB to RJ-45 (RS-232) console adapter |
| UC2324 (this listing) | 4-port USB to RS-232 hub |
Datasheet & Downloads
| Datasheet | UC2322 / UC2324 Datasheet (PDF) |
| User manual | UC2322 / UC2324 User Manual (PDF) |
| Quick start guide | UC2322 / UC2324 Quick Start Guide (PDF) |
| ATEN product page | UC2324 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting UC2324-AT.
Frequently Asked Questions — ATEN UC2324
Does it need an external power supply?
Normally no. The UC2324 is USB bus powered. A DC jack is provided for an optional external adapter if the host USB port cannot supply enough power.
What serial connectors does it have?
Four DB-9 male RS-232 ports carrying the full signal set, including RTS/CTS and DTR/DSR handshaking lines.
Do I need a driver?
Yes. A driver is supplied on the installation disk; ATEN lists Windows and Linux support.
Can I use it to configure network switches?
Yes. It works with RS-232 DB-9 console ports. For RJ-45 console ports you will also need a suitable RJ-45 to DB-9 console cable.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
