ATEN OL1000HV Professional Online UPS 1000VA / 1000W, 220–240V
PRODUCT DESCRIPTION
ATEN OL1000HV Professional Online UPS 1000VA / 1000W, 220–240V - 2 Years Local Warranty
True Double-Conversion Protection
The OL1000HV is a true double-conversion online UPS: connected equipment always runs from a clean, regenerated sine-wave output with ±1% voltage regulation, and there is 0 ms transfer time when mains power fails.
Full 1000 W at Unity Power Factor
Rated at 1000 VA / 1000 W (power factor 1) on 220 / 230 / 240 VAC, and accepts a wide 160–300 VAC input range at full load.
Hot-Swappable Batteries and Smart Management

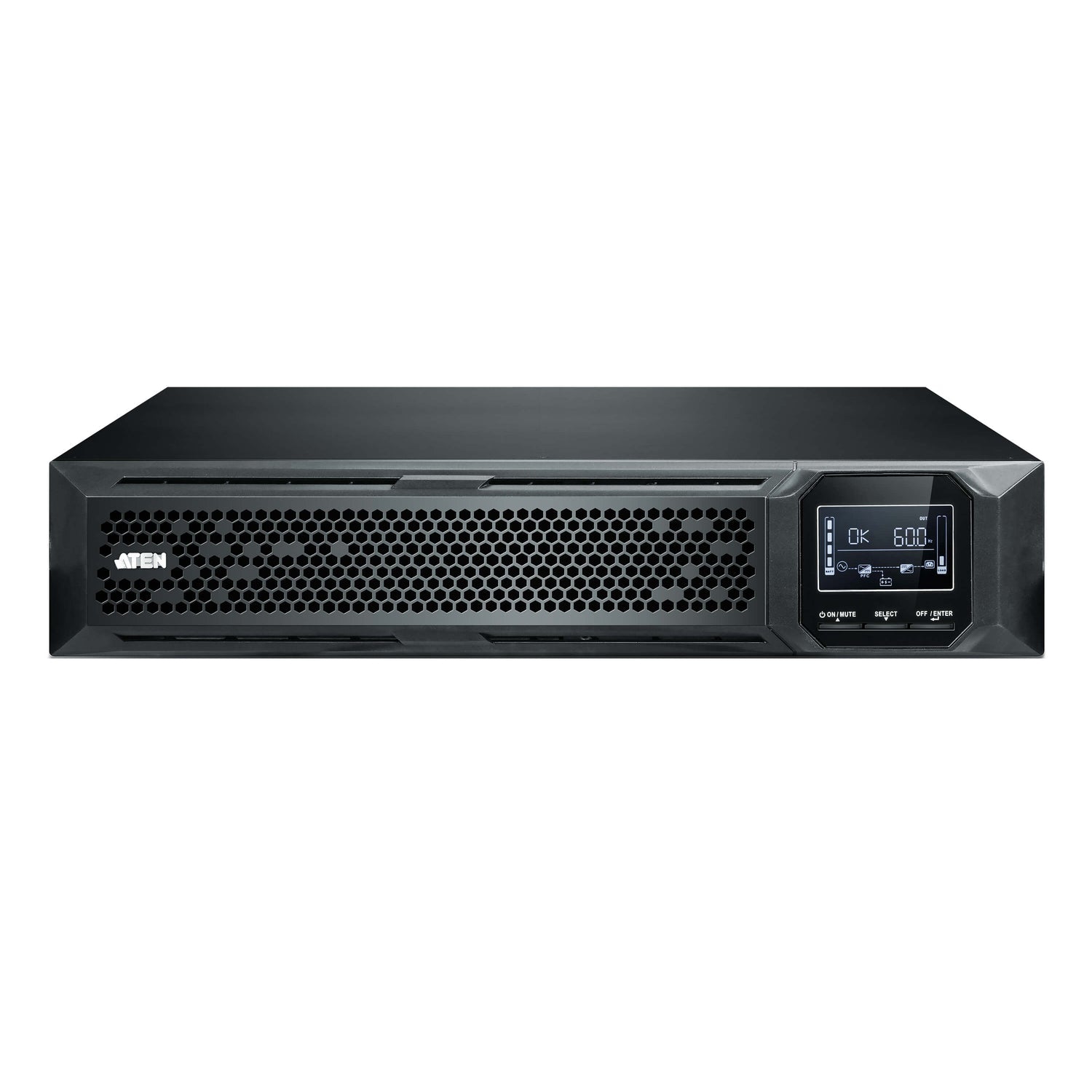

Two 12 V / 9 Ah sealed lead-acid batteries can be replaced without powering down. Eight IEC C13 outlets include programmable power management, and a multi-function LCD shows status at a glance.

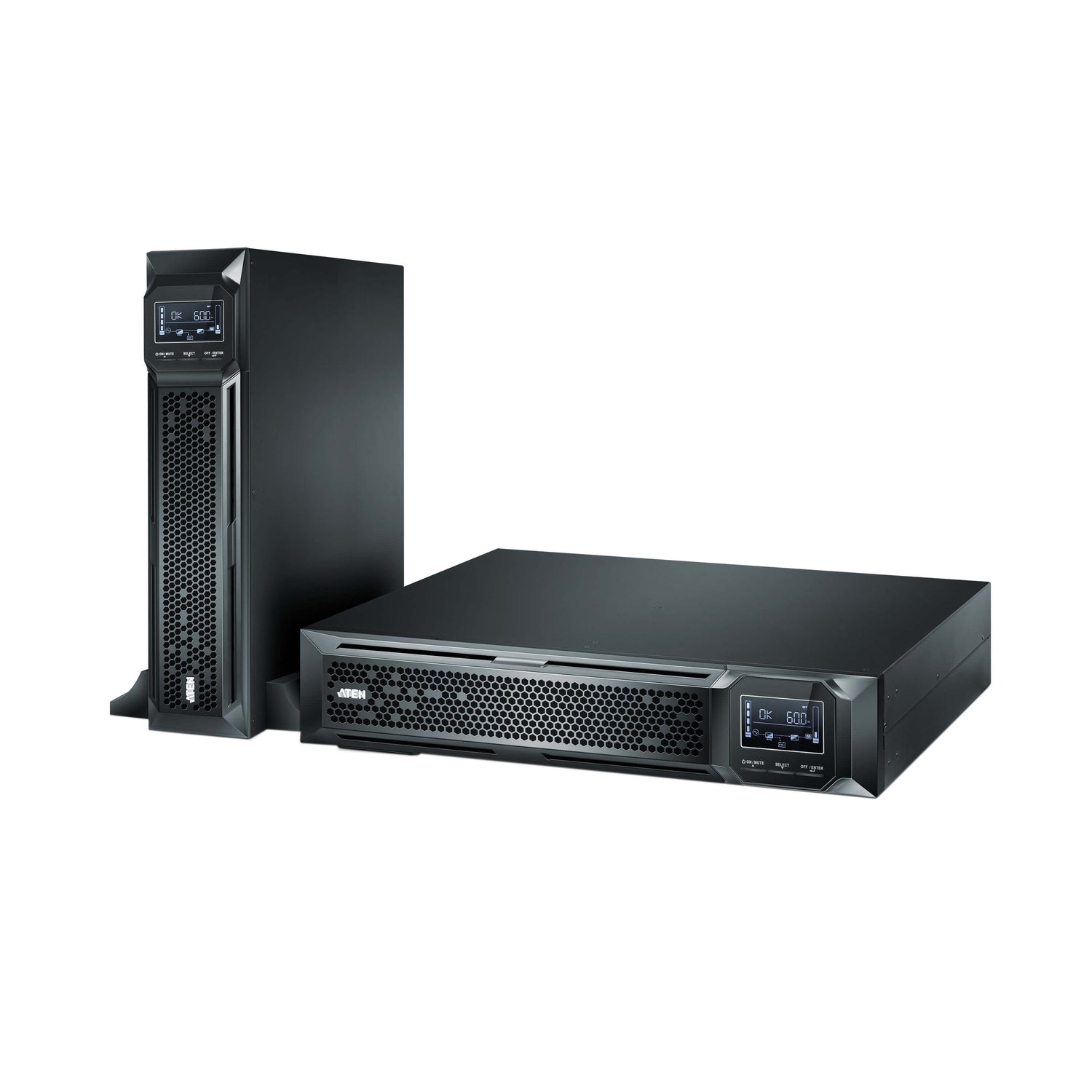

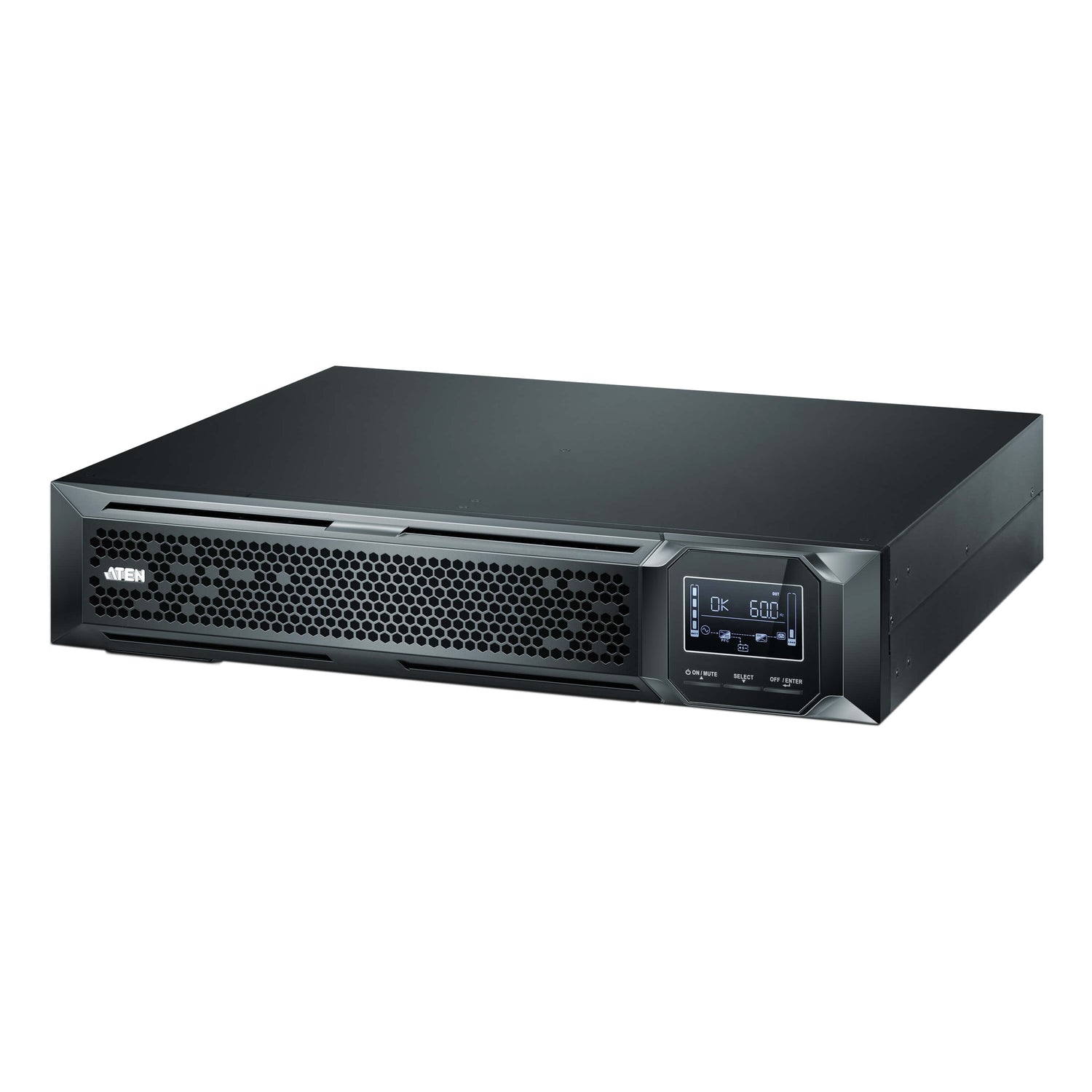

Rack or Tower, Monitored Your Way

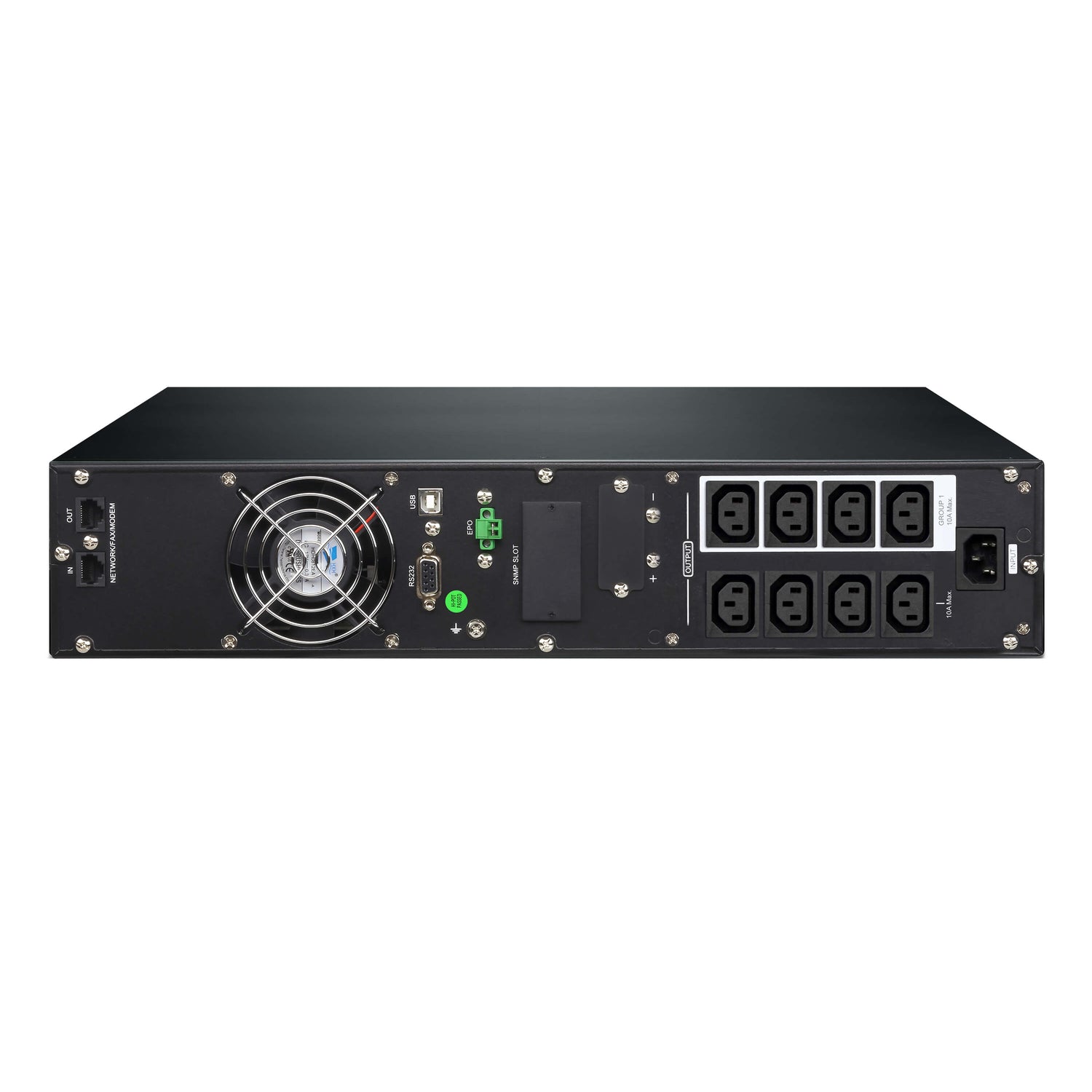

The 2U chassis mounts in a rack (rack kit and rail slide kit included) or stands as a tower. USB (HID) and RS-232 ports come standard, with an optional SNMP card for network monitoring and an EPO connector for emergency shutdown.
Protecting a server rack, network cabinet or branch office? Email sales@sourceit.com.sg for sizing advice, a project quote and delivery lead time.
ATEN OL1000HV Datasheet — Technical Specifications
General
| Product Name | ATEN Professional Online UPS 220V / 230V / 240V 1000VA |
| Model | OL1000HV |
| Order Code | OL1000HV-AT-G |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Capacity
| Capacity | 1000 VA / 1000 W |
| Rated Power Factor | 1 |
| Topology | True double-conversion online |
Input
| Nominal Voltage | 220 / 230 / 240 VAC |
| Voltage Range | 160–300 VAC ±5% @ 100% load |
| Frequency Range | 40–70 Hz |
| Rated Input Current | 4.8 A |
| Input Power Factor | ≥ 0.99 @ nominal voltage (100% load) |
Output
| Waveform | Sine wave |
| Voltage Regulation | ±1% (battery) |
| Outlets | 8 x IEC 320 C13 (battery / surge protected) |
| Transfer Time (AC to Battery) | 0 ms |
| Transfer Time (Inverter to Bypass) | 4 ms (ECO) |
Battery
| Type | Sealed lead-acid |
| Battery Pack | 2 x 12 V / 9 Ah (24 V) |
| Hot-Swappable | Yes |
| Recharge Time | 3 hours to 95% capacity @ 2 A charging current (max. charger current 12 A) |
| Runtime at Half Load | 9.44 min |
| Runtime at Full Load | 3.10 min |
Efficiency
| ECO Mode | > 96% |
| AC Mode | > 89% |
| Battery Mode | > 88% |
Management & Interfaces
| USB | HID-compliant USB port |
| Serial | RS-232 port |
| Network Monitoring | Optional SNMP card (SNMP / HTTP) |
| EPO | Emergency Power Off connector |
| Display | Multi-function LCD |
| Outlet Management | Programmable power management outlets |
Environmental
| Operating Temperature | 0–40 °C (non-condensing) |
| Storage Temperature | -20–50 °C |
| Operating Humidity | 20–90% RH |
| Storage Humidity | 10–95% (non-condensing) |
| Noise | Less than 50 dB |
Physical
| Form Factor | 2U rack / tower |
| Dimensions | 8.80 x 43.80 x 41.00 cm |
| Weight | 12.70 kg |
| Certifications | CE, RoHS |
Compatibility & Applications
Typical Loads
Servers, NAS and storage, network switches and firewalls, KVM switches, VoIP systems and other IT equipment with IEC C14 power inlets, up to 1000 W in total.
Typical Use
Small server racks, network and comms cabinets, branch offices and critical workstations that need clean, uninterrupted power.
Sizing Tip
ATEN rates runtime at 9.44 minutes at half load and 3.10 minutes at full load – enough to ride through short outages or shut equipment down gracefully. Keep the connected load comfortably below 1000 W and use ATEN's UPS runtime table to check runtime for your load.
Package Contents & ATEN Professional Online UPS Ordering Information
In the Box
1 x OL1000HV Online UPS, 1 x rack mounting kit, 1 x rail slide kit, 1 x RS-232 cable, 1 x USB Type-A to Type-B cable, 4 x power cables, 1 x tower stand set (4 pcs), 1 x user instructions.
ATEN Power Models
| Model | Key feature |
| OL1000HV (this listing) | 1000 VA / 1000 W professional online UPS, 2U rack / tower |
| PE4104G | 1U 10 A 4-outlet PDU |
Datasheet & Downloads
| Datasheet | OL Series Professional Online UPS Datasheet (PDF) |
| User manual | Professional Online UPS User Manual (PDF) |
| Runtime table | ATEN UPS Runtime Table (PDF) |
| Software manual | ViewPower User Manual (PDF) |
| ATEN product page | OL1000HV on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting OL1000HV-AT-G.
Frequently Asked Questions — ATEN OL1000HV
What does 'online' or double-conversion mean?
The load always runs from the UPS inverter, so output stays a regulated sine wave and there is 0 ms transfer time when mains power fails.
How long will it run on battery?
ATEN rates 9.44 minutes at half load and 3.10 minutes at full load (1000 W).
Can I replace the batteries without shutting down?
Yes. The two 12 V / 9 Ah batteries are hot-swappable.
Can it be rack-mounted?
Yes. It is a 2U rack / tower unit; a rack mounting kit, rail slide kit and tower stand set are included.
How do I monitor it?
Through the HID-compliant USB or RS-232 port, or over the network with an optional SNMP card. An EPO connector is also provided.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
