ATEN KL1108VN 19" 8-Port Cat 5 Dual Rail LCD KVM over IP Switch
PRODUCT DESCRIPTION
ATEN KL1108VN 19" 8-Port Cat 5 Dual Rail LCD KVM over IP Switch - 2 Years Local Warranty

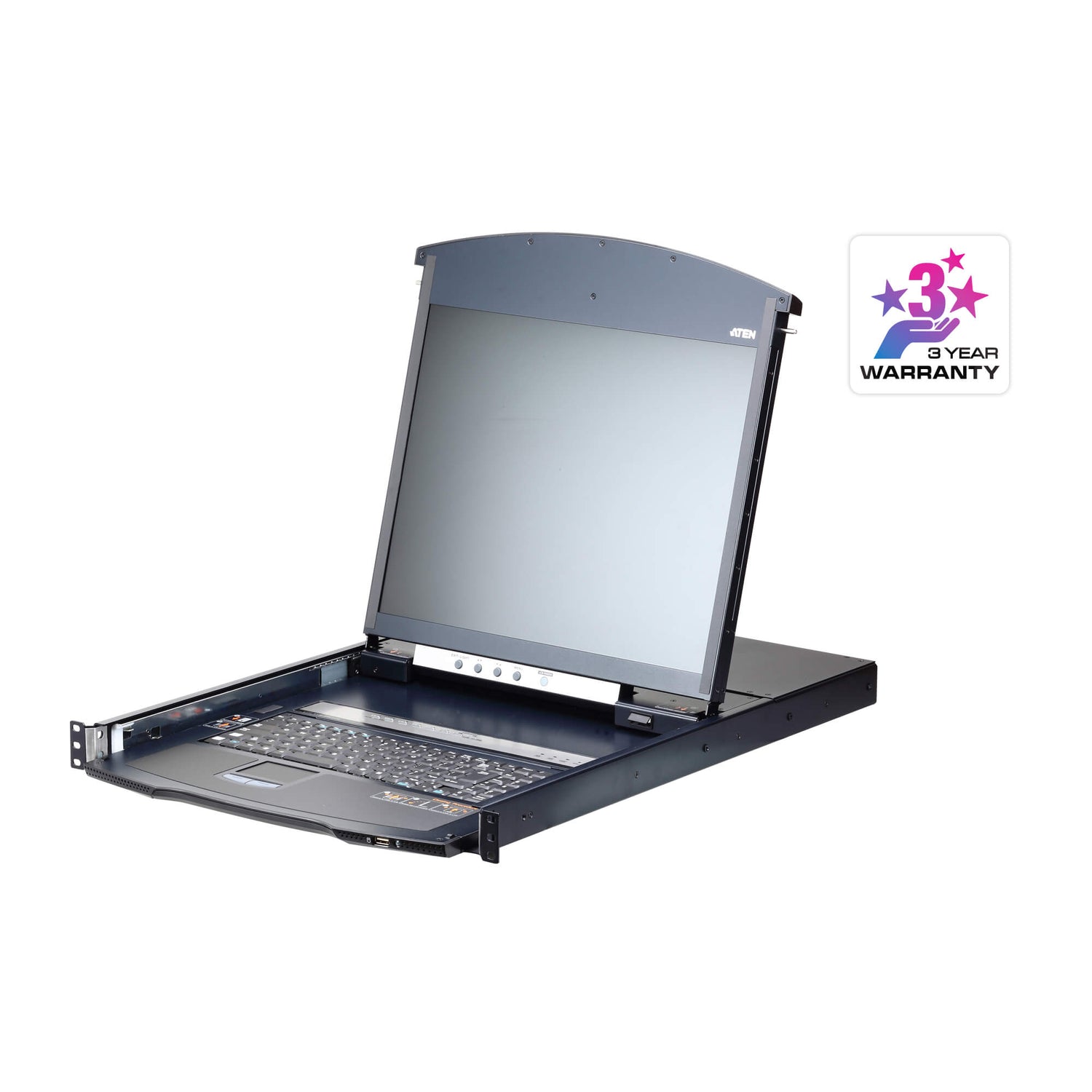

Local Console and Remote Access in 1U
The KL1108VN combines a 19" LCD, keyboard and touchpad with an 8-port Cat 5 KVM switch and KVM over IP. One local user at the rack and one remote user over the network can work independently.
Cat 5 Cabling with ATEN Adapters
Each server connects over Cat 5e/6 cable through an ATEN KA7xxx KVM adapter, sold separately. Adapters are available for USB, PS/2, VGA, DVI, HDMI, DisplayPort, Sun legacy and serial devices. Cascade to control up to 128 computers.
Secure Remote Management
Remote users get up to 1920 x 1200 at 60 Hz through the HTML5 WebClient with TLS 1.3 encryption and RSA 2048-bit certificates. RADIUS, LDAP, LDAPS and Active Directory authentication are supported, and a modem port gives out-of-band BIOS-level access when the network is down.
Virtual Media and Dual LAN
Virtual media mounts USB storage, DVD/CD drives or ISO images for OS patching and software installs, and smart card/CAC readers are supported. Dual Gigabit LAN ports and an independently retractable LCD and keyboard round it out.
Need help choosing KA7xxx adapters for your servers? Email sales@sourceit.com.sg for a configured project quote.
ATEN KL1108VN Datasheet — Technical Specifications
General
| Product Name | ATEN 1-Local/1-Remote Access 8-Port Multi-Interface Cat 5 Dual Rail LCD KVM over IP Switch |
| Model | KL1108VN (19") |
| Order Code | KL1108VN-AXA-AE |
| KVM Adapters | Required per computer, sold separately (ATEN KA7xxx series) |
| Keyboard | US English keyboard layout (-ATA-AE order code) |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Console & Computer Connections
| Console Access | 1 local + 1 remote |
| Direct Computers | 8 |
| Maximum | 128 (via cascade) |
| Port Selection | OSD, hotkeys, pushbuttons |

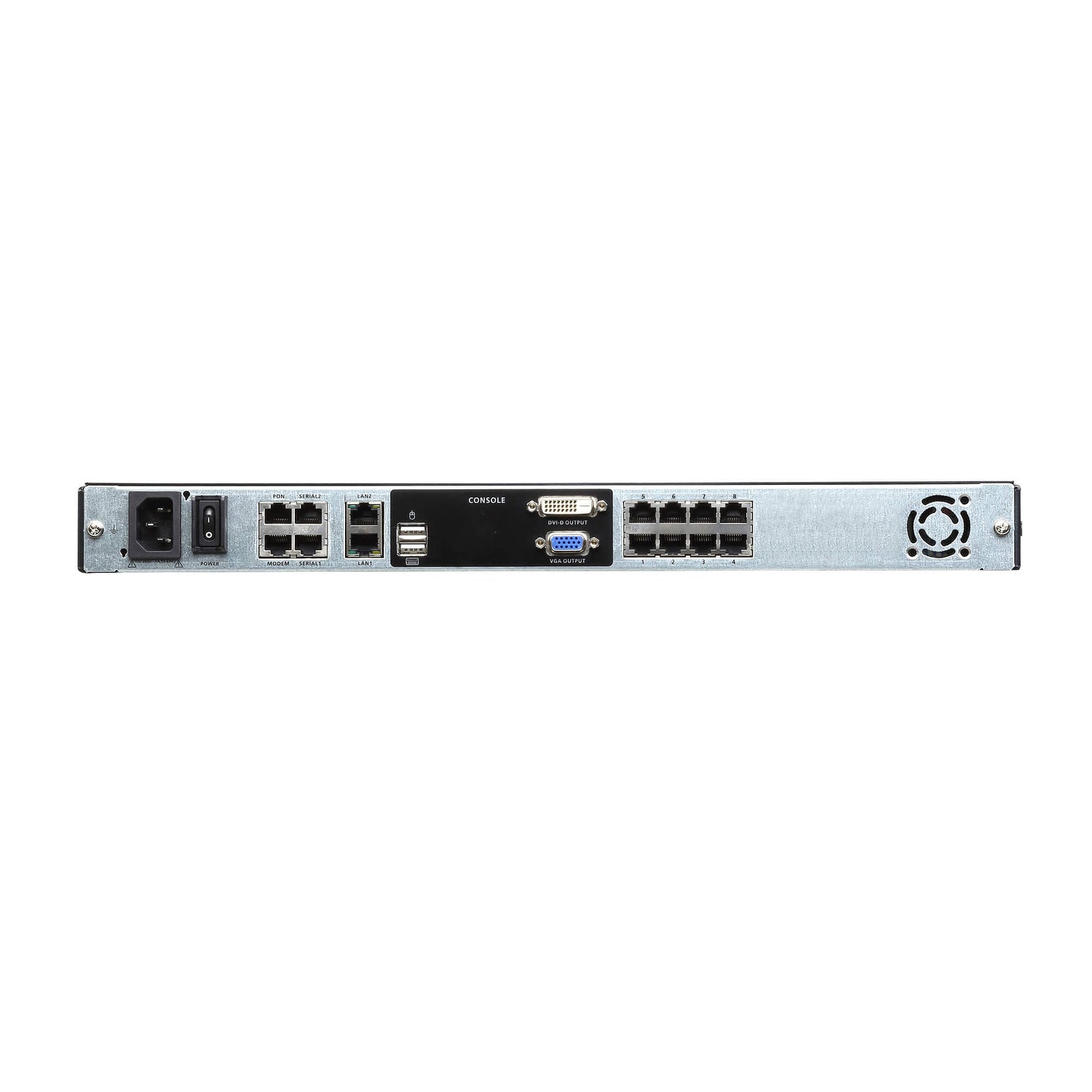

Connectors
| External Console | 2 x USB Type-A Female; 1 x DVI-D Female; 1 x HDB-15 Female (VGA) |
| External Mouse | 1 x USB Type-A Female |
| KVM Ports | 8 x RJ-45 Female |
| Serial | 2 x RJ-45 Female |
| PON | 1 x RJ-45 Female |
| Modem | 1 x RJ-45 Female |
| LAN | 2 x RJ-45 Female (10/100/1000 Mbps) |
| Power | 1 x IEC 60320/C14 |
LCD Panel
| LCD Module | 19" TFT-LCD, LED-backlit |
| Native Resolution | 1280 x 1024 @ 75 Hz |
| Response Time | 5 ms |
| Viewing Angle | 170° (H), 160° (V) |
| Pixel Pitch | 0.294 x 0.294 mm |
| Colours | 16.7 M |
| Contrast Ratio | 1000:1 |
| Luminance | 250 cd/m² |
Remote Access
| Remote Video | Up to 1920 x 1200 @ 60 Hz |
| Viewer | HTML5 WebClient |
| Security | TLS 1.3, RSA 2048-bit certificates; RADIUS, LDAP, LDAPS, Active Directory |
| Virtual Media | USB mass storage, DVD/CD drives, ISO images; smart card / CAC reader |
| Out-of-Band | Modem port |
Emulation
| Keyboard / Mouse | PS/2, USB |
| Scan Interval | 1–255 seconds |
Power & Environmental
| Input Power | 100–240 V AC, 50–60 Hz, 1 A |
| Power Consumption | 29 W, 142 BTU/h (AC110V); 29.4 W, 144 BTU/h (AC220V) |
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Metal |
| Rail Type | Dual rail, 1U (LCD and keyboard retract independently) |
| Weight | 15.22 kg |
| Dimensions (L x W x H) | 48.00 x 70.12 x 4.40 cm |
Compatibility & Applications
Typical Computers
Servers and PCs with VGA, DVI, HDMI or DisplayPort video and USB or PS/2 keyboard/mouse, Sun legacy systems and serial devices, each with the matching ATEN KA7xxx adapter.
Typical Use
Data centres, server rooms and branch racks that need an on-rack console plus secure remote and out-of-band access for IT staff.
Adapter Tip
Order one KA7xxx adapter per computer. ATEN lists KA7166, KA7168, KA7169, KA7170, KA7175, KA7176, KA7177 and KA7178 among compatible adapters; the KA7170 USB VGA, KA7168 HDMI and KA7169 DisplayPort virtual media adapters are listed on SourceIT.
Package Contents & ATEN LCD KVM over IP Switch Ordering Information
In the Box
1 x KL1108VN Cat 5 dual rail LCD KVM over IP switch with rack mount kit, 1 x power cord, 2 x L brackets, 1 x user instructions. KA7xxx KVM adapters and Cat 5e/6 cables are not included.
ATEN LCD KVM Console Models
| Model | Key feature |
| CL1000M | 17" single rail LCD console (PS/2-USB, VGA) |
| CL6700MW | 17.3" FHD single rail LCD console (USB, HDMI / DVI / VGA) |
| CL3700NW | 18.5" FHD ultra short depth LCD console (USB, HDMI) |
| CL5800N | 19" dual rail LCD console (PS/2-USB, VGA) |
| CL5716M | 17" 16-port VGA single rail LCD KVM switch |
| CL1308N | 19" 8-port VGA single rail LCD KVM switch |
| CL3108NX | 18.5" 8-port VGA widescreen single rail LCD KVM switch |
| CL5808N | 19" 8-port VGA dual rail LCD KVM switch |
| KL1108VN (this listing) | 19" 8-port Cat 5 dual rail LCD KVM over IP switch |
| CL5708IN | 19" 8-port VGA LCD KVM over IP switch |
Datasheet & Downloads
| Datasheet | KL1108VN / KL1116VN Datasheet (PDF) |
| User manual | KL1108V / KL1116V User Manual (PDF) |
| Quick start guide | KL1108VN / KL1116VN Quick Start Guide (PDF) |
| ATEN product page | KL1108V on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting KL1108VN-AXA-AE.
Frequently Asked Questions — ATEN KL1108VN
Are KVM adapters included?
No. Each computer needs an ATEN KA7xxx KVM adapter, ordered separately, plus a Cat 5e/6 cable.
How many people can use it at once?
One local user at the console and one remote user over IP, independently.
What remote resolution is supported?
Up to 1920 x 1200 at 60 Hz. The built-in 19" panel is 1280 x 1024 at 75 Hz.
Can I reach servers if the network is down?
Yes. A modem port provides out-of-band access.
How many servers can it manage?
Eight directly, or up to 128 via cascade.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
