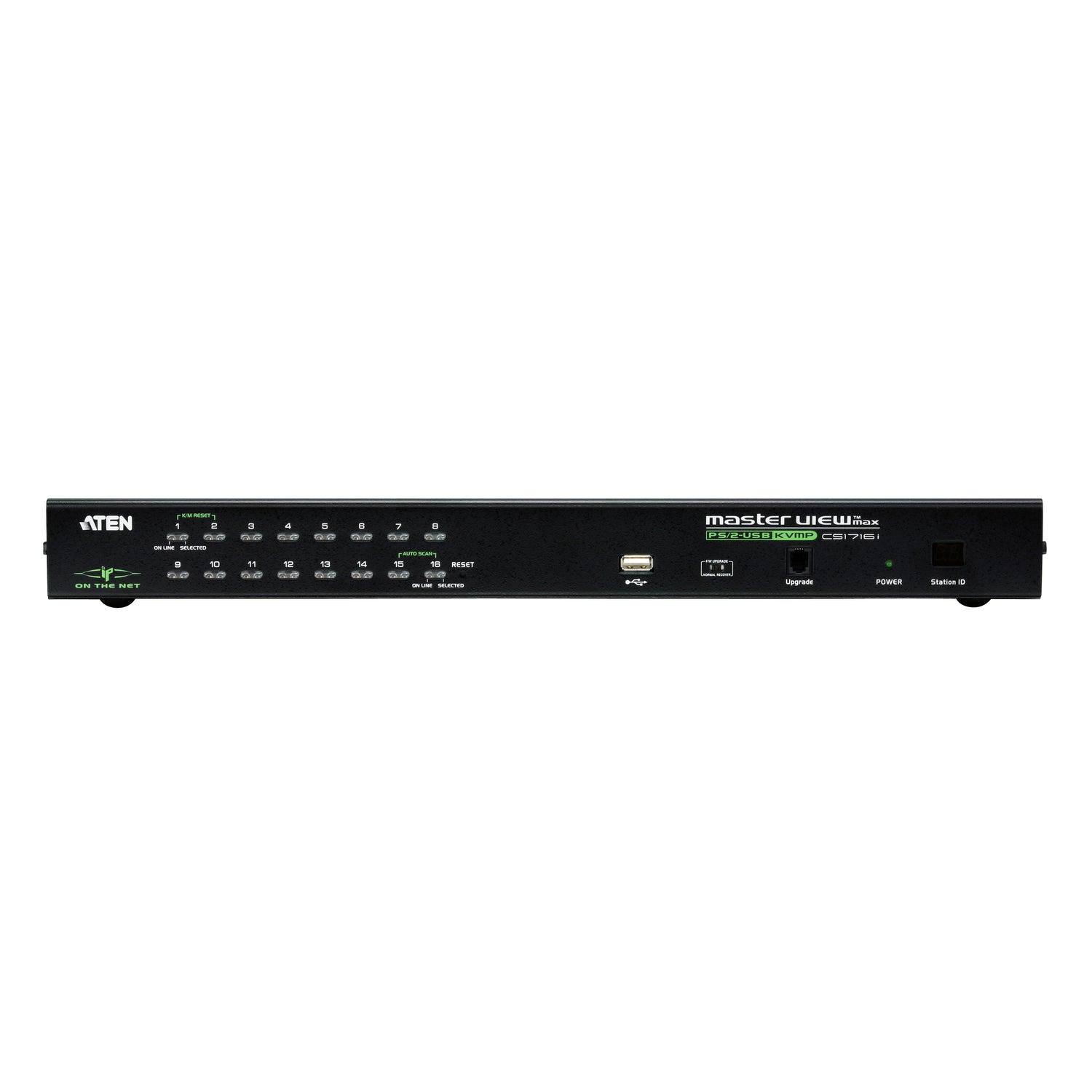

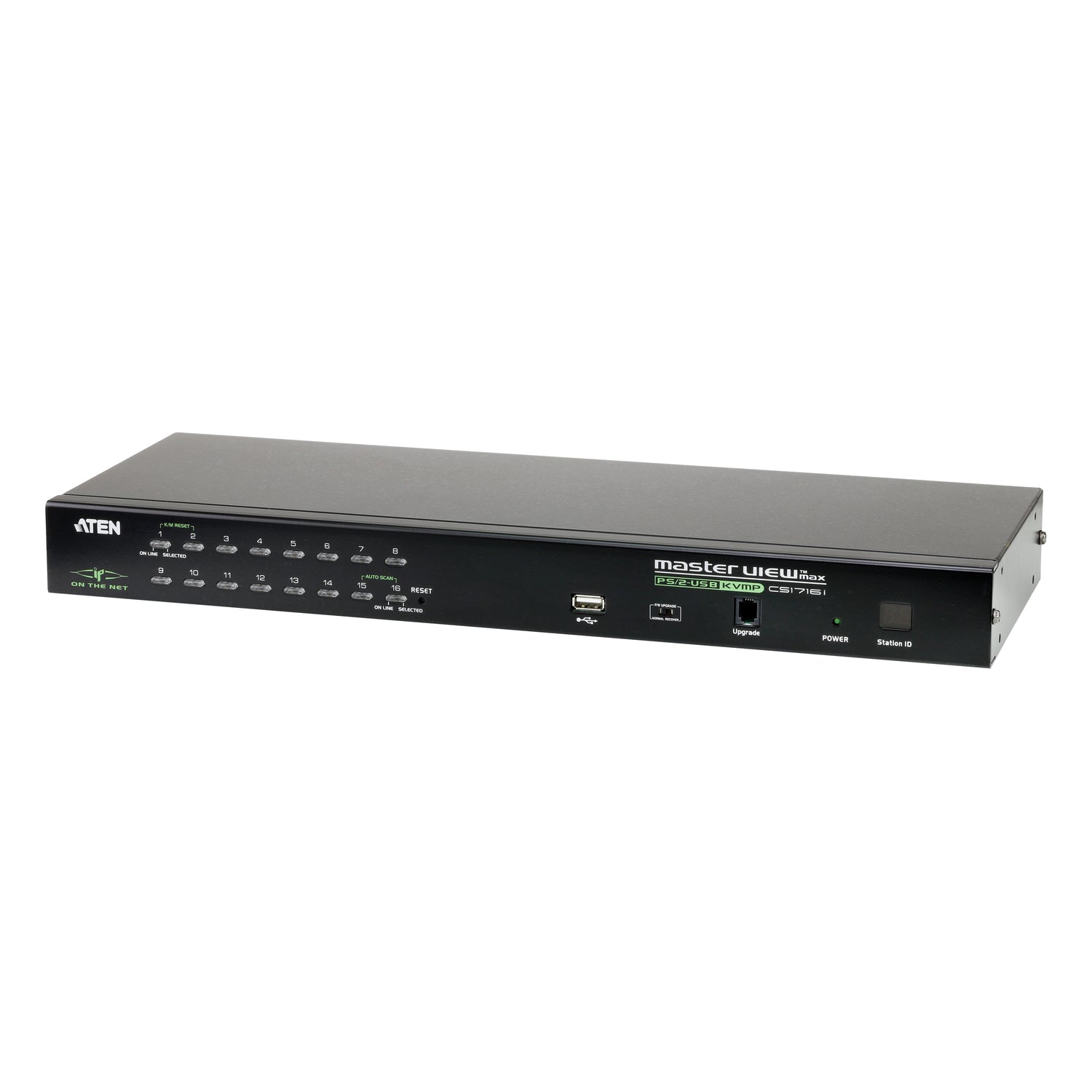

ATEN CS1716i 1-Local/Remote Shared Access 16-Port PS/2-USB VGA KVM over IP Switch
PRODUCT DESCRIPTION
ATEN CS1716i 1-Local/Remote Shared Access 16-Port PS/2-USB VGA KVM over IP Switch - 2 Years Local Warranty
Manage 16 Servers Locally or Over IP
The CS1716i combines a 16-port VGA KVM switch with KVM over IP. Operate servers from the local console in the rack, or from a browser or ATEN client anywhere on the network, with shared access between the local and remote user.
BIOS-Level Remote Control
Because it works at the keyboard, video and mouse level, remote users get BIOS-level access, even when a server's OS or network stack is down. Panel Array mode lets you monitor up to 16 servers at once.
Secure, Multi-User Access
Browser logins use TLS 1.2 and RSA 2048-bit certificates, with DES, 3DES, AES, RC4 or random encryption for keyboard/mouse and video. RADIUS, LDAP, LDAPS and Active Directory authentication, IP/MAC filtering and up to 32 concurrent logins are supported.
Fits Mixed and Growing Racks
PS/2 and USB computers are auto-detected, Windows, Mac, Linux and Sun clients are supported, a front USB port shares peripherals, and daisy-chaining extends control to 256 computers.
Planning remote management for a server room or branch rack? Email sales@sourceit.com.sg for a project quote and configuration advice.
ATEN CS1716i Datasheet — Technical Specifications
General
| Product Name | ATEN 1-Local / Remote Shared Access 16-Port PS/2-USB VGA KVM over IP Switch |
| Model | CS1716i |
| Order Code | CS1716I-AT-E |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Computer Connections
| Direct | 16 |
| Maximum | 256 (via daisy chain) |
| Port Selection | OSD/GUI, hotkey, pushbutton |

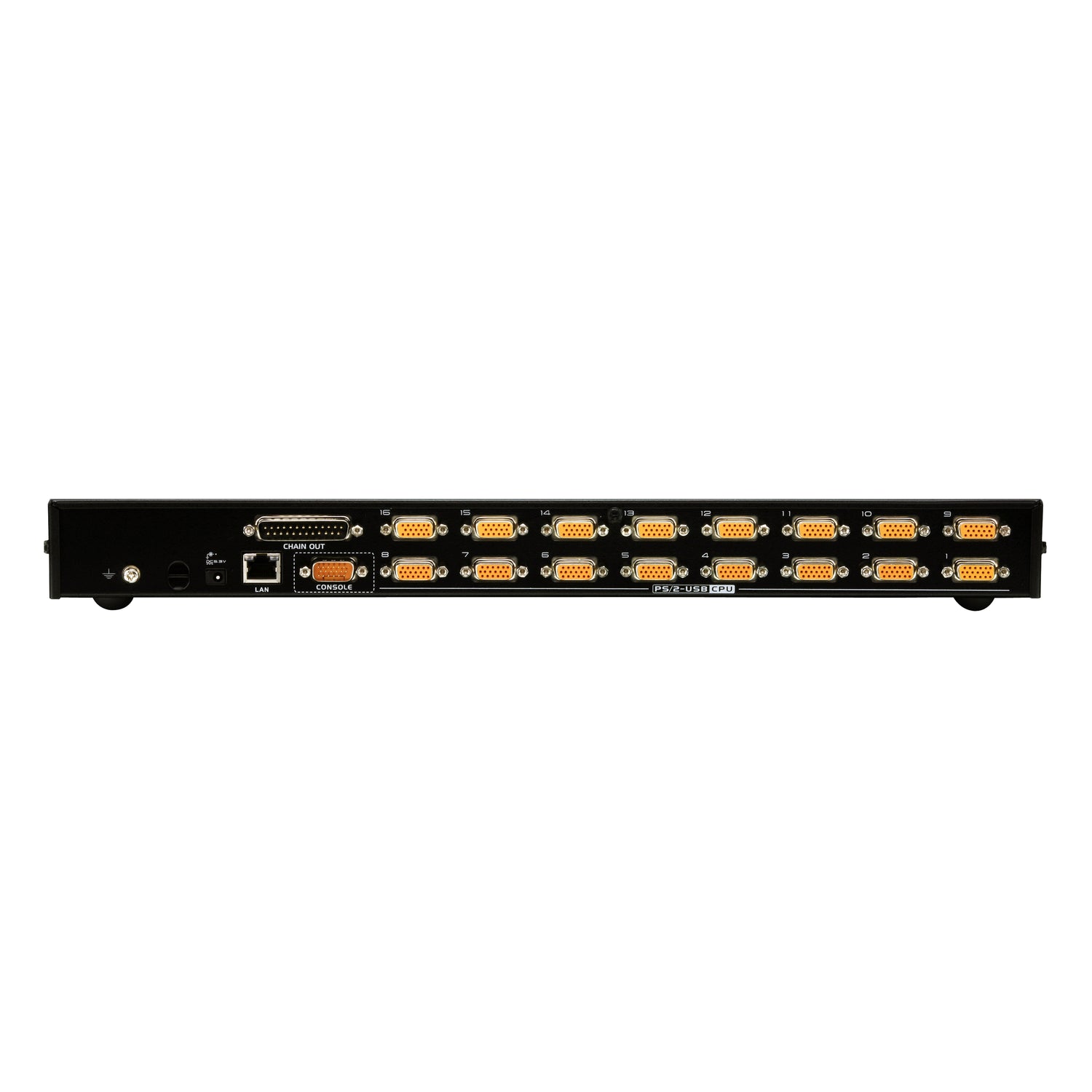

Connectors
| Console Port | 1 x SPHD Male (yellow) |
| KVM Ports | 16 x SPHD Female (yellow) |
| Daisy Chain | 1 x DB-25 Male |
| LAN | 1 x RJ-45 Female (10/100 Mbps) |
| USB Port | 1 x USB Type A Female |
| Firmware Upgrade | 1 x RJ-11 |
| Power | 1 x DC jack |
Video & Emulation
| Local Video | 2048 x 1536; DDC2B |
| Remote Video | FHD version: 1920 x 1200 @ 60 Hz; non-FHD version: 1600 x 1200 @ 60 Hz |
| Keyboard / Mouse | PS/2, USB |
| Scan Interval | 1–255 seconds |
Remote Access & Security
| Concurrent Logins | Up to 32 |
| Encryption | TLS 1.2 and RSA 2048-bit certificates for browser logins; DES / 3DES / AES / RC4 / random for KB/mouse and video |
| Authentication | RADIUS, LDAP, LDAPS, MS Active Directory |
| Filtering | IP / MAC filtering |
| Browsers | IE, Firefox, Safari, Opera, Chrome |
| Client Platforms | Windows, Mac OS X, Linux, Sun |
Power & Environmental
| Power Consumption | DC 5.3 V, 9.2 W, 58 BTU/h |
| Operating Temperature | 0–50 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Metal, 1U rack mountable |
| Weight | 3.00 kg |
| Dimensions (L x W x H) | 43.72 x 15.96 x 4.40 cm |
Compatibility & Applications
Typical Computers
Rack servers and PCs with VGA video and PS/2 or USB keyboard/mouse, connected via ATEN SPHD KVM cables.
Typical Use
Server rooms and branch racks that need both an on-site console and secure remote access for IT staff, including out-of-hours troubleshooting.
Selection Tip
For a single remote machine the CN800 KVM over IP Mini is simpler; for a rack with a built-in screen and keyboard consider an LCD KVM over IP switch such as the KL1108VN.
Package Contents & ATEN KVM over IP Switch Ordering Information
In the Box
1 x CS1716i KVM over IP switch, 1 x custom KVM cable (VGA, USB; 1.8 m), 1 x custom KVM cable (VGA, PS/2; 1.8 m), 1 x custom console cable (VGA, USB, PS/2; 27 cm), 1 x firmware upgrade cable, 1 x mounting kit, 1 x foot pad set (4 pcs), 1 x power adapter, 1 x user instructions.
ATEN Rack and KVM over IP Switch Models
| Model | Key feature |
| CS1708A | 8-port PS/2-USB VGA rack KVM, daisy-chain to 256 |
| CS17916 | 16-port USB HDMI / audio rack KVM, cascade to 256 |
| CS18208 | 8-port USB 3.0 4K HDMI rack KVM, cascade to 512 |
| CS19208 | 8-port USB 3.0 4K DisplayPort rack KVM, cascade to 128 |
| CS1716i (this listing) | 16-port PS/2-USB VGA KVM over IP switch |
| KH1508A | 8-port Cat 5 KVM switch, daisy-chain to 256 |
| CN800 | Single-port USB VGA KVM over IP Mini |
| KL1108VN | 8-port Cat 5 dual rail LCD KVM over IP switch |
Datasheet & Downloads
| Datasheet | CS1708i / CS1716i Datasheet (PDF) |
| User manual | CS1708i / CS1716i User Manual (PDF) |
| User manual (FHD version) | CS1708i / CS1716i FHD User Manual (PDF) |
| Quick start guide | CS1708i / CS1716i Quick Start Guide (PDF) |
| ATEN product page | CS1716i on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting CS1716I-AT-E.
Frequently Asked Questions — ATEN CS1716i
Can a local and a remote user work at the same time?
The CS1716i provides one local console plus remote access with shared access; up to 32 remote users can log in concurrently.
What remote resolution do I get?
ATEN has FHD (1920 x 1200 at 60 Hz) and earlier non-FHD (1600 x 1200 at 60 Hz) hardware versions. Email sales@sourceit.com.sg to confirm the version supplied.
Can I access the BIOS remotely?
Yes. KVM over IP gives BIOS-level access to connected servers.
Which authentication methods are supported?
Local accounts plus RADIUS, LDAP, LDAPS and Microsoft Active Directory.
How many KVM cables are included?
Two custom KVM cables (one USB, one PS/2) and a console cable. Order additional ATEN SPHD KVM cables for the other ports.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
