ATEN CN800 USB VGA KVM over IP Mini
PRODUCT DESCRIPTION
ATEN CN800 USB VGA KVM over IP Mini - 2 Years Local Warranty
Remote Control of Any USB / VGA Computer
The CN800 plugs into a server or PC's USB and VGA ports and puts its keyboard, video and mouse on your network. Authorised users can then operate the machine from a browser anywhere, including BIOS screens before the OS loads.
Tiny and Bus-Powered

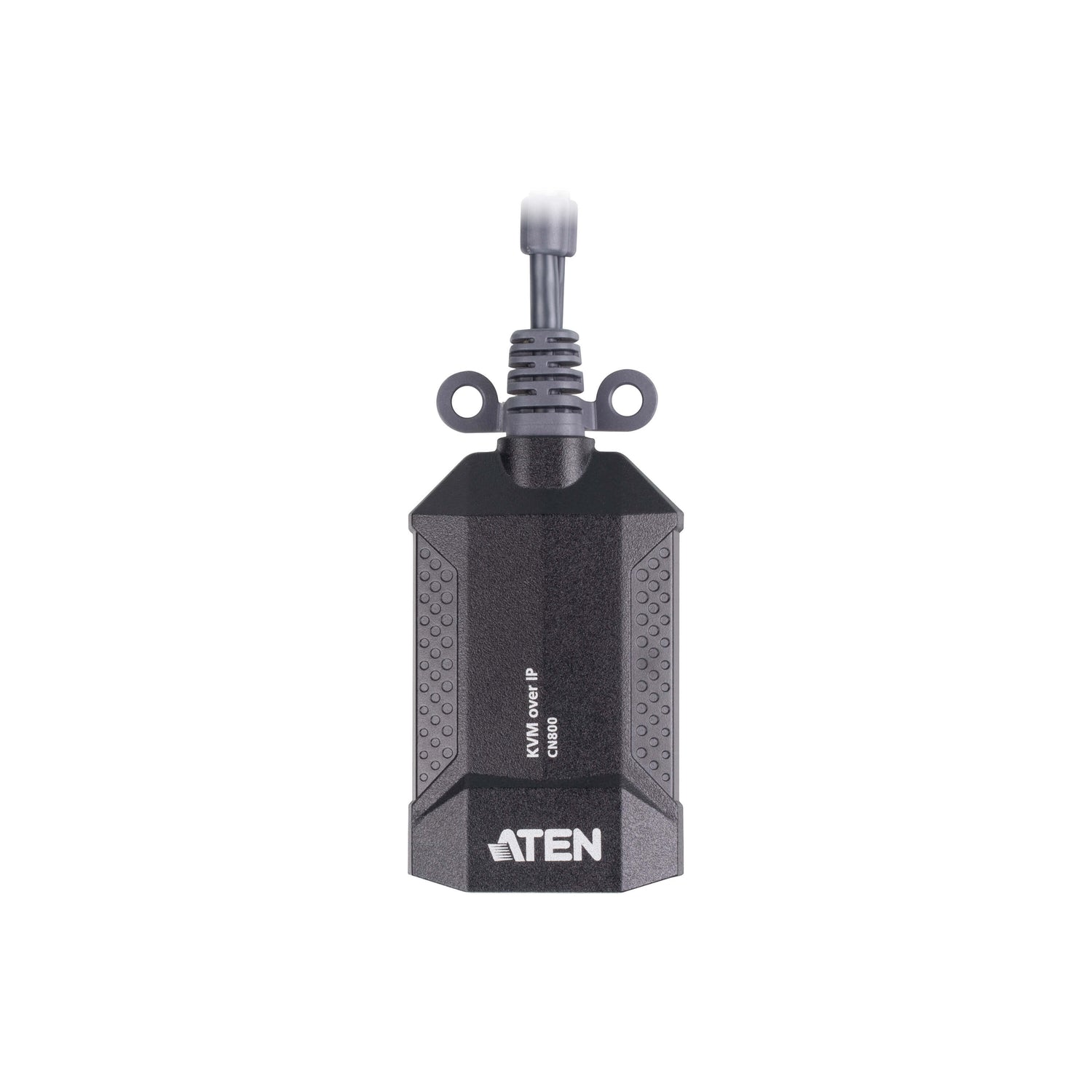

The adapter is about the size of a matchbox, draws its power from USB and has a hook design to keep cabling tidy behind the computer, so there is no power adapter to find a socket for.
Secure, Multi-User Access
Logins are protected with TLS encryption and the session can use flexible DES, 3DES, AES or RC4 encryption. Up to 64 user accounts and 32 concurrent logins are supported.
Virtual Media for Remote Fixes
Mount USB drives, DVD/CD drives or ISO images to the remote computer for OS patching, software installs and diagnostics. Video resolution goes up to 1920 x 1200 at 60 Hz.
Need remote access to branch servers or kiosks? Email sales@sourceit.com.sg for volume pricing and configuration advice.
ATEN CN800 Datasheet — Technical Specifications
General
| Product Name | ATEN USB VGA KVM over IP Mini |
| Model | CN800 |
| Order Code | CN800-AT |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Connectors

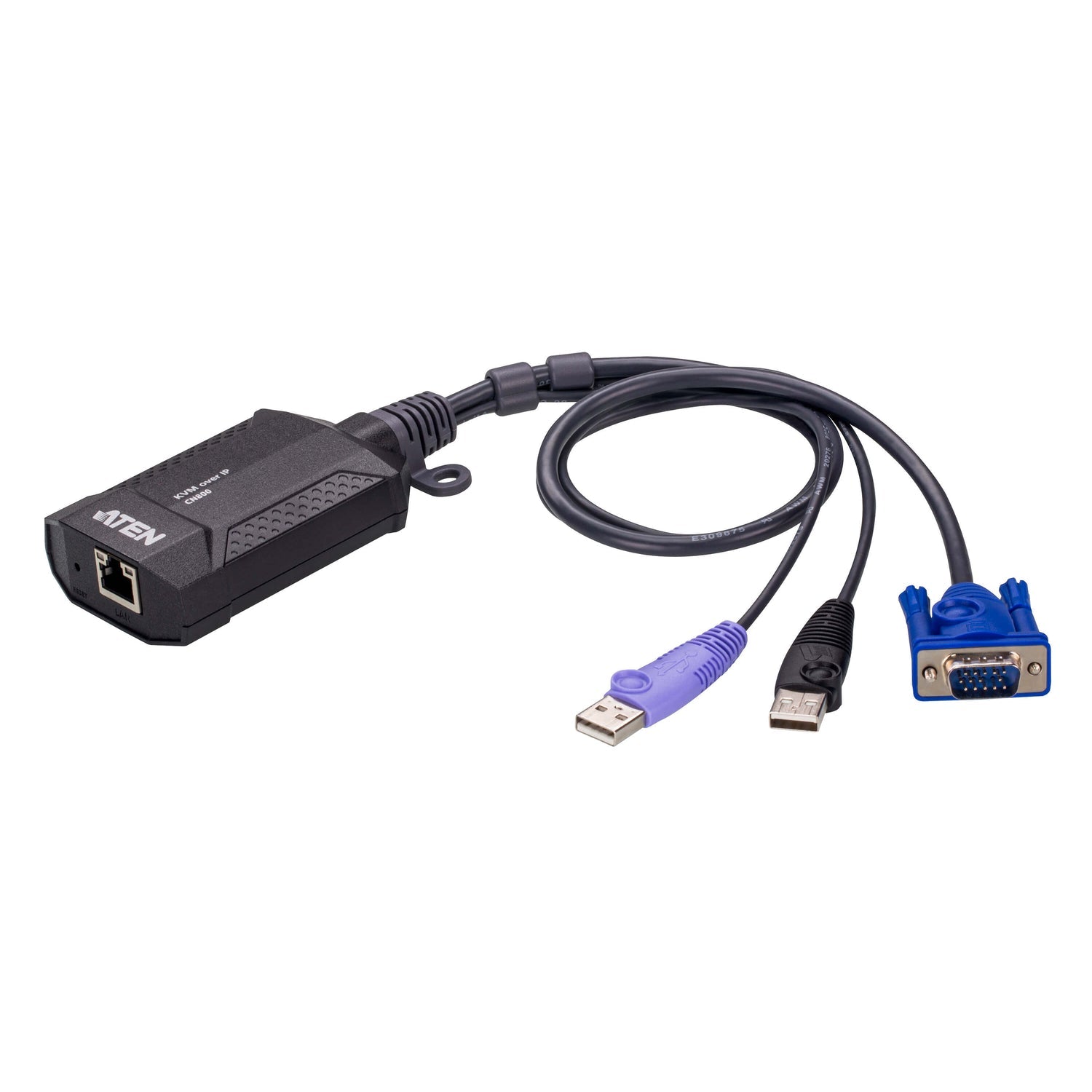

| KVM (Computer) Ports | 1 x USB Type A Male (purple); 1 x USB Type A Male (black); 1 x VGA Male (blue) |

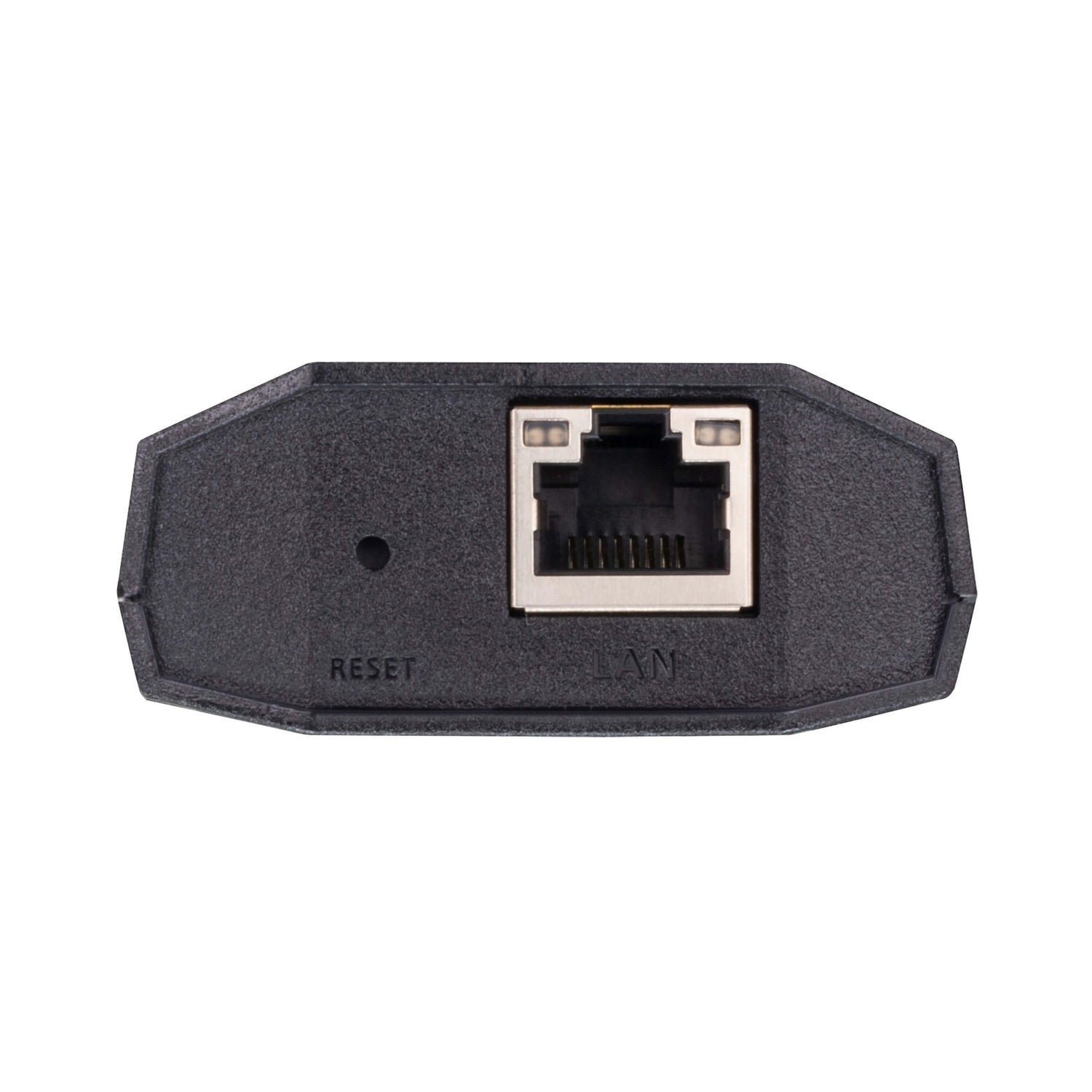

| LAN | 1 x RJ-45 Female |
| Reset | 1 x semi-recessed pushbutton |
Video & Emulation
| Video | Up to 1920 x 1200 @ 60 Hz |
| Keyboard / Mouse | USB |
| BIOS-Level Access | Yes |
Remote Access
| Users | Up to 64 user accounts; up to 32 concurrent logins |
| Security | TLS login encryption; DES / 3DES / AES / RC4 / random session encryption |
| Virtual Media | USB 2.0 DVD/CD drives, USB mass storage, PC hard drives, ISO images |
| Browsers | Chrome 45+, Firefox 33+, Safari 9.1.3+, Edge 25+ |
| Target Platforms | Windows, Mac, Linux, Sun |
| Other | IPv6 capable; remote firmware upgrade |
Power & Environmental
| Power | USB bus-powered; DC 5 V, 3.47 W, 16 BTU/h |
| Operating Temperature | 0–50 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Plastic |
| Weight | 0.17 kg |
| Dimensions (L x W x H) | 9.32 x 5.66 x 2.44 cm |
Compatibility & Applications
Typical Targets
Servers, PCs, kiosks, digital signage players and industrial PCs with a VGA output and USB ports.
Typical Use
Remote support of branch-office servers, unmanned sites, signage and kiosk fleets, and lab machines, without travelling on site.
Selection Tip
The CN800 controls one computer. To manage many servers from one IP address, choose a KVM over IP switch such as the CS1716i, or an LCD KVM over IP console such as the KL1108VN.
Package Contents & ATEN KVM over IP Ordering Information
In the Box
1 x CN800 USB VGA KVM over IP Mini, 1 x user instructions.
ATEN KVM over IP Models
| Model | Key feature |
| CN800 (this listing) | Single-port USB VGA KVM over IP Mini |
| CS1716i | 16-port PS/2-USB VGA KVM over IP switch |
| KL1108VN | 8-port Cat 5 dual rail LCD KVM over IP switch, 19" |
| CL5708IN | 8-port VGA LCD KVM over IP switch, 19" |
| KL1508AIN | 8-port Cat 5 dual rail LCD KVM over IP switch, 19" |
Datasheet & Downloads
| User manual | CN800 User Manual (PDF) |
| ATEN product page | CN800 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting CN800-AT.
Frequently Asked Questions — ATEN CN800
Does it need its own power supply?
No. The CN800 is bus-powered from the computer's USB port.
Can I access the BIOS remotely?
Yes. It provides BIOS-level access because it works at the keyboard, video and mouse level.
How many people can connect at once?
Up to 32 concurrent logins, with up to 64 user accounts.
Which browsers work?
ATEN lists Chrome 45+, Firefox 33+, Safari 9.1.3+ and Edge 25+.
Can I install an OS remotely?
Virtual media lets you mount ISO images, USB drives or optical drives to the target for OS patching and software installs.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
