ATEN CL6700MW 17.3" FHD Single Rail LCD Console (USB, HDMI / DVI / VGA)
PRODUCT DESCRIPTION
ATEN CL6700MW 17.3" FHD Single Rail LCD Console (USB, HDMI / DVI / VGA) - 2 Years Local Warranty
Full HD Rack Console

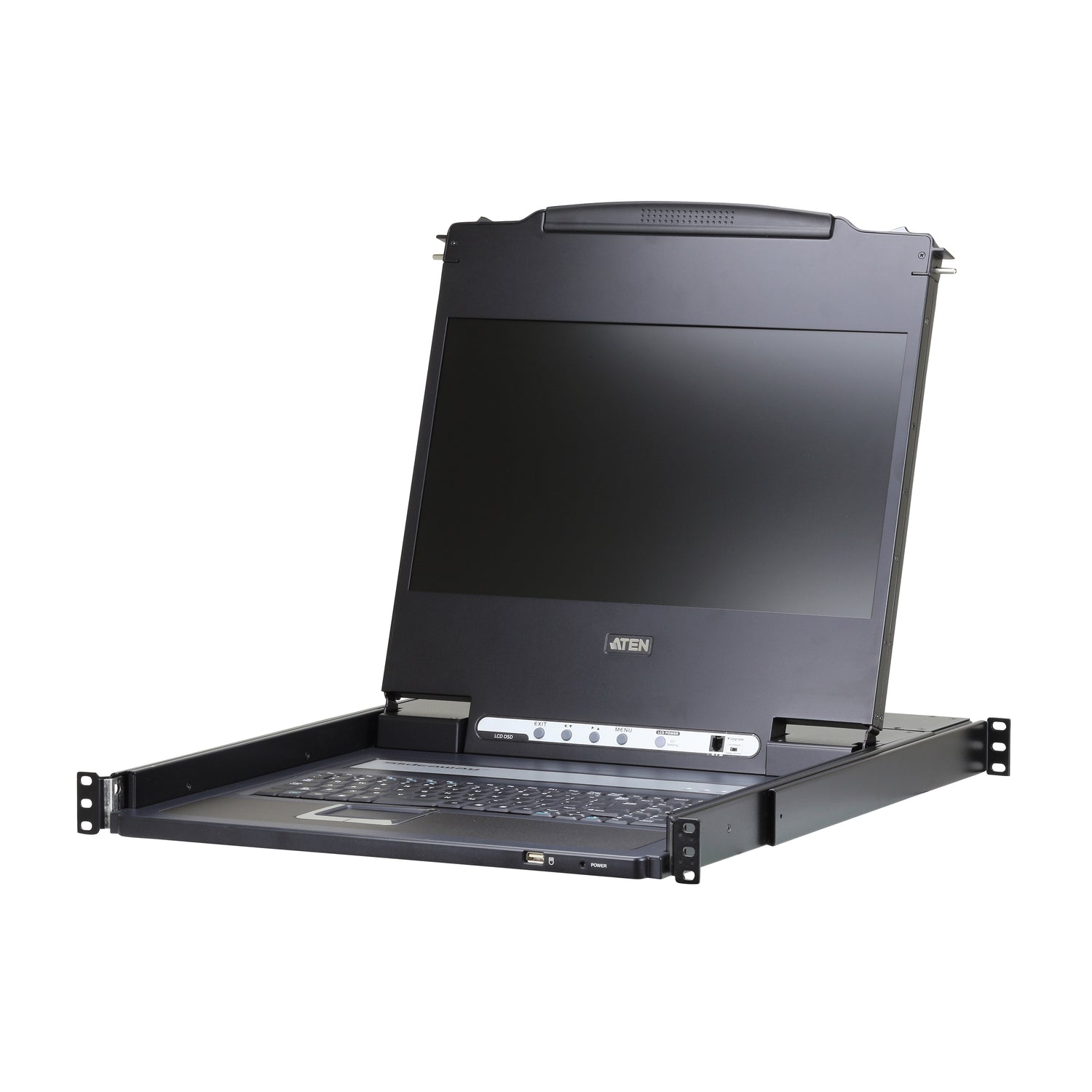

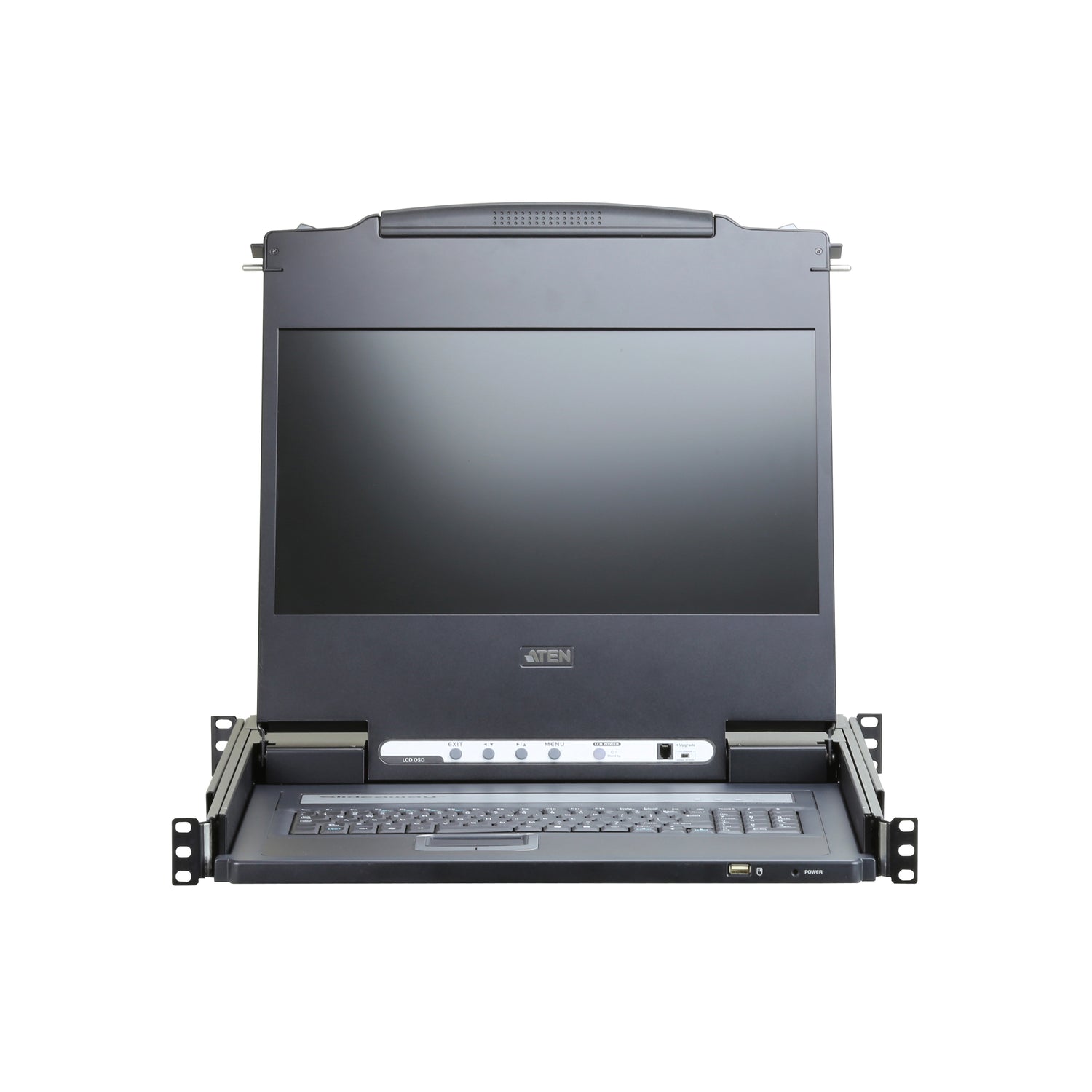

The CL6700MW integrates a 17.3" LED-backlit widescreen Full HD LCD, a 105-key keyboard and touchpad in a 1U single rail drawer. It gives a sharp 1920 x 1080 view of servers and appliances without a separate monitor cart.
HDMI, DVI and VGA Inputs
The console accepts HDMI, DVI-D or VGA video from the connected computer or KVM switch, with USB keyboard/mouse and speaker audio. External console ports with the same interfaces let you add an outside monitor, keyboard and mouse.
Practical in the Rack
Console lock keeps the drawer secured, DDC emulation adjusts each computer's video settings automatically, and ATEN's LED illumination light lights the keyboard and touchpad.
Multiplatform
Windows, Linux, Mac and Sun are supported, with Sun keyboard emulation and an extra hot-pluggable front USB mouse port.
Upgrading rack consoles to Full HD? Email sales@sourceit.com.sg for volume pricing.
ATEN CL6700MW Datasheet — Technical Specifications
General
| Product Name | ATEN Single Rail LCD Console (USB, HDMI / DVI / VGA) |
| Model | CL6700MW (17.3" FHD) |
| Order Code | CL6700MW-ATA-AE |
| Keyboard | 105-key with Sun keyboard emulation; US English keyboard layout (-ATA-AE order code) |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Connectors
| Computer Connections | 1 (direct); console selection by hotkey |

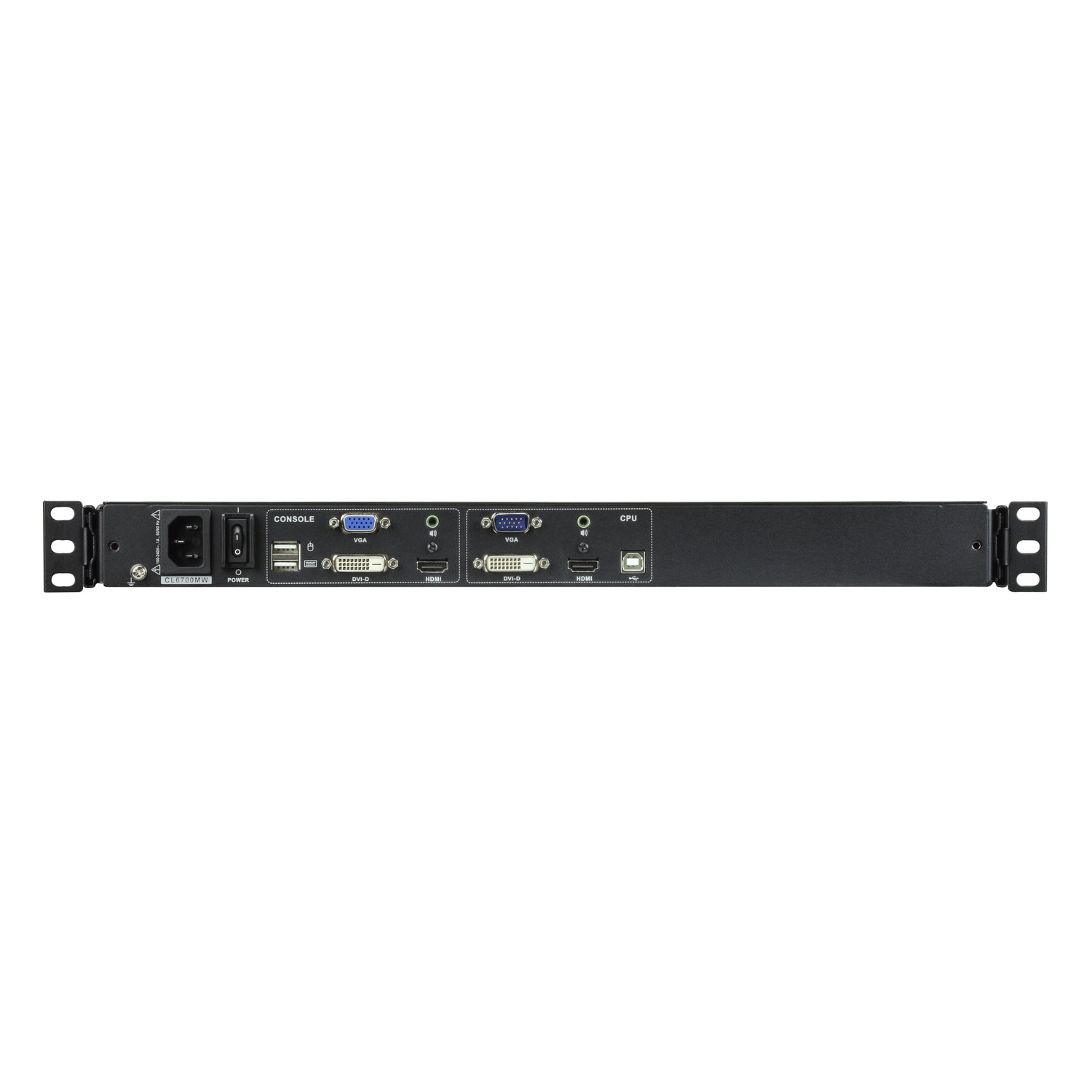

| KVM Ports | 1 x USB Type-B Female; 1 x HDMI Female; 1 x DVI-D Female; 1 x HDB-15 Male (VGA); 1 x 3.5 mm audio jack |
| External Console | 2 x USB Type-A Female; 1 x HDMI Female; 1 x DVI-D Female; 1 x HDB-15 Female (VGA); 1 x 3.5 mm audio jack |
| External Mouse / Peripheral | 1 x USB Type A Female (front) |
| Firmware Upgrade | 1 x RJ-11 Female |
| Power | 1 x IEC 60320/C14 |
LCD Panel
| LCD Module | 17.3" widescreen TFT-LCD, LED-backlit |
| Native Resolution | 1920 x 1080 @ 60 Hz |
| Response Time | 16 ms |
| Viewing Angle | 170° (H), 170° (V) |
| Pixel Pitch | 0.1989 x 0.1989 mm |
| Colours | 16.77 M |
| Contrast Ratio | 800:1 |
| Luminance | 250 cd/m² |
Video & Emulation
| Input Resolution | Up to 1920 x 1200 @ 60 Hz; 1920 x 1080 @ 60 Hz; DDC2B |
| Keyboard / Mouse | USB |
Power & Environmental
| Input Power | 100–240 V AC, 50–60 Hz, 1 A |
| Power Consumption | 21.2 W, 106 BTU/h (AC110V); 20.8 W, 104 BTU/h (AC220V) |
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Metal |
| Rail Type | Single rail, 1U |
| Weight | 11.38 kg |
| Dimensions (L x W x H) | 48.00 x 58.92 x 4.40 cm |
Compatibility & Applications
Typical Connections
A server, PC or appliance with HDMI, DVI-D or VGA and USB, or the console port of a KVM switch with one of those interfaces.
Typical Use
Server rooms, broadcast racks and industrial cabinets that need a Full HD local console and a mix of digital and VGA sources.
Selection Tip
The CL6700MW uses USB keyboard/mouse emulation. For PS/2 servers or VGA-only racks, the CL1000M or CL5800N consoles support PS/2 and USB.
Package Contents & ATEN LCD Console Ordering Information
In the Box
1 x CL6700MW LCD console with standard rack mount kit, 1 x KVM cable (DVI-D, USB, audio; 1.8 m), 1 x power cord, 1 x firmware upgrade cable (1.8 m), 1 x user instructions.
ATEN LCD KVM Console Models
| Model | Key feature |
| CL1000M | 17" single rail LCD console (PS/2-USB, VGA) |
| CL6700MW (this listing) | 17.3" FHD single rail LCD console (USB, HDMI / DVI / VGA) |
| CL3700NW | 18.5" FHD ultra short depth LCD console (USB, HDMI) |
| CL5800N | 19" dual rail LCD console (PS/2-USB, VGA) |
| CL5716M | 17" 16-port VGA single rail LCD KVM switch |
| CL1308N | 19" 8-port VGA single rail LCD KVM switch |
| CL3108NX | 18.5" 8-port VGA widescreen single rail LCD KVM switch |
| CL5808N | 19" 8-port VGA dual rail LCD KVM switch |
| KL1108VN | 19" 8-port Cat 5 dual rail LCD KVM over IP switch |
| CL5708IN | 19" 8-port VGA LCD KVM over IP switch |
Datasheet & Downloads
| Datasheet | CL6700MW Datasheet (PDF) |
| User manual | CL6700MW User Manual (PDF) |
| Quick start guide | CL6700MW Quick Start Guide (PDF) |
| Rack installation guide | LCD KVM Standard Rack Mount Installation Guide (PDF) |
| ATEN product page | CL6700 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting CL6700MW-ATA-AE.
Frequently Asked Questions — ATEN CL6700MW
What video inputs does it accept?
HDMI, DVI-D or VGA from the connected computer, with USB for keyboard and mouse.
Is the screen Full HD?
Yes. 17.3" widescreen at 1920 x 1080, 60 Hz.
Which cable is included?
A 1.8 m DVI-D/USB/audio KVM cable. Use your own HDMI or VGA cable if the computer uses those outputs.
Does it have a KVM switch built in?
No. It is a single-port console; connect it to a KVM switch to manage multiple computers.
Does it support audio?
Yes. Speaker audio is supported via 3.5 mm jacks.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
