ATEN CL5800N 19" Dual Rail LCD Console (PS/2-USB, VGA)
PRODUCT DESCRIPTION
ATEN CL5800N 19" Dual Rail LCD Console (PS/2-USB, VGA) - 2 Years Local Warranty

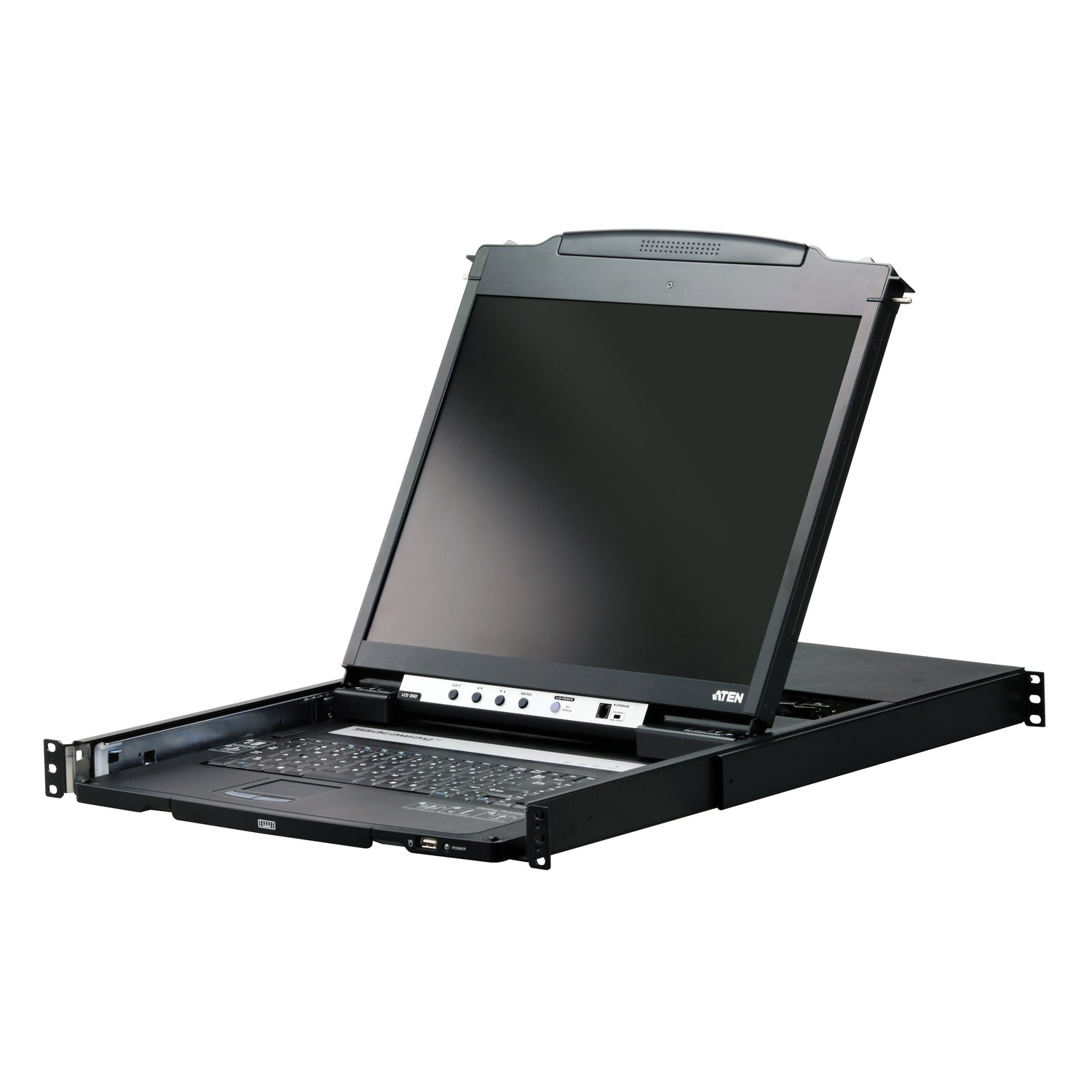

19" Console with Independent Rails
The CL5800N packs a 19" LED-backlit LCD, a 105-key keyboard and touchpad into a 1U sliding drawer. Its dual rail design lets the monitor and keyboard slide independently, so you can keep the screen out while the keyboard is stowed.
Clear Display, Flexible Input
The 19" panel runs at 1280 x 1024 at 75 Hz with 5 ms response, 1000:1 contrast and 250 cd/m² brightness, and accepts VGA input up to 1920 x 1200 at 60 Hz.
Connect to a Server or KVM Switch
This is a console only, with one SPHD KVM port. Connect it to a single server or to a rack KVM switch. External console ports (VGA, USB and PS/2) let you add an outside monitor, keyboard or mouse, and a front USB port takes an external mouse or peripheral.
Server Room Friendly
ATEN's LED illumination light lights the keyboard in dim racks, the keyboard supports Sun emulation, and the firmware is upgradeable.
Equipping several racks with consoles? Email sales@sourceit.com.sg for volume pricing.
ATEN CL5800N Datasheet — Technical Specifications
General
| Product Name | ATEN Dual Rail LCD Console (PS/2-USB, VGA) |
| Model | CL5800N (19") |
| Order Code | CL5800N-ATA-AE |
| Keyboard | 105-key with Sun keyboard emulation; US English keyboard layout (-ATA-AE order code) |
| Local Warranty (Singapore) | 2 years carry-in warranty |

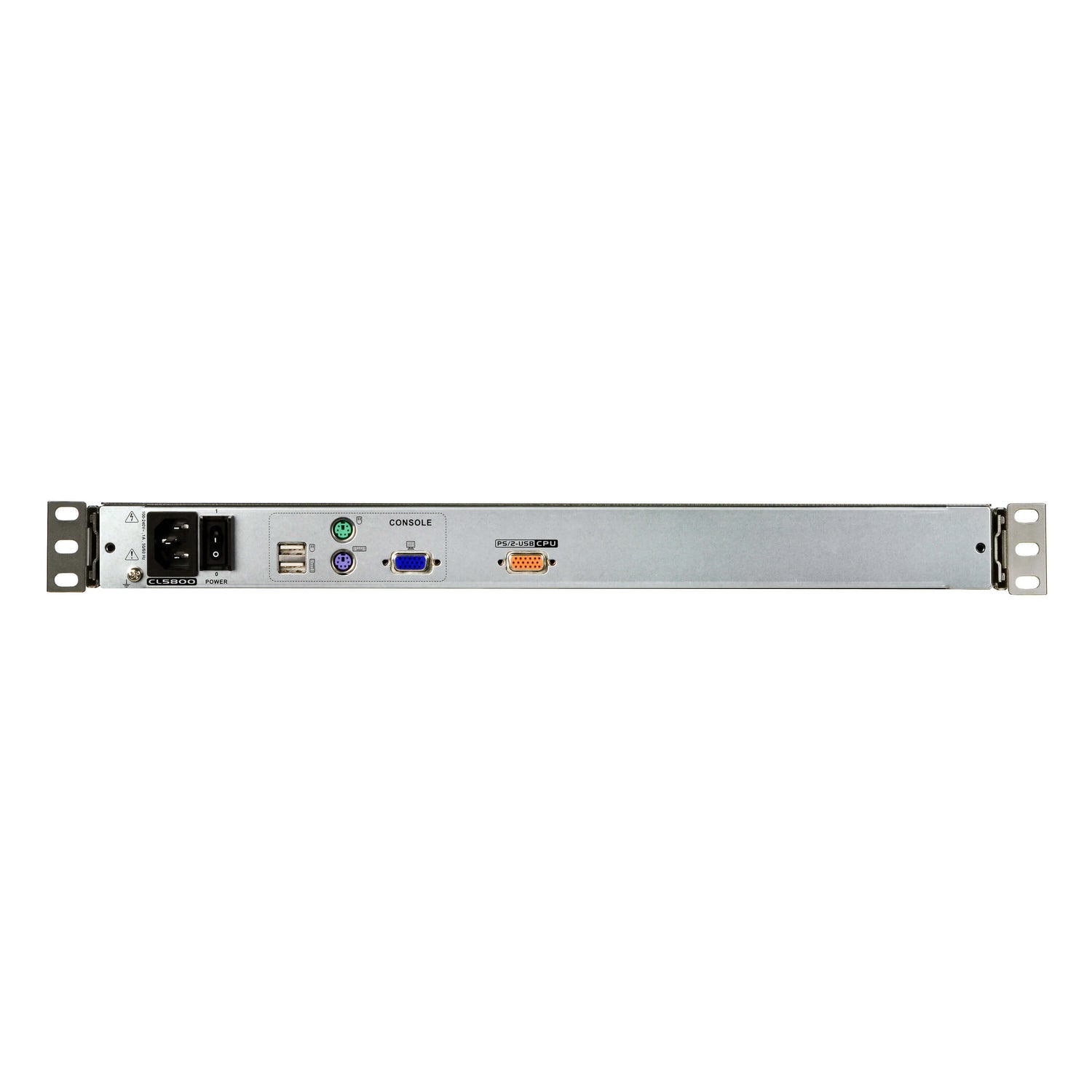

Connections
| Computer Connections | 1 (direct); console selection by hotkey |
| KVM Port | 1 x SPHD Female (yellow) |
| External Console | 1 x HDB-15 Female (blue); 2 x USB Type A Female; 1 x 6-pin Mini-DIN (purple); 1 x 6-pin Mini-DIN (green) |
| External Mouse / Peripheral | 1 x USB Type A Female (front) |
| Firmware Upgrade | 1 x RJ-11 Female |
| Power | 1 x IEC 60320/C14 |
LCD Panel
| LCD Module | 19" TFT-LCD, LED-backlit |
| Native Resolution | 1280 x 1024 @ 75 Hz |
| Response Time | 5 ms |
| Viewing Angle | 170° (H), 160° (V) |
| Pixel Pitch | 0.294 x 0.294 mm |
| Colours | 16.7 M |
| Contrast Ratio | 1000:1 |
| Luminance | 250 cd/m² |
Video & Emulation
| Input Resolution | Up to 1920 x 1200 @ 60 Hz; 1280 x 1024 @ 75 Hz; DDC2B |
| Keyboard / Mouse | PS/2, USB |
Power & Environmental
| Input Power | 100–240 V AC, 50–60 Hz, 1 A |
| Power Consumption | 22.2 W, 115 BTU/h (AC110V); 22.9 W, 118 BTU/h (AC220V) |
| Operating Temperature | 0–50 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Metal |
| Rail Type | Dual rail, 1U |
| Weight | 14.27 kg |
| Dimensions (L x W x H) | 48.00 x 68.04 x 4.40 cm |
Compatibility & Applications
Typical Connections
A single VGA server, or the console port of a rack KVM switch such as the CS1708A or KH1508A.
Typical Use
Data centre and server room racks where a larger 19" screen and independent monitor and keyboard drawers make maintenance easier.
Selection Tip
Choose the CL5800N when you already have a KVM switch or only one server. For an integrated 8-port KVM in the same dual rail format, see the CL5808N.
Package Contents & ATEN LCD Console Ordering Information
In the Box
1 x CL5800N dual rail LCD PS/2-USB console with standard rack mount kit, 1 x custom KVM cable (VGA, USB, PS/2; 1.8 m), 1 x power cord, 1 x firmware upgrade cable, 1 x extension kit, 1 x user instructions.
ATEN LCD KVM Console Models
| Model | Key feature |
| CL1000M | 17" single rail LCD console (PS/2-USB, VGA) |
| CL6700MW | 17.3" FHD single rail LCD console (USB, HDMI / DVI / VGA) |
| CL3700NW | 18.5" FHD ultra short depth LCD console (USB, HDMI) |
| CL5800N (this listing) | 19" dual rail LCD console (PS/2-USB, VGA) |
| CL5716M | 17" 16-port VGA single rail LCD KVM switch |
| CL1308N | 19" 8-port VGA single rail LCD KVM switch |
| CL3108NX | 18.5" 8-port VGA widescreen single rail LCD KVM switch |
| CL5808N | 19" 8-port VGA dual rail LCD KVM switch |
| KL1108VN | 19" 8-port Cat 5 dual rail LCD KVM over IP switch |
| CL5708IN | 19" 8-port VGA LCD KVM over IP switch |
Datasheet & Downloads
| Datasheet | CL5800 Datasheet (PDF) |
| User manual | CL5800 User Manual (PDF) |
| Rack installation guide | LCD KVM Standard Rack Mount Installation Guide (PDF) |
| ATEN product page | CL5800 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting CL5800N-ATA-AE.
Frequently Asked Questions — ATEN CL5800N
What does dual rail mean?
The LCD monitor and the keyboard/touchpad are on separate rails and slide out independently.
Is there a KVM switch built in?
No. The CL5800N has one KVM port. Connect it to a rack KVM switch to control multiple servers, or choose the CL5808N with a built-in 8-port KVM.
What screen size and resolution?
19", native 1280 x 1024 at 75 Hz, with VGA input up to 1920 x 1200 at 60 Hz.
Can I attach an external monitor and keyboard?
Yes. It has external console ports for VGA, USB and PS/2.
Is the rack kit included?
Yes. A standard rack mount kit and an extension kit are supplied.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
