ATEN CL5716M 17" 16-Port PS/2-USB VGA Single Rail LCD KVM Switch
PRODUCT DESCRIPTION
ATEN CL5716M 17" 16-Port PS/2-USB VGA Single Rail LCD KVM Switch - 2 Years Local Warranty
Screen, Keyboard and 16-Port KVM in 1U

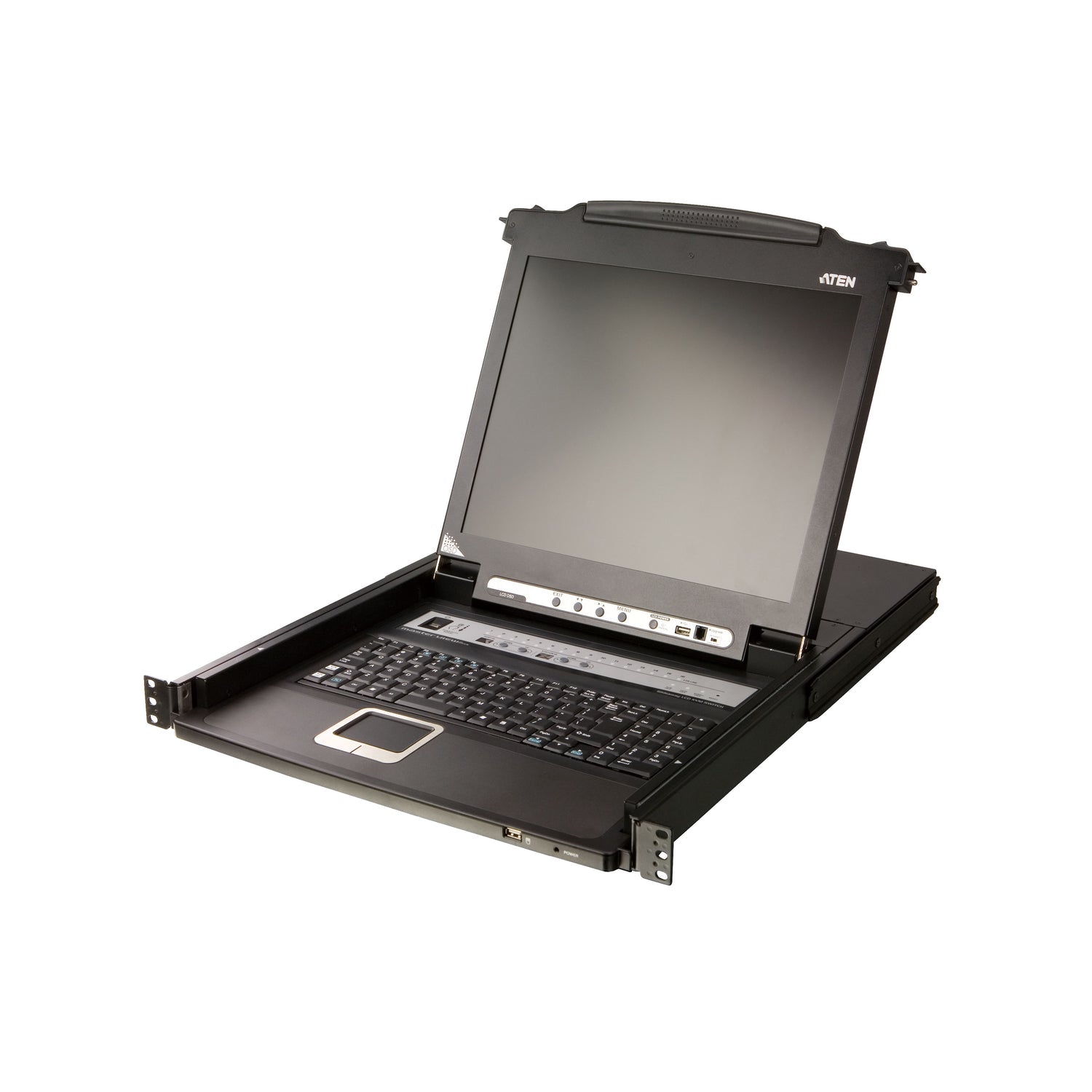

The CL5716M integrates a 17" LCD, keyboard, touchpad and a 16-port KVM switch in a 1U Slideaway drawer. Control 16 servers directly from the rack, then slide the console away when you are done.
Scale to 512 Computers
Daisy-chain up to 31 additional units to control as many as 512 computers from one console. Select servers by front-panel pushbutton, hotkey or OSD, with Broadcast Mode for running commands on several servers at once.
PS/2 or USB, Mixed Platforms
Dual Interface supports computers with PS/2 or USB keyboards and mice. An external console port and front USB mouse port let you add an outside monitor, keyboard or mouse.
Built for Server Rooms
The 17" panel runs at 1280 x 1024 at 75 Hz and accepts input up to 1920 x 1200. The LCD rotates up to 120 degrees and ATEN's LED illumination light keeps the keyboard visible in dim racks.
Fitting out racks with built-in consoles? Email sales@sourceit.com.sg for a project quote including KVM cables.
ATEN CL5716M Datasheet — Technical Specifications
General
| Product Name | ATEN 16-Port PS/2-USB VGA Single Rail LCD KVM Switch |
| Model | CL5716M (17") |
| Order Code | CL5716M-ATA-AE |
| Keyboard | US English keyboard layout (-ATA-AE order code) |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Computer Connections
| Direct | 16 |
| Maximum | 512 (via daisy-chain) |
| Port Selection | OSD, hotkey, pushbutton |
Connectors

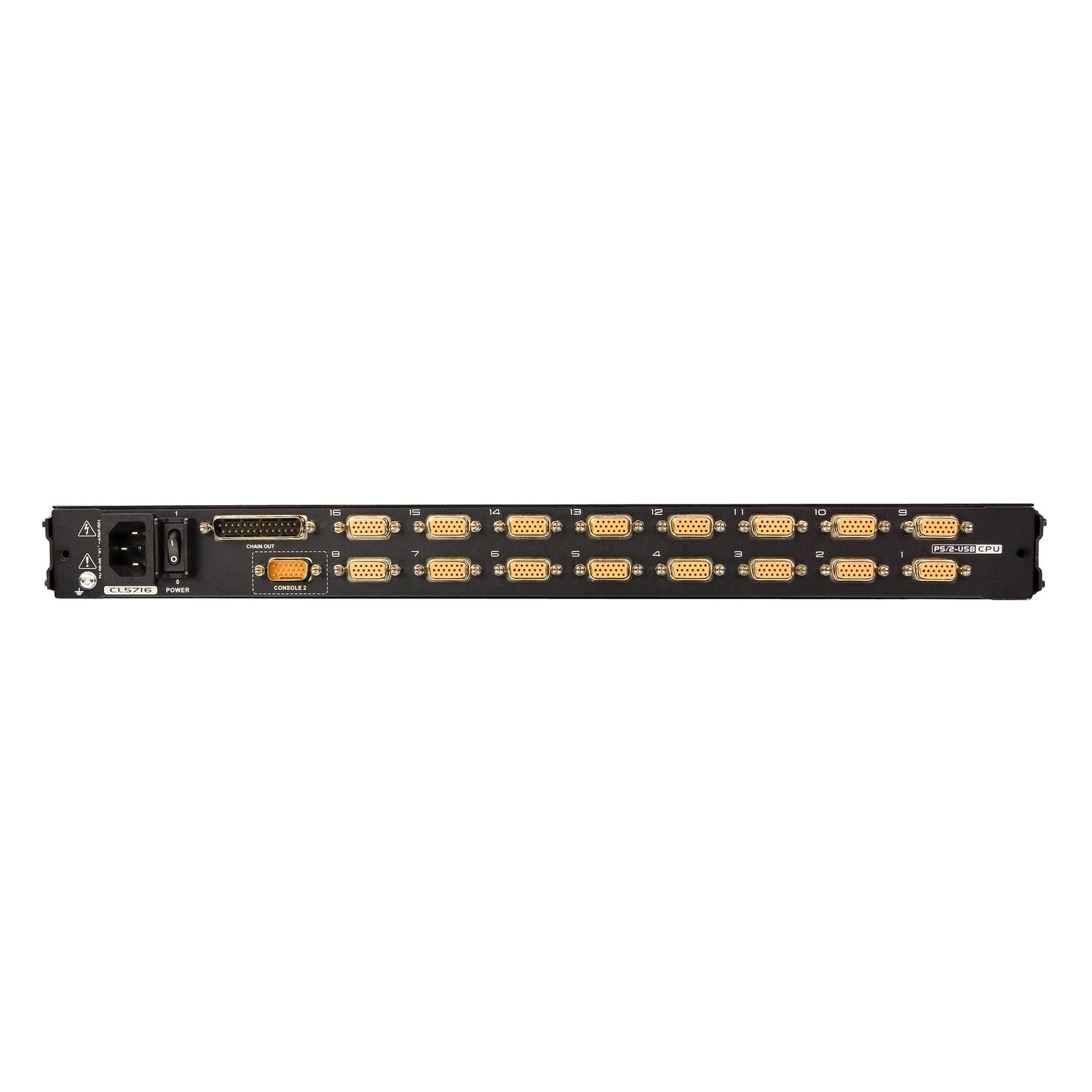

| KVM Ports | 16 x SPHD Female (yellow) |
| Daisy Chain | 1 x DB-25 Male |
| External Console | 1 x SPHD Male (yellow) |
| External Mouse | 1 x USB Type-A Female (front) |
| USB Port | 1 x USB Type-A Female |
| Firmware Upgrade | 1 x RJ-11 Female |
| Power | 1 x IEC 60320/C14 |
LCD Panel
| LCD Module | 17" TFT-LCD, LED-backlit |
| Native Resolution | 1280 x 1024 @ 75 Hz |
| Response Time | 5 ms |
| Viewing Angle | 170° (H), 160° (V) |
| Pixel Pitch | 0.264 x 0.264 mm |
| Colours | 16.77 M |
| Contrast Ratio | 1000:1 |
| Luminance | 250 cd/m² |
Video & Emulation
| Input Resolution | Up to 1920 x 1200 @ 60 Hz; 1280 x 1024 @ 75 Hz; DDC2B |
| Keyboard / Mouse | PS/2, USB |
| Scan Interval | 1–255 seconds |
Power & Environmental
| Input Power | 100–240 V AC, 50/60 Hz, 1 A |
| Power Consumption | 24.7 W (AC110V); 25.8 W (AC220V) |
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–85% RH, non-condensing |
Physical
| Housing | Metal + plastic, Slideaway |
| Rail Type | Single rail, 1U |
| Weight | 13.59 kg |
| Dimensions (L x W x H) | 48.00 x 64.27 x 4.40 cm |
Compatibility & Applications
Typical Computers
Rack servers and PCs with VGA video and PS/2 or USB keyboard/mouse, connected via ATEN SPHD custom KVM cables.
Typical Use
Server rooms, data centres and network cabinets with up to 16 servers per rack, expandable across racks by daisy-chaining.
Cabling Tip
Two custom KVM cables (VGA, USB) are included. Order additional ATEN SPHD KVM cables for the remaining ports, choosing USB or PS/2 to suit each server.
Package Contents & ATEN LCD KVM Switch Ordering Information
In the Box
1 x CL5716M LCD KVM switch with standard rack mount kit, 2 x custom KVM cables (VGA, USB; 1.8 m), 1 x console cable (VGA, USB, PS/2; 27 cm), 1 x firmware upgrade cable (1.8 m), 1 x power cord, 1 x user instructions.
ATEN LCD KVM Console Models
| Model | Key feature |
| CL1000M | 17" single rail LCD console (PS/2-USB, VGA) |
| CL6700MW | 17.3" FHD single rail LCD console (USB, HDMI / DVI / VGA) |
| CL3700NW | 18.5" FHD ultra short depth LCD console (USB, HDMI) |
| CL5800N | 19" dual rail LCD console (PS/2-USB, VGA) |
| CL5716M (this listing) | 17" 16-port VGA single rail LCD KVM switch |
| CL1308N | 19" 8-port VGA single rail LCD KVM switch |
| CL3108NX | 18.5" 8-port VGA widescreen single rail LCD KVM switch |
| CL5808N | 19" 8-port VGA dual rail LCD KVM switch |
| KL1108VN | 19" 8-port Cat 5 dual rail LCD KVM over IP switch |
| CL5708IN | 19" 8-port VGA LCD KVM over IP switch |
Datasheet & Downloads
| Datasheet | CL5708 / CL5716 Datasheet (PDF) |
| User manual | CL5708 / CL5716 User Manual (PDF) |
| Quick start guide | CL5708 / CL5716 Quick Start Guide (PDF) |
| Rack installation guide | LCD KVM Standard Rack Mount Installation Guide (PDF) |
| ATEN product page | CL5716 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting CL5716M-ATA-AE.
Frequently Asked Questions — ATEN CL5716M
What screen size is this listing?
17" (CL5716M), 1280 x 1024 at 75 Hz. ATEN's CL5716 page also lists other screen versions with different order codes.
How many servers can it control?
16 directly, or up to 512 by daisy-chaining 31 additional units.
How many KVM cables are included?
Two VGA/USB custom KVM cables. Additional cables are needed for the other 14 ports.
Can I connect an external monitor and keyboard?
Yes. There is an external console port (SPHD) and a front USB mouse port.
Can I mix PS/2 and USB servers?
Yes. Dual Interface supports PS/2 or USB keyboard/mouse on each port via the matching ATEN KVM cable.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
