ATEN CL5708i 8-Port VGA Single Rail LCD KVM over IP Switch, 17" / 19"
PRODUCT DESCRIPTION
ATEN CL5708i 8-Port VGA Single Rail LCD KVM over IP Switch, 17" / 19" - 2 Years Local Warranty
Rack Console, KVM Switch and Remote Access in 1U

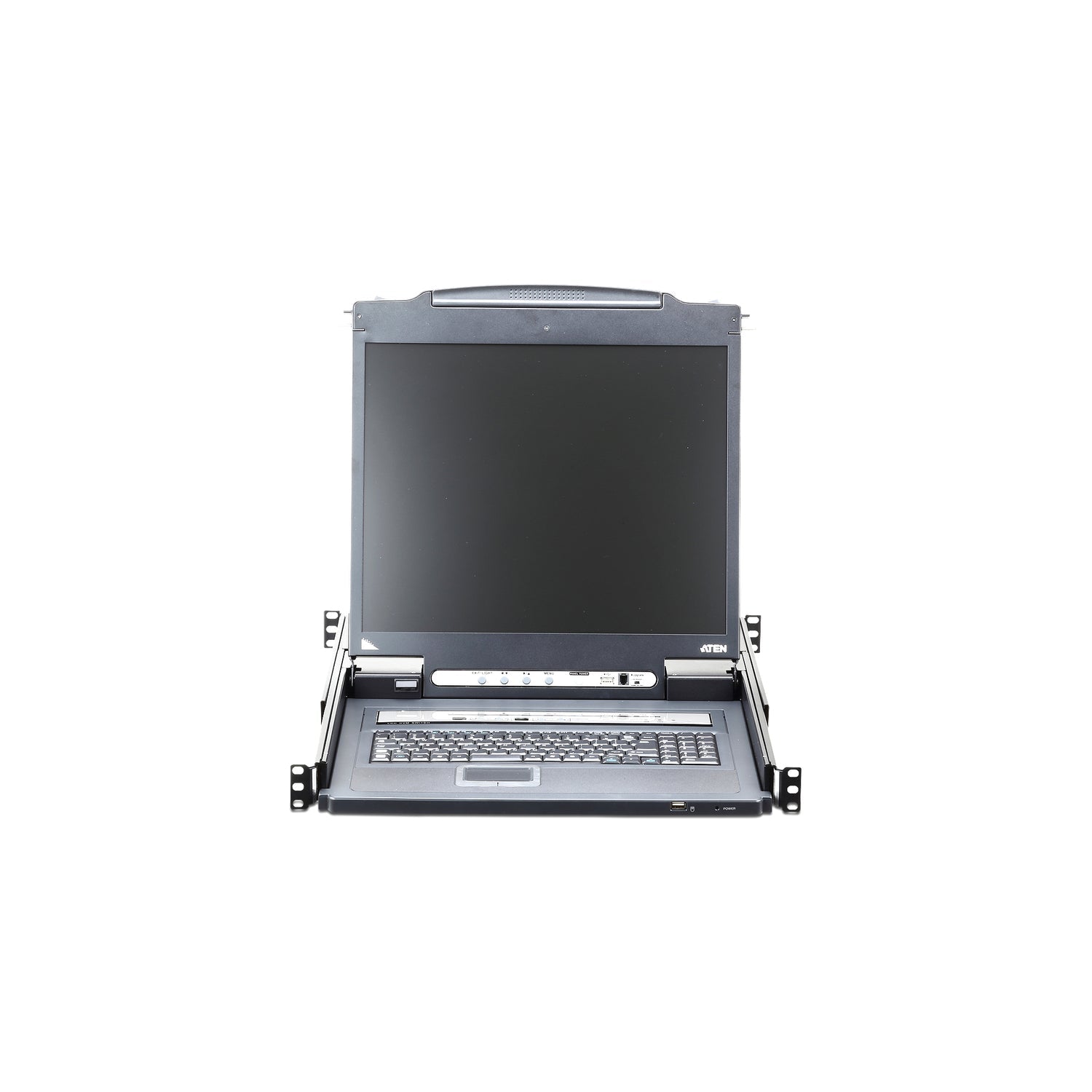

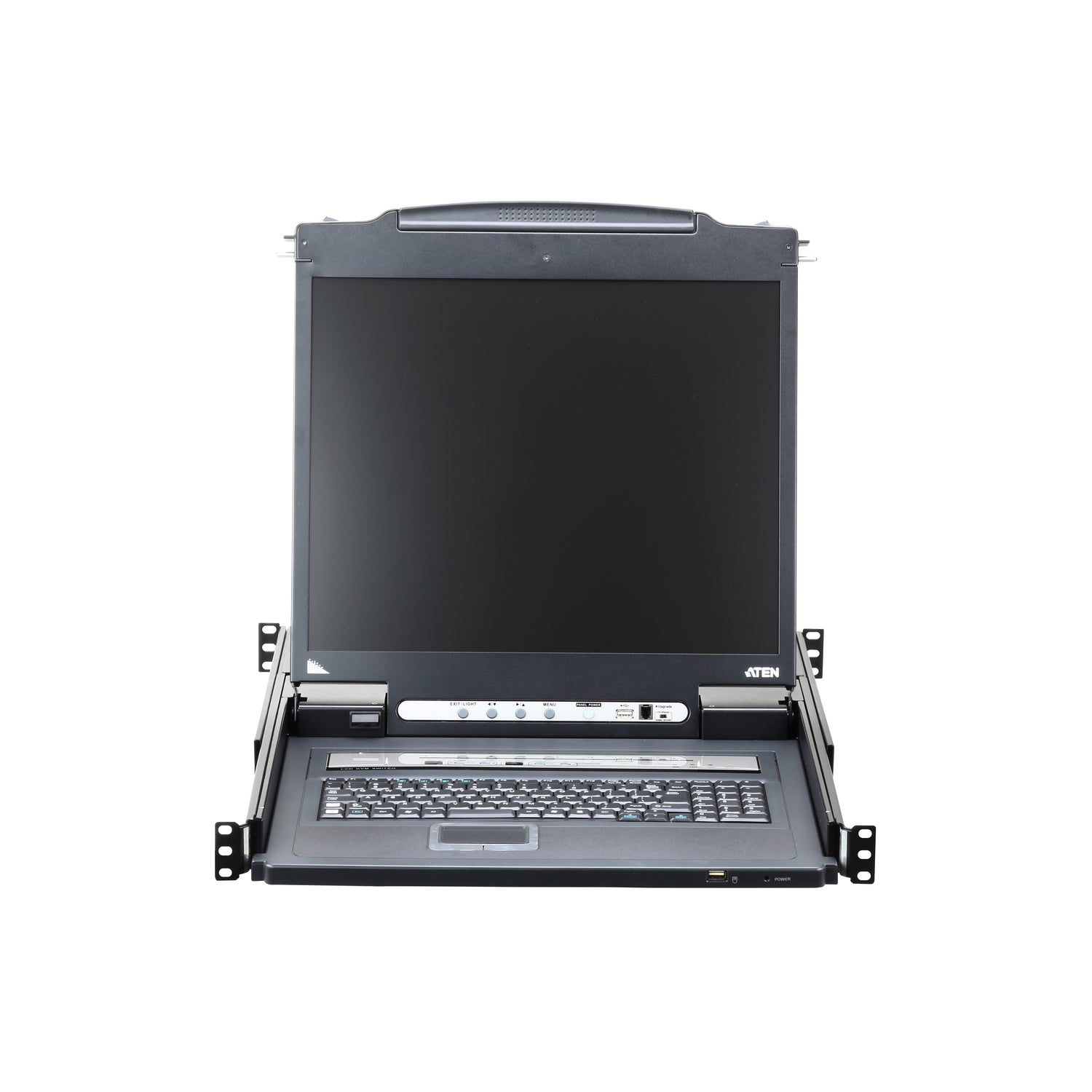

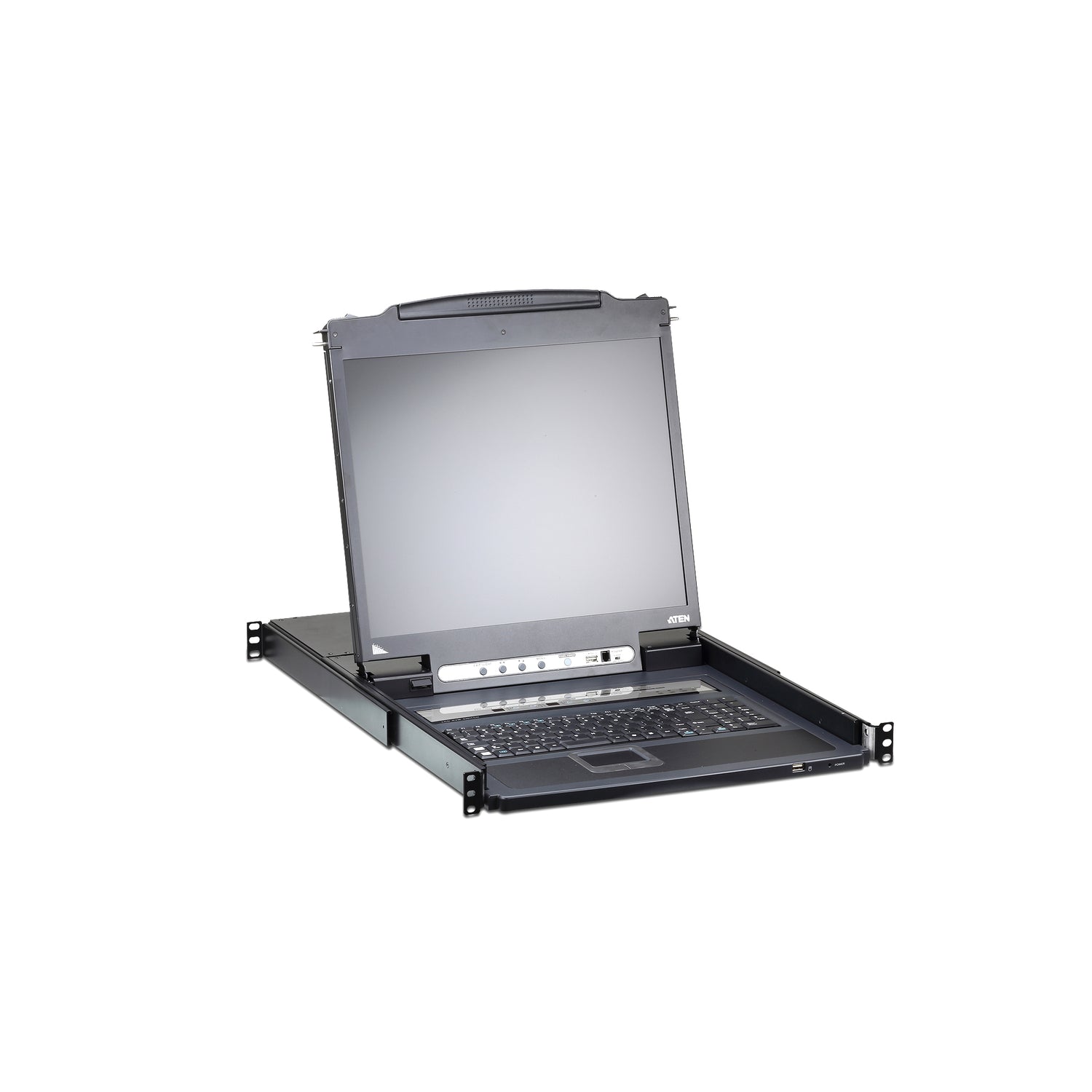

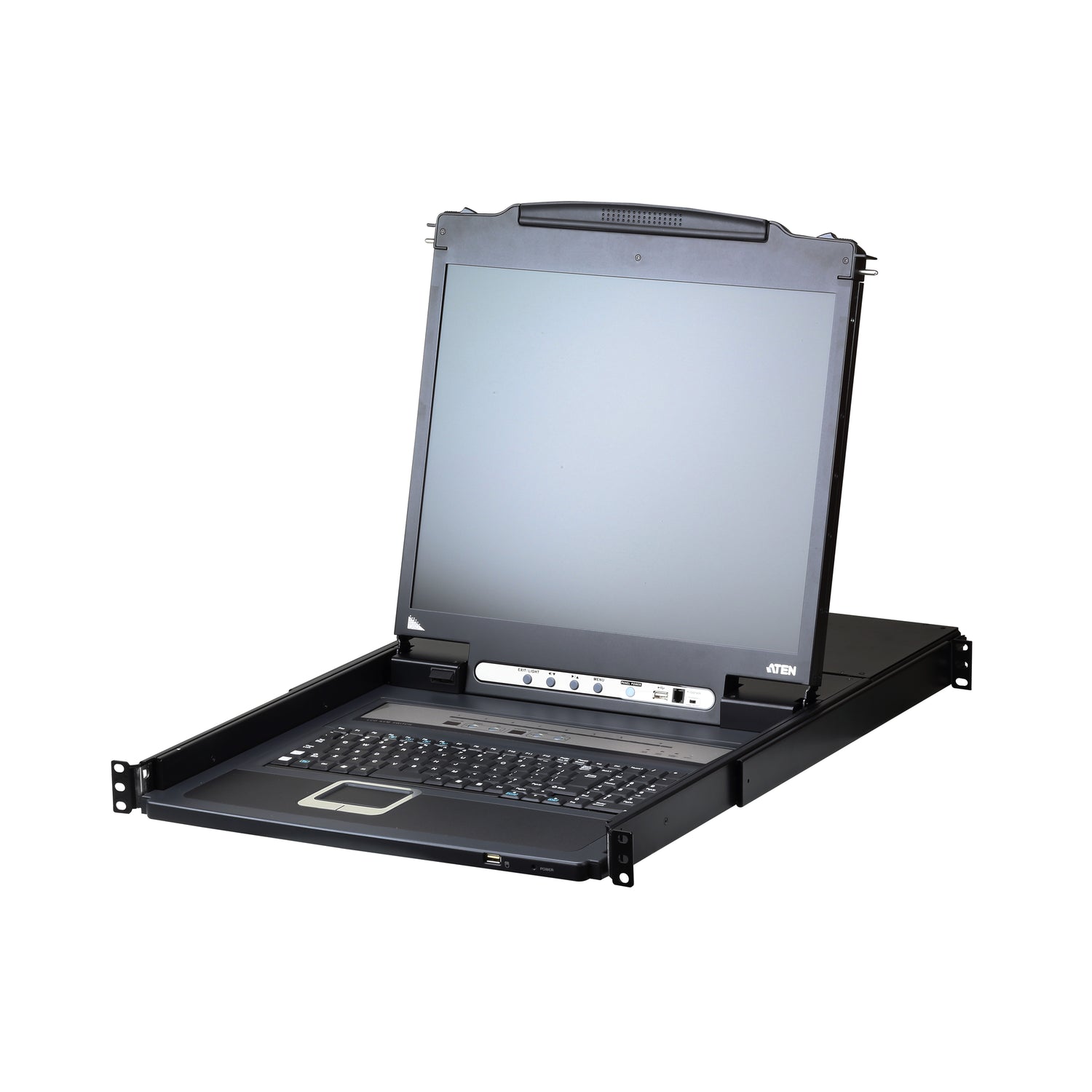

The CL5708i combines an LED-backlit LCD monitor, keyboard and touchpad with an 8-port KVM switch and KVM over IP in a single 1U slide-out drawer. Manage eight servers from the rack, or from anywhere on the network.
Local and Remote Shared Access
One local console and one remote user share the KVM bus. Remote sessions run at up to 1920 x 1200 at 60 Hz through a browser, with up to 32 concurrent logins, TLS 1.2 encryption and external authentication via RADIUS, LDAP, LDAPS and Active Directory.
Grow to 128 Computers
Daisy-chain compatible ATEN KVM switches to control up to 128 computers from the one console. Panel Array Mode shows multiple servers on screen at once, and Mouse DynaSync keeps local and remote cursors aligned.
Choose 17" or 19"
Both versions use a 1280 x 1024 at 75 Hz panel with ATEN's LED illumination light over the keyboard for dim server rooms. The 19" CL5708iN gives a larger view; the 17" CL5708iM is slightly shallower.
Planning a server room or data centre console? Email sales@sourceit.com.sg for a project quote including KVM cables and rack fitting advice.
ATEN CL5708iM / CL5708iN Datasheet — Technical Specifications
General
| Product Name | ATEN 1-Local/Remote Shared Access 8-Port PS/2-USB VGA Single Rail LCD KVM over IP Switch |
| Models | CL5708iM (17"), CL5708iN (19") |
| Order Codes | CL5708IM-ATA-AE, CL5708IN-ATA-AE |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Computer Connections
| Direct | 8 |
| Maximum | 128 (via daisy-chain) |
| Port Selection | OSD, hotkey, pushbutton |
| User Access | 1 local console + 1 remote user (shared bus) |

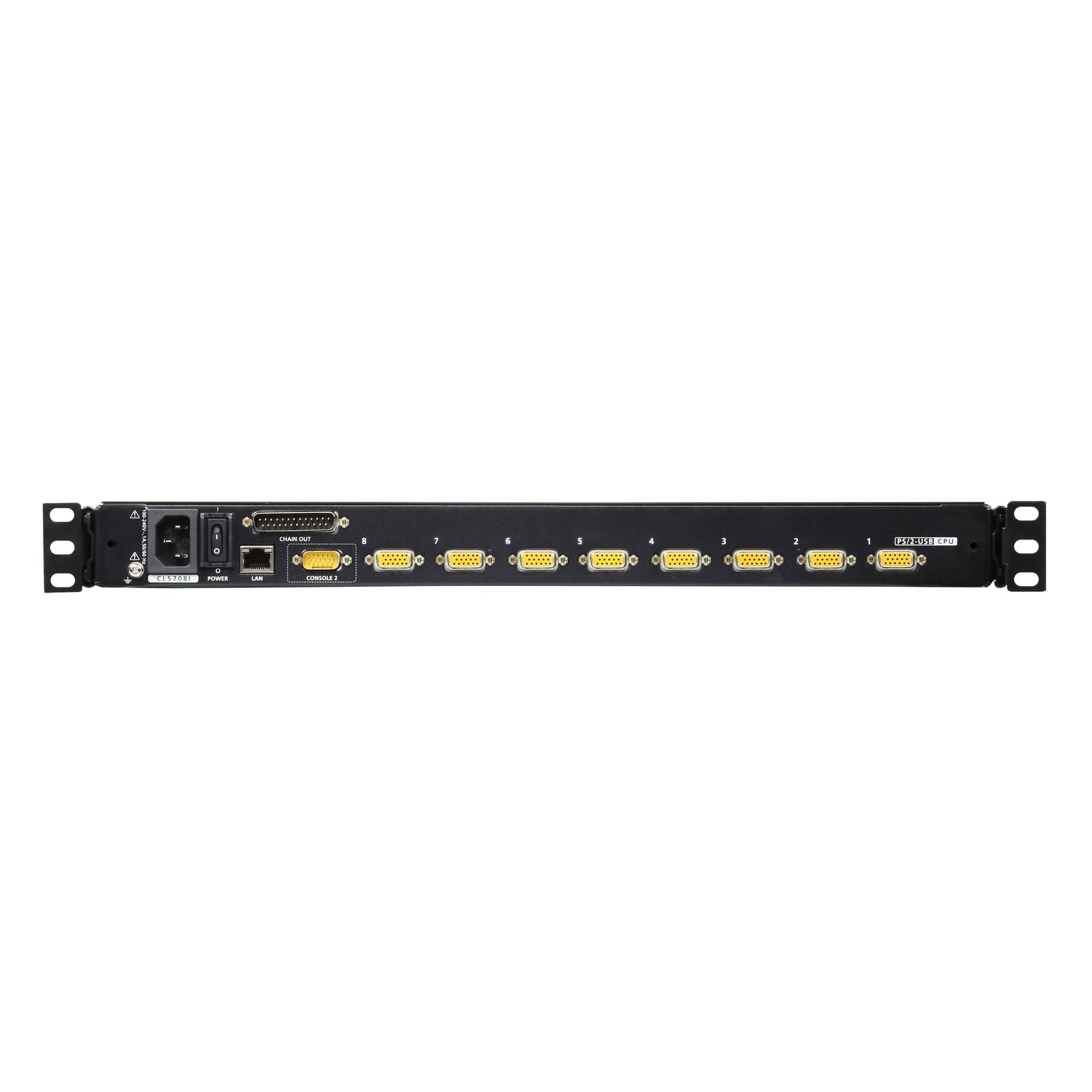

Connectors
| KVM Ports | 8 x SPHD Female |
| External Console | 1 x SPHD Male |
| Daisy Chain | 1 x DB-25 Male |
| LAN | 1 x RJ-45 Female |
| External Mouse | 1 x USB Type-A Female |
| USB Port | 1 x USB Type-A Female |
| Firmware Upgrade | 1 x RJ-11 Female |
| Power | 1 x IEC 60320/C14 |
LCD Panel
| Size | CL5708iM: 17"; CL5708iN: 19" (LED-backlit TFT-LCD) |
| Native Resolution | 1280 x 1024 @ 75 Hz |
| Response Time | 5 ms |
| Viewing Angle | 170° (H), 160° (V) |
| Brightness | 250 cd/m² |
| Contrast Ratio | 1000:1 |
| Colours | 16.7M |
Video and Remote Access
| Local Video | 1280 x 1024 @ 75 Hz |
| Remote Video | Up to 1920 x 1200 @ 60 Hz |
| Concurrent Logins | Up to 32 |
| Security | TLS 1.2 encryption; IP/MAC filtering |
| Authentication | RADIUS, LDAP, LDAPS, MS Active Directory |
Power
| Input | 100–240 V AC, 50–60 Hz, 1 A |
| Consumption (CL5708iM) | 26.8 W @ 110 V; 27.7 W @ 220 V |
| Consumption (CL5708iN) | 29 W @ 110 V; 29.8 W @ 220 V |
Environmental
| Operating Temperature | 0–50 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Form Factor | 1U single rail |
| Weight | CL5708iM: 13.49 kg; CL5708iN: 13.41 kg |
| Dimensions (L x W x H) | CL5708iM: 48.00 x 64.27 x 4.40 cm; CL5708iN: 48.00 x 68.92 x 4.40 cm |
Compatibility & Applications
Typical Computers
Servers and PCs with VGA video and PS/2 or USB keyboard/mouse, connected with ATEN SPHD KVM cables (2L-52xxU USB or PS/2 versions).
Typical Use
Server rooms, branch-office racks and data centres where IT staff need both in-rack console access and remote BIOS-level access to servers.
Selection Tip
Two custom KVM cables are included; order additional ATEN SPHD KVM cables for the remaining ports. Check rack depth against the 64.27 cm (17") or 68.92 cm (19") unit depth.
Package Contents & ATEN LCD KVM over IP Switch Ordering Information
In the Box
1 x CL5708i LCD KVM over IP Switch with standard rack mount kit, 2 x custom KVM cables (VGA, USB; 1.8 m), 1 x custom console cable (VGA, USB, PS/2; 27 cm), 1 x firmware upgrade cable (1.8 m), 1 x power cord, 1 x user instructions.
Available Options
| Option | Order code |
| 17" (CL5708iM) | CL5708IM-ATA-AE |
| 19" (CL5708iN) | CL5708IN-ATA-AE |
ATEN LCD KVM Switch Models
| Model | Key feature |
| CL5708i (this listing) | 8-port VGA single rail LCD KVM over IP, 17"/19" |
| CL5708 | 8-port VGA single rail LCD KVM switch, 17"/19" |
| CL5716M | 16-port VGA single rail LCD KVM switch, 17" |
| KL1508Ai | 8-port Cat 5 dual rail LCD KVM over IP, 17"/19" |
| KL1516Ai | 16-port Cat 5 dual rail LCD KVM over IP, 17"/19" |
| CL5808N | 8-port VGA dual rail LCD KVM switch |
| CS1716I | 16-port VGA KVM over IP switch (no console) |
Datasheet & Downloads
| Datasheet | CL5708i / CL5716i Datasheet (PDF) |
| User manual | CL5708i / CL5716i User Manual (PDF) |
| Quick start guide | CL5708i / CL5716i Quick Start Guide (PDF) |
| ATEN product page | CL5708i on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting CL5708IM-ATA-AE or CL5708IN-ATA-AE.
Frequently Asked Questions — ATEN CL5708iM / CL5708iN
What is the difference between CL5708iM and CL5708iN?
Screen size and depth. The CL5708iM has a 17" LCD and 64.27 cm depth; the CL5708iN has a 19" LCD and 68.92 cm depth. Both run the panel at 1280 x 1024 at 75 Hz with the same KVM over IP features.
Can I access servers remotely?
Yes. Built-in KVM over IP gives one remote user browser-based access at up to 1920 x 1200 at 60 Hz, sharing the bus with the local console.
How many cables are included?
Two custom USB/VGA KVM cables. Additional ATEN SPHD KVM cables are needed for the other six ports.
Can I control more than 8 servers?
Yes, up to 128 computers by daisy-chaining compatible ATEN KVM switches.
Which keyboard layout is supplied?
The pricebook lists these units with a US keyboard.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
