ATEN CL5708 8-Port PS/2-USB VGA Single Rail LCD KVM Switch, 17" / 19"
PRODUCT DESCRIPTION
ATEN CL5708 8-Port PS/2-USB VGA Single Rail LCD KVM Switch, 17" / 19" - 2 Years Local Warranty

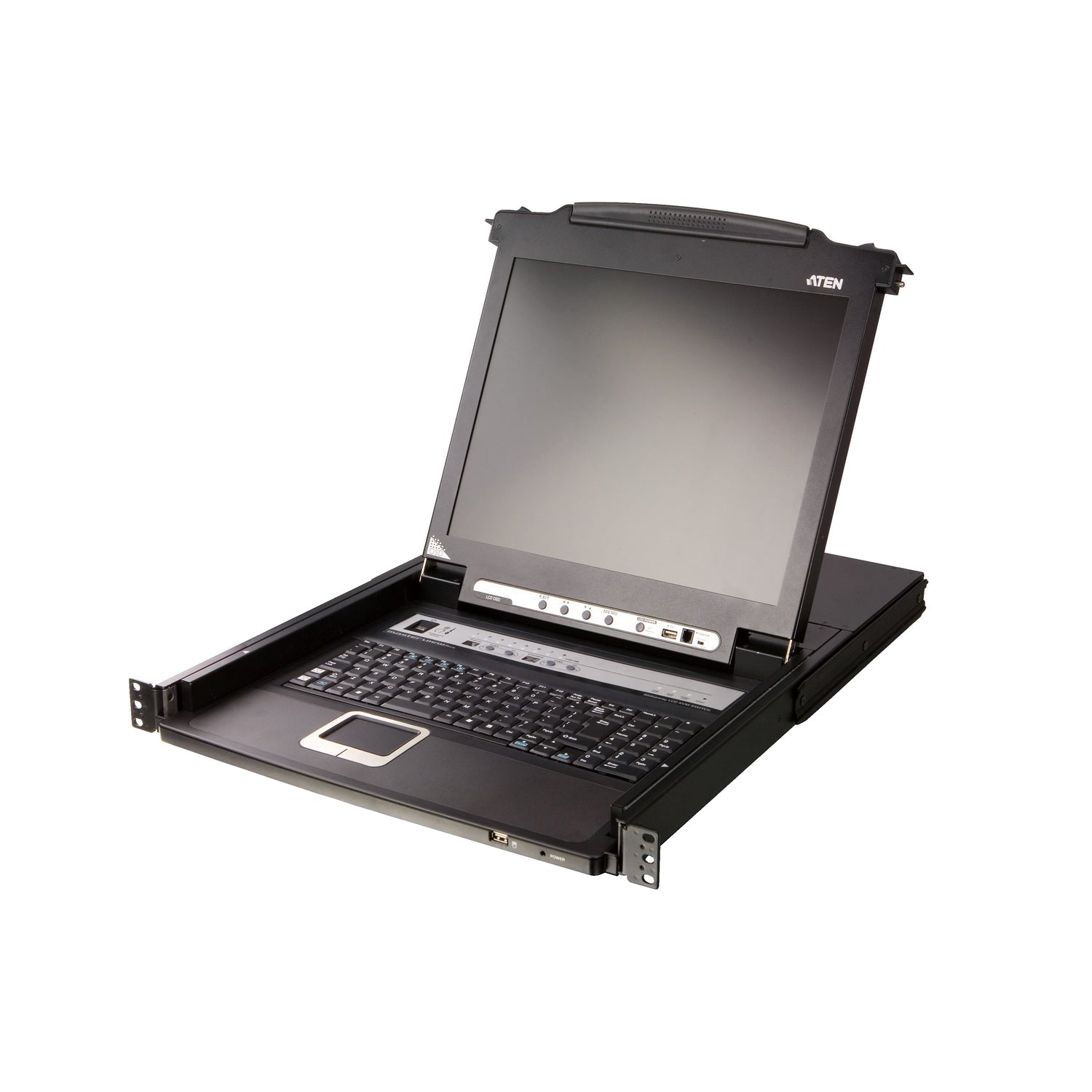

Console and 8-Port KVM in One 1U Drawer
The CL5708 Slideaway LCD KVM switch puts an LED-backlit LCD, keyboard and touchpad together with an 8-port KVM switch in a single 1U rack drawer, freeing rack space and replacing separate monitors, keyboards and switches.
Scale to 256 Computers
Daisy-chain up to 31 additional units to control up to 256 computers from one console. Select servers by OSD, hotkey or front-panel pushbutton, with Auto Scan at 1–255 second intervals.
Secure, Multilingual OSD
One administrator and four user accounts with separate profiles and two-level password security. The on-screen display is available in English, German, Japanese, Traditional Chinese and Simplified Chinese.
17" or 19" Panel
Both run at 1280 x 1024 at 75 Hz with 5 ms response and 250 cd/m² brightness. ATEN's LED illumination light lights the keyboard and touchpad in dim server rooms, and a USB port lets you share a peripheral.
Fitting out a server rack? Email sales@sourceit.com.sg for a project quote including KVM cables.
ATEN CL5708M / CL5708N Datasheet — Technical Specifications
General
| Product Name | ATEN 8-Port PS/2-USB VGA Single Rail LCD KVM Switch |
| Models | CL5708M (17"), CL5708N (19") |
| Order Codes | CL5708M-ATA-AE, CL5708N-ATA-AE |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Computer Connections
| Direct | 8 |
| Maximum | 256 (via daisy-chain of up to 31 additional units) |
| Port Selection | OSD, hotkey, pushbutton |

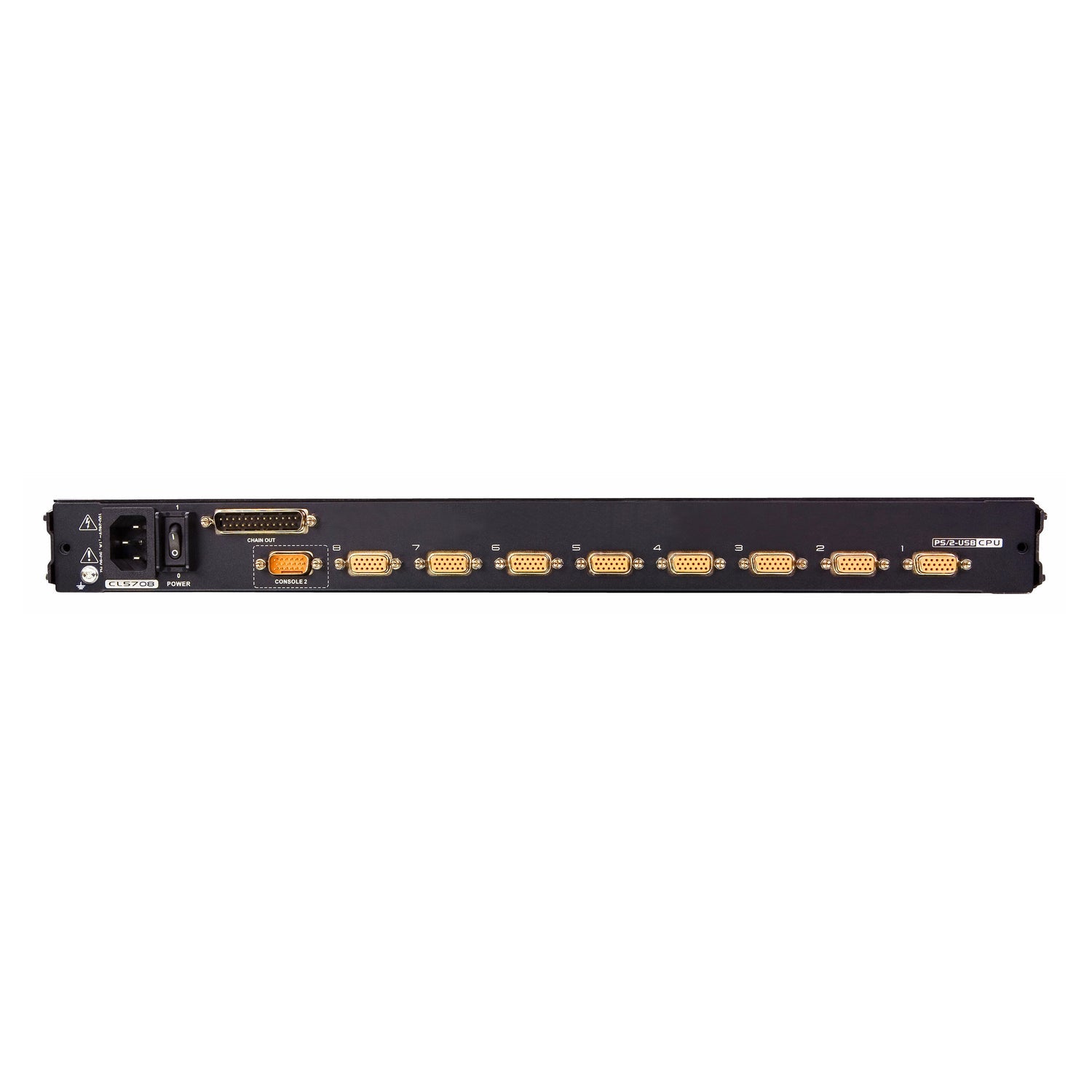

Connectors
| KVM Ports | 8 x SPHD Female (yellow) |
| Daisy Chain | 1 x DB-25 Male |
| External Console | 1 x SPHD Male (yellow) |
| USB Port | 1 x USB Type-A |
| Firmware Upgrade | 1 x RJ-11 Female |
| Power | 1 x IEC 60320/C14 |
LCD Panel
| Size | CL5708M: 17"; CL5708N: 19" (LED-backlit) |
| Resolution | 1280 x 1024 @ 75 Hz |
| Response Time | 5 ms |
| Viewing Angle | 170° (H), 160° (V) |
| Brightness | 250 cd/m² |
| Contrast Ratio | 1000:1 |
Video
| Video Input | Up to 1920 x 1200 @ 60 Hz; 1280 x 1024 @ 75 Hz; DDC2B |
| Scan Interval | 1–255 seconds |
Power
| Input | 100–240 V AC, 50/60 Hz, 1 A |
| Consumption (CL5708M) | 23.9 W @ 110 V; 25.1 W @ 220 V |
| Consumption (CL5708N) | 26.1 W @ 110 V; 27.2 W @ 220 V |
Environmental
| Operating Temperature | CL5708M: 0–40 °C; CL5708N: 0–50 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–85% RH, non-condensing |
Physical
| Form Factor | 1U single rail Slideaway |
| Weight | CL5708M: 13.47 kg; CL5708N: 13.39 kg |
| Dimensions (L x W x H) | CL5708M: 48.00 x 64.27 x 4.40 cm; CL5708N: 48.00 x 68.92 x 4.40 cm |
Compatibility & Applications
Typical Computers
Servers and PCs with VGA video and PS/2 or USB keyboard/mouse, connected with ATEN SPHD KVM cables such as the 2L-52xxU USB series.
Typical Use
Server rooms, network cabinets and data centres that need a local console for several servers in minimal rack space.
Selection Tip
This model is for local access only. If you also need remote access over the network, see the CL5708i KVM over IP version. Two KVM cables are included; order more for the remaining ports.
Package Contents & ATEN LCD KVM Switch Ordering Information
In the Box
1 x CL5708 with standard rack mount kit, 2 x custom KVM cables (VGA, USB; 1.8 m), 1 x custom console cable (27 cm), 1 x firmware upgrade cable (1.8 m), 1 x power cord, 1 x user instructions.
Available Options
| Option | Order code |
| 17" (CL5708M) | CL5708M-ATA-AE |
| 19" (CL5708N) | CL5708N-ATA-AE |
ATEN LCD KVM Switch Models
| Model | Key feature |
| CL5708 (this listing) | 8-port VGA single rail LCD KVM switch, 17"/19" |
| CL5716M | 16-port VGA single rail LCD KVM switch, 17" |
| CL5708i | 8-port VGA single rail LCD KVM over IP, 17"/19" |
| CL5808N | 8-port VGA dual rail LCD KVM switch |
| CL1308N | 8-port VGA LCD KVM switch |
| CL3108NX | 8-port short depth single rail LCD KVM switch |
| KL1508Ai | 8-port Cat 5 dual rail LCD KVM over IP |
Datasheet & Downloads
| Datasheet | CL5708 / CL5716 Datasheet (PDF) |
| User manual | CL5708 / CL5716 User Manual (PDF) |
| Quick start guide | CL5708 / CL5716 Quick Start Guide (PDF) |
| ATEN product page | CL5708 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting CL5708M-ATA-AE or CL5708N-ATA-AE.
Frequently Asked Questions — ATEN CL5708M / CL5708N
What is the difference between CL5708M and CL5708N?
The CL5708M has a 17" LCD and 64.27 cm depth; the CL5708N has a 19" LCD and 68.92 cm depth. Both have a 1280 x 1024 at 75 Hz panel and the same 8-port KVM features.
Is this a Full HD console?
No. The CL5708M and CL5708N panels are 1280 x 1024. ATEN's Full HD variant is the 17.3" CL5708MW, which is not part of this listing.
Does it support remote access over the network?
No, it is a local console. For remote access choose the CL5708i KVM over IP version.
How many computers can I manage?
Eight directly, or up to 256 by daisy-chaining up to 31 additional units.
Which keyboard layout is supplied?
The pricebook lists these units with a US keyboard.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
