ATEN CL3108NX 18.5" 8-Port PS/2-USB VGA Single Rail WideScreen LCD KVM Switch
PRODUCT DESCRIPTION
ATEN CL3108NX 18.5" 8-Port PS/2-USB VGA Single Rail WideScreen LCD KVM Switch - 2 Years Local Warranty
Widescreen Console with 8-Port KVM

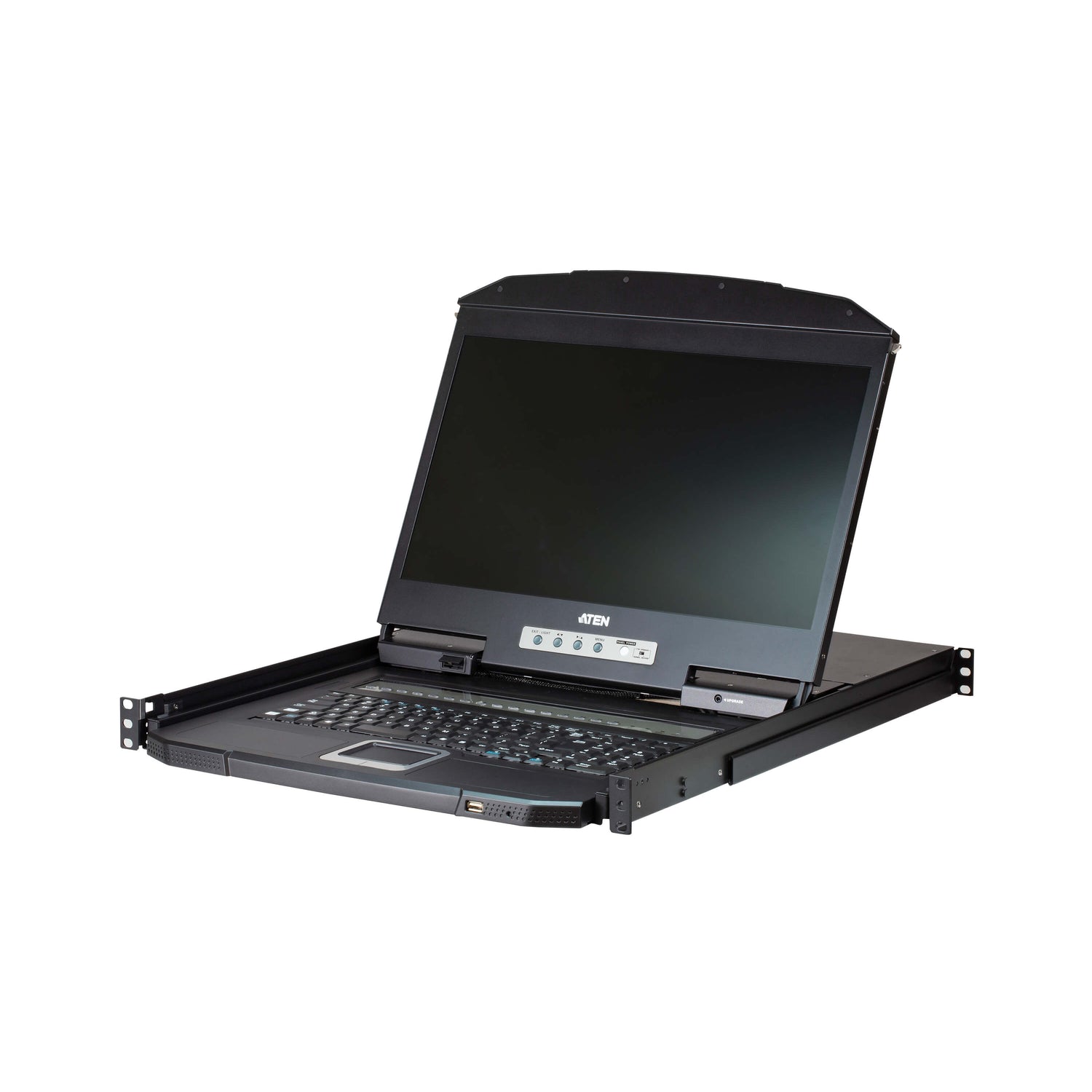

The CL3108NX combines an 18.5" widescreen LCD, keyboard, touchpad and an 8-port KVM switch in one 1U single rail drawer. Control eight servers directly, or up to 128 by cascading.
Bright Widescreen Panel
The 18.5" panel runs at 1366 x 768 at 60 Hz with 5 ms response and a bright 450 cd/m² luminance, and accepts input up to 1920 x 1200 at 60 Hz.
PS/2 or USB Servers
Computers with PS/2 or USB keyboards and mice are supported. Select ports by pushbutton, hotkey or OSD, with password security and Broadcast Mode.
Shallower than Standard
At 63.1 cm deep and 4.28 cm high, it is shorter than ATEN's standard 19" LCD KVM switches, and the LED illumination light keeps the keyboard visible in dim racks.
Need integrated consoles across several racks? Email sales@sourceit.com.sg for a project quote including KVM cables.
ATEN CL3108NX Datasheet — Technical Specifications
General
| Product Name | ATEN 8-Port PS/2-USB VGA Single Rail WideScreen LCD KVM Switch |
| Model | CL3108NX (18.5") |
| Order Code | CL3108NX-ATA-AE |
| Keyboard | US English keyboard layout (-ATA-AE order code) |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Computer Connections
| Direct | 8 |
| Maximum | 128 (via cascade) |
| Port Selection | OSD, hotkey, pushbutton |
Connectors

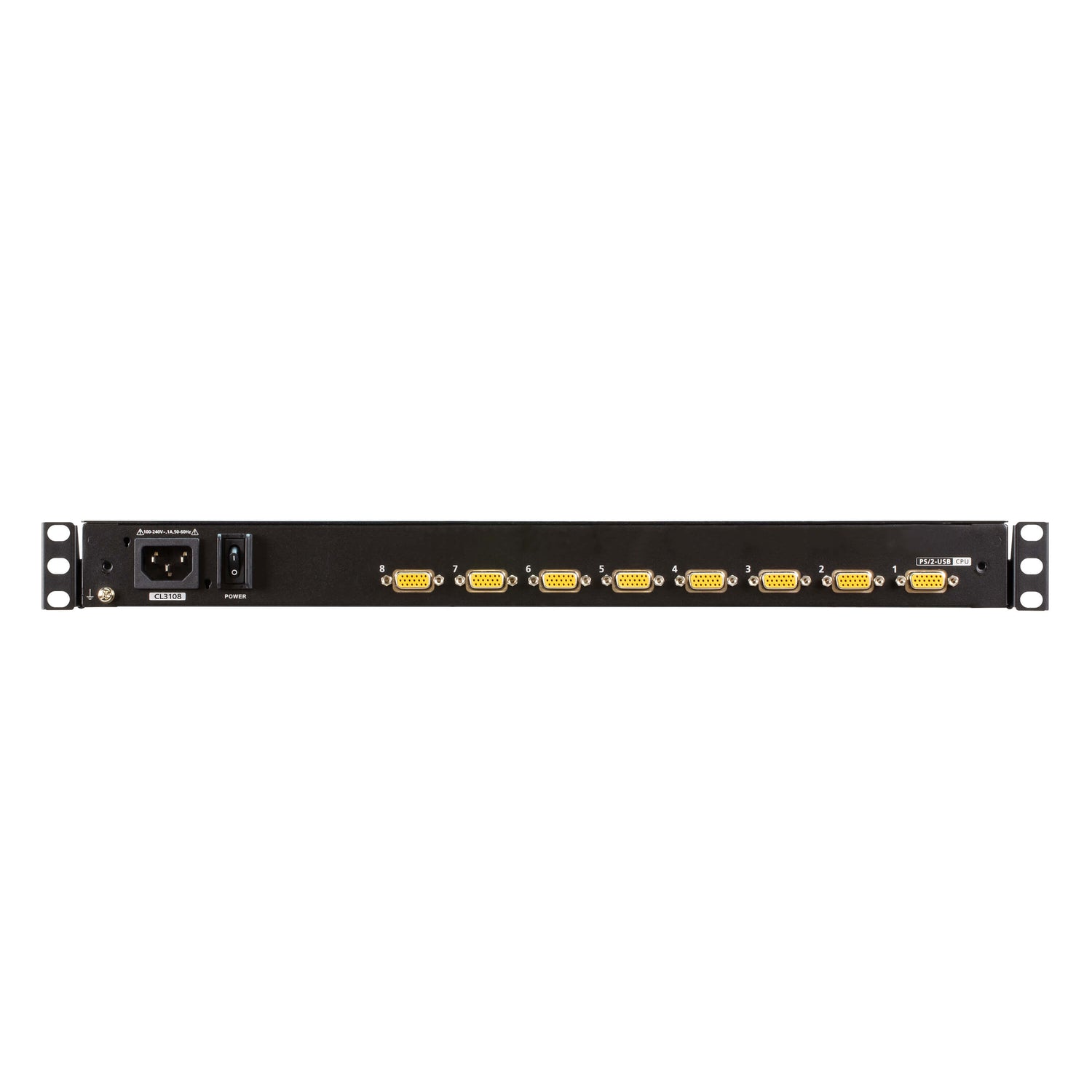

| KVM Ports | 8 x SPHD Female (yellow) |
| External Mouse | 1 x USB Type-A Female (front) |
| Firmware Upgrade | 1 x 3.5 mm jack |
| Power | 1 x IEC 60320/C14 |
LCD Panel
| LCD Module | 18.5" widescreen TFT-LCD, LED-backlit |
| Native Resolution | 1366 x 768 @ 60 Hz |
| Response Time | 5 ms |
| Viewing Angle | 170° (H), 160° (V) |
| Contrast Ratio | 1000:1 |
| Luminance | 450 cd/m² |
Video & Emulation
| Input Resolution | Up to 1920 x 1200 @ 60 Hz; 1366 x 768 @ 60 Hz; DDC2B |
| Keyboard / Mouse | PS/2, USB |
Power & Environmental
| Input Power | 100–240 V AC, 50–60 Hz, 1 A |
| Power Consumption | 14.1 W (AC110V); 14.9 W (AC220V) |
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Rail Type | Single rail, 1U |
| Weight | 10.50 kg |
| Dimensions (L x W x H) | 48.06 x 63.10 x 4.28 cm |
Compatibility & Applications
Typical Computers
Rack servers and PCs with VGA video and PS/2 or USB keyboard/mouse, connected via ATEN SPHD custom KVM cables.
Typical Use
Server rooms and comms racks with up to eight servers where a widescreen console and slightly shallower chassis suit the rack.
Cabling Tip
Two VGA/USB custom KVM cables are included. Order additional ATEN SPHD KVM cables for the other six ports.
Package Contents & ATEN LCD KVM Switch Ordering Information
In the Box
1 x CL3108NX LCD KVM switch with standard rack mounting kit, 2 x custom KVM cables (VGA, USB; 1.8 m), 1 x firmware upgrade cable (1.8 m), 1 x power cord, 1 x user instructions.
ATEN LCD KVM Console Models
| Model | Key feature |
| CL1000M | 17" single rail LCD console (PS/2-USB, VGA) |
| CL6700MW | 17.3" FHD single rail LCD console (USB, HDMI / DVI / VGA) |
| CL3700NW | 18.5" FHD ultra short depth LCD console (USB, HDMI) |
| CL5800N | 19" dual rail LCD console (PS/2-USB, VGA) |
| CL5716M | 17" 16-port VGA single rail LCD KVM switch |
| CL1308N | 19" 8-port VGA single rail LCD KVM switch |
| CL3108NX (this listing) | 18.5" 8-port VGA widescreen single rail LCD KVM switch |
| CL5808N | 19" 8-port VGA dual rail LCD KVM switch |
| KL1108VN | 19" 8-port Cat 5 dual rail LCD KVM over IP switch |
| CL5708IN | 19" 8-port VGA LCD KVM over IP switch |
Datasheet & Downloads
| Datasheet | CL3108 / CL3116 Datasheet (PDF) |
| User manual | CL3108 / CL3116 User Manual (PDF) |
| Quick start guide | CL3108 / CL3116 Quick Start Guide (PDF) |
| ATEN product page | CL3108 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting CL3108NX-ATA-AE.
Frequently Asked Questions — ATEN CL3108NX
What is the screen resolution?
18.5" widescreen, native 1366 x 768 at 60 Hz, with input up to 1920 x 1200 at 60 Hz.
How many servers can it control?
Eight directly, or up to 128 via cascade.
How many KVM cables are included?
Two VGA/USB custom KVM cables.
How deep is it?
63.10 cm (48.06 x 63.10 x 4.28 cm).
Does it support PS/2 servers?
Yes. PS/2 and USB keyboard/mouse are supported.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
