ATEN CL1308N 19" 8-Port PS/2-USB VGA Single Rail LCD KVM Switch
PRODUCT DESCRIPTION
ATEN CL1308N 19" 8-Port PS/2-USB VGA Single Rail LCD KVM Switch - 2 Years Local Warranty
19" Console and 8-Port KVM in 1U

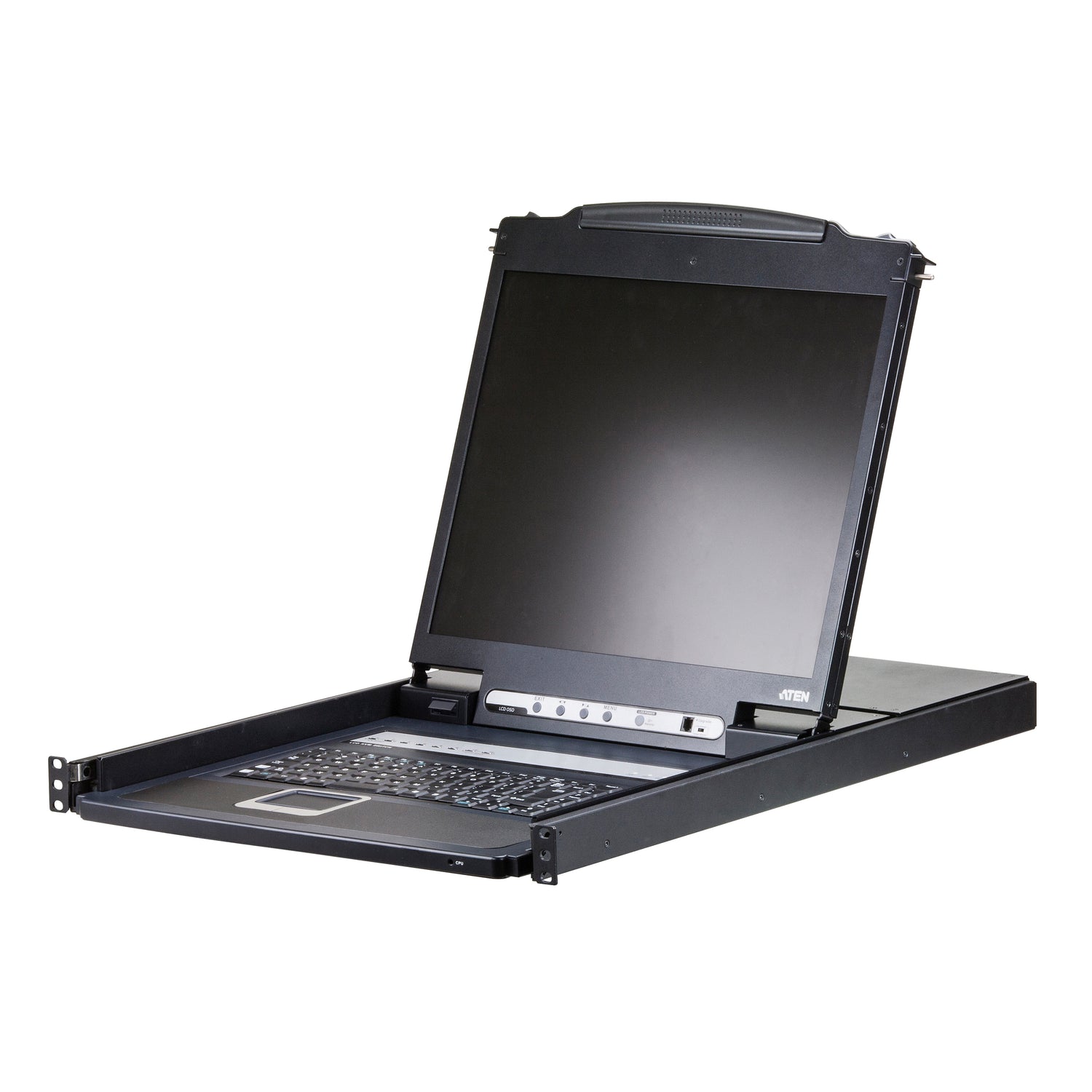

The CL1308N integrates a 19" LED-backlit LCD, keyboard, touchpad and an 8-port KVM switch in one 1U single rail drawer. Control eight servers directly from the rack, or cascade to two levels for up to 128.
PS/2 or USB, Any Platform
Dual Interface supports computers with PS/2 or USB keyboards and mice, and keyboard/mouse emulation lets computers boot even when the console is on another port. Windows, Linux, Mac and Sun are supported.
Easy to Operate
Select servers by front-panel pushbuttons, hotkeys or OSD. Two-level password security, Auto Scan and Broadcast Mode are built in, with keyboard support for 14 languages.
Clear 19" Panel

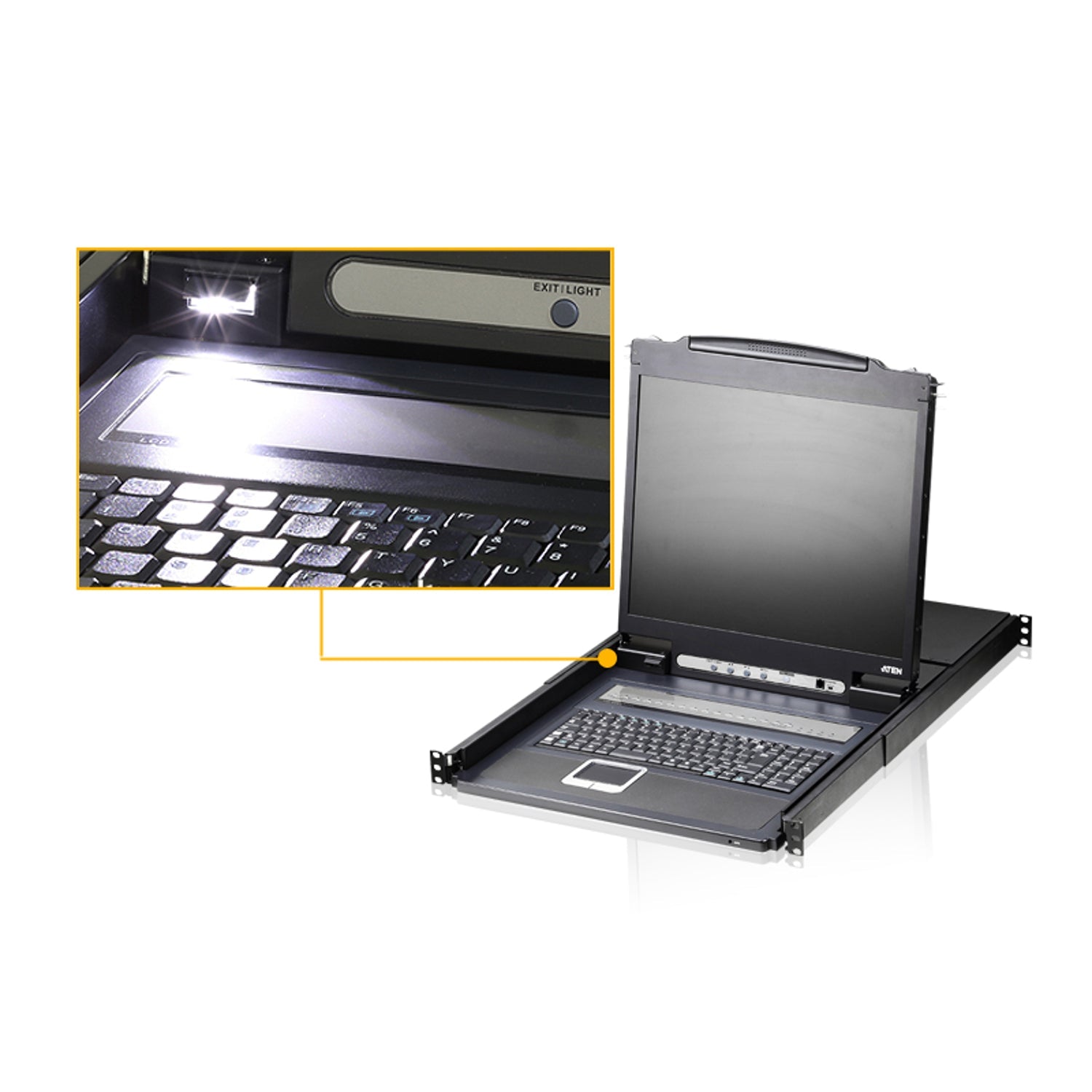

The panel runs at 1280 x 1024 at 75 Hz with 5 ms response and accepts input up to 1920 x 1200 at 60 Hz. ATEN's LED illumination light lights the keyboard and touchpad in dim racks.
Fitting out server racks with integrated consoles? Email sales@sourceit.com.sg for a project quote including KVM cables.
ATEN CL1308N Datasheet — Technical Specifications
General
| Product Name | ATEN 8-Port PS/2-USB VGA Single Rail LCD KVM Switch |
| Model | CL1308N (19") |
| Order Code | CL1308N-ATA-AE |
| Keyboard | US English keyboard layout (-ATA-AE order code) |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Computer Connections
| Direct | 8 |
| Maximum | 128 (via cascade) |
| Port Selection | OSD, hotkey, pushbutton |
Connectors

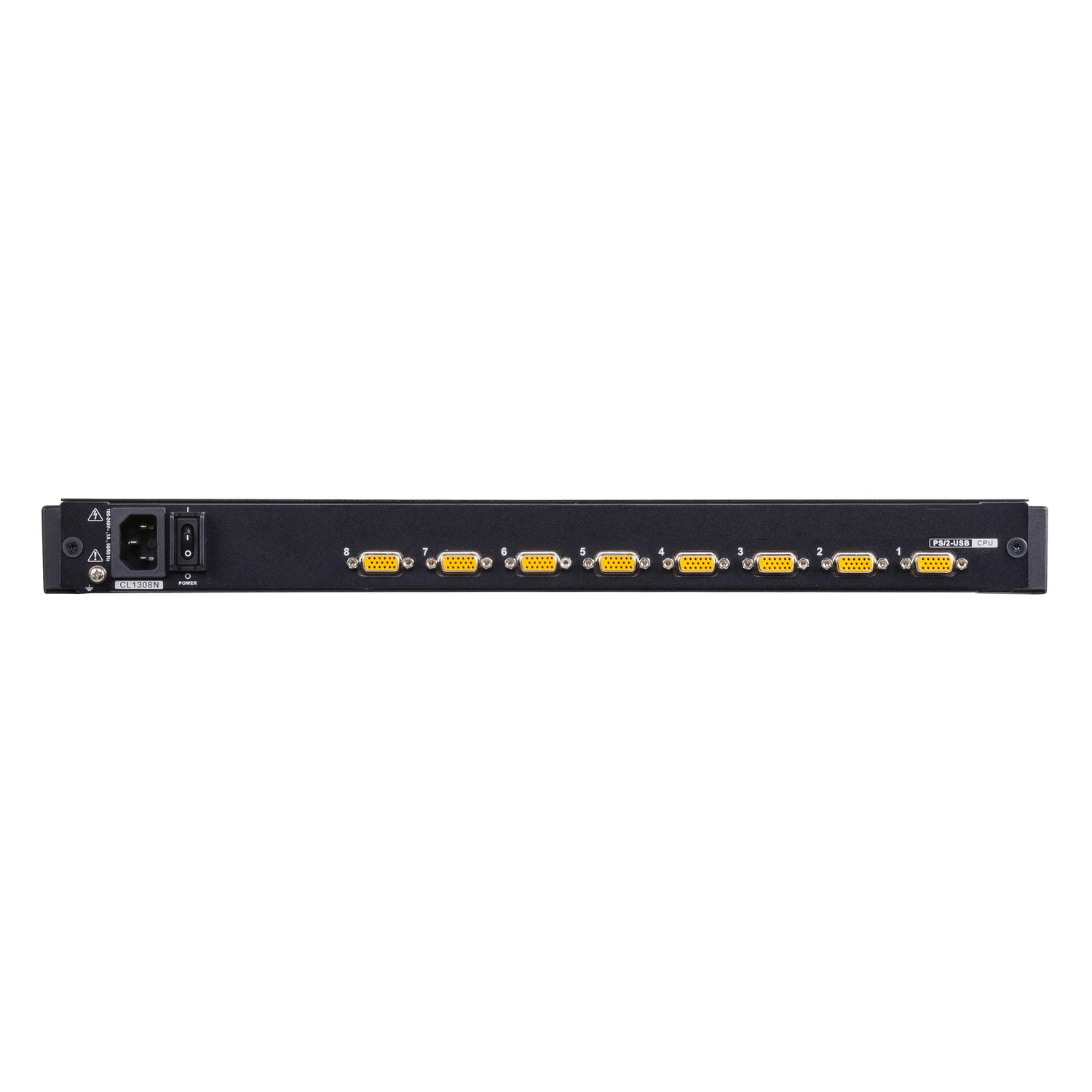

| KVM Ports | 8 x SPHD Female (yellow) |
| Firmware Upgrade | 1 x RJ-11 Female |
| Power | 1 x IEC 60320/C14 |
LCD Panel
| LCD Module | 19" TFT-LCD, LED-backlit |
| Native Resolution | 1280 x 1024 @ 75 Hz |
| Response Time | 5 ms |
| Viewing Angle | 170° (H), 160° (V) |
| Pixel Pitch | 0.294 x 0.294 mm |
| Colours | 16.77 M |
| Contrast Ratio | 1000:1 |
| Luminance | 250 cd/m² |
Video & Emulation
| Input Resolution | Up to 1920 x 1200 @ 60 Hz; 1280 x 1024 @ 75 Hz; DDC2B |
| Keyboard / Mouse | PS/2, USB |
| Scan Interval | 1–255 seconds |
Power & Environmental
| Input Power | 100–240 V AC, 50–60 Hz, 1 A |
| Power Consumption | 24.4 W, 114 BTU/h (AC110V); 24.7 W, 116 BTU/h (AC220V) |
| Operating Temperature | 0–50 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Metal + plastic |
| Rail Type | Single rail, 1U |
| Weight | 12.59 kg |
| Dimensions (L x W x H) | 48.30 x 68.92 x 4.40 cm |
Compatibility & Applications
Typical Computers
Rack servers and PCs with VGA video and PS/2 or USB keyboard/mouse, connected via ATEN SPHD custom KVM cables.
Typical Use
Small to mid-size server rooms, comms cabinets and branch racks with up to eight servers per console.
Cabling Tip
Two VGA/USB custom KVM cables are included. Order additional ATEN SPHD KVM cables for the other six ports.
Package Contents & ATEN LCD KVM Switch Ordering Information
In the Box
1 x CL1308N LCD KVM switch with rack mount kit, 2 x custom KVM cables (VGA, USB; 1.8 m), 1 x firmware upgrade cable, 1 x power cord, 1 x user instructions.
ATEN LCD KVM Console Models
| Model | Key feature |
| CL1000M | 17" single rail LCD console (PS/2-USB, VGA) |
| CL6700MW | 17.3" FHD single rail LCD console (USB, HDMI / DVI / VGA) |
| CL3700NW | 18.5" FHD ultra short depth LCD console (USB, HDMI) |
| CL5800N | 19" dual rail LCD console (PS/2-USB, VGA) |
| CL5716M | 17" 16-port VGA single rail LCD KVM switch |
| CL1308N (this listing) | 19" 8-port VGA single rail LCD KVM switch |
| CL3108NX | 18.5" 8-port VGA widescreen single rail LCD KVM switch |
| CL5808N | 19" 8-port VGA dual rail LCD KVM switch |
| KL1108VN | 19" 8-port Cat 5 dual rail LCD KVM over IP switch |
| CL5708IN | 19" 8-port VGA LCD KVM over IP switch |
Datasheet & Downloads
| Datasheet | CL1308 / CL1316 Datasheet (PDF) |
| User manual | CL1308 / CL1316 User Manual (PDF) |
| Quick start guide | CL1308 / CL1316 Quick Start Guide (PDF) |
| Rack installation guide | LCD KVM Standard Rack Mount Installation Guide (PDF) |
| ATEN product page | CL1308 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting CL1308N-ATA-AE.
Frequently Asked Questions — ATEN CL1308N
How many servers can it control?
Eight directly, or up to 128 by cascading to two levels.
How many KVM cables are included?
Two VGA/USB custom KVM cables. Additional cables are needed for the other ports.
Can servers boot while I am on another port?
Yes. Keyboard and mouse emulation lets computers boot even when the console focus is elsewhere.
What is the screen resolution?
19", native 1280 x 1024 at 75 Hz, with input up to 1920 x 1200 at 60 Hz.
Is the rack kit included?
Yes. It ships with a rack mount kit.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
