ATEN CL1000M 17" Single Rail LCD Console (PS/2-USB, VGA)
PRODUCT DESCRIPTION
ATEN CL1000M 17" Single Rail LCD Console (PS/2-USB, VGA) - 2 Years Local Warranty

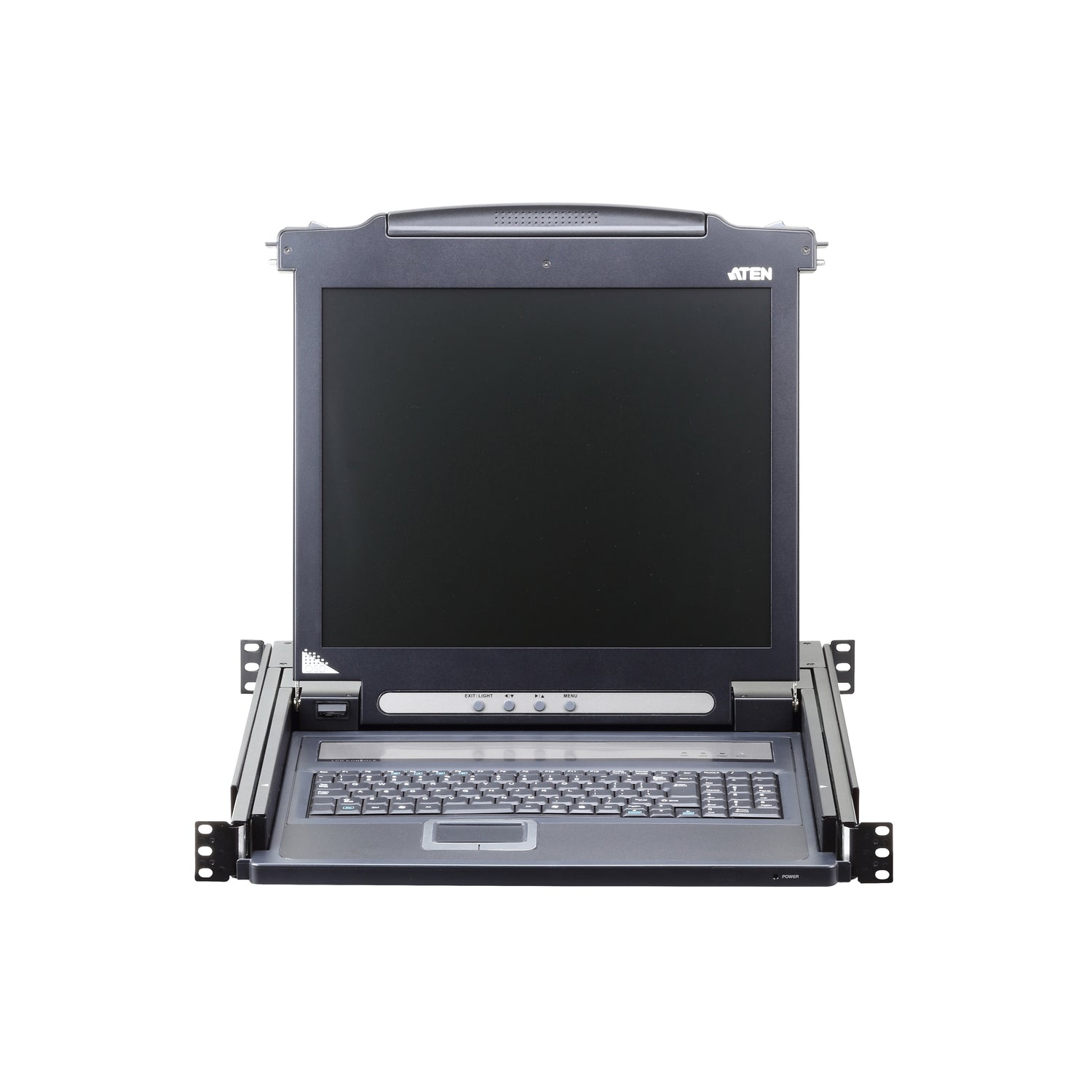

Monitor, Keyboard and Touchpad in 1U
The CL1000M puts a 17" LCD monitor, keyboard and touchpad into a single 1U rack drawer. Slide it out to work on a server or KVM switch, then fold it away to free the rack space and keep the cabinet tidy.

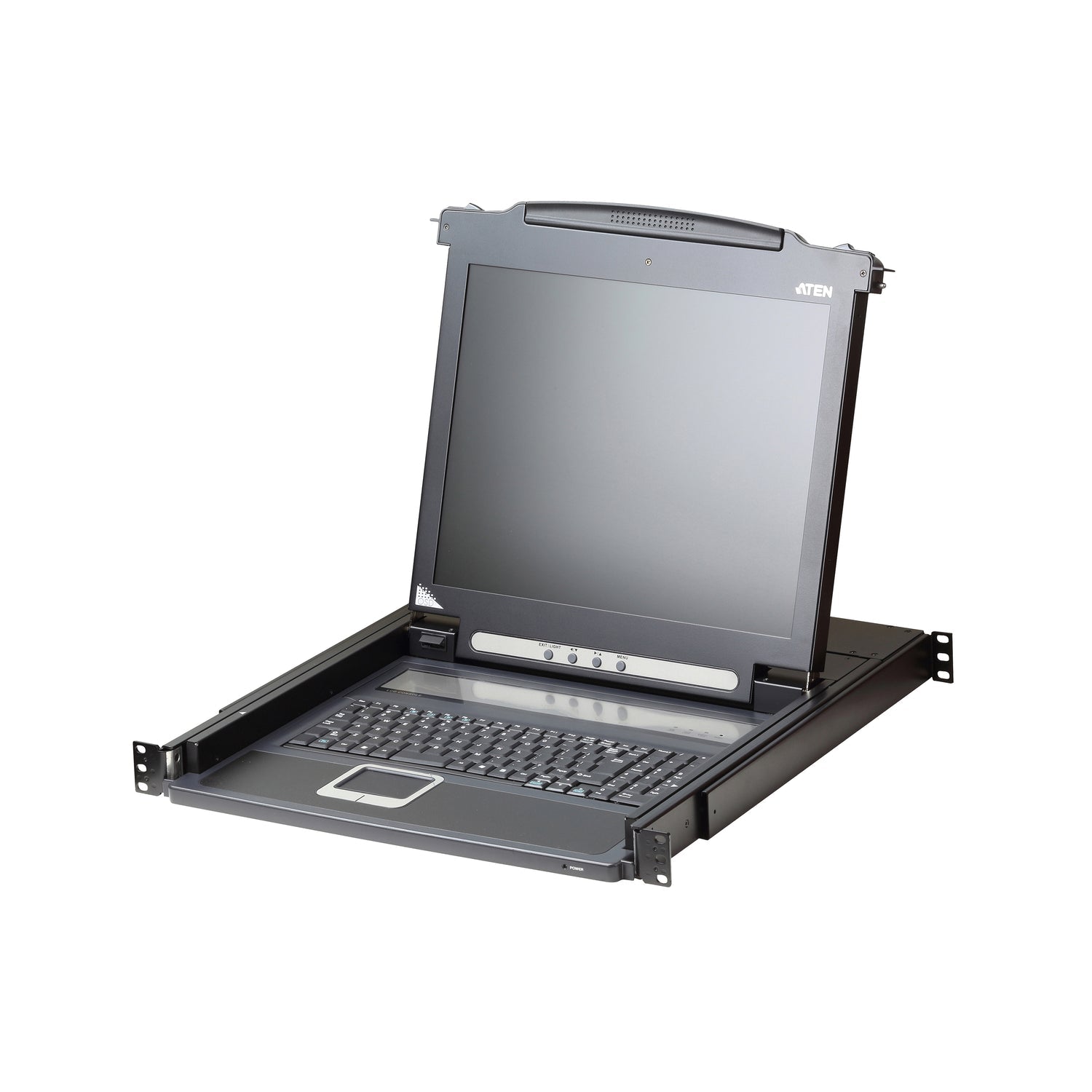

Clear 17" Display
The 17" TFT-LCD runs at 1280 x 1024 at 75 Hz with a 5 ms response time, 1000:1 contrast and 250 cd/m² brightness. It accepts VGA input up to 1920 x 1200 at 60 Hz, and the panel tilts up to 120 degrees.
Works with Any Rack KVM
This is a console only, with one SPHD KVM port. Connect it directly to one server or to a rack KVM switch such as the CS1708A to control many servers. PS/2 or USB keyboard/mouse connections are supported via ATEN 2L-520xUP cables.
Designed for Dark Server Rooms

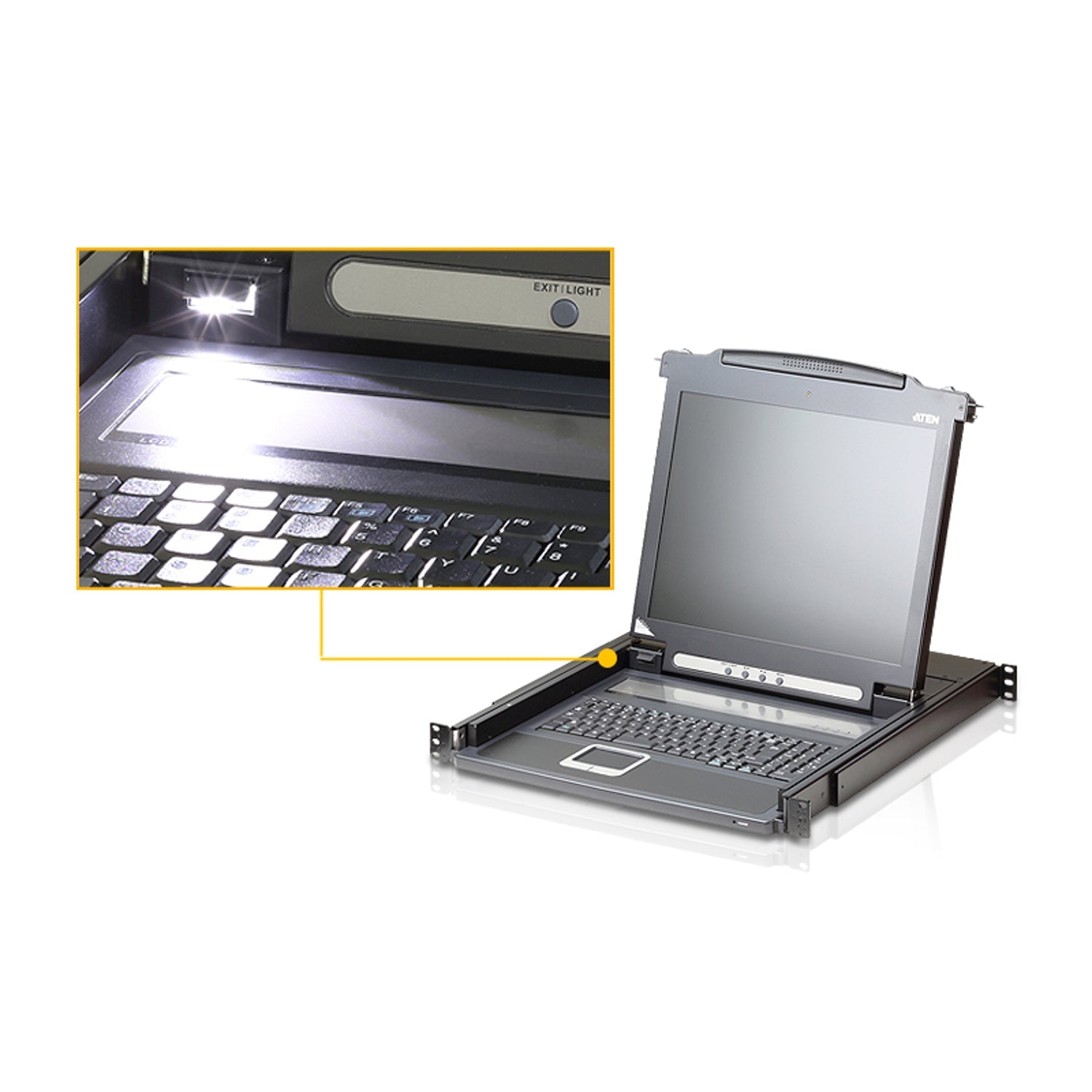

ATEN's LED illumination light lights the keyboard and touchpad, and the single rail design installs with the supplied standard rack mount kit.
Need consoles for several racks? Email sales@sourceit.com.sg for volume pricing and rack kit advice.
ATEN CL1000M Datasheet — Technical Specifications
General
| Product Name | ATEN Single Rail LCD Console (PS/2-USB, VGA) |
| Model | CL1000M (17") |
| Order Code | CL1000M-ATA-AE |
| Keyboard | US English keyboard layout (-ATA-AE order code) |
| Local Warranty (Singapore) | 2 years carry-in warranty |

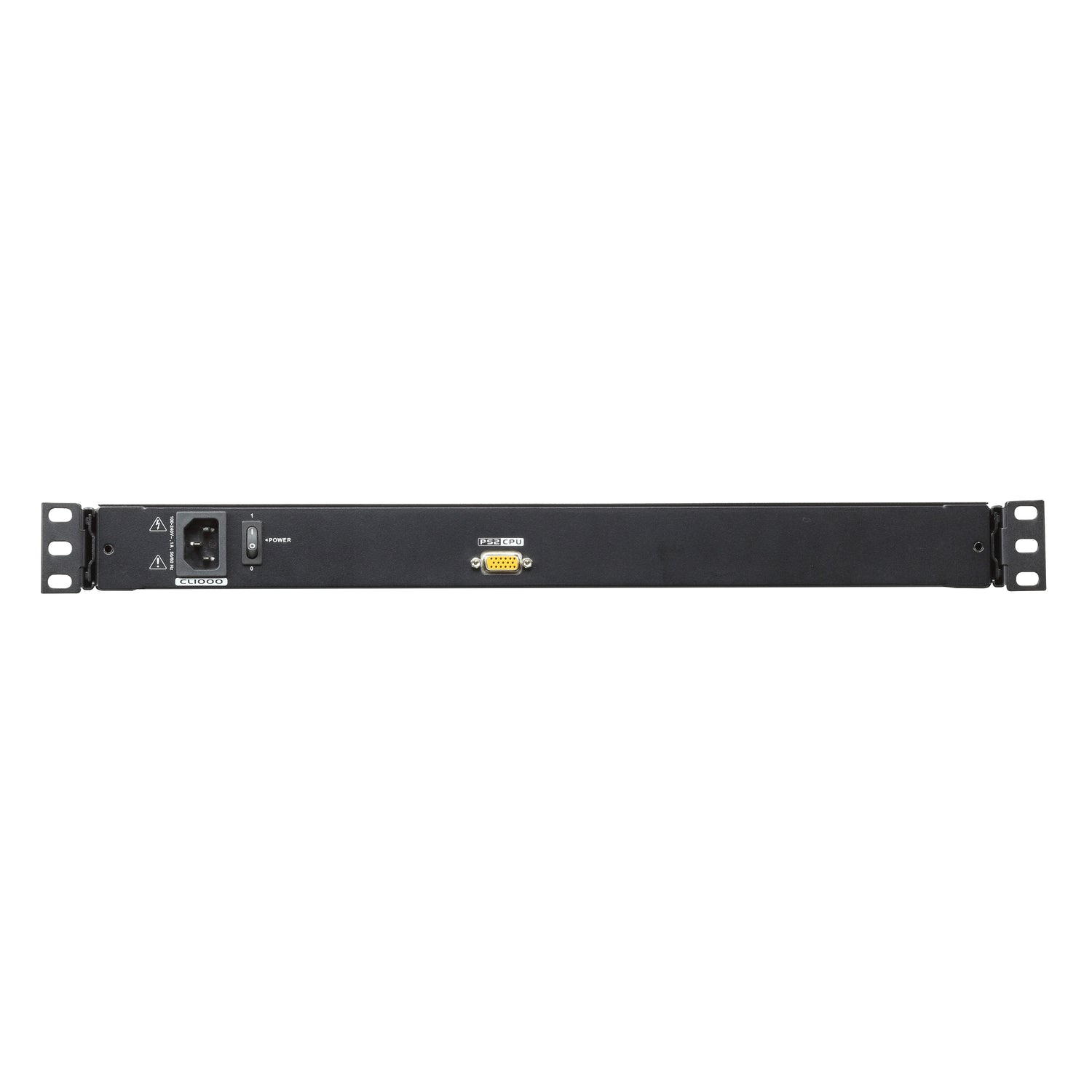

Connections
| Computer Connections | 1 (direct) |
| KVM Port | 1 x SPHD Female (yellow) |
| Power | 1 x IEC 60320/C14 |
| Keyboard / Mouse | PS/2, USB (via 2L-520xUP cables) |
LCD Panel
| LCD Module | 17" TFT-LCD, LED-backlit |
| Native Resolution | 1280 x 1024 @ 75 Hz |
| Response Time | 5 ms |
| Viewing Angle | 170° (H), 160° (V) |
| Pixel Pitch | 0.264 x 0.264 mm |
| Colours | 16.7 M |
| Contrast Ratio | 1000:1 |
| Luminance | 250 cd/m² |
Video
| Input Resolution | Up to 1920 x 1200 @ 60 Hz; 1280 x 1024 @ 75 Hz; DDC2B |
| Panel Rotation | Up to 120° |
Power & Environmental
| Input Power | 100–240 V AC, 50–60 Hz, 1 A |
| Power Consumption | 19.6 W (AC110V); 21.3 W (AC220V) |
| Operating Temperature | 0–50 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Metal and plastic |
| Rail Type | Single rail, 1U |
| Weight | 12.02 kg |
| Dimensions (L x W x H) | 48.00 x 53.83 x 4.40 cm |
Compatibility & Applications
Typical Connections
A single VGA server, or the console port of a rack KVM switch such as the CS1708A, CS17916 or KH1508A (with suitable console cabling).
Typical Use
Server rooms, comms cabinets and data centre racks that need a local console without a monitor and keyboard on a cart.
Selection Tip
The CL1000M is a console only. If you want the KVM switch built in, choose an LCD KVM switch such as the CL1308N (8-port) or CL5716M (16-port).
Package Contents & ATEN LCD Console Ordering Information
In the Box
1 x CL1000M LCD console with standard rack mount kit, 1 x custom KVM cable (VGA, USB; 1.8 m), 1 x power cord, 1 x user instructions.
ATEN LCD KVM Console Models
| Model | Key feature |
| CL1000M (this listing) | 17" single rail LCD console (PS/2-USB, VGA) |
| CL6700MW | 17.3" FHD single rail LCD console (USB, HDMI / DVI / VGA) |
| CL3700NW | 18.5" FHD ultra short depth LCD console (USB, HDMI) |
| CL5800N | 19" dual rail LCD console (PS/2-USB, VGA) |
| CL5716M | 17" 16-port VGA single rail LCD KVM switch |
| CL1308N | 19" 8-port VGA single rail LCD KVM switch |
| CL3108NX | 18.5" 8-port VGA widescreen single rail LCD KVM switch |
| CL5808N | 19" 8-port VGA dual rail LCD KVM switch |
| KL1108VN | 19" 8-port Cat 5 dual rail LCD KVM over IP switch |
| CL5708IN | 19" 8-port VGA LCD KVM over IP switch |
Datasheet & Downloads
| Datasheet | CL1000 Datasheet (PDF) |
| User manual | CL1000M / CL1000N User Manual (PDF) |
| Quick start guide | CL1000M Quick Start Guide (PDF) |
| Rack installation guide | LCD KVM Standard Rack Mount Installation Guide (PDF) |
| ATEN product page | CL1000 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting CL1000M-ATA-AE.
