ATEN CE820 USB HDMI HDBaseT 2.0 KVM Extender (4K@100 m)
PRODUCT DESCRIPTION
ATEN CE820 USB HDMI HDBaseT 2.0 KVM Extender (4K@100 m) - 2 Years Local Warranty
Put the PC Away, Keep the Desk

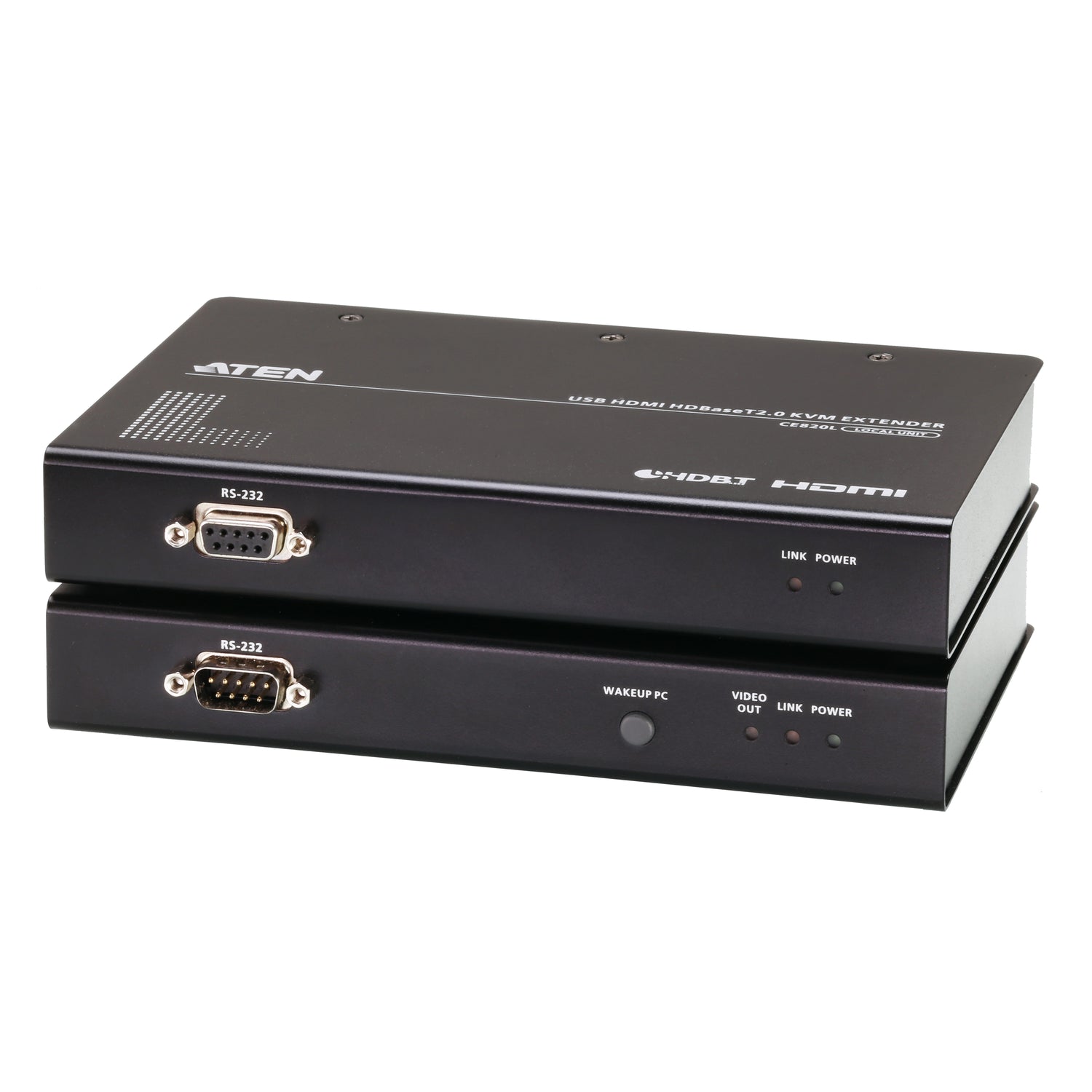

The CE820 kit lets you operate a computer from up to 100 m away. Keyboard, mouse, a 4K HDMI display, stereo audio and RS-232 travel over a single Cat cable from the CE820L local unit at the computer to the CE820R remote unit at the user's desk.
HDBaseT 2.0 Performance
4K reaches 100 m over Cat 6/6a or ATEN 2L-2910 (90 m over Cat 5e) and 1080p reaches 100 m. Long Reach mode stretches 1080p to 150 m. Enhanced bit error detection and correction resists interference, and an EDID buffer ensures a clean power-up.
USB, Audio and Serial Too
Three USB Type-A ports on the CE820R remote unit run at USB 2.0 full speed for keyboard, mouse and other peripherals. Individual 2-channel stereo audio and RS-232 pass-through are included, and a wake-up button on the remote unit can wake the PC.
Built for Industrial and Secure Sites
HDMI 3D, Deep Color and 4K are supported with HDCP 2.2. Metal housings, locking DC jacks and 8 kV / 15 kV ESD protection suit factories, control rooms and clean rooms.
Moving workstations into a server room or control cabinet? Email sales@sourceit.com.sg for a project quote and configuration advice.
ATEN CE820 Datasheet — Technical Specifications
General
| Product Name | ATEN USB HDMI HDBaseT 2.0 KVM Extender |
| Model | CE820 (CE820L local unit + CE820R remote unit) |
| Order Code | CE820-ATA-E |
| Local Warranty (Singapore) | 2 years carry-in warranty |

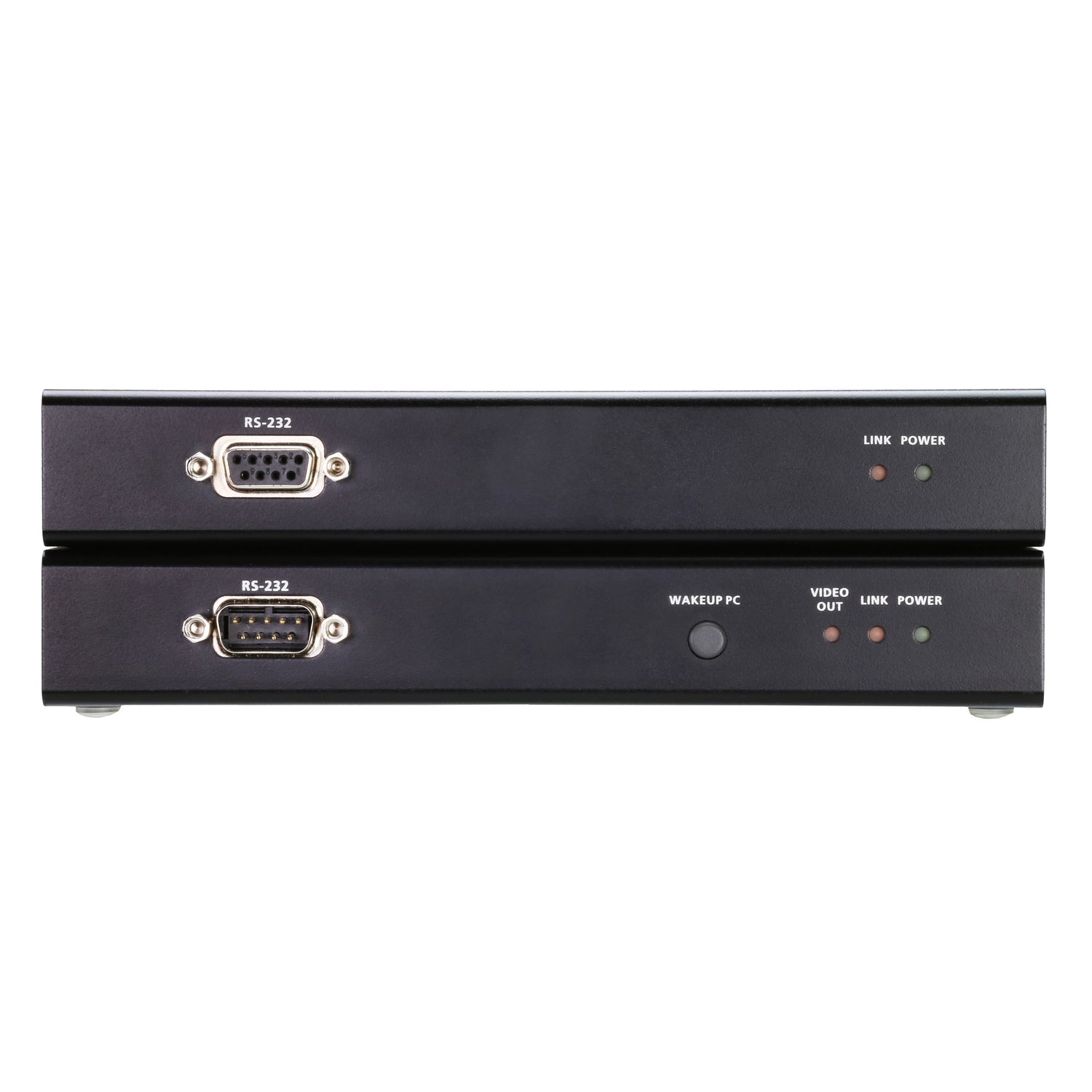

CE820L Local Unit (Computer Side)

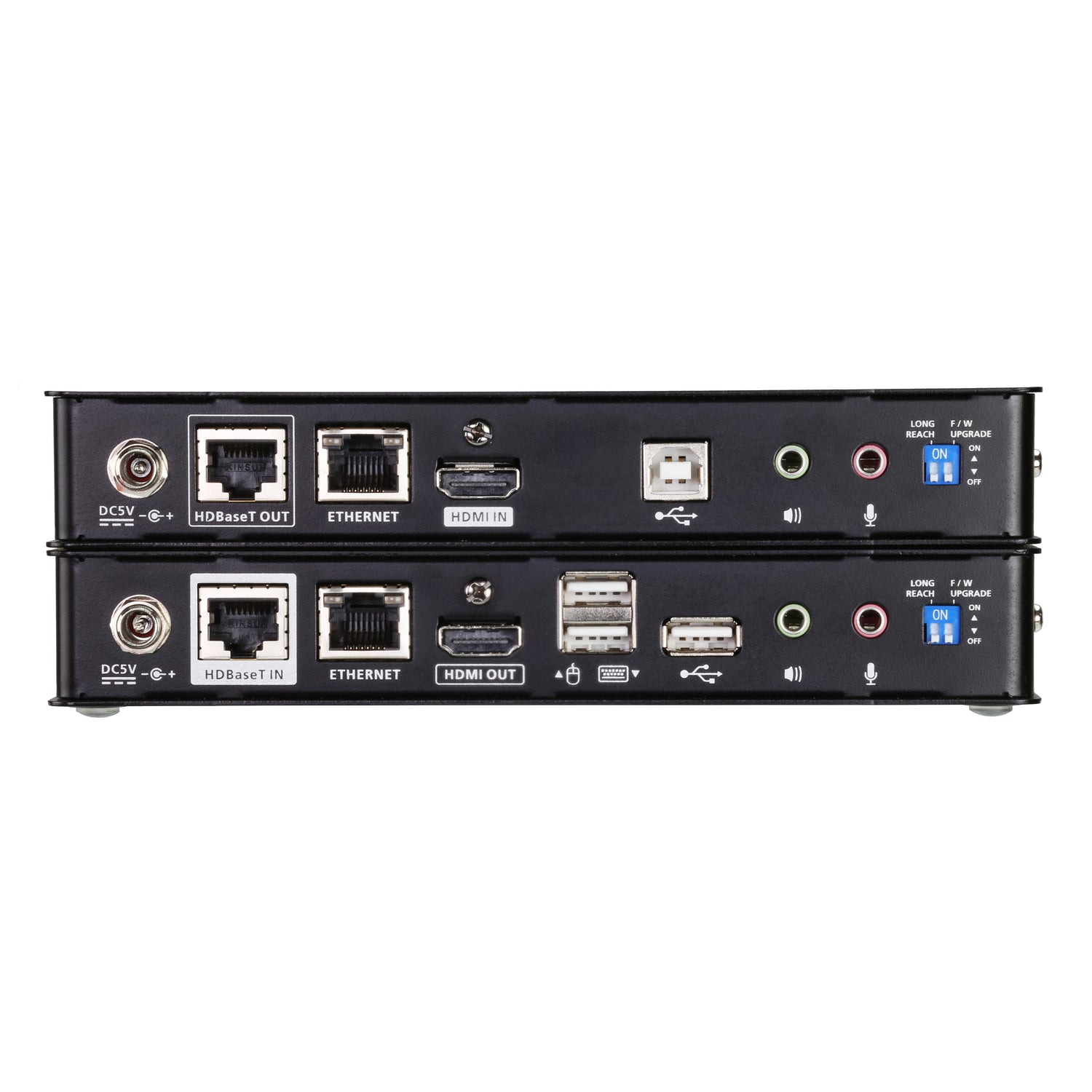

| KVM Ports | 1 x HDMI Female, 1 x USB Type-B Female, 1 x mini stereo jack (green), 1 x mini stereo jack (pink) |
| RS-232 | 1 x DB-9 Female |
| Unit to Unit | 1 x RJ-45 Female |
| Power | 1 x DC jack with locking |
CE820R Remote Unit (Console Side)
| Console Ports | 1 x HDMI Female, 3 x USB Type-A Female, 1 x mini stereo jack (green), 1 x mini stereo jack (pink) |
| RS-232 | 1 x DB-9 Male |
| Unit to Unit | 1 x RJ-45 Female |
| Power | 1 x DC jack with locking |
| Wake-up | 1 x pushbutton |
Video & Distance
| Compliance | HDMI (3D, Deep Color, 1080p, 4K); HDCP 2.2 compatible |
| 4K | Up to 90 m (Cat 5e); 100 m (Cat 6 / 6a / ATEN 2L-2910) |
| 1080p | Up to 100 m (Cat 5e / 6 / 6a); 150 m in Long Reach mode |
| Switches | Long Reach mode slide switch; firmware upgrade slide switch (each unit) |
USB & Audio
| USB | USB 2.0 full speed |
| Audio | Individual 2-channel stereo audio |
Power & Environmental
| Power Consumption | CE820L: DC 5 V, 2.87 W; CE820R: DC 5 V, 5.37 W |
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
| ESD Protection | 8 kV / 15 kV |
Physical
| Housing | Metal |
| Weight | CE820L 0.63 kg; CE820R 0.65 kg |
| Dimensions (L x W x H) | 18.20 x 12.19 x 2.87 cm (each unit) |
Compatibility & Applications
Typical Devices
Desktop PCs, workstations and servers with HDMI and USB, used with a HDMI monitor, USB keyboard and mouse, speakers, microphone and RS-232 devices at the remote desk.
Typical Use
Control rooms, broadcast and post-production suites, factory floors, hospitals, labs and clean rooms where the computer must sit in a rack or secure room away from the operator.
Cable Tip
Use Cat 6, Cat 6a or ATEN 2L-2910 cable for full 4K at 100 m. The link is point-to-point, so run the cable directly between the two units.
Package Contents & ATEN KVM Extender Ordering Information
In the Box
1 x CE820L local unit, 1 x CE820R remote unit, 1 x HDMI KVM cable set (HDMI, USB, audio; 1.8 m), 2 x power adapters, 2 x mounting kits, 1 x user instructions.
ATEN KVM and HDMI Extender Models
| Model | Key feature |
| CE820 (this listing) | USB HDMI HDBaseT 2.0 KVM extender, 4K@100 m |
| CE801 | USB True 4K HDMI Cat 6 KVM extender |
| UCE33100 | 4-port USB 3.2 Gen 1 Cat 6A extender, 100 m |
| UCE3250 | 4-port USB 2.0 Cat 5 extender, 50 m |
| VE811 | HDMI HDBaseT extender, 4K@100 m |
Datasheet & Downloads
| Datasheet | CE820 Datasheet (PDF) |
| User manual | CE820 / CE920 User Manual (PDF) |
| Quick start guide | CE820 Quick Start Guide (PDF) |
| ATEN product page | CE820 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting CE820-ATA-E.
Frequently Asked Questions — ATEN CE820
Which unit goes where?
The CE820L local unit connects to the computer. The CE820R remote unit sits with the user and takes the monitor, keyboard, mouse and speakers.
How far can it extend 4K?
Up to 100 m over Cat 6/6a or ATEN 2L-2910, or 90 m over Cat 5e. 1080p reaches 150 m in Long Reach mode.
Can I connect a USB drive at the remote desk?
The USB ports run at USB 2.0 full speed, which suits keyboards, mice and low-bandwidth peripherals rather than fast storage.
Does it carry audio?
Yes. Individual 2-channel stereo audio (speaker and microphone jacks) is extended alongside HDMI.
Is RS-232 supported?
Yes. Each unit has a DB-9 port for RS-232 pass-through.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
