ATEN CE801 USB True 4K HDMI Cat 6 KVM Extender
PRODUCT DESCRIPTION
ATEN CE801 USB True 4K HDMI Cat 6 KVM Extender - 2 Years Local Warranty
True 4K at 60 Hz, 70 m Away
The CE801 extends an HDMI display, USB keyboard and mouse from a computer to a remote console up to 70 m away over a single Cat 6 cable, at 3840 x 2160 @ 60 Hz with full 4:4:4 colour. It is HDCP 2.2/2.3 compliant and supports HDR10.
Long-Reach Mode to 100 m
Where the run is longer, Long-Reach mode carries 1920 x 1080 @ 60 Hz up to 100 m, ideal for control rooms, factory floors and secure server areas.
Two Consoles, One Computer

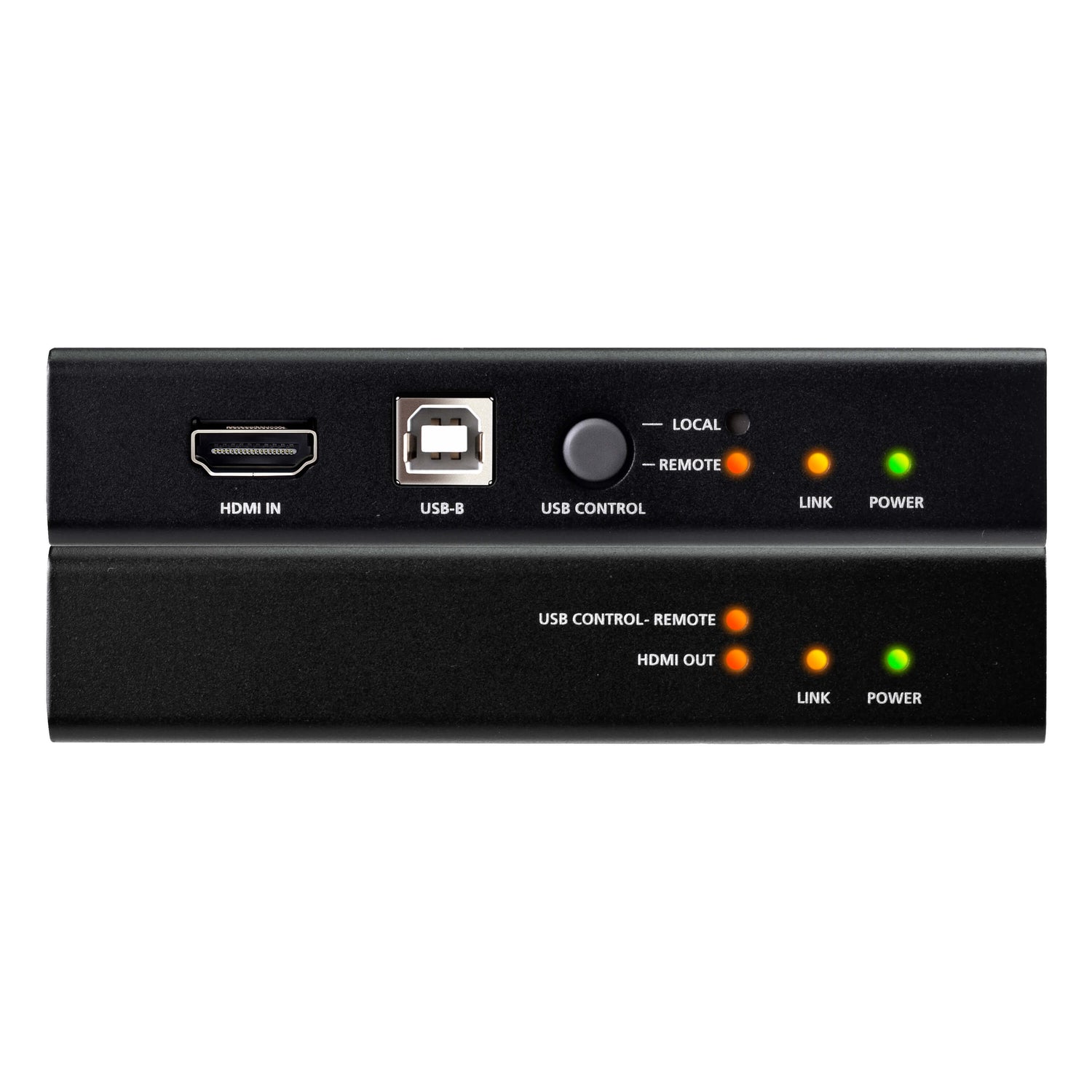

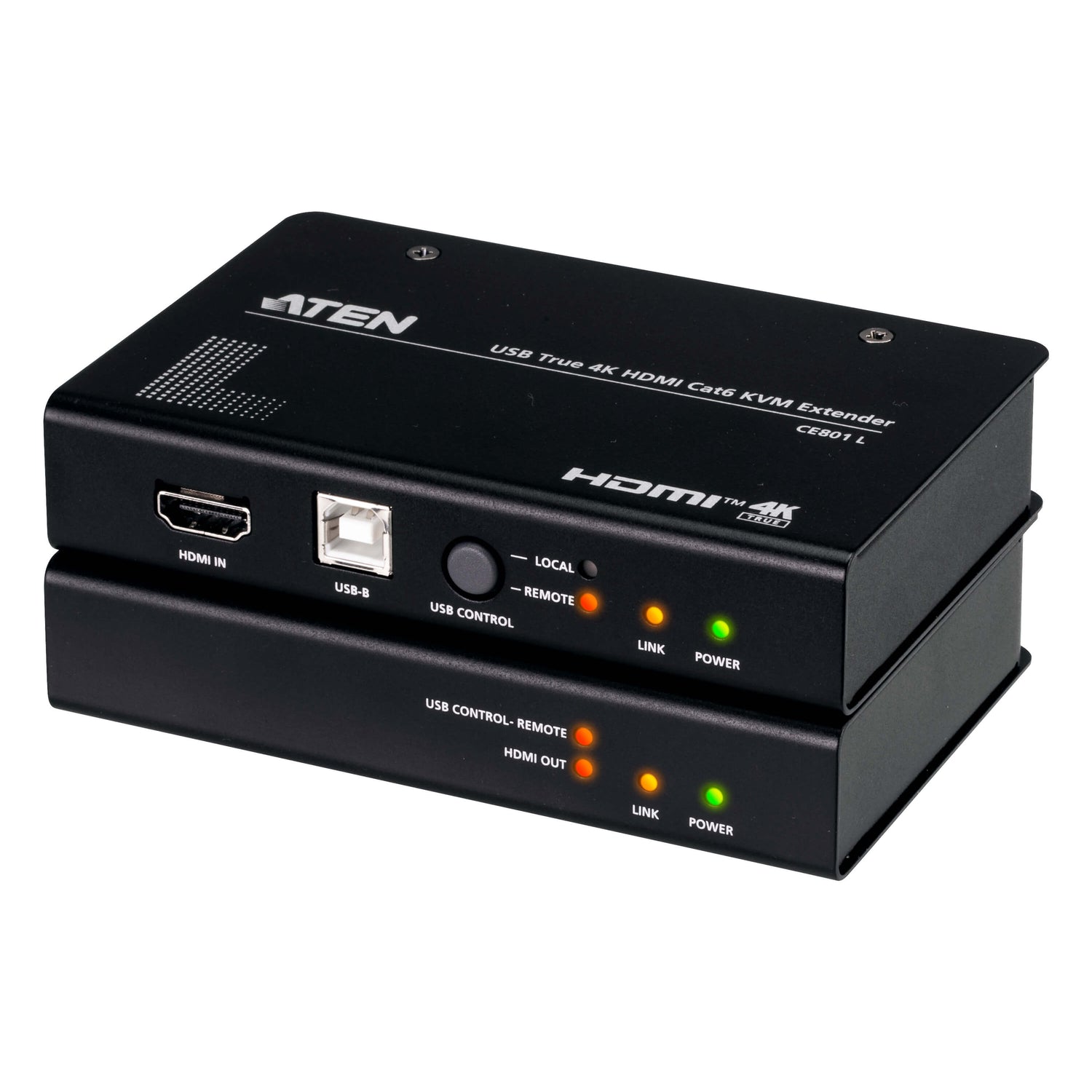

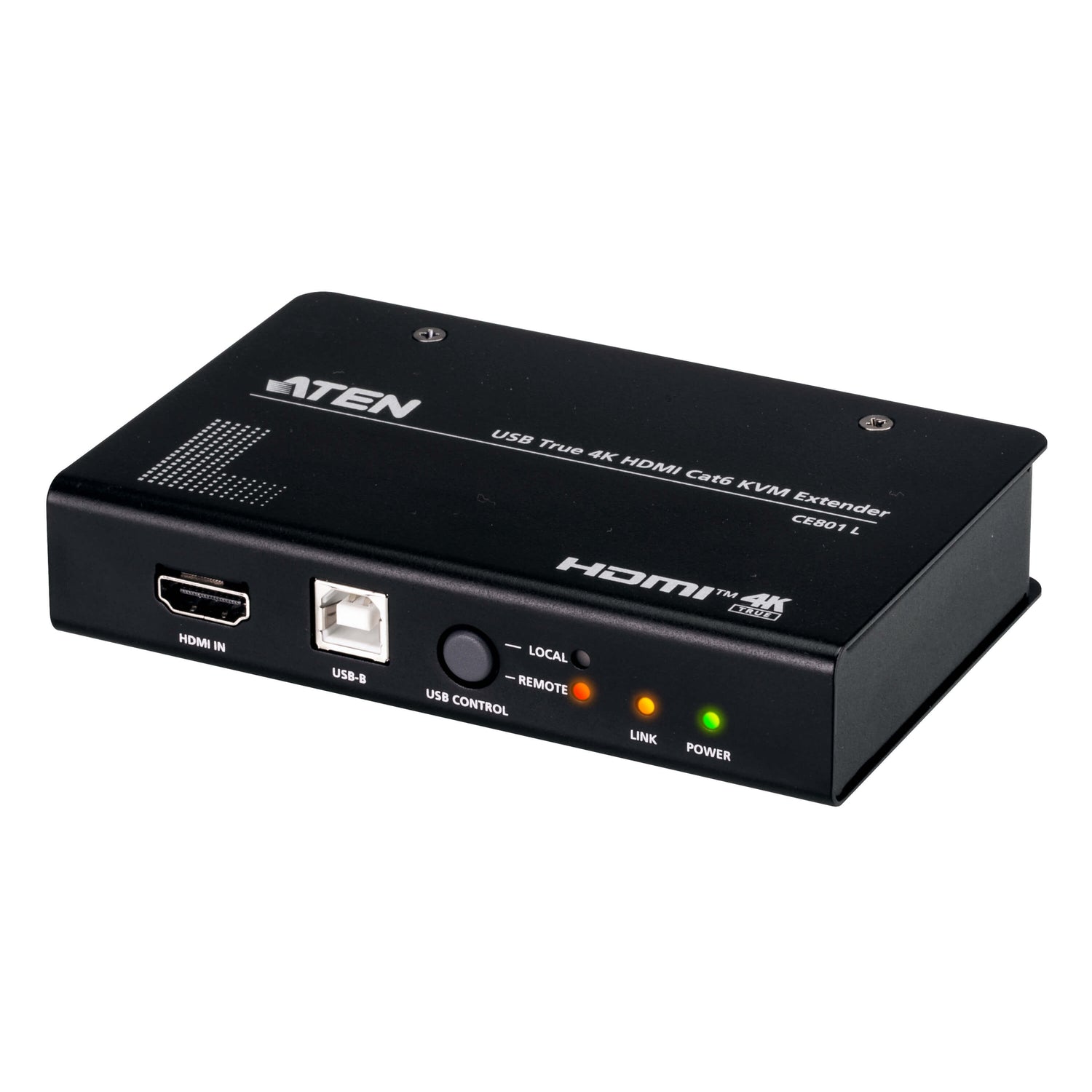

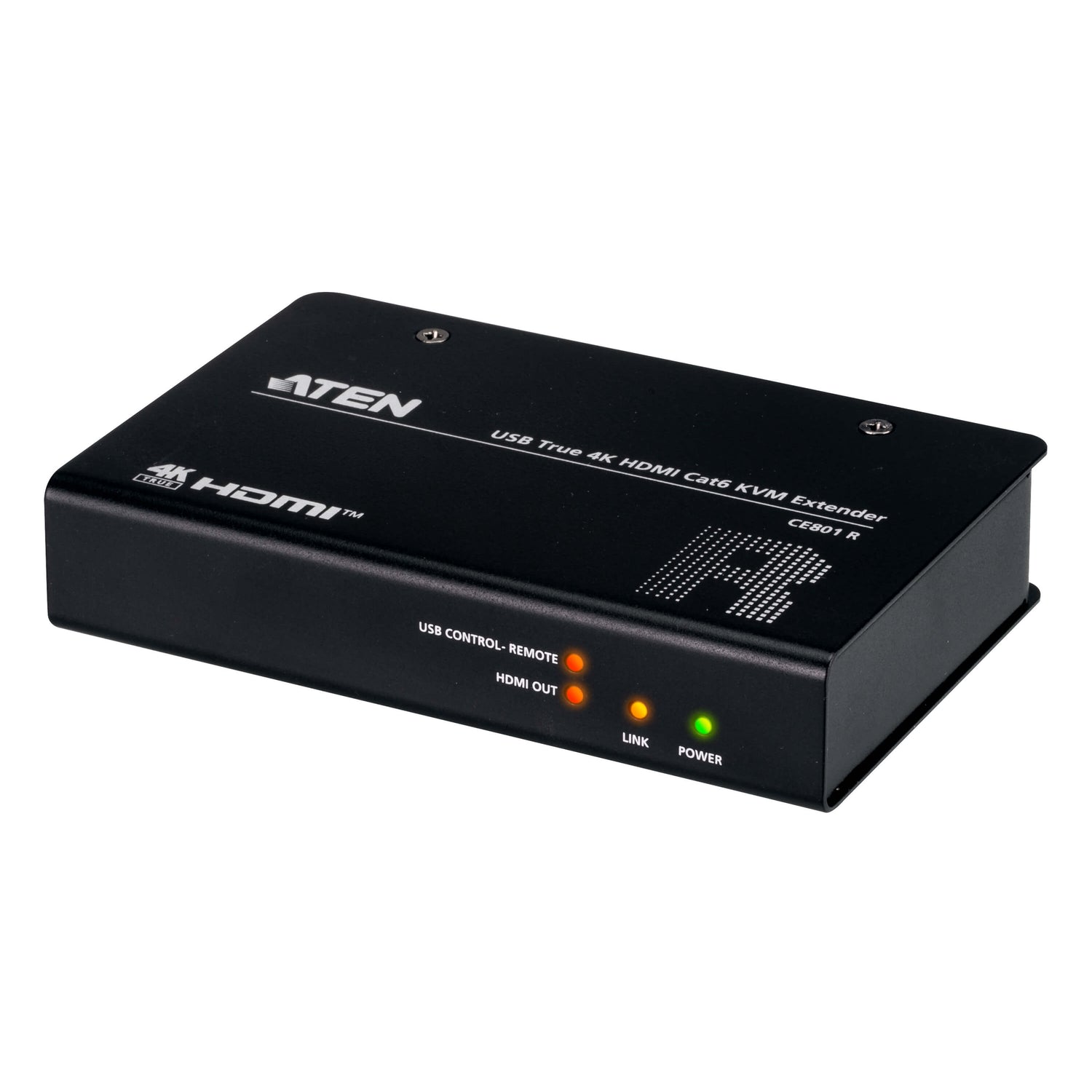

Both the local unit (CE801L) and the remote unit (CE801R) have an HDMI port and USB keyboard/mouse ports, so the computer can be operated at the desk beside it and at the remote station. RS-232 extension and embedded 7.1-channel Dolby and DTS audio are also carried.
Rack-Mountable Metal Units
Both units are compact metal boxes with mounting kits included, so they can be fixed under a desk, on a wall or in a rack.
Planning a control room or a secure-area deployment with several extenders? Email sales@sourceit.com.sg for a project quote and lead time.
ATEN CE801 Datasheet — Technical Specifications
General
| Product Name | ATEN USB True 4K HDMI Cat 6 KVM Extender |
| Model | CE801 (CE801L local unit + CE801R remote unit) |
| Order Code | CE801-AT-E |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Video
| Maximum Resolution | 3840 x 2160 @ 60 Hz (4:4:4) |
| HDCP | HDCP 2.2 / 2.3 compliant |
| HDR | HDR10 supported |
Distance
| 4K | 3840 x 2160 @ 60 Hz up to 70 m over Cat 6 |
| Long-Reach Mode | 1920 x 1080 @ 60 Hz up to 100 m |
| Cabling | Single Cat 6 cable |
Connectors

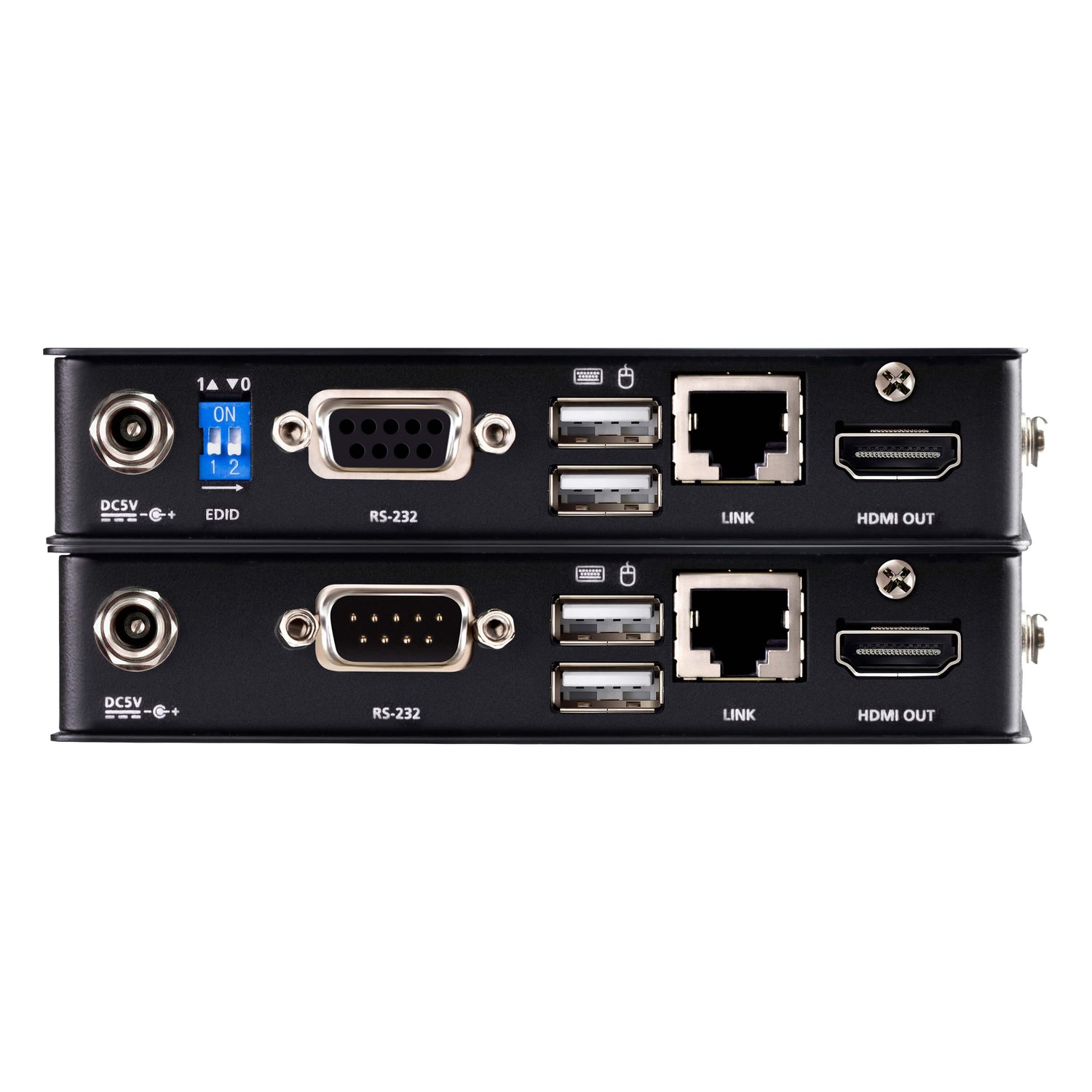

| Local Console (CE801L) | 1 x HDMI Female, 2 x USB Type-A Female |
| Remote Console (CE801R) | 1 x HDMI Female, 2 x USB Type-A Female |
| Serial | RS-232 extension |
Audio
| Audio | Embedded HDMI audio, 7.1-channel Dolby and DTS supported |
Power
| Power Consumption | CE801L: DC 5 V, 2.59 W; CE801R: DC 5 V, 1.88 W |
| Power Adapters | 2 included |
Environmental
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Metal, rack-mountable |
| Weight | CE801L: 0.32 kg; CE801R: 0.31 kg |
| Dimensions (L x W x H) | CE801L: 12.80 x 8.21 x 2.50 cm; CE801R: 12.80 x 8.15 x 2.50 cm |
Compatibility & Applications
Typical Sources
Desktop PCs, workstations and servers with HDMI video output and USB, including 4K60 HDR graphics workstations.
Typical Use
Keeping a noisy or valuable computer in a secure room or rack while users work at a remote desk; control rooms, broadcast and post-production suites, hospitals, factories and public information kiosks.
Selection Tip
For 4K60 use Cat 6 (or better) cable up to 70 m. If you only need 1080p and the run is longer, enable Long-Reach mode for up to 100 m.
Package Contents & ATEN KVM Extender Ordering Information
In the Box
1 x CE801L local unit, 1 x CE801R remote unit, 1 x USB Type-A to Type-B cable, 2 x mounting kits, 8 x foot pads, 2 x power adapters, 1 x user instructions.
ATEN Extender Models
| Model | Key feature |
| CE801 (this listing) | USB True 4K HDMI Cat 6 KVM extender, 4K @ 70 m |
| CE820 | USB HDMI HDBaseT 2.0 KVM extender |
| VE1821 | 4K HDMI Cat 6 extender, video only, 40 m |
| VE811 | HDMI HDBaseT extender |
| UCE3250 | 4-port USB 2.0 Cat 5 extender, 50 m |
| UCE33100 | 4-port USB 3.2 Gen 1 Cat 6A extender |
Datasheet & Downloads
| Datasheet | CE801 Datasheet (PDF) |
| User manual | CE801 User Manual (PDF) |
| Quick start guide | CE801 Quick Start Guide (PDF) |
| ATEN product page | CE801 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting CE801-AT-E.
Frequently Asked Questions — ATEN CE801
How far can it extend 4K?
Up to 70 m at 3840 x 2160 @ 60 Hz (4:4:4) over Cat 6 cable. In Long-Reach mode, 1080p @ 60 Hz reaches up to 100 m.
Can I use the computer locally as well as remotely?
Yes. Both the local and remote units have HDMI and USB console ports for dual-console operation.
Does it carry audio?
Yes. Audio embedded in the HDMI signal is extended, with 7.1-channel Dolby and DTS support.
Is it a kit?
Yes. The CE801 includes both the CE801L local unit and the CE801R remote unit, plus power adapters and mounting kits.
Does it support HDR and HDCP content?
Yes. ATEN lists HDR10 support and HDCP 2.2/2.3 compliance.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
