ATEN High Speed HDMI Cable with Ethernet, 5 m / 10 m (2L-7D05H / 2L-7D10H)
PRODUCT DESCRIPTION
ATEN High Speed HDMI Cable with Ethernet, 5 m / 10 m (2L-7D05H / 2L-7D10H) - 2 Years Local Warranty
Longer HDMI Runs for Rooms and Classrooms
The 2L-7D05H (5 m) and 2L-7D10H (10 m) are High Speed HDMI cables with Ethernet for connecting a PC, laptop or media player to a projector, wall-mounted TV or display across a room.
Up to 4096 x 2160 at 30 Hz
Both lengths support resolutions up to 4096 x 2160 at 30 Hz, Full HD 1080p and HDMI 3D and Deep Color, with HDCP 1.4 for protected content.
Heavier Gauge on the 10 m
The 10 m 2L-7D10H uses 26 AWG tinned copper conductors and an 8.0 mm jacket to support the longer run; the 5 m 2L-7D05H uses 30 AWG with a slimmer 6.0 mm jacket.
HDMI Ethernet Channel and Gold Connectors
A dedicated HDMI Ethernet Channel lets compatible devices share a network link, and gold-plated connectors with aluminium foil shielding help keep connections reliable.
Wiring projectors across several classrooms or meeting rooms? Email sales@sourceit.com.sg for a project quote.
ATEN 2L-7D05H / 2L-7D10H Datasheet — Technical Specifications
General
| Product Name | ATEN High Speed HDMI Cable with Ethernet |
| Models | 2L-7D05H (5 m), 2L-7D10H (10 m) |
| Order Codes | 2L-7D05H, 2L-7D10H |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Common Specifications

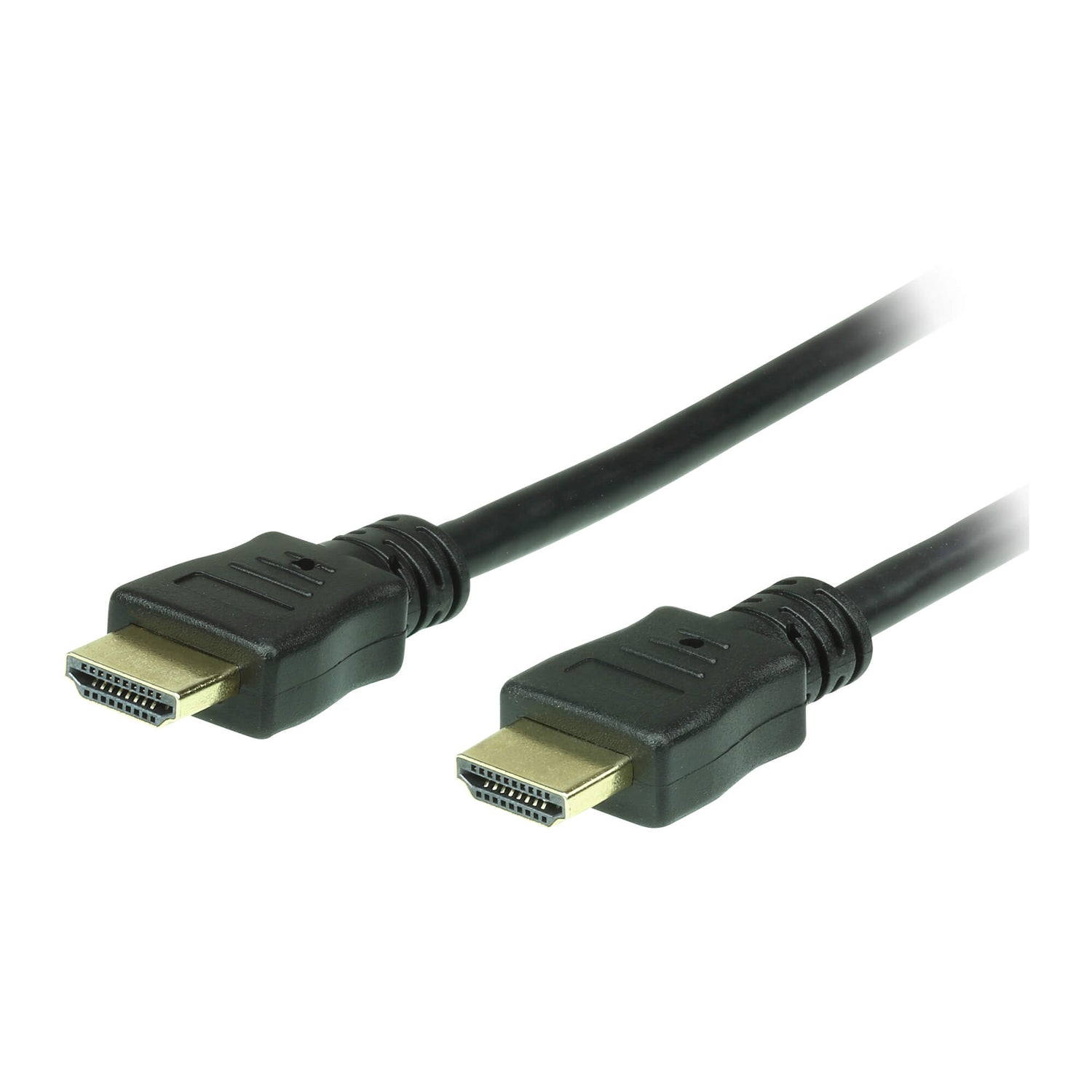

| Connectors | HDMI (19-pin) Male to HDMI (19-pin) Male |
| Max. Video Resolution | 4096 x 2160 @ 30 Hz |
| HDMI Features | HDMI Ethernet Channel, 3D, Deep Color |
| HDCP | HDCP 1.4 compliant |
| Connector Plating | Gold |
| Conductor Material | Tinned copper |
| Cable Shield | Aluminium foil |
| Cable Jacket | PVC, black |
| Bend Radius | 90° |
| Temperature Rating | 80 °C |
| Rating | UL VW-1 (flame rating), CSA; RoHS compliant |

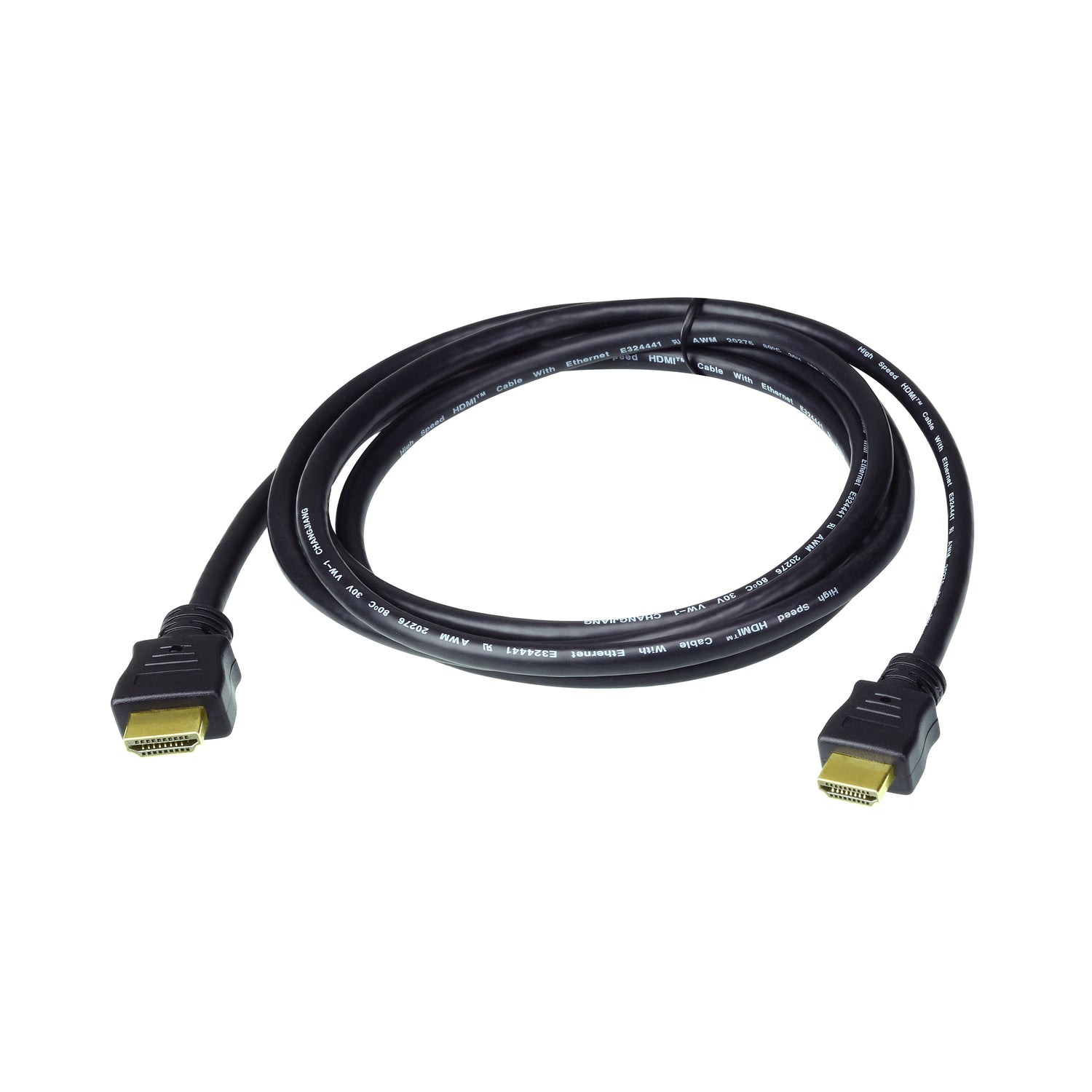

2L-7D05H (5 m)
| Cable Length | 5 m |
| Conductor Gauge | 30 AWG |
| Cable OD | 6.0 ± 0.2 mm |

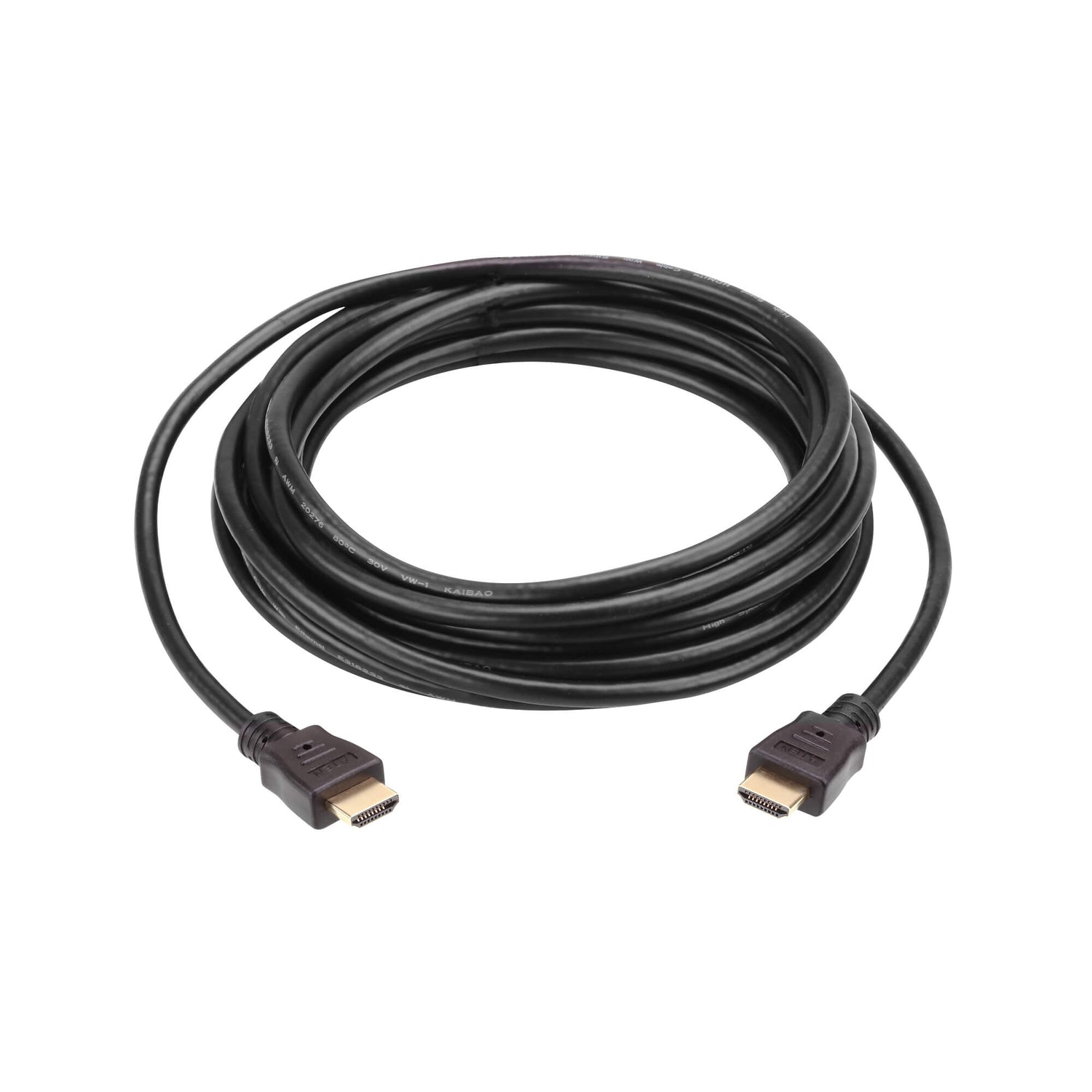

2L-7D10H (10 m)
| Cable Length | 10 m |
| Conductor Gauge | 26 AWG |
| Cable OD | 8.0 ± 0.2 mm |
Compatibility & Applications
Typical Devices
PCs, laptops, media players, set-top boxes and AV equipment with HDMI output connected to projectors, TVs and large-format displays.
Typical Use
Classroom and meeting room projectors, wall displays and signage where the source sits several metres from the screen.
Selection Tip
These cables are rated to 4K at 30 Hz. For 4K at 60 Hz, choose the ATEN True 4K 2L-7D05H-1 (5 m), or an ATEN HDMI booster or extender for longer True 4K runs.
Package Contents & ATEN HDMI Cable Ordering Information
In the Box
2L-7D05H: 1 x 2L-7D05H 5 m High Speed HDMI Cable with Ethernet. 2L-7D10H: 1 x 2L-7D10H 10 m High Speed HDMI Cable with Ethernet.
Available Options
| Option | Order code |
| 5 m | 2L-7D05H |
| 10 m | 2L-7D10H |
ATEN HDMI Cable Models
| Model | Key feature |
| 2L-7D01H | 1 m True 4K HDMI cable with Ethernet |
| 2L-7D03H | 3 m True 4K HDMI cable with Ethernet |
| 2L-7D05H-1 | 5 m True 4K HDMI cable, 4K@60Hz |
| 2L-7D05H (this listing) | 5 m High Speed HDMI cable, 4K@30Hz |
| 2L-7D10H (this listing) | 10 m High Speed HDMI cable, 4K@30Hz |
| 2L-7D02H21 | 1.8 m Ultra High Speed HDMI cable |
Datasheet & Downloads
| Datasheet | 2L-7D05H / 7D10H / 7D15H / 7D20H Datasheet (PDF) |
| ATEN product page | 2L-7D05H on aten.com |
| ATEN product page | 2L-7D10H on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 2L-7D05H or 2L-7D10H.
Frequently Asked Questions — ATEN 2L-7D05H / 2L-7D10H
What resolution do these cables support?
Up to 4096 x 2160 at 30 Hz, including 1080p Full HD.
Will they do 4K at 60 Hz?
ATEN rates them to 4K at 30 Hz. For 4K at 60 Hz over 5 m, choose the True 4K 2L-7D05H-1.
Is the 10 m cable thicker?
Yes. The 2L-7D10H uses 26 AWG conductors with an 8.0 mm outer diameter; the 5 m 2L-7D05H is 30 AWG and 6.0 mm.
Do they support HDCP?
Yes. ATEN lists HDCP 1.4 compliance.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
