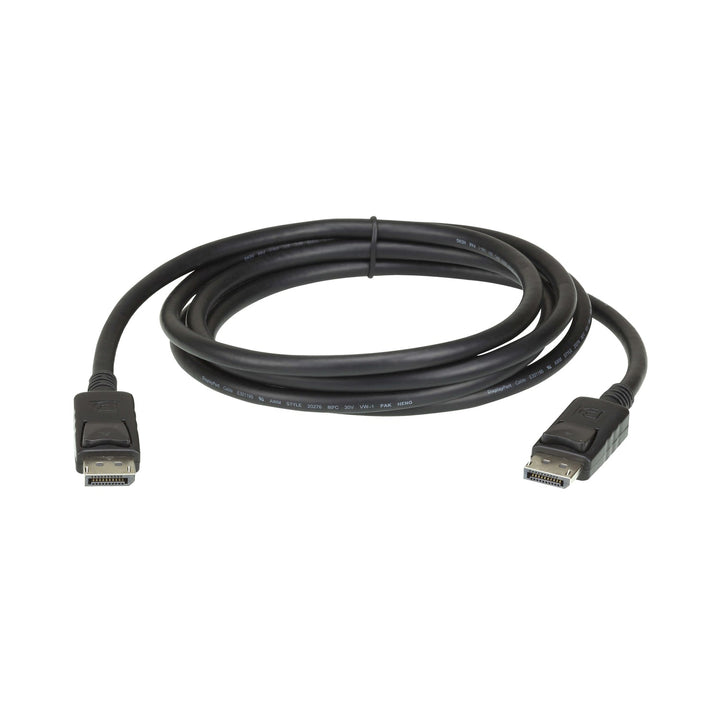

ATEN 2L-7D03DP 3 m DisplayPort 1.2 Cable
PRODUCT DESCRIPTION
ATEN 2L-7D03DP 3 m DisplayPort 1.2 Cable - 2 Years Local Warranty
3 m DisplayPort 1.2 for 4K@60Hz
The 2L-7D03DP is a 3 m DisplayPort revision 1.2 cable delivering crystal-clear video up to 4K UHD (3840 x 2160 @ 60Hz) with bandwidth up to 21.6 Gbps.
MST for Dual Monitors
Multi-Stream Transport (MST) support lets you run dual monitors in mirror or extended mode from a single DisplayPort output on MST-capable hardware.
Built for Clean Signals
28 AWG tinned copper conductors with an aluminium-magnesium alloy shield and nickel-plated connectors improve EMI protection. Black PVC jacket, UL VW-1 and CSA rated, RoHS compliant.
Cabling up a floor of DisplayPort monitors? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ATEN 2L-7D03DP Datasheet — Technical Specifications
General
| Product Name | ATEN 3 m DisplayPort rev.1.2 Cable |
| Model | 2L-7D03DP |
| Order Code | 2L-7D03DP |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Connectors
| Connector Type | DisplayPort (20-pin) Male to Male |
| Connector Plating | Nickel-plated |
Video
| Standard | DisplayPort 1.2 |
| Max. Resolution | Up to 3840 x 2160 @ 60Hz |
| Bandwidth | Up to 21.6 Gbps |
| MST | Supported (dual monitor mirror / extended) |
Cable
| Cable Length | 3 m |
| Conductor | 28 AWG tinned copper |
| Shield | Aluminium-magnesium alloy |
| Jacket | PVC, black |
| Outer Diameter | 6.8 ± 0.2 mm |
| Certifications | UL VW-1 (flame rating), CSA; RoHS compliant |
Compatibility & Applications
Typical Devices
Desktop PCs, workstations, graphics cards, docking stations and monitors with full-size DisplayPort connectors, plus DisplayPort KVM switches.
Typical Use
Connecting a PC to a 4K@60Hz monitor where 3 m of reach is needed – under-desk towers, monitor arms and meeting-room displays.
Selection Tip
This is the DisplayPort 1.2 version (4K@60Hz). For higher-bandwidth DisplayPort 1.4 needs, see ATEN's DP 1.4 cables such as the 2L-7D02DP or 2L-7D03DP-1.
Package Contents & ATEN DisplayPort Cable Ordering Information
In the Box
1 x 2L-7D03DP 3 m DisplayPort rev.1.2 cable.
ATEN DisplayPort Cable & Accessory Models
| Model | Key feature |
| 2L-7D02DP | 2 m DisplayPort 1.4 cable |
| 2L-7D03DP-1 | 3 m DisplayPort 1.4 cable |
| 2L-7D03DP (this listing) | 3 m DisplayPort 1.2 cable, 4K@60Hz, MST |
| VB905 | 4K DisplayPort booster |
| VS192 | 2-port DisplayPort splitter |
Datasheet & Downloads
| Datasheet | 2L-7D03DP / 2L-7D04DP Datasheet (PDF) |
| ATEN product page | 2L-7D03DP on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 2L-7D03DP.
Frequently Asked Questions — ATEN 2L-7D03DP
What resolution does it support?
Up to 4K UHD, 3840 x 2160 @ 60Hz.
Is this DisplayPort 1.2 or 1.4?
DisplayPort 1.2, with bandwidth up to 21.6 Gbps. It is a different product from the 3 m DisplayPort 1.4 cable 2L-7D03DP-1.
Can I daisy-chain monitors?
The cable supports MST for dual monitors in mirror or extended mode; your graphics card and monitors must also support MST.
What connectors are on each end?
Full-size DisplayPort (20-pin) male on both ends.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
