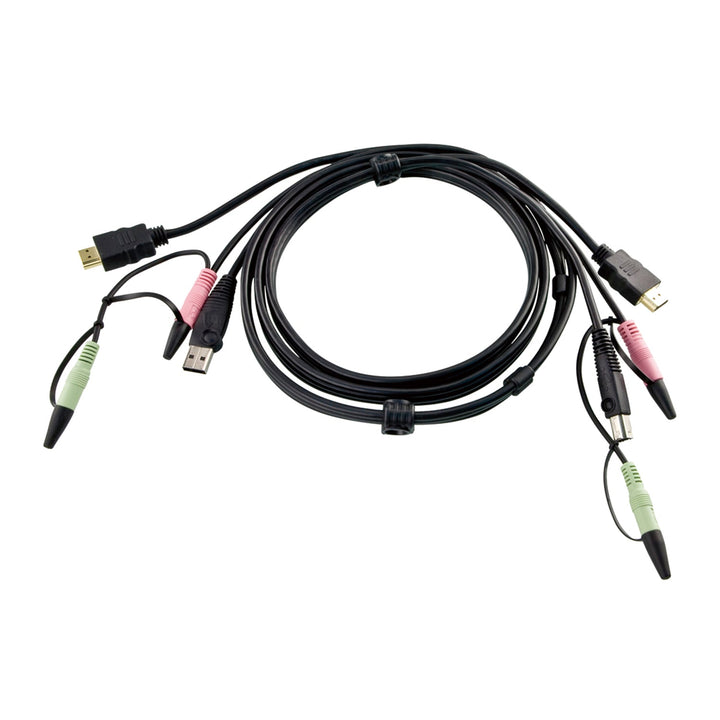

ATEN 2L-7D02UH 1.8 m USB HDMI KVM Cable with Audio
PRODUCT DESCRIPTION
ATEN 2L-7D02UH 1.8 m USB HDMI KVM Cable with Audio - 2 Years Local Warranty
HDMI, USB and Audio in One KVM Cable
The ATEN 2L-7D02UH combines HDMI video, USB and 3.5 mm audio into a single 1.8 m cable for connecting each computer to an ATEN HDMI KVM switch, extender or console.
Matched to ATEN HDMI KVM Ports
The computer end has HDMI, USB Type-A and pink/green audio plugs; the switch end has HDMI, USB Type-B and pink/green audio plugs to suit the CPU ports on ATEN HDMI KVM switches.
Neater Desks and Racks
One combined cable per computer keeps the back of the desk or rack tidy and makes it easy to see which computer is connected to which port.
Need a full set of KVM cables for a multi-port HDMI installation? Email sales@sourceit.com.sg for a project quote.
ATEN 2L-7D02UH Datasheet — Technical Specifications
General
| Product Name | ATEN 1.8M USB HDMI KVM Cable with Audio |
| Model | 2L-7D02UH |
| Order Code | 2L-7D02UH |
| Local Warranty (Singapore) | 2 years carry-in warranty |
PC Side Connectors
| Video | HDMI Male |
| USB | USB Type-A Male |
| Audio | 3.5 mm audio jacks (pink & green) |
Switch Side Connectors
| Video | HDMI Male |
| USB | USB Type-B Male |
| Audio | 3.5 mm audio jacks (pink & green) |
Physical
| Cable Length | 1.8 m (6 ft) |
Compatibility & Applications
Compatible ATEN Products
ATEN lists this cable for: CS22HF, CS742H, CS784H, CM1942, CS1792, CS1794, CS1798, CS1842, CS1844, CS17916, CS18208, CS18216, CL3700, CL3708, CL3708i, CL3716, CL3716i, CL3800, CL3884NW, CL6700, CE820, KE8950T, KE8950R, KE8952T, KE8952R, VC986B and US3384i.
Typical Use
Connecting HDMI computers to an ATEN HDMI KVM switch or KVM extender, with USB keyboard/mouse and audio in the same cable.
Selection Tip
Order one cable per connected computer. For DVI KVM switches use the 2L-7D02U; for VGA SPHD switches use the 2L-52xx/2L-53xx cables.
Package Contents & ATEN KVM Cable Ordering Information
In the Box
Contents as supplied by ATEN; email sales@sourceit.com.sg to confirm package contents.
ATEN KVM Cable Models
| Model | Key feature |
| 2L-7D02UH (this listing) | 1.8 m USB HDMI KVM cable with audio |
| 2L-7D02U | 1.8 m USB DVI-D single link KVM cable with audio |
| 2L-5202U | 1.8 m USB KVM cable with 3-in-1 SPHD |
| 2L-5203U | 3 m USB KVM cable with 3-in-1 SPHD |
| 2L-5205U | 5 m USB KVM cable with 3-in-1 SPHD |
| 2L-5305U | 5 m USB KVM cable with 3-in-1 SPHD and audio |
| 2L-5206UP | 6 m USB KVM cable with 3-in-1 SPHD and PS/2 to USB converter |
Datasheet & Downloads
| ATEN product page | 2L-7D02UH on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 2L-7D02UH.
Frequently Asked Questions — ATEN 2L-7D02UH
Is this the same as the 2L-7D02U?
No. The 2L-7D02UH uses HDMI connectors; the 2L-7D02U uses DVI-D single link.
Which end goes to the KVM switch?
The end with the USB Type-B plug connects to the KVM switch; the USB Type-A end connects to the computer.
Does it carry audio?
Yes. Both ends have 3.5 mm pink (mic) and green (speaker) plugs.
Will it work with my ATEN HDMI KVM switch?
ATEN lists it for models including the CS1792, CS1794, CS1842, CS1844, CS784H and CS742H. Send us your switch model to confirm.
