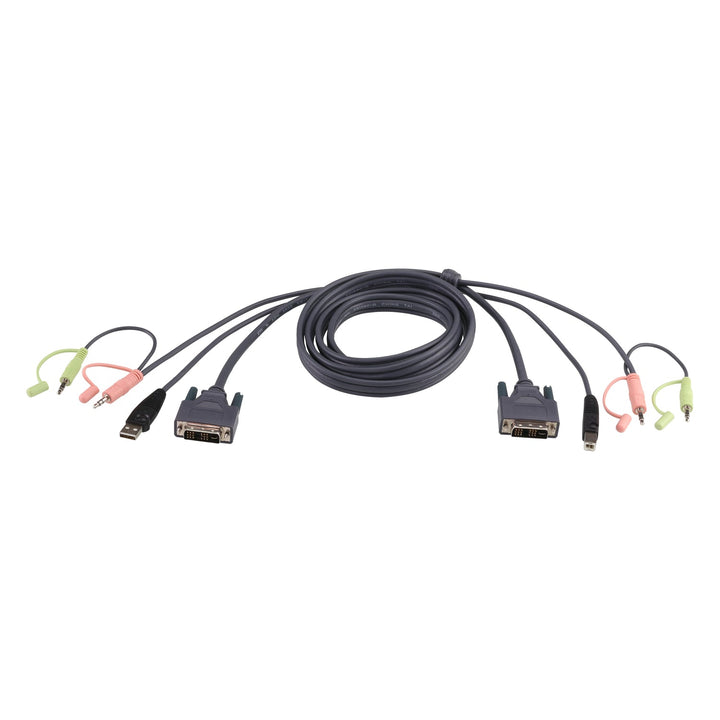

ATEN 2L-7D02U 1.8 m USB DVI-D Single Link KVM Cable
PRODUCT DESCRIPTION
ATEN 2L-7D02U 1.8 m USB DVI-D Single Link KVM Cable - 2 Years Local Warranty
One Cable for Video, USB and Audio
The ATEN 2L-7D02U bundles DVI-D single link video, USB and microphone/speaker audio into one 1.8 m KVM cable, giving a tidy connection between each computer and an ATEN DVI KVM switch or extender.
Built for ATEN DVI KVM Products
The computer end has DVI-D, USB Type-A and mini stereo plugs; the switch end has DVI-D, USB Type-B and mini stereo plugs to match the CPU ports on ATEN DVI KVM switches such as the CS1762A, CS1764A, CS1782A and CS1784A.
Right Length for the Desk or Rack
At 1.8 m, it suits desktop KVM switches beside the monitor as well as short runs to KVM extenders and rack consoles.
Cabling up a multi-port DVI KVM installation? Email sales@sourceit.com.sg for a project quote covering switches and cables.
ATEN 2L-7D02U Datasheet — Technical Specifications
General
| Product Name | ATEN 1.8M USB DVI-D Single Link KVM Cable |
| Model | 2L-7D02U |
| Order Code | 2L-7D02U |
| Local Warranty (Singapore) | 2 years carry-in warranty |
PC Side Connectors
| Video | DVI-D Male (Single Link) |
| USB | USB Type-A Male |
| Audio | Mini stereo jack (mic & speaker) |
Switch Side Connectors
| Video | DVI-D Male (Single Link) |
| USB | USB Type-B Male |
| Audio | Mini stereo jack (mic & speaker) |
Physical
| Cable Length | 1.8 m (6 ft) |
Compatibility & Applications
Compatible ATEN Products
ATEN lists this cable for: desktop KVM switches CM1164A, CS1642A, CS1644A, CS1762A, CS1764A, CS1782A, CS1784A; rack KVM switches CS1768, CS1788; KVM extenders CE600, CE604, CE611, CE624, CE680, CE690, KE6900AT, KE6900AR, KE6900AiT, KE6900R, KE6940AT, KE6940AR, KE6940AiT; LCD consoles CL3800, CL6700, CL6708MW; and RCMDVI00AT, RCMDVI40AT, RCMDVI00BT, RCMDVI40BT, RCMDVI50T.
Typical Use
Connecting DVI workstations and servers to an ATEN DVI KVM switch, with USB keyboard/mouse and audio carried in the same cable.
Selection Tip
Order one cable per connected computer. For HDMI KVM switches use the 2L-7D02UH; for VGA SPHD switches use the 2L-52xx/2L-53xx series.
Package Contents & ATEN KVM Cable Ordering Information
In the Box
Contents as supplied by ATEN; email sales@sourceit.com.sg to confirm package contents.
ATEN KVM Cable Models
| Model | Key feature |
| 2L-7D02U (this listing) | 1.8 m USB DVI-D single link KVM cable with audio |
| 2L-7D02UH | 1.8 m USB HDMI KVM cable with audio |
| 2L-5202U | 1.8 m USB KVM cable with 3-in-1 SPHD |
| 2L-5203U | 3 m USB KVM cable with 3-in-1 SPHD |
| 2L-5205U | 5 m USB KVM cable with 3-in-1 SPHD |
| 2L-5305U | 5 m USB KVM cable with 3-in-1 SPHD and audio |
| 2L-5206P | 6 m PS/2 KVM cable with 3-in-1 SPHD |
| 2L-5302UP | 1.8 m PS/2-USB KVM cable |
Datasheet & Downloads
| ATEN product page | 2L-7D02U on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 2L-7D02U.
Frequently Asked Questions — ATEN 2L-7D02U
Does it support dual link DVI?
No. The 2L-7D02U is a DVI-D single link cable.
Does it carry audio?
Yes. Both ends have mini stereo plugs for microphone and speaker.
Which end goes to the KVM switch?
The end with the USB Type-B plug connects to the KVM switch; the USB Type-A end connects to the computer.
Will it work with my ATEN KVM switch?
It is listed by ATEN for DVI KVM products such as the CS1762A, CS1764A, CS1782A, CS1784A and CS1788. Send us your switch model to confirm.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
