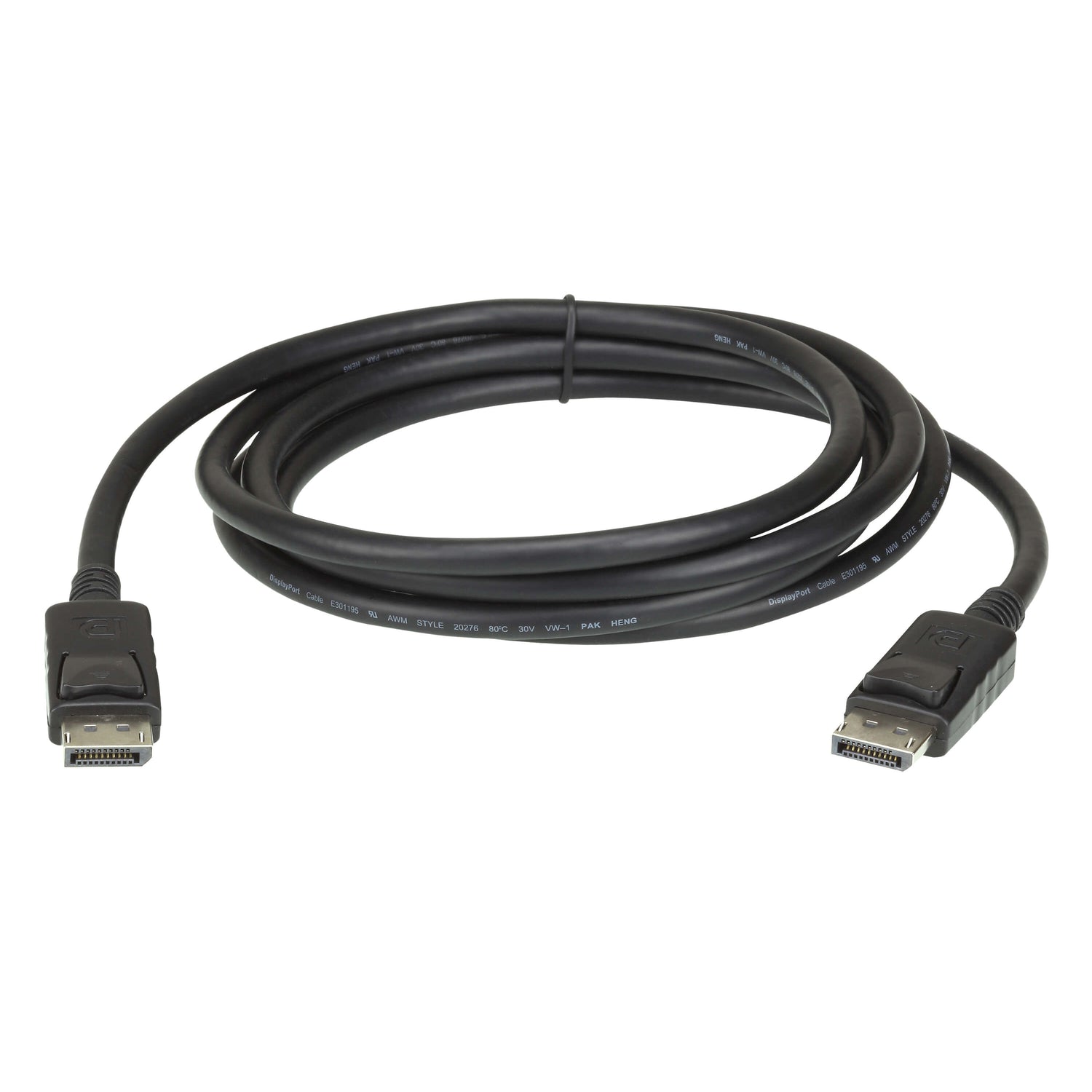

ATEN DisplayPort 1.4 Cable, 2 m / 3 m (2L-7D02DP / 2L-7D03DP-1)
PRODUCT DESCRIPTION
ATEN DisplayPort 1.4 Cable, 2 m / 3 m (2L-7D02DP / 2L-7D03DP-1) - 2 Years Local Warranty
DisplayPort 1.4 Bandwidth for 8K and High Refresh
ATEN's DisplayPort rev.1.4 cables support HBR3 bandwidth of 32.4 Gbps and resolutions up to 8K (7680 x 4320 at 60 Hz), so they suit high-resolution and high-refresh monitors driven by modern graphics cards and workstations.
MST Daisy-Chaining and DSC
Multi-Stream Transport lets you daisy-chain compatible monitors, while Display Stream Compression and Forward Error Correction are supported for demanding display setups. The cables also carry up to 32 digital audio channels.
2 m or 3 m
The 2 m 2L-7D02DP suits a typical desk; the 3 m 2L-7D03DP-1 reaches a PC under the desk or in a rack, and uses heavier 26 AWG conductors.
Shielded and Certified
Aluminium-magnesium alloy shielding, PVC jacket rated UL VW-1 and CSA, and RoHS compliant.
Equipping a design studio or trading desk with high-resolution monitors? Email sales@sourceit.com.sg for volume pricing.
ATEN 2L-7D02DP / 2L-7D03DP-1 Datasheet — Technical Specifications
General
| Product Name | ATEN DisplayPort rev.1.4 Cable |
| Models | 2L-7D02DP (2 m), 2L-7D03DP-1 (3 m) |
| Order Codes | 2L-7D02DP, 2L-7D03DP-1 |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Common Specifications
| DisplayPort Version | rev.1.4 |
| Connectors | DisplayPort (20-pin) Male to DisplayPort (20-pin) Male |
| Max. Video Resolution | Up to 8K (7680 x 4320 @ 60 Hz) |
| Bandwidth | HBR3, 32.4 Gbps |
| Features | Multi-Stream Transport (MST), Display Stream Compression (DSC), Forward Error Correction, 32 digital audio channels |
| Conductor Material | Tinned copper |
| Cable Shield | Aluminium-magnesium alloy |
| Cable Jacket | PVC, black |
| Temperature Rating | 80 °C |
| Rating | UL VW-1 (flame rating), CSA; RoHS compliant |
2L-7D02DP (2 m)
| Cable Length | 2 m |
| Conductor Gauge | 30 AWG |
| Cable OD | 6.5 ± 0.2 mm |
2L-7D03DP-1 (3 m)
| Cable Length | 3 m |
| Conductor Gauge | 26 AWG |
| Cable OD | 8.0 ± 0.2 mm |
Compatibility & Applications
Typical Devices
Desktop graphics cards, workstations, docking stations and KVM switches with full-size DisplayPort outputs, connected to DisplayPort monitors.
Typical Use
High-resolution and high-refresh monitors, multi-monitor daisy-chains via MST, and DisplayPort KVM switch setups.
Selection Tip
Both ends are full-size DisplayPort. Achieving 8K or high refresh rates also depends on your graphics card and monitor supporting DisplayPort 1.4.
Package Contents & ATEN DisplayPort Cable Ordering Information
In the Box
2L-7D02DP: 1 x 2L-7D02DP 2 m DisplayPort rev.1.4 Cable. 2L-7D03DP-1: 1 x 2L-7D03DP-1 3 m DisplayPort rev.1.4 Cable.
Available Options
| Option | Order code |
| 2 m | 2L-7D02DP |
| 3 m | 2L-7D03DP-1 |
ATEN DisplayPort Cable Models
| Model | Key feature |
| 2L-7D02DP (this listing) | 2 m DisplayPort 1.4 cable |
| 2L-7D03DP-1 (this listing) | 3 m DisplayPort 1.4 cable |
| 2L-7D03DP | 3 m DisplayPort cable |
Datasheet & Downloads
| Datasheet | 2L-7D02DP / 2L-7D03DP-1 Datasheet (PDF) |
| ATEN product page | 2L-7D02DP on aten.com |
| ATEN product page | 2L-7D03DP-1 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 2L-7D02DP or 2L-7D03DP-1.
Frequently Asked Questions — ATEN 2L-7D02DP / 2L-7D03DP-1
What is the maximum resolution?
Up to 8K, 7680 x 4320 at 60 Hz, with DisplayPort 1.4 HBR3 bandwidth of 32.4 Gbps.
Can I daisy-chain monitors?
Yes, the cables support Multi-Stream Transport (MST). Your graphics card and monitors must also support MST.
Does the cable carry audio?
Yes. DisplayPort 1.4 supports up to 32 digital audio channels.
Is this a Mini DisplayPort cable?
No. Both ends are full-size DisplayPort (20-pin) male connectors.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
