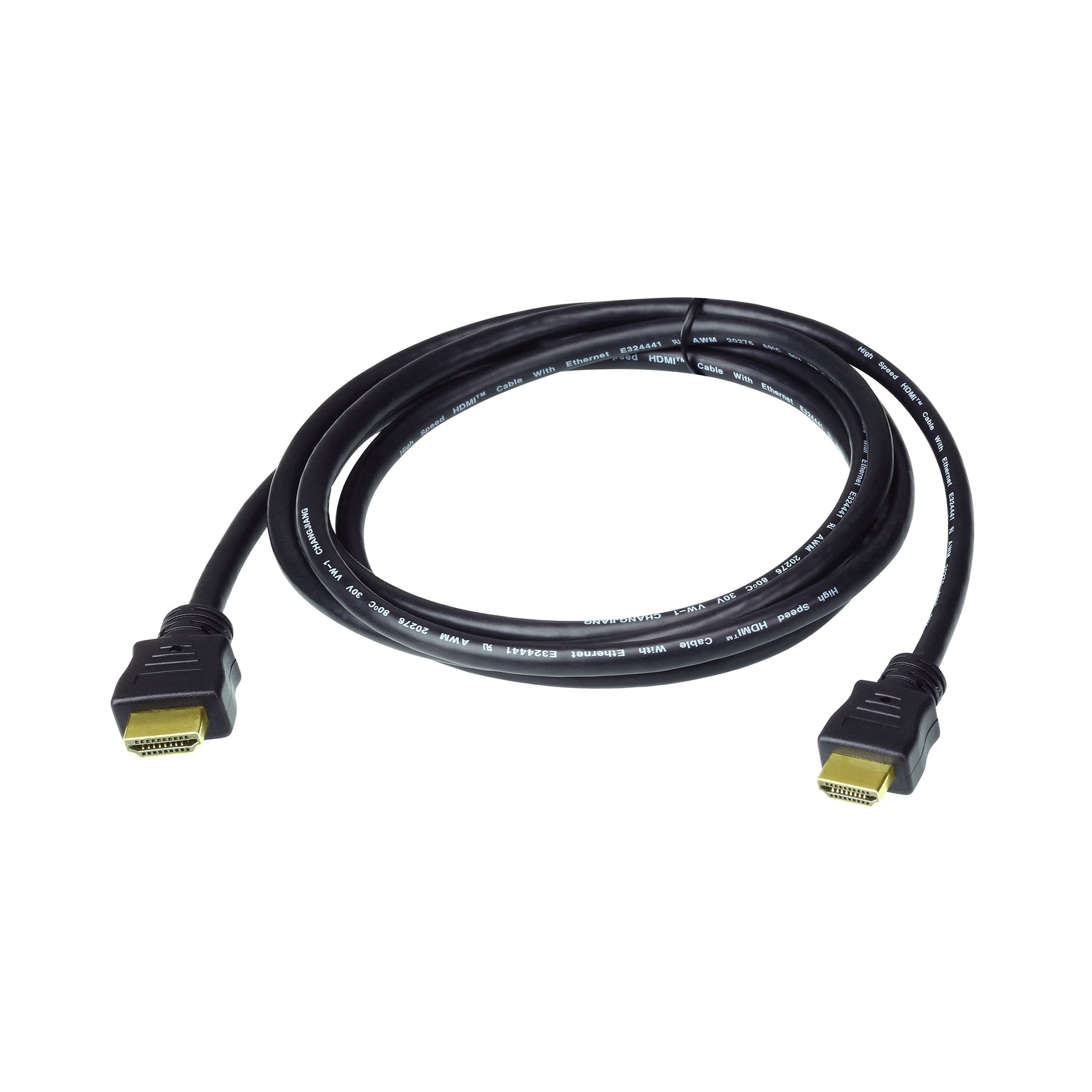

ATEN High Speed True 4K HDMI Cable with Ethernet, 0.6 m to 5 m
PRODUCT DESCRIPTION
ATEN High Speed True 4K HDMI Cable with Ethernet, 0.6 m to 5 m - 2 Years Local Warranty
True 4K at 60 Hz with Full 4:4:4 Colour
ATEN's 2L-7DxxH High Speed HDMI cables are rated for True 4K: 4096 x 2160 and 3840 x 2160 at 60 Hz with 4:4:4 chroma, so text and fine detail stay sharp on 4K monitors, projectors and TVs. They support HDMI 3D, Deep Color and HDCP 2.2 for protected 4K content.
Five Lengths for Desk, Rack and Room

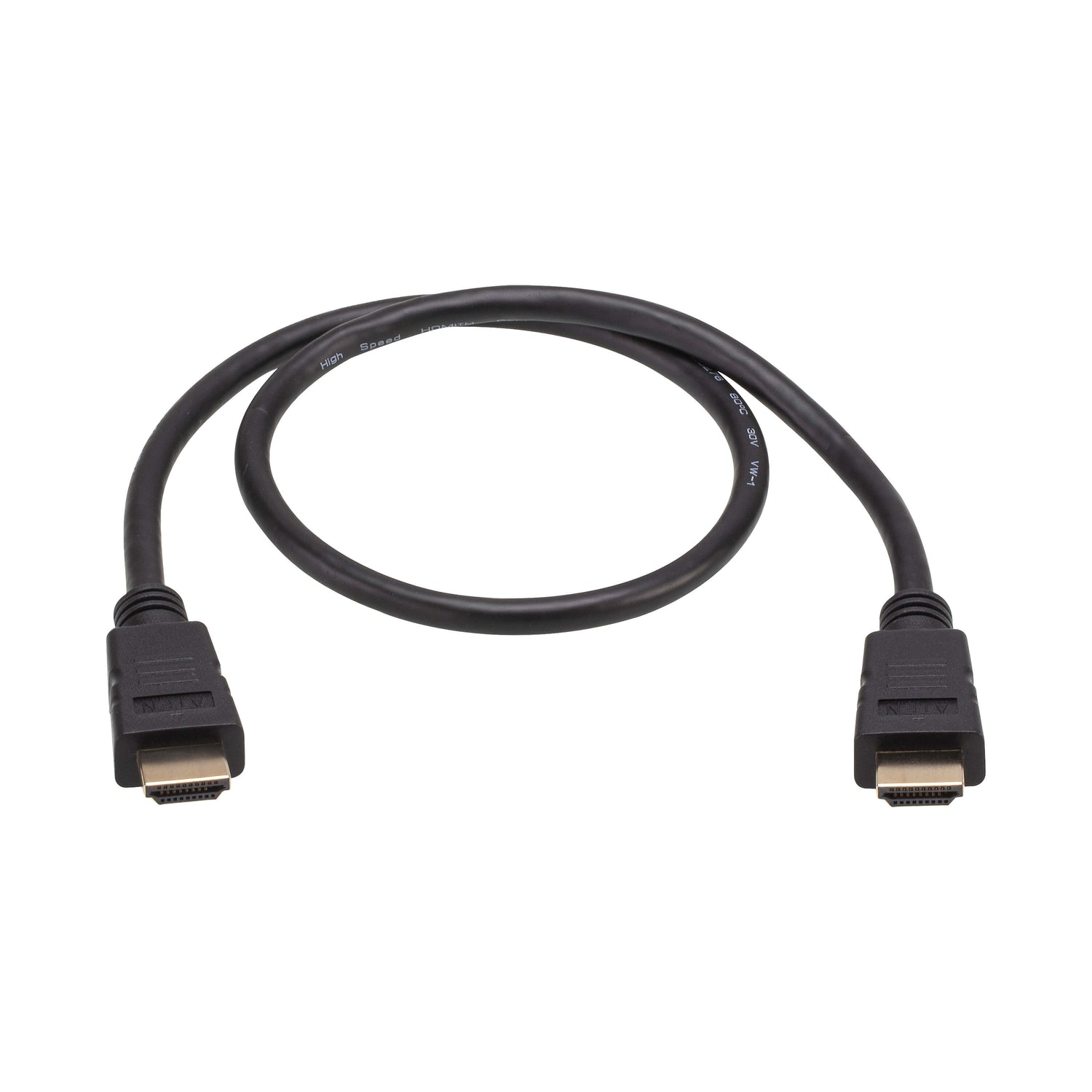

Pick the 0.6 m cable for short patch runs in a rack or behind a TV, 1 m to 3 m for desks and meeting tables, or the 5 m cable to reach a wall display or ceiling projector.
HDMI Ethernet Channel
The cables carry the HDMI Ethernet Channel, a dedicated data channel that lets compatible HDMI devices share a network connection over the same cable.
Built for Reliable Connections

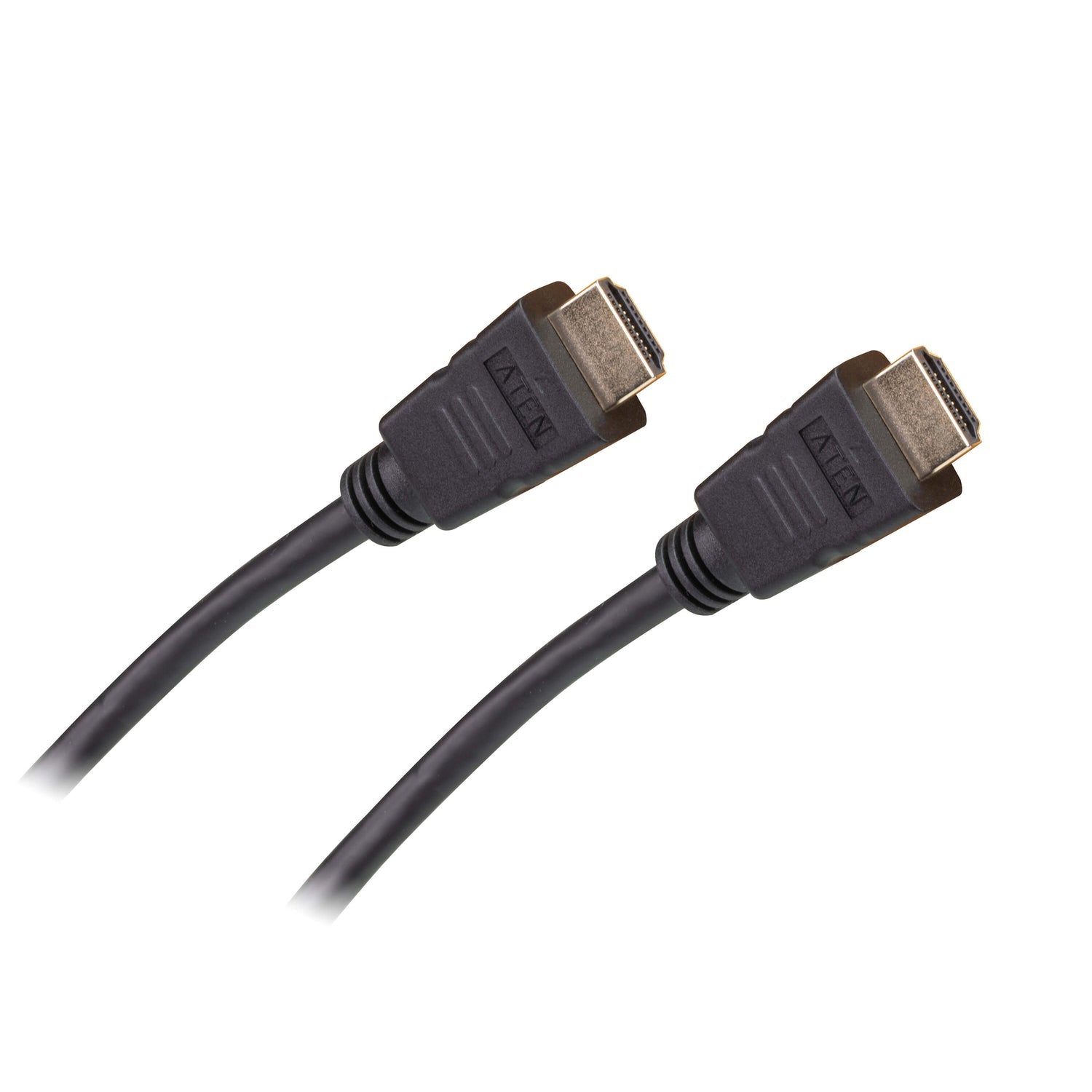

Gold-plated HDMI connectors, tinned copper conductors with aluminium foil shielding and a PVC jacket rated UL VW-1 and CSA. The 5 m 2L-7D05H-1 uses heavier 26 AWG conductors to hold True 4K over the longer run.
Cabling a room or a batch of workstations? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ATEN 2L-7DA6H / 2L-7D01H / 2L-7D02H-1 / 2L-7D03H / 2L-7D05H-1 Datasheet — Technical Specifications
General
| Product Name | ATEN High Speed True 4K HDMI Cable with Ethernet |
| Models | 2L-7DA6H (0.6 m), 2L-7D01H (1 m), 2L-7D02H-1 (2 m), 2L-7D03H (3 m), 2L-7D05H-1 (5 m) |
| Order Codes | 2L-7DA6H, 2L-7D01H, 2L-7D02H-1, 2L-7D03H, 2L-7D05H-1 |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Common Specifications
| Connectors | HDMI (19-pin) Male to HDMI (19-pin) Male |
| Max. Video Resolution | True 4K: 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4) |
| HDMI Features | HDMI Ethernet Channel, 3D, Deep Color, 4K |
| HDCP | HDCP 2.2 |
| Connector Plating | Gold |
| Conductor Material | Tinned copper |
| Cable Shield | Aluminium foil |
| Cable Jacket | PVC, black |
| Temperature Rating | 80 °C |
| Rating | UL VW-1 (flame rating), CSA |
Per-Length Differences
| 2L-7DA6H (0.6 m) | 30 AWG; cable OD 6.0 ± 0.15 mm |
| 2L-7D01H (1 m) | 30 AWG; cable OD 6.0 ± 0.15 mm |
| 2L-7D02H-1 (2 m) | 30 AWG; cable OD 6.0 ± 0.20 mm |
| 2L-7D03H (3 m) | 30 AWG; cable OD 6.0 ± 0.20 mm |
| 2L-7D05H-1 (5 m) | 26 AWG; cable OD 8.0 ± 0.20 mm; supports HDR |
Compatibility & Applications
Typical Devices
PCs, laptops and mini PCs with HDMI output, media players, game consoles, document cameras and AV switchers connected to 4K monitors, TVs and projectors.
Typical Use
Desk setups, meeting room displays, digital signage and short patch links between HDMI splitters, switches and extenders in AV racks.
Choosing a Length
Use the shortest length that reaches comfortably. For runs beyond 5 m at 4K, consider an ATEN HDMI booster or extender rather than a longer passive cable.
Package Contents & ATEN HDMI Cable Ordering Information
In the Box
One HDMI cable of the selected length (for example, 1 x 2L-7D01H 1 m High Speed True 4K HDMI Cable with Ethernet).
Available Options
| Option | Order code |
| 0.6 m | 2L-7DA6H |
| 1 m | 2L-7D01H |
| 2 m | 2L-7D02H-1 |
| 3 m | 2L-7D03H |
| 5 m | 2L-7D05H-1 |
ATEN HDMI Cable Models
| Model | Key feature |
| 2L-7DA6H | 0.6 m True 4K HDMI cable with Ethernet |
| 2L-7D01H (this listing) | 1 m True 4K HDMI cable with Ethernet |
| 2L-7D02H-1 | 2 m True 4K HDMI cable with Ethernet |
| 2L-7D03H | 3 m True 4K HDMI cable with Ethernet |
| 2L-7D05H-1 | 5 m True 4K HDMI cable, 26 AWG |
| 2L-7D05H | 5 m High Speed HDMI cable, 4K@30Hz |
| 2L-7D10H | 10 m High Speed HDMI cable, 4K@30Hz |
| 2L-7D02H21 | 1.8 m Ultra High Speed HDMI cable |
Datasheet & Downloads
| Datasheet (1 m to 5 m) | 2L-7D01H / 7D02H-1 / 7D03H / 7D05H-1 Datasheet (PDF) |
| Datasheet (0.6 m) | 2L-7DA3H / 2L-7DA6H Datasheet (PDF) |
| ATEN product page | 2L-7D01H on aten.com |
| ATEN product page | 2L-7D05H-1 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 2L-7DA6H, 2L-7D01H, 2L-7D02H-1, 2L-7D03H or 2L-7D05H-1.
Frequently Asked Questions — ATEN 2L-7DA6H / 2L-7D01H / 2L-7D02H-1 / 2L-7D03H / 2L-7D05H-1
Will these cables carry 4K at 60 Hz?
Yes. All five lengths are rated for True 4K, 4096 x 2160 and 3840 x 2160 at 60 Hz with 4:4:4 colour.
Do they support HDCP 2.2?
Yes. ATEN lists HDCP 2.2 support, so they work with protected 4K content from compliant sources.
What is the difference between 2L-7D05H-1 and 2L-7D05H?
Both are 5 m. The 2L-7D05H-1 in this listing is the True 4K version (4K@60Hz, 26 AWG, HDR). The 2L-7D05H is a High Speed cable rated to 4096 x 2160 at 30 Hz.
Can I use them with HDMI splitters and switches?
Yes. They are standard HDMI male-to-male cables suitable for linking sources, splitters, switches and displays.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
