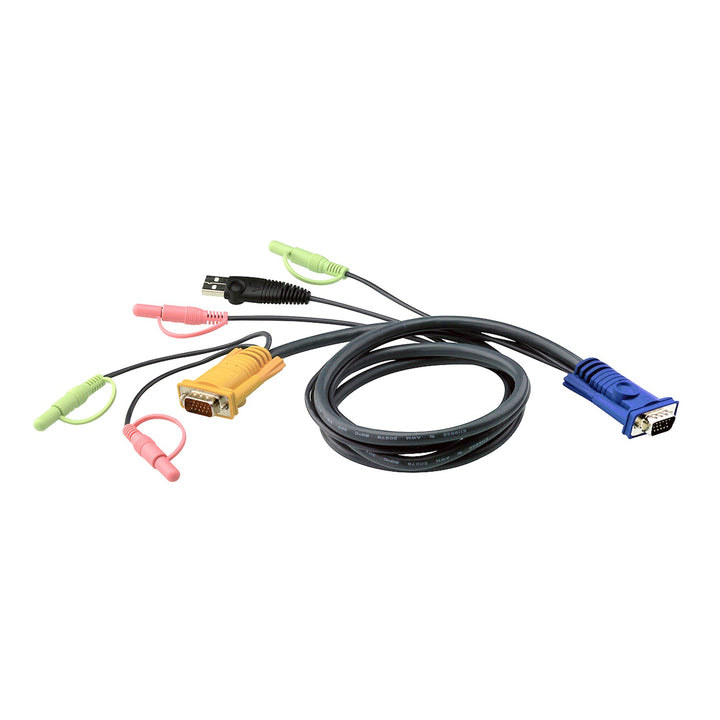

ATEN 2L-5305U 5 m USB KVM Cable with 3-in-1 SPHD and Audio
PRODUCT DESCRIPTION
ATEN 2L-5305U 5 m USB KVM Cable with 3-in-1 SPHD and Audio - 2 Years Local Warranty
VGA, USB and Audio to a 3-in-1 SPHD Port
The ATEN 2L-5305U links a computer's VGA, USB and microphone/speaker ports to an ATEN KVM switch or extender with a 3-in-1 SPHD-15 connector plus audio plugs, in one 5 m cable.
Reach Across the Room or Rack
The 5 m length gives flexibility to place the computer away from the KVM switch, KVM extender or console, under a desk or in a nearby cabinet.
Matched to ATEN Audio KVM Products
ATEN lists this cable for the CS1732B and CS1734B KVMP switches, the CE750A, CE770, CE774 and CE775 KVM extenders, and the CL3100 LCD console.
Need cables for several KVM workstations or extenders? Email sales@sourceit.com.sg for a project quote.
ATEN 2L-5305U Datasheet — Technical Specifications
General
| Product Name | ATEN 5M USB KVM Cable with 3 in 1 SPHD and Audio |
| Model | 2L-5305U |
| Order Code | 2L-5305U |
| Local Warranty (Singapore) | 2 years carry-in warranty |
PC Side Connectors
| Video | HDB-15 Male (VGA) |
| USB | USB Type-A Male |
| Audio | Mini stereo jack (mic & speaker plugs) |
Switch Side Connectors
| KVM Port | SPHD-15 Male (3-in-1 keyboard/mouse/video) |
| Audio | Mini stereo jack (mic & speaker plugs) |
Physical
| Cable Length | 5 m (16 ft) |
Compatibility & Applications
Compatible ATEN Products
CS1732B and CS1734B PS/2-USB VGA/audio KVMP switches; CE750A, CE770, CE774 and CE775 USB VGA Cat 5 KVM extenders; CL3100 LCD console.
Typical Use
Connecting USB computers with VGA video and analogue audio to an ATEN audio-enabled KVM switch or KVM extender local unit.
Selection Tip
If you don't need audio, the 2L-5205U is the 5 m USB SPHD cable without audio. For PS/2 computers use the 2L-5206P.
Package Contents & ATEN KVM Cable Ordering Information
In the Box
Contents as supplied by ATEN; email sales@sourceit.com.sg to confirm package contents.
ATEN SPHD KVM Cable Models
| Model | Key feature |
| 2L-5305U (this listing) | 5 m USB KVM cable with 3-in-1 SPHD and audio |
| 2L-5202U | 1.8 m USB KVM cable with 3-in-1 SPHD |
| 2L-5203U | 3 m USB KVM cable with 3-in-1 SPHD |
| 2L-5205U | 5 m USB KVM cable with 3-in-1 SPHD |
| 2L-5206UP | 6 m USB KVM cable with 3-in-1 SPHD and PS/2 to USB converter |
| 2L-5206P | 6 m PS/2 KVM cable with 3-in-1 SPHD |
| 2L-5302UP | 1.8 m PS/2-USB KVM cable |
Datasheet & Downloads
| ATEN product page | 2L-5305U on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 2L-5305U.
Frequently Asked Questions — ATEN 2L-5305U
Does this cable carry audio?
Yes. Both ends have microphone and speaker mini stereo plugs.
Is it USB or PS/2 on the computer side?
USB Type-A, plus VGA (HDB-15) and audio.
Which ATEN switches is it for?
ATEN lists the CS1732B and CS1734B KVMP switches, CE750A/CE770/CE774/CE775 KVM extenders and the CL3100 console.
Is there a version without audio?
Yes, the 2L-5205U is 5 m without audio.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
