ATEN PS/2-USB KVM Cable with SPHD, 1.8 m / 6 m (2L-5302UP / 2L-5206UP)
PRODUCT DESCRIPTION
ATEN PS/2-USB KVM Cable with SPHD, 1.8 m / 6 m (2L-5302UP / 2L-5206UP) - 2 Years Local Warranty
Two Cables for Mixed PS/2 and USB Environments
These ATEN SPHD KVM cables help connect USB computers to KVM switches and consoles in installations that mix PS/2 and USB. Each combines keyboard, mouse and video into a single SPHD connector at the switch end.
2L-5302UP: 1.8 m PS/2-USB Hybrid

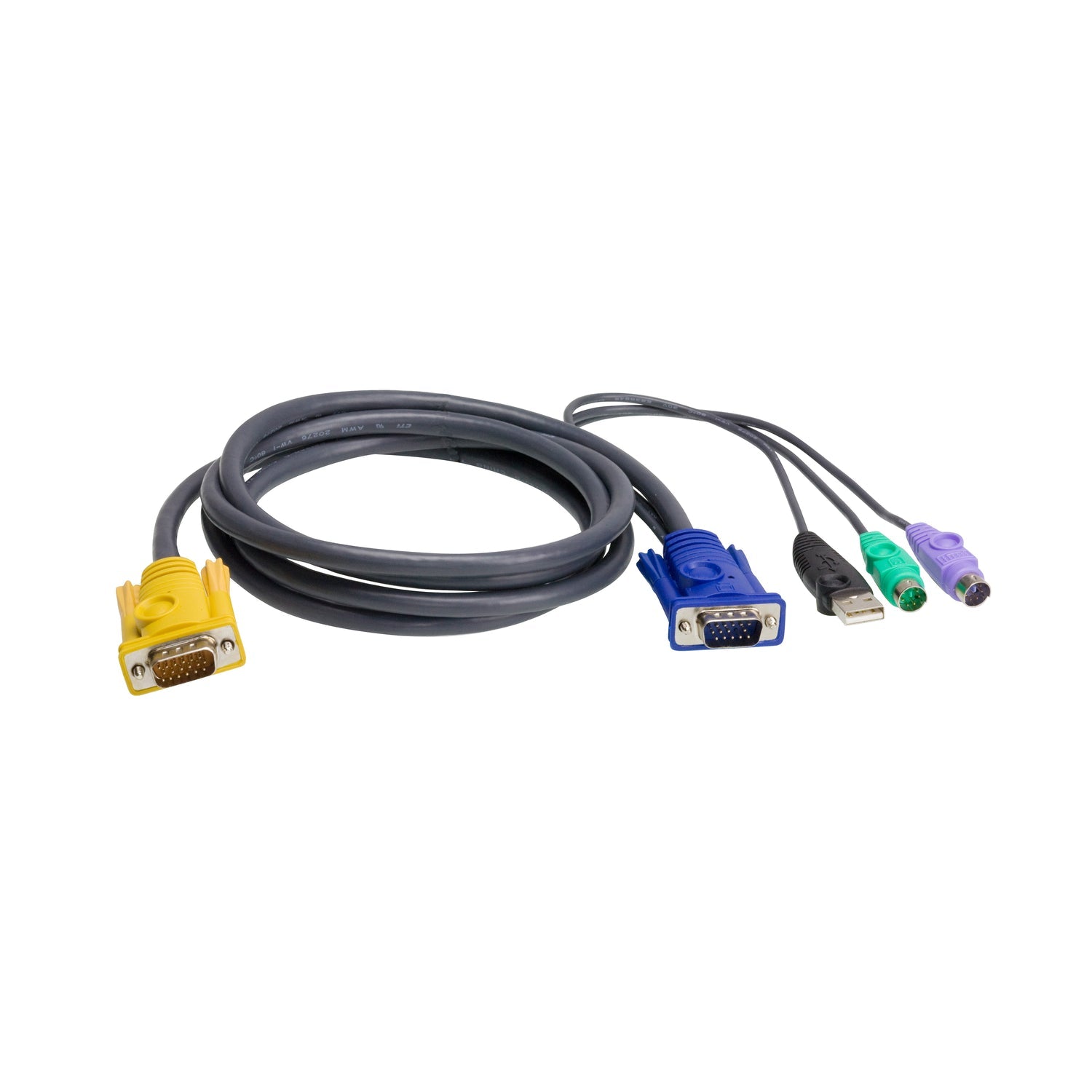

The 1.8 m 2L-5302UP has a VGA (HDB-15) male, a USB Type-A male and a PS/2 6-pin mini-DIN male at the computer end, and an SPHD-18 male at the switch end, so it can serve computers with either USB or PS/2 keyboard and mouse.
2L-5206UP: 6 m with Built-in PS/2-to-USB Converter

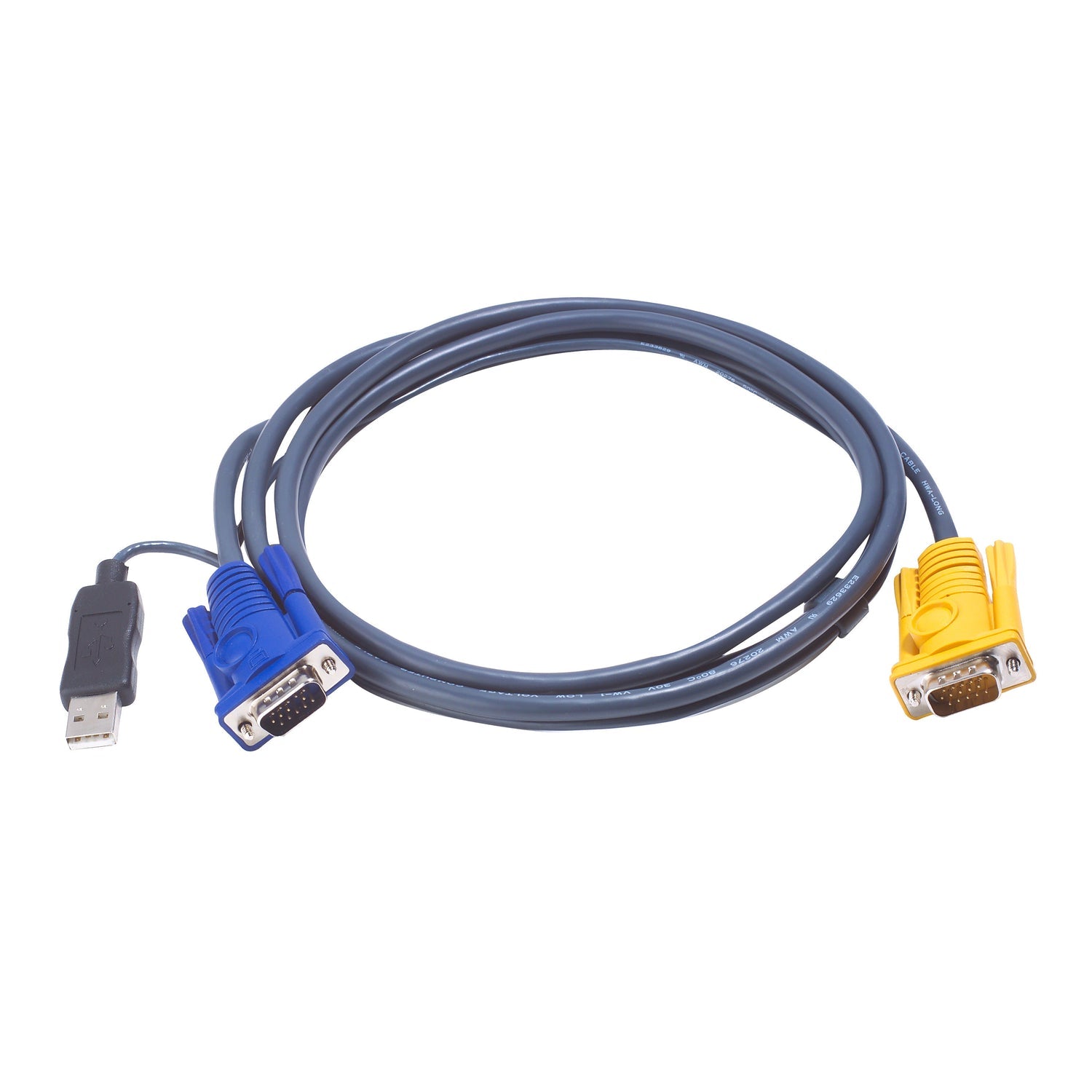

The 6 m 2L-5206UP connects a USB computer (VGA + USB Type-A) to a PS/2 KVM port via an SPHD-15 male connector, with a built-in PS/2-to-USB converter. ATEN lists it for products such as the CL1000, CL1008, CL1016, CE370, ACS1208A and CS231TK.
Tidy Cabling
One cable per computer replaces separate video, keyboard and mouse leads, keeping racks and desks easier to manage.
Not sure which KVM cable suits your switch? Email sales@sourceit.com.sg with your switch model for configuration advice.
ATEN 2L-5302UP / 2L-5206UP Datasheet — Technical Specifications
General
| Product Name | ATEN PS/2-USB KVM Cable with SPHD |
| Models | 2L-5302UP (1.8 m), 2L-5206UP (6 m) |
| Order Codes | 2L-5302UP, 2L-5206UP |
| Local Warranty (Singapore) | 2 years carry-in warranty |
2L-5302UP (1.8 m)
| Product Name | 1.8 m PS/2-USB KVM Cable |
| Computer End | 1 x HDB-15 (VGA) Male, 1 x USB Type-A Male, 1 x 6-pin mini-DIN (PS/2) Male |
| Switch End | 1 x SPHD-18 Male (3-in-1 keyboard / mouse / video) |
| Cable Length | 1.8 m (6 ft) |
| Compatibility (examples listed by ATEN) | CS82U, CS84U, CS1308, CS1316, KN1000A, CN8000A, CN9000, CL5800, CL5808, CL5816, KA7174 |
2L-5206UP (6 m)
| Product Name | 6 m USB KVM Cable with 3-in-1 SPHD and built-in PS/2 to USB converter |
| Computer End | 1 x HDB-15 (VGA) Male, 1 x USB Type-A Male |
| Switch End | 1 x SPHD-15 Male (3-in-1 keyboard / mouse / video) |
| Converter | Built-in PS/2 to USB converter |
| Cable Length | 6 m (20 ft) |
| Compatibility (examples listed by ATEN) | CE370, CL1000, CL1008, CL1016, ACS1208A, CS231TK |
Compatibility & Applications
Typical Devices
Servers and PCs with VGA video connected to ATEN KVM switches, LCD consoles and extenders with SPHD ports.
Typical Use
Server racks and control rooms that still run PS/2-based KVM equipment alongside newer USB computers.
Selection Tip
The two cables use different switch-end connectors (SPHD-18 vs SPHD-15) and suit different ATEN switches. Check ATEN's KVM Cables Table or send us your switch model before ordering.
Package Contents & ATEN KVM Cable Ordering Information
In the Box
Contents as supplied by ATEN; email sales@sourceit.com.sg to confirm package contents.
Available Options
| Option | Order code |
| 1.8 m | 2L-5302UP |
| 6 m | 2L-5206UP |
ATEN KVM Cable Models
| Model | Key feature |
| 2L-5302UP (this listing) | 1.8 m PS/2-USB hybrid KVM cable |
| 2L-5206UP (this listing) | 6 m USB KVM cable, built-in PS/2-to-USB converter |
| 2L-5202U | 1.8 m USB VGA SPHD KVM cable |
| 2L-5203U | 3 m USB VGA SPHD KVM cable |
| 2L-5205U | 5 m USB VGA SPHD KVM cable |
| 2L-5206P | 6 m PS/2 VGA KVM cable |
| 2L-5305U | PS/2-USB VGA SPHD KVM cable |
Datasheet & Downloads
| ATEN product page | 2L-5302UP on aten.com |
| ATEN product page | 2L-5206UP on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 2L-5302UP or 2L-5206UP.
Frequently Asked Questions — ATEN 2L-5302UP / 2L-5206UP
What is the difference between the two cables?
The 2L-5302UP is 1.8 m with USB and PS/2 connectors at the computer end and an SPHD-18 connector at the switch. The 2L-5206UP is 6 m, connects a USB computer, uses an SPHD-15 switch connector and has a built-in PS/2-to-USB converter.
Can I connect a USB-only computer to a PS/2 KVM switch?
That is what the 2L-5206UP is for: its built-in converter lets a USB computer work with supported PS/2 ATEN switches such as the CL1000 series and CE370.
Which switch do I need for the 2L-5302UP?
An ATEN product with SPHD-18 ports; ATEN lists models such as the CS1308 / CS1316, CL5800 / CL5808 / CL5816, KN1000A and CN8000A.
Does either cable carry audio?
No. Both carry keyboard, mouse and VGA video only.
