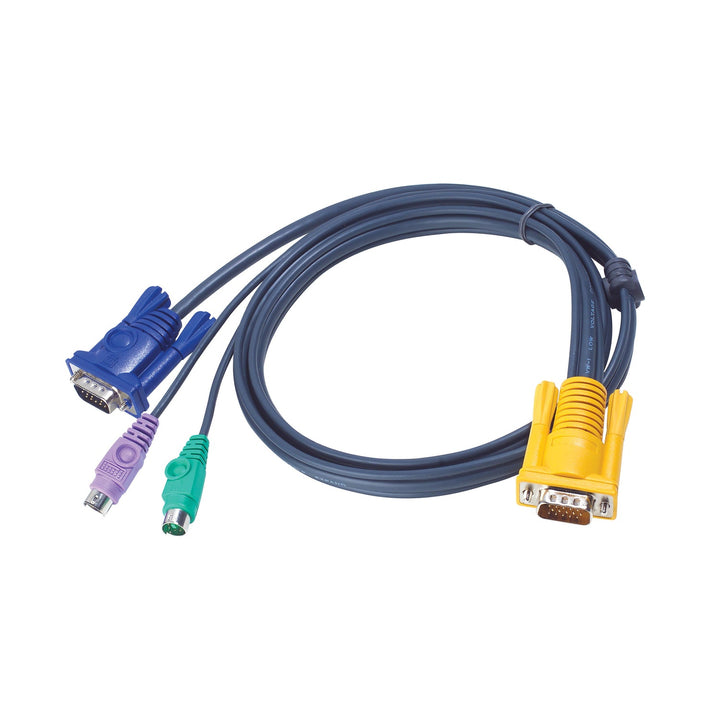

ATEN 2L-5206P 6 m PS/2 KVM Cable with 3-in-1 SPHD
PRODUCT DESCRIPTION
ATEN 2L-5206P 6 m PS/2 KVM Cable with 3-in-1 SPHD - 2 Years Local Warranty
Long-Reach PS/2 KVM Cable
The ATEN 2L-5206P connects a computer's VGA and PS/2 keyboard/mouse ports to an ATEN KVM switch through a single 3-in-1 SPHD-15 connector, with a 6 m length for servers further down the rack or in a neighbouring cabinet.
3-in-1 SPHD for Clean Cabling
Keyboard, mouse and video are combined in one SPHD-15 plug at the switch end, keeping KVM switch back panels neat and easy to service.
Slim Cable
ATEN's slim cable design makes the 6 m run easier to route through cable managers and rack arms.
Cabling a rack of PS/2 servers to an ATEN KVM? Email sales@sourceit.com.sg for a project quote.
ATEN 2L-5206P Datasheet — Technical Specifications
General
| Product Name | ATEN 6M PS/2 KVM Cable with 3 in 1 SPHD |
| Model | 2L-5206P |
| Order Code | 2L-5206P |
| Local Warranty (Singapore) | 2 years carry-in warranty |
PC Side Connectors
| Video | HDB-15 Male (VGA) |
| Keyboard / Mouse | 6-pin mini-DIN Male (PS/2) |
Switch Side Connector
| KVM Port | SPHD-15 Male (3-in-1 keyboard/mouse/video) |
Physical
| Cable Length | 6 m (20 ft), slim |
Compatibility & Applications
Compatible ATEN Products
ATEN lists this cable for: ACS1208A, CS1308, CS1316, CS1708A, CS1716A, CS1708i, CS1716i, CS231TK, KN1000A, CN8000A, RCM101A, and the CL1000, CL1008, CL1016, CL1308, CL1316, CL3108, CL3116, CL5708, CL5716, CL5708I, CL5716I, CL5800, CL5808 and CL5816 LCD KVM consoles.
Typical Use
Connecting servers and PCs with PS/2 keyboard/mouse ports to ATEN rack-mount and LCD KVM switches in server rooms and data centres.
Selection Tip
For computers with USB keyboard/mouse instead of PS/2, choose a USB SPHD cable such as the 2L-5202U, 2L-5203U or 2L-5205U, or the 2L-5206UP for 6 m.
Package Contents & ATEN KVM Cable Ordering Information
In the Box
Contents as supplied by ATEN; email sales@sourceit.com.sg to confirm package contents.
ATEN SPHD KVM Cable Models
| Model | Key feature |
| 2L-5206P (this listing) | 6 m PS/2 KVM cable with 3-in-1 SPHD |
| 2L-5206UP | 6 m USB KVM cable with 3-in-1 SPHD and PS/2 to USB converter |
| 2L-5202U | 1.8 m USB KVM cable with 3-in-1 SPHD |
| 2L-5203U | 3 m USB KVM cable with 3-in-1 SPHD |
| 2L-5205U | 5 m USB KVM cable with 3-in-1 SPHD |
| 2L-5305U | 5 m USB KVM cable with 3-in-1 SPHD and audio |
| 2L-5302UP | 1.8 m PS/2-USB KVM cable |
Datasheet & Downloads
| ATEN product page | 2L-5206P on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 2L-5206P.
Frequently Asked Questions — ATEN 2L-5206P
Does this cable work with USB-only computers?
No. The computer end has PS/2 keyboard/mouse plugs. For USB computers, use a USB SPHD cable such as the 2L-5205U or 2L-5206UP.
What connects to the KVM switch?
A single SPHD-15 male 3-in-1 connector carrying keyboard, mouse and video.
Is it compatible with my CS1708A?
Yes, ATEN lists the CS1708A and CS1716A among the compatible switches.
Does it carry audio?
No. For audio, the 2L-5305U (USB with audio) suits switches such as the CS1732B and CS1734B.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
