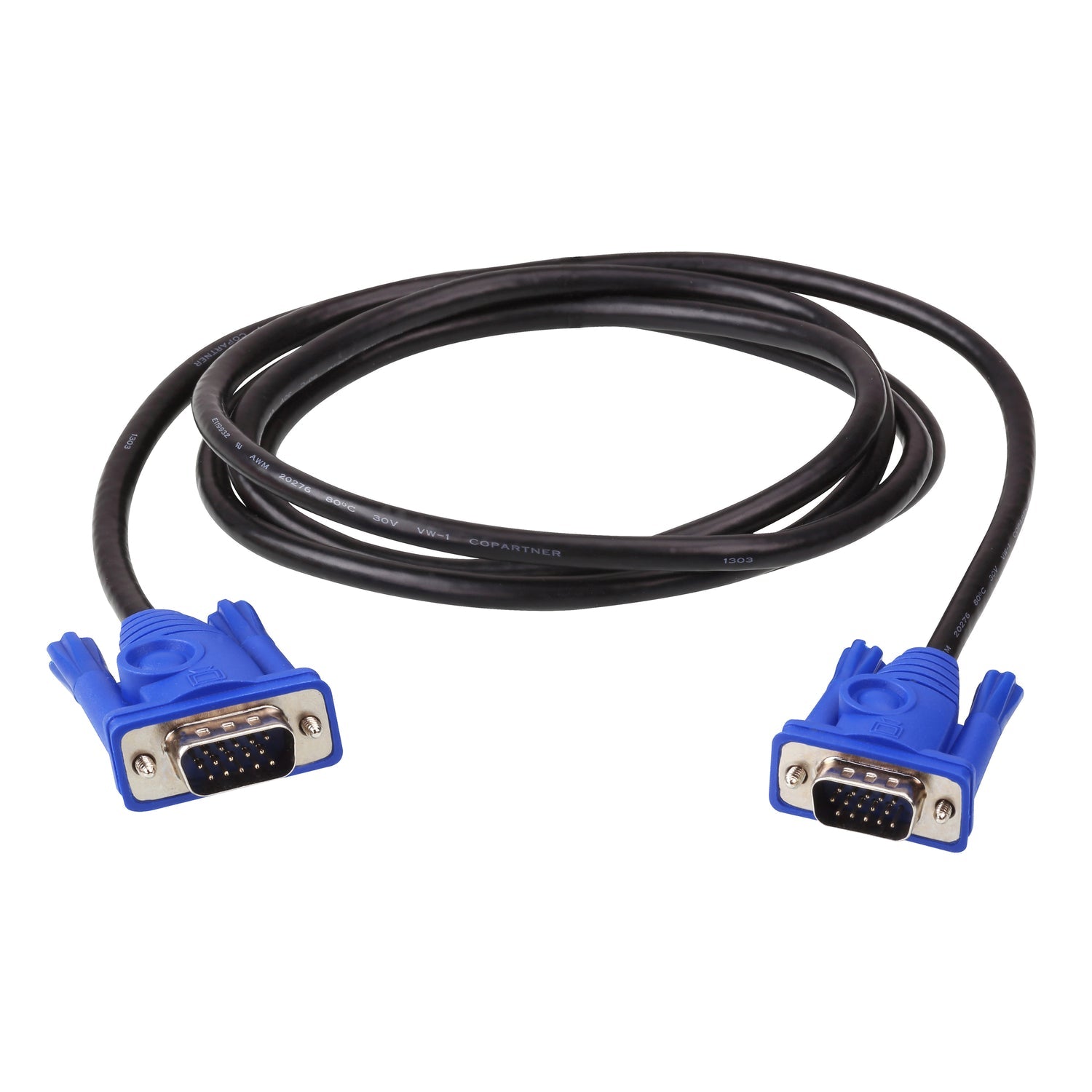

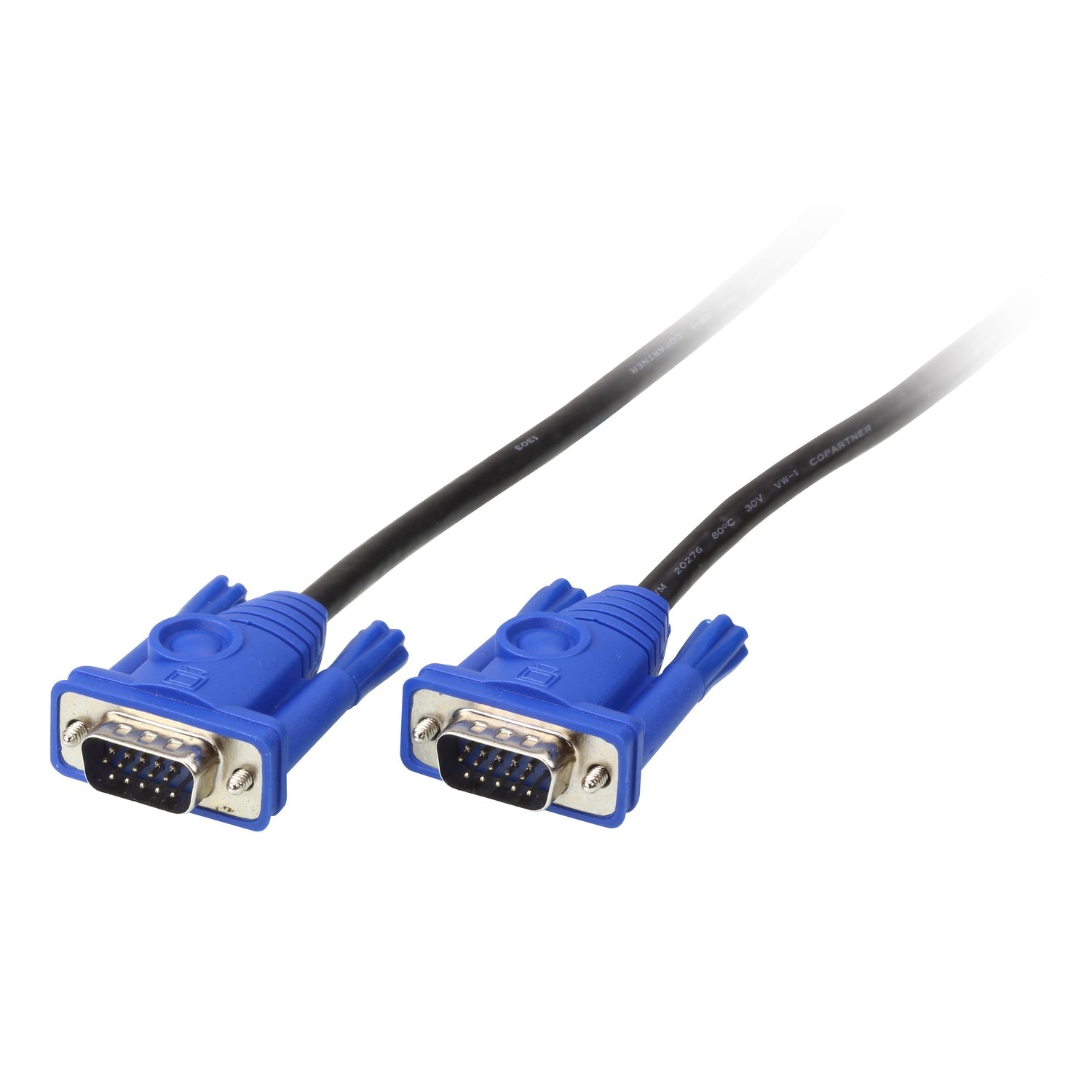

ATEN VGA Cable HDB-15 Male to Male, 2 m / 3 m (2L-2502 / 2L-2503)
PRODUCT DESCRIPTION
ATEN VGA Cable HDB-15 Male to Male, 2 m / 3 m (2L-2502 / 2L-2503) - 2 Years Local Warranty
Clean Analogue Video up to 1920 x 1200
ATEN's 2L-25xx VGA cables are designed for high-resolution analogue video up to 1920 x 1200, helping reduce ghosting and fuzzy images on VGA monitors and projectors.
Shielded Construction
30 AWG tinned copper conductors inside a PVC jacket with Al-Mylar shielding protect the signal from interference in busy equipment areas.
Two Practical Lengths
Choose 2 m for desk and monitor connections or 3 m to reach a PC under the desk, a KVM switch or a nearby projector.
Durable for Everyday Use
ATEN bend-tests the cable to 3,000 swings at ±60°, so it holds up to repeated plugging and cable management.
Keeping legacy VGA equipment running across a site? Email sales@sourceit.com.sg for volume pricing.
ATEN 2L-2502 / 2L-2503 Datasheet — Technical Specifications
General
| Product Name | ATEN VGA Cable |
| Models | 2L-2502 (2 m), 2L-2503 (3 m) |
| Order Codes | 2L-2502, 2L-2503 |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Specifications
| Connectors | HDB-15 Male to HDB-15 Male |
| Max. Resolution | Up to 1920 x 1200 |
| Conductor | 30 AWG tinned copper |
| Jacket | PVC |
| Shielding | Al-Mylar |
| Bend Test | 3,000 swings at ±60° |
| Cable Length | 2L-2502: 2 m; 2L-2503: 3 m |
Compatibility & Applications
Typical Devices
PCs, servers, laptops and KVM switches with VGA (HDB-15) ports, connected to VGA monitors, projectors and LCD consoles.
Typical Use
Server rooms, legacy workstations, classroom projectors and VGA KVM switch installations.
Selection Tip
Both ends are VGA male. If your source has HDMI or DisplayPort only, use an ATEN video adapter instead of a VGA cable.
Package Contents & ATEN VGA Cable Ordering Information
In the Box
2L-2502: 1 x 2L-2502 2 m VGA Cable. 2L-2503: 1 x 2L-2503 3 m VGA Cable.
Available Options
| Option | Order code |
| 2 m | 2L-2502 |
| 3 m | 2L-2503 |
ATEN VGA Cables and Adapters
| Model | Key feature |
| 2L-2502 (this listing) | 2 m VGA cable, HDB-15 M/M |
| 2L-2503 (this listing) | 3 m VGA cable, HDB-15 M/M |
| VC920 | Mini DisplayPort to VGA adapter |
| VC925 | DisplayPort to VGA adapter |
| VC810 | HDMI to VGA adapter |
| UC3002A | USB-C to VGA adapter |
Datasheet & Downloads
| Datasheet | 2L-25xx VGA Cable Datasheet (PDF) |
| ATEN product page | 2L-2502 on aten.com |
| ATEN product page | 2L-2503 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 2L-2502 or 2L-2503.
Frequently Asked Questions — ATEN 2L-2502 / 2L-2503
What resolution does the cable support?
ATEN designs these cables for high-resolution analogue video up to 1920 x 1200.
Are both ends male?
Yes, HDB-15 (VGA) male on both ends.
Does it carry audio?
No. VGA is a video-only connection; audio needs a separate cable.
Can I use it with a VGA KVM switch?
Yes. It is a standard VGA cable suitable for connecting a monitor to a VGA KVM switch console port.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
