ATEN 2A-245G Cat 6A RJ-45 Connector (Pack of 10)
PRODUCT DESCRIPTION
ATEN 2A-245G Cat 6A RJ-45 Connector (Pack of 10) - 2 Years Local Warranty
Tool-less Field Termination

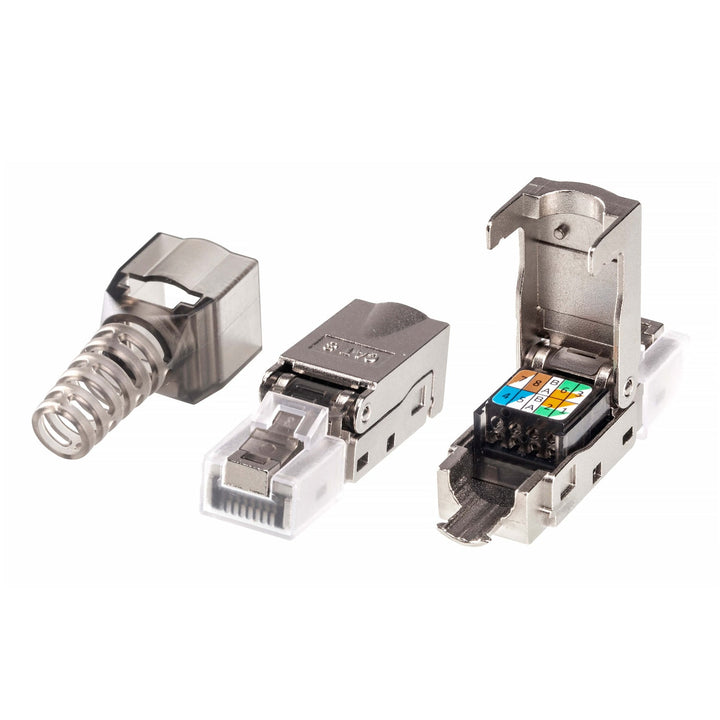

The 2A-245G is a metal-shielded Cat 6A RJ-45 plug that terminates without a crimping tool. A colour-coded cable holder guides each pair, and the connector can be re-installed if a termination needs redoing.
Ready for 10G and Beyond
Supports transfer rates over 10G, accepts Cat 6A to Cat 8 cable with 22–26 AWG conductors, and is suitable for PoE and HDBaseT PoH applications. FCC Part 68 compliant.
Robust Shielded Build
One-piece die-cast zinc alloy shield with nickel plating, 0.35 mm phosphor bronze contacts gold-plated over nickel, more than 750 mating cycles and an operating range of -40 to 60 °C.
Strain Relief and Dust Cover
A screw-on strain relief boot protects the cable entry, and an IP20 dust cover keeps the plug clean before use. Supplied in a pack of 10.
Terminating a large HDBaseT or network install? Email sales@sourceit.com.sg for project pricing and delivery lead time.
ATEN 2A-245G Datasheet — Technical Specifications
General
| Product Name | ATEN Cat 6A RJ-45 Connector |
| Model | 2A-245G |
| Order Code | 2A-245G (pack of 10) |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Performance
| Category | Cat 6A, metal-shielded |
| Transfer Rate | Supports over 10G |
| Compatible Cable | Cat 6A – Cat 8 |
| Wire Gauge | 22–26 AWG |
| Applications | PoE / PoH |
| Compliance | FCC Part 68; RoHS / REACH |
Electrical
| DC Resistance | Max. 0.1 Ω |
| Insulation Resistance | 500 MΩ |
| Contact Resistance | 20 mΩ |
| DC Current Rating | 1.5 A |
| Dielectric Withstanding Voltage | 1000 V |
| Mating Cycles | > 750 |
Environmental
| Operating Temperature | -40–60 °C |
Physical
| Housing | ABS + PC, UL94V-0 |
| Contacts | 0.35 mm phosphor bronze, gold-plated over nickel |
| Shield | Zinc alloy, nickel-plated |
| Installation | Tool-less, colour-coded cable holder, re-installable |
| Accessories | Screw-on strain relief boot; IP20 dust cover |
| Weight | 0.01 kg |
| Dimensions (L x W x H) | 4.56 x 1.38 x 1.25 cm |
Compatibility & Applications
Typical Cable
Shielded Cat 6A, Cat 7 and Cat 8 installation cable with 22–26 AWG conductors.
Typical Use
Terminating HDBaseT and Cat 6A AV extender runs, 10G network links, PoE cameras and access points, and field repairs where crimp tools are not to hand.
Selection Tip
Pair with ATEN Cat 6A-class extenders such as the UCE33100 USB 3.2 extender or HDBaseT extenders, which need well-terminated shielded cabling for full distance.
Package Contents & ATEN Cat 6A Connector Ordering Information
In the Box
10 x 2A-245G Cat 6A RJ-45 connectors.
ATEN Cat Cable Connectivity Models
| Model | Key feature |
| 2A-245G (this listing) | Cat 6A shielded tool-less RJ-45 connector, pack of 10 |
| UCE33100 | 4-port USB 3.2 Gen 1 Cat 6A extender |
| VE1821 | 4K HDMI Cat 6 extender |
| VE811 | HDMI HDBaseT extender |
| CE801 | USB True 4K HDMI Cat 6 KVM extender |
| UCE3250 | 4-port USB 2.0 Cat 5 extender, up to 50 m |
Datasheet & Downloads
| Datasheet | 2A-245G Datasheet (PDF) |
| ATEN product page | 2A-245G on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 2A-245G.
Frequently Asked Questions — ATEN 2A-245G
How many connectors are in one order?
One order code 2A-245G is a pack of 10 connectors.
Do I need a crimping tool?
No. The connector is tool-less, with a colour-coded cable holder, and can be re-installed.
Which cable can I use?
Cat 6A to Cat 8 cable with 22–26 AWG conductors.
Is it suitable for PoE?
Yes. ATEN lists PoE and PoH support.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
